Description

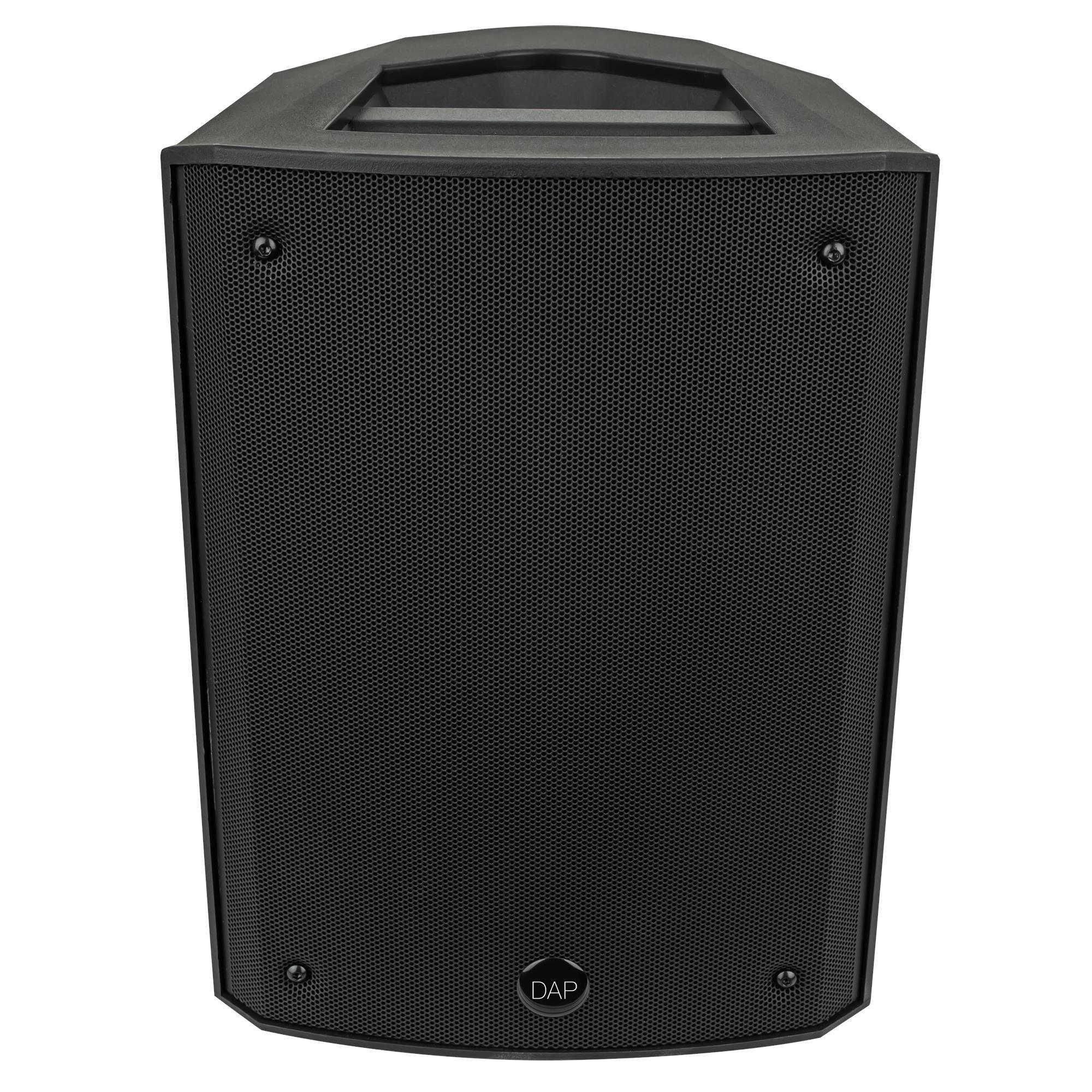

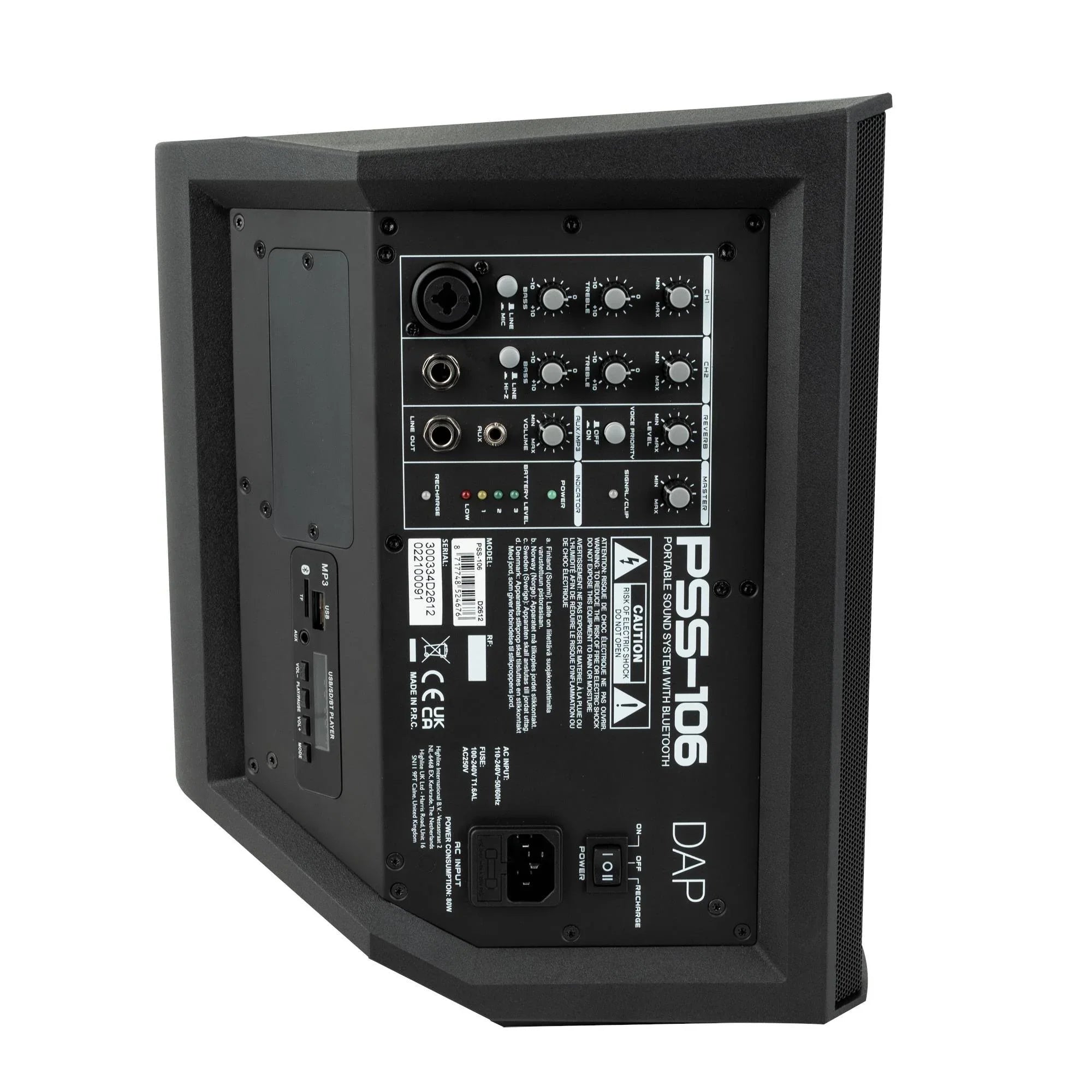

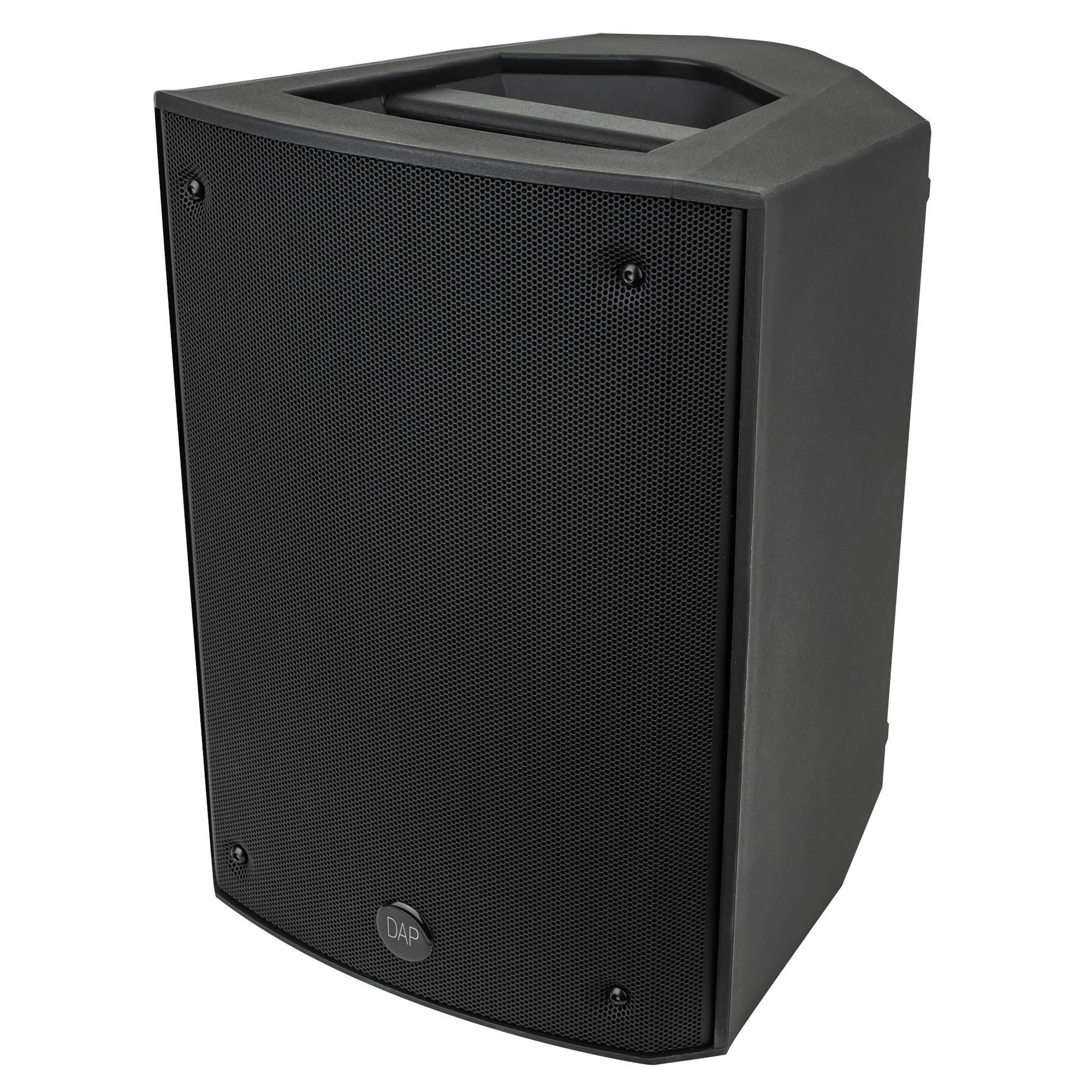

The DAP PSS-106 Battery Speaker is a versatile mobile audio solution with a nice sounding 6.5" woofer and 1" tweeter. The design allows it to be used as a tilt-back floor monitor or as a small PA loudspeaker with a 35-mm pole mount. Two switches on the back and side automatically detect its application and adjust the frequency curve appropriately.
Equipped with a lightweight 2-channel class-D amplifier, the PSS-106 has inputs for mic, line, instrument, aux, and Bluetooth signals, and a built-in media player for SD cards and USB sticks. A dedicated wireless microphone, microphone receiver and beltpack are optional for providing an all-in-one audio solution.
The battery lasts up to 5 hours at full output and is fully rechargeable in 5 hours. This makes it a very convenient and trustable mobile solution for a wide variety of applications.
Please note that you can opt for a complete set including the PSS-106 battery speaker and the WM-10 wireless handheld microphone.
Outputs
Main Outputs 1
Main Output Connector TRS balanced 6.3 mm
Low Driver Power 90 W
High Driver Power 10 W
Power Amplifier RMS Output 100 W
Power Amplifier Peak Output 160 W
Inputs
Mono Inputs 2
Mono Input Connector 3-pin XLR, TS unbalanced 6.3 mm
Balanced Mono Input Maximum Level 1 dBu
Auxiliary Inputs 1
Auxiliary Input Connector TRS balanced 3.5 mm
Unbalanced Auxiliary Input Maximum Level 10 dBv
Playback
Supported Audio Files MP3
Media Input/Output USB-A, SD Card
Audio Specifications
Amp Technology Class D
Speaker System Battery Operated
Maximum SPL at 1 m 110 dB
Frequency Response Minimum 70 Hz
Frequency Response Maximum 20000 Hz
Frequency Response (-6 dB) Minimum 70 Hz
Frequency Response (-6 dB) Maximum 20000 Hz
Crossover Frequency (High) 1900 Hz
Woofer Diameter 6.5 "
Woofer Voice Coil Diameter 1.5 "
Compression Driver Diameter 1 "
Compression Driver Magnet Type Neodymium
Sound Editing
Parametric Microphone Equalizer 2 Bands
Microphone Input Equalizer Gain Range 10 dB
Microphone Input Fixed Frequencies 100, 10.000 Hz
Parametric Channel Equalizer 2 Bands
Input Channel Equalizer Gain Range 10 dB
Input Channel Fixed Frequencies 100, 10.000 Hz
Built-in FX Yes
FX Types Reverb
Wireless Specifications
Bluetooth Audio Profile A2DP
Battery
Battery Type Lithium ion
Battery Voltage 25.9 V
Capacity 2.2 Ah
Runtime @Full 5 h
Runtime Average 8 h
Charging Time 5 h
Control and Programming
Display LED
Electrical Specifications and Connections
Power Supply 220-240 V AC 50 Hz Power Consumption 100 W
Fuse 1.6 A Power Connector In IEC
Mechanical Specifications
Height (mm) 323 mm
Width (mm) 240 mm
Depth (mm) 265 mm
Material ABS
Weight5.9 kg
IP Rating IP20 (indoor use only)
Colour Black
Finish Painted
Product Properties
VOXM Yes
Pole Mount 35 mm
Cooling Convection
Electronic Protection Clip limiter, Overheat, Overload, Thermal
LED Indicators
Battery status, BT Pairing, Charging, Power, Protect, Signal Speaker Grille
Material Steel
Speaker Handle Positions Top
Castors None
Thermal Specifications
Maximum Ambient Temperature 40 °C
Minimum Ambient Temperature 5 °C
Included Items
Included Cables IEC cable
