Description

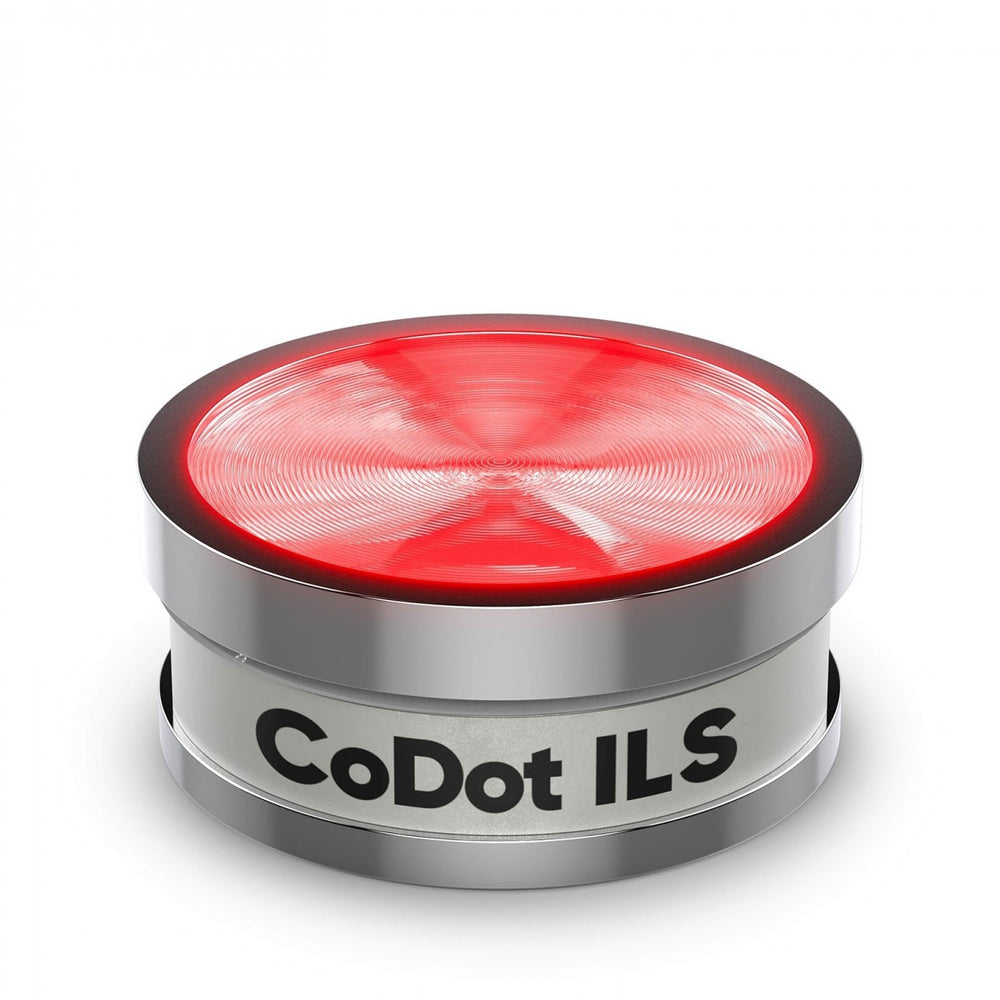

The Chauvet DJ CoDot ILS LED Illuminators, Pack of 4 is ideal for lighting setups in tight spaces where regular fixtures won?t fit. Each coin-sized illuminator comes with two lens options, clear and diffused, so you can tailor the light to your needs. The magnetic base lets you quickly mount them to any metal surface, adding flexibility to your setup. You can also control them wirelessly thanks to the built-in DFI transceiver, making them perfect for seamless use in the ILS ecosystem. Whether you need precision lighting for a small space or additional accents, this pack offers a versatile, convenient solution.
Compact design for tight spaces
The CoDot ILS illuminators are designed to fit in spaces where traditional fixtures can’t. Their coin-sized form makes them perfect for small or tricky applications, providing professional lighting solutions in areas that demand a more compact setup.
Interchangeable lenses for flexible lighting
Each CoDot illuminator comes with two lens options—clear and diffused. This allows you to switch between sharp, focused lighting or a softer, more even glow, depending on your project’s needs.
Magnetic mounting for quick installation
With a magnetic base, the CoDot illuminators can be mounted to metal surfaces in seconds, making setup simple and hassle-free. A threaded insert also allows compatibility with camera tripods for more customised placement.
Wireless control for ease of use
The built-in DFI transceiver and RF receiver allow you to control the CoDot illuminators wirelessly, whether through DMX or ILS signals. You can also use RFC or RFC-XL remotes, ensuring you can adjust the lighting easily from a distance.
Features
- Compact 4-pack of coin-sized LED illuminators ideal for tight spaces

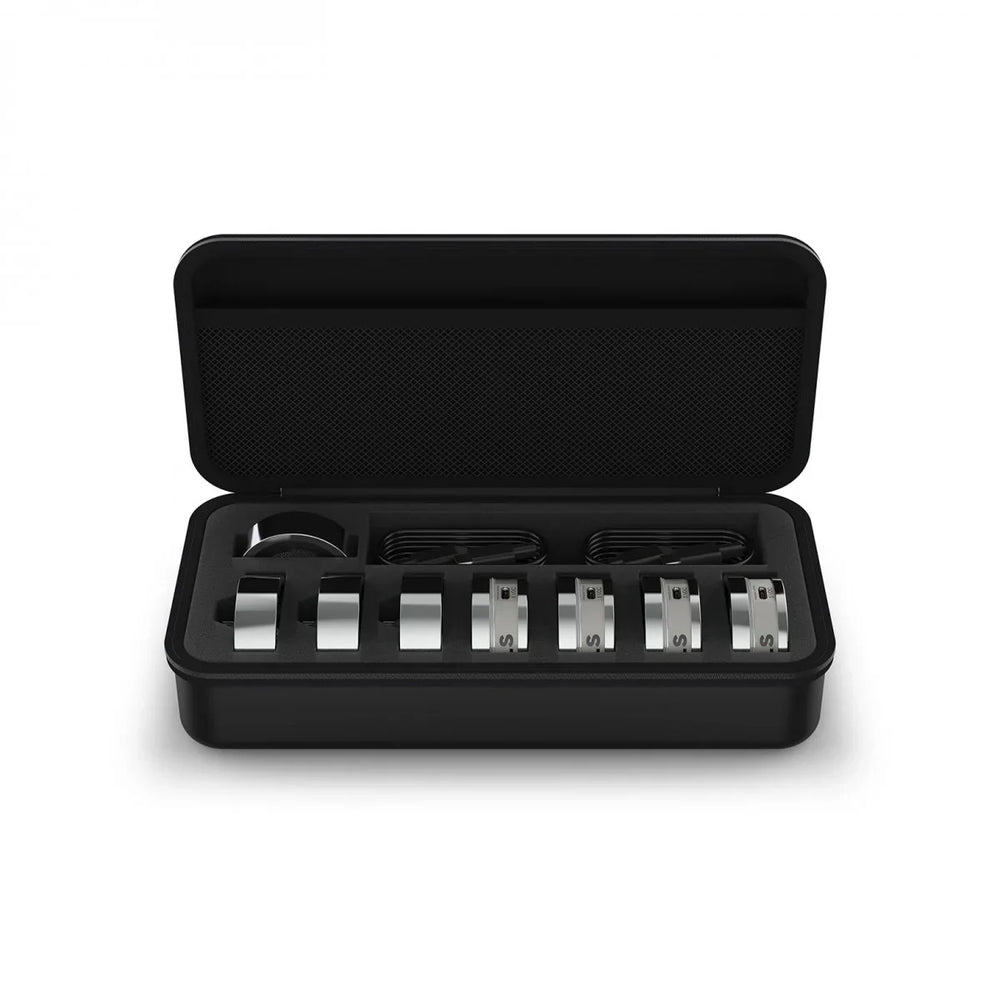

- Includes over 15 accessories for versatile setups, such as a carrying case, 8 lenses (4 clear, 4 diffused), 3 short USB-C cables, 3 long USB-C cables, and an external power supply
- Two lens options for flexibility to match different lighting needs
- Magnetic base for quick and secure attachment to metal surfaces
- Threaded insert for compatibility with camera tripods and various accessories
- Fully integrated with ILS ecosystem for seamless use with other ILS devices
- Wireless DMX or ILS signal control via the built-in DFI transceiver
- Built-in RF receiver for remote control using optional RFC or RFC-XL remotes
- LED display for easy navigation and direct access to all functions
- Power linking capability through USB Type-C ports for efficient multi-unit setups
Specifications
- Product Code: CODOTILS
- DMX Channels: 4 or 6
- Light Source: 1 LED (Quad-Colour RGBW) 3 W, (0.8 A), 50,000 Hours Life Expectancy
- Strobe Rate: 0 to 20 Hz
- Beam Angle (Installed Lens): 19°
- Beam Angle (Included Lens): 14°
- Illuminance (Installed Lens): 256 Lux @ 2 m
- Illuminance (Included Lens): 442 Lux @ 2 m
- Max Unobstructed Distance: 600 ft (183 m)
- Operating Frequency: 2.4 GHz
- Power Linking: 4 units @ 120 V; 4 units @ 230 V
- Input Voltage: 100 to 240 V AC, 50/60 Hz (Auto-Ranging)
- Power And Current: 7 W, 0.1 A @ 120 V, 60 Hz
- Power And Current: 7 W, 0.1 A @ 230 V, 50 Hz
- Optional Controllers: ILS Command, RFC, RFC-XL
- Approvals: CE, ROHS, UKCA, FCC
- Dimensions: 2.2 x 2.1 x 0.9 in. (57 x 54 x 24 mm)
- Weight: 0.2 lbs (0.1 kg)
