2 X ADJ Focus Flex L19 Moving Head With DMX Cable

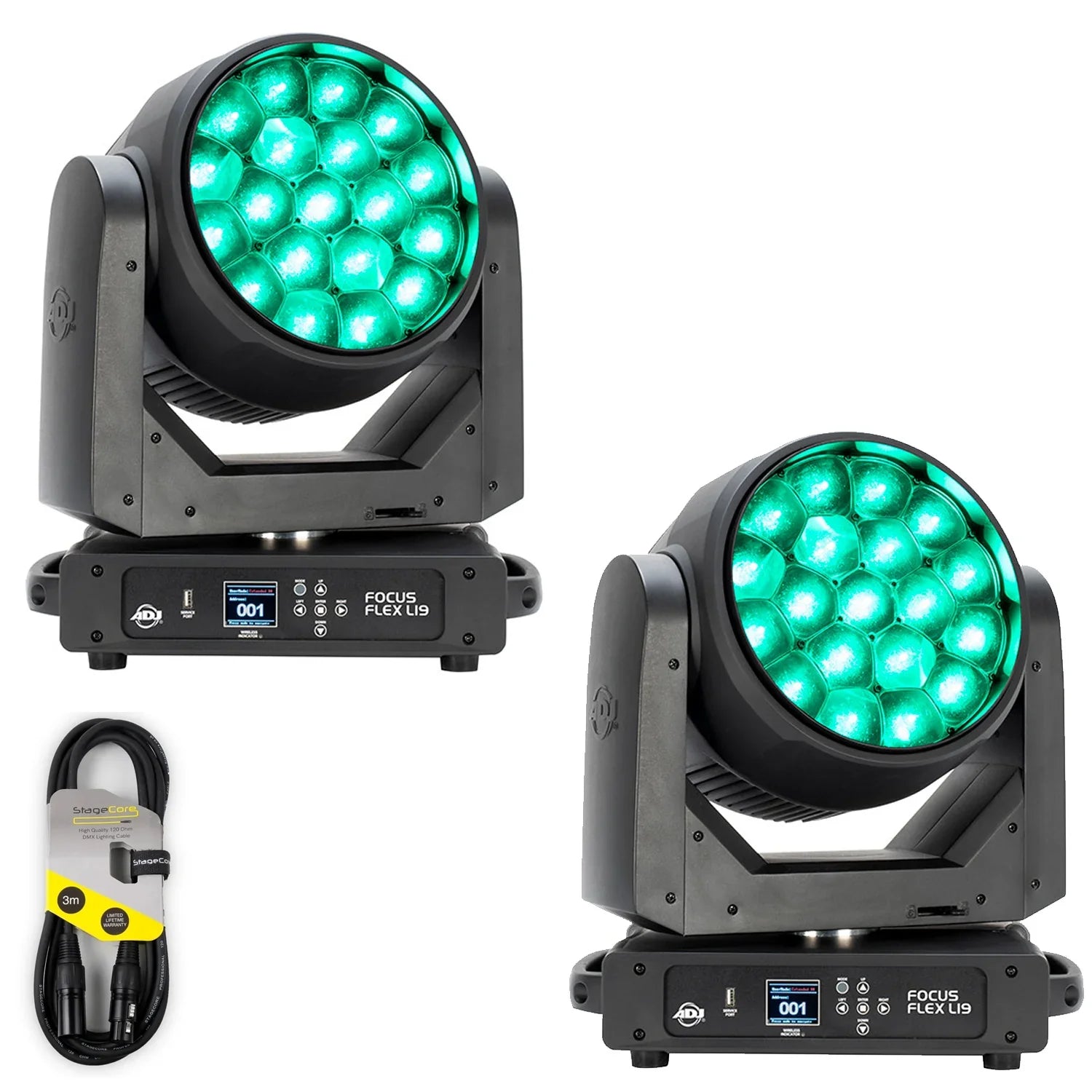

This bundle includes:

2 x ADJ Focus Flex L19 Moving Heads

1 x 3m DMX Cable

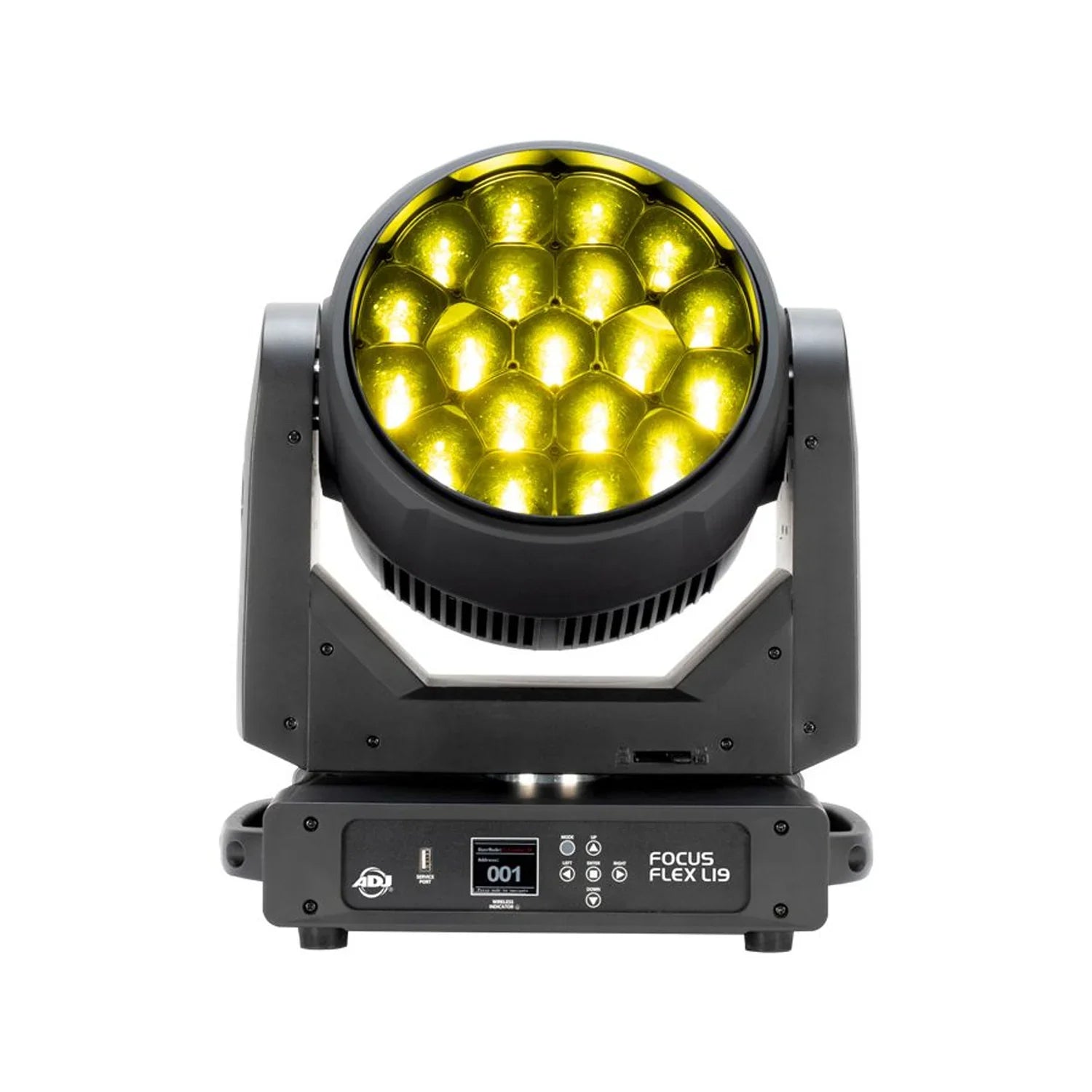

ADJ Focus Flex L19 Moving Heads

Robust and punchy, the Focus Flex L19 from ADJ Lighting is a versatile moving head luminaire capable of creating wash, beam and pixel effects. Designed to provide lighting designers with both flexibility and creative potential, it is ideal for event production and rental applications as well as for permanent installation in concert halls, theatres, nightclubs and churches.

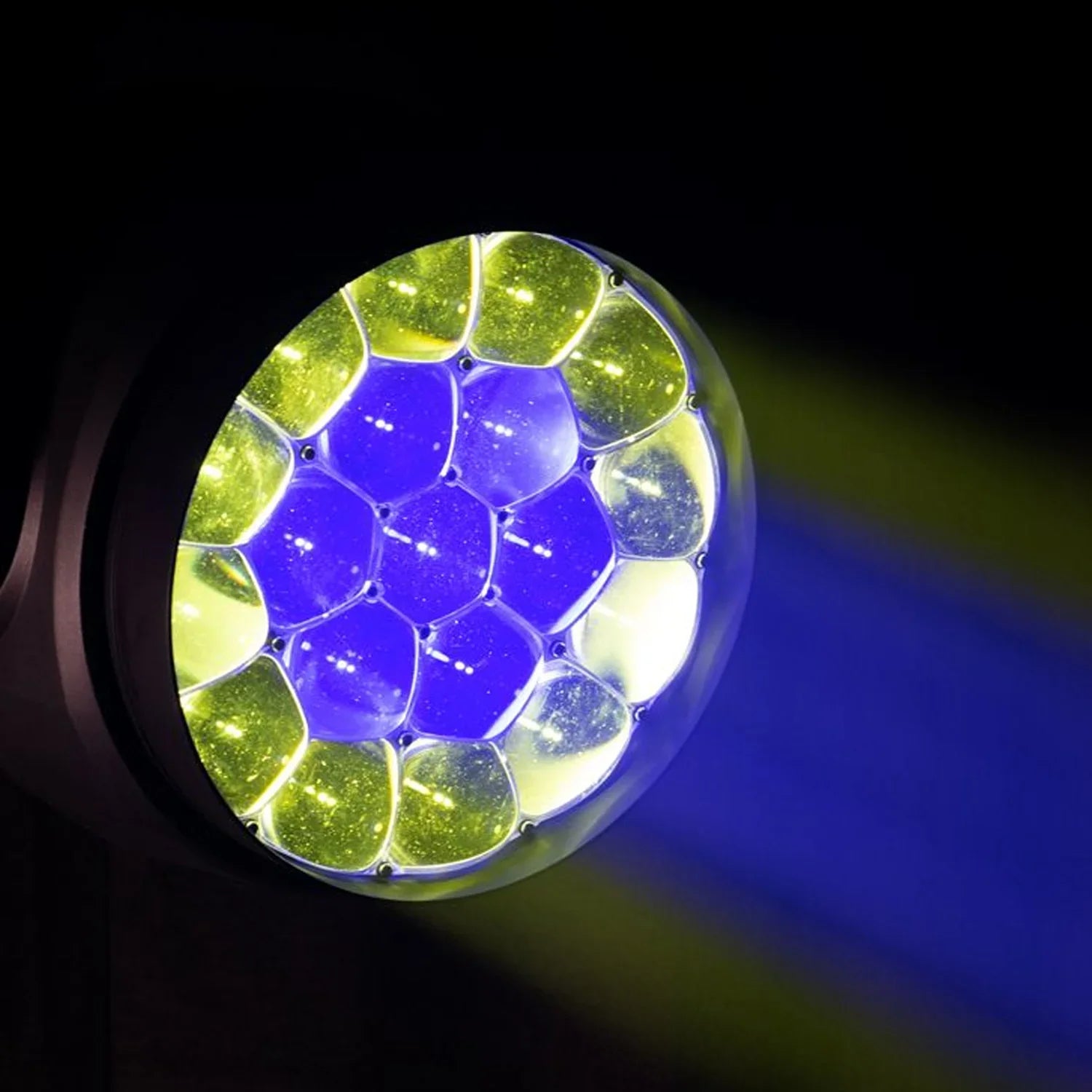

The fixture is powered by an array of nineteen potent 40-Watt 4-in-1 RGBL colour mixing LEDs, each of which can be controlled independently. Through mixing the intensity of the primary LED colours, a huge gamut of output colours can be created to suit any mood or desired look. The fixture features a convenient Virtual CMY mode, which allows control alongside native CMY colour mixing fixtures using hardware/software CMY colour picker/pallete tools. It also offers Virtual Foreground and Background Colour Wheel control as well as white light output with variable colour temperature of between 2700K to 10,000K. This can be accessed either via linear control or a collection of 10 convenient presets. Meanwhile, through controlling the nineteen LEDs independently, the fixture can be used to generate impressive pixel-mapped effects. All of the LEDs used to construct the Focus Flex L19 are colour calibrated to ensure uniform output of fixtures from different batches.

Motorized zoom allows the field angle of the Focus Flex L19 to be altered remotely between a wide 50° and narrow 5°, which allows it to be used for creating both broad washes and concise beams. Its quick motor movement allows for the creation of stunning high-impact aerial effects, while 16-bit fine pan & tilt motor control ensures precise positioning.

A flexible fixture, the Focus Flex L19 offers a range of 5 DMX mode options, appropriate to different applications, as well as a variety of customizable options, including selectable LED refresh rate and dimming modes. These are accessed through a colour LCD display panel with 6-button menu interface located on the side panel of the fixture alongside a USB port which can be utilized for easy updates of future firmware releases.

Source:

• 19 x 40-Watt RGBL LEDs (50,000 hr.)
• CRI: 83.4
• Colour Temperature: 2700K ~ 10,000K
• 39,975 lux / 4.3° beam @ 16´ (5m)
• 1,422 lux / 28.3° beam @ 16´ (5m)
• Lumens: 7,814 (Zoomed Out, Full On)

Features:

• Moving Light Pixel Wash
• Individual Pixel Control
• Built-In Pixel Effect Programs
• Electronic Strobe / Dimmer
• Pan/Tilt: 540/630 x 260
• Beam Angle: 4.3° ~ 29°
• Field Angle: 5° ~ 50°
• Colour Calibrated Pixels so units match from batch to batch
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Colour Wheel Control
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• 0-100% smooth dimming
• Fan Cooled

Colours:

• 19x RGBL LEDs (Red, Green, Blue and Lime)
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Colour Wheel Control
• Built-In Colour Macros
• 2,700K ~ 10,000K Linear White Colour Temperature Control
• Colour Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K

Control:

• 5 DMX Modes (22, 31, 40, 104, Standard CMY 31, Extended CMY 34)
• Colour LCD display with 6-button function menu
• Control: DMX512, ArtNet, sACN and KlingNet Compatible and wireless DMX
• Built-In Effect Pixel Programs with Speed and Fade Control
• RDM (Remote Device Management) compliant
• With Wired Digital Communication Network

Pan/Tilt:

• Pan: 540/630°
• Tilt: 250°
• 16-Bit Fine Pan & Tilt
• Pan & Tilt Locks

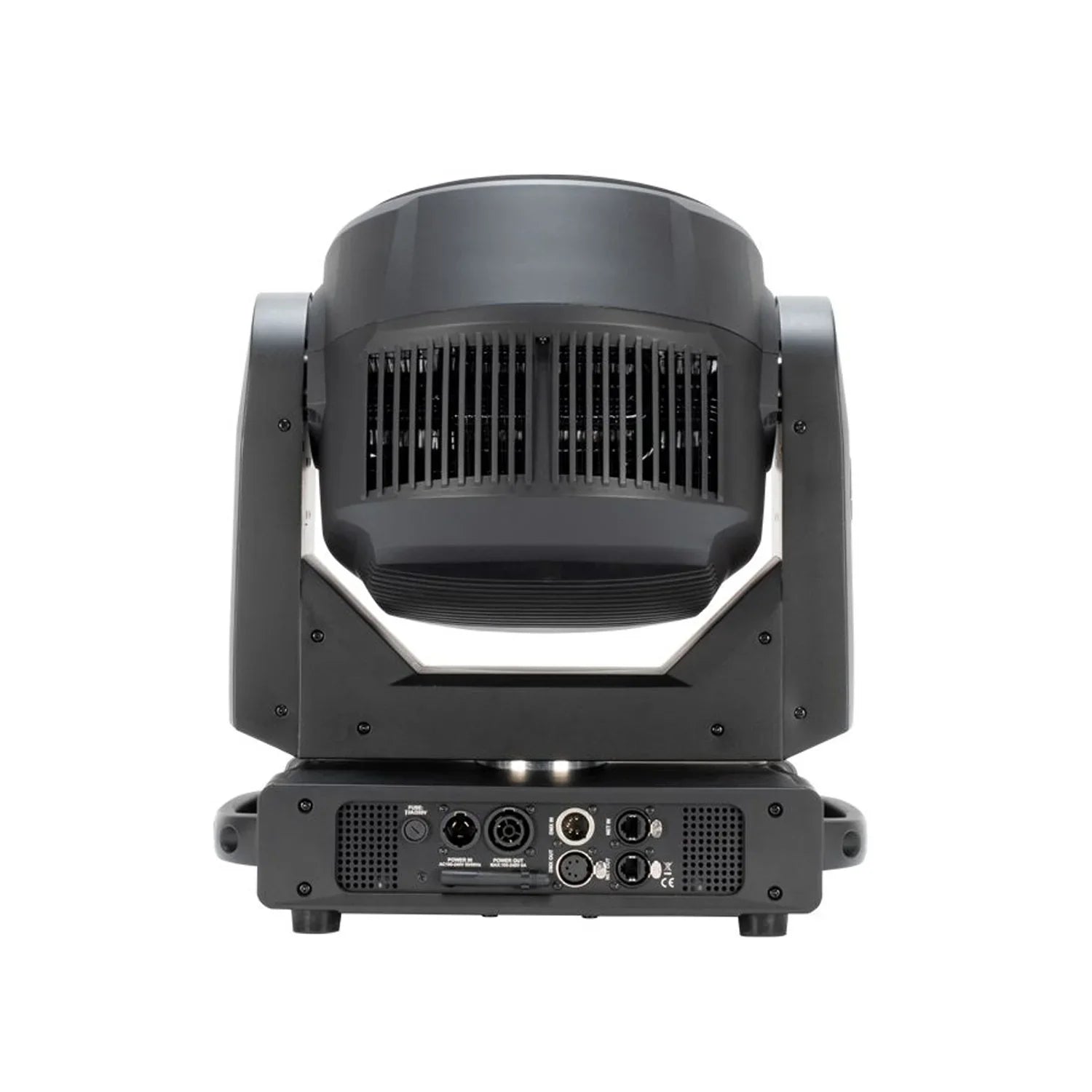

Connections:

• DMX Connections: 5-pin XLR In/Out
• RJ45 In/Out
• Power Connections: Indoor Locking Power In/Out

Electrical:

• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 918W @120V

Dimensions & Weight:

• Dimensions (LxWxH): 258x382x470mm
• Weight: 19kg

What´s Included:

• 180mm Omega Brackets (2x)
• 1.83M locking power cable
• Safety Cable

Approvals / Rating:

CE Certified / ETL (Pending)

IP20

Specifications subject to change without notice
