This Bundle Includes:
|
|
Qty
|
Product |
|
| 2 x |

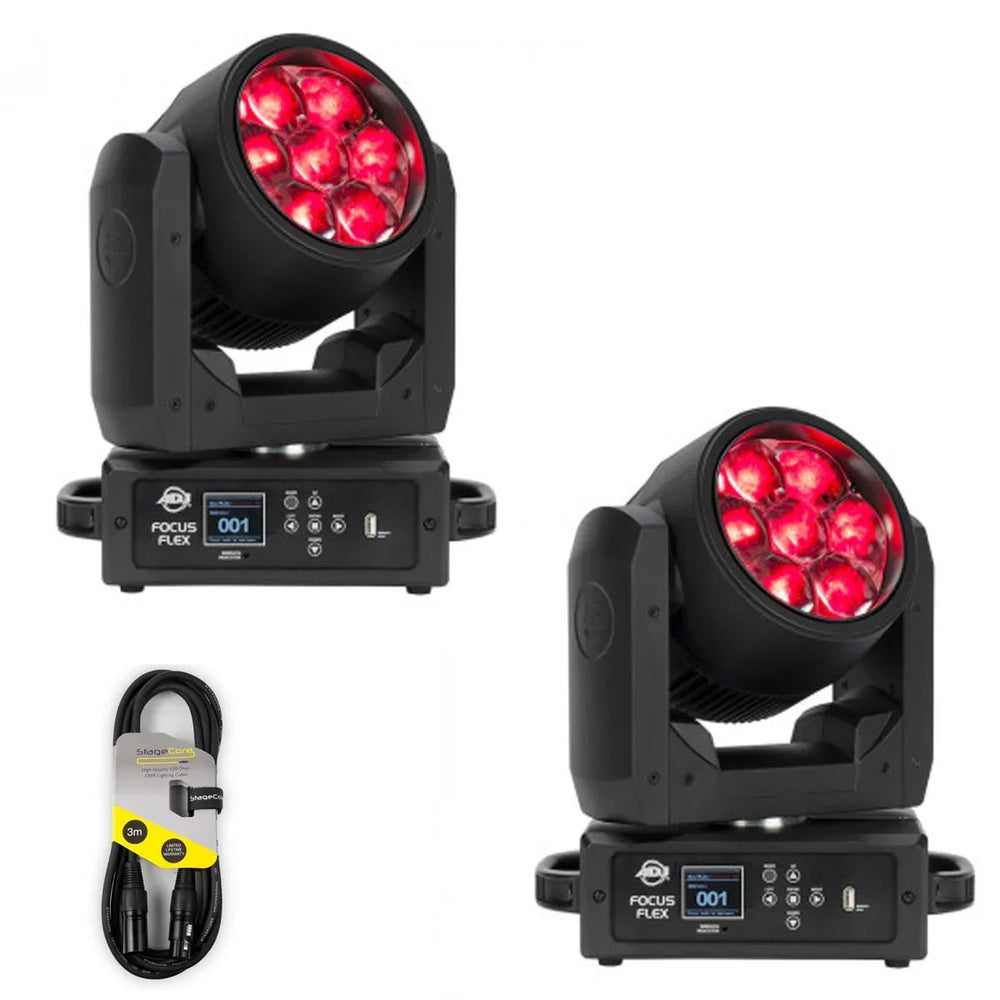

ADJ Focus Flex Moving Head |
|
| 1 x |
3m DMX Cable |
The fixture is powered by an array of seven potent 40-Watt 4-in-1 RGBW color mixing LEDs, each of which can be controlled independently. Through mixing the intensity of the primary LED colors, a huge gamut of output colors can be created to suit any mood or desired look. The fixture features a convenient Virtual CMY mode, which allows control alongside native CMY color mixing fixtures using hardware/software CMY color picker/pallete tools. It also offers Virtual Foreground and Background Color Wheel control as well as white light output with variable color temperature of between 2700K to 10,000K. This can be accessed either via linear control or a collection of 10 convenient presets. Motorized zoom allows the beam angle of the Focus Flex to be altered remotely between a wide 55° and narrow 5°, which allows it to be used for creating both broad washes and concise beams. Its extremely quick motor movement allows for the creation of stunning high-impact aerial effects, while 16-bit fine motor control ensures precise positioning.
Specifications
Source:
• 7 x 40-Watt RGBW LEDs (50,000 hr.)
• CRI: 79
• 15.140 lux / 4° beam @ 5m
• 378 lux / 35° beam @ 5m
• Lumens: 3240 (Zoom Out, full on)
Features:
• Moving Head Pixel Wash with Pixel Effects
• Electronic Strobe / Dimmer
• Pan/Tilt: 540/630 x 265
• Beam Angle: 4 ~ 31°
• Field Angle: 5 ~ 55°
• Color Calibrated Pixels so units match from batch to batch
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• Selectable Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
• 4 Dim Curves: Square, Linear, Inv. Square and S-Curve
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• Fan Cooled
Colors:
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Built-In Color Macros
• 2700k ~ 10,000 Linear White Color Control
• Color Temperature Presets: 2700, 3000, 3200, 4000, 4500, 5000, 5600, 6500, 8000 and 10,000K
Control:
• 7 DMX Modes - 16/25/34/42/50/25 (CMY)/28 (CMY) Channels
• Color LCD display with 6-button function menu
• Control Mode: DMX512 or internal programs
• Built-In Effect Pixel Programs with Speed and Fade Control
• Various strobe speeds
• USB firmware update port
• RDM (Remote Device Management)
Pan/Tilt:
• Pan: 540/630 degrees
• Tilt: 265 degrees
Connections:
• DMX Connections: 5-pin XLR In/Out
• Power Connections: Locking Power In/Out
Electrical:
• Multi-voltage operation: 90-240V, 47/63Hz
• Max power consumption: 340W
Dimensions & Weight:
• Dimensions (LxWxH): 233x177x349mm
• Weight: 7kg
What’s Included:
• Omega Brackets
• Locking power cable
