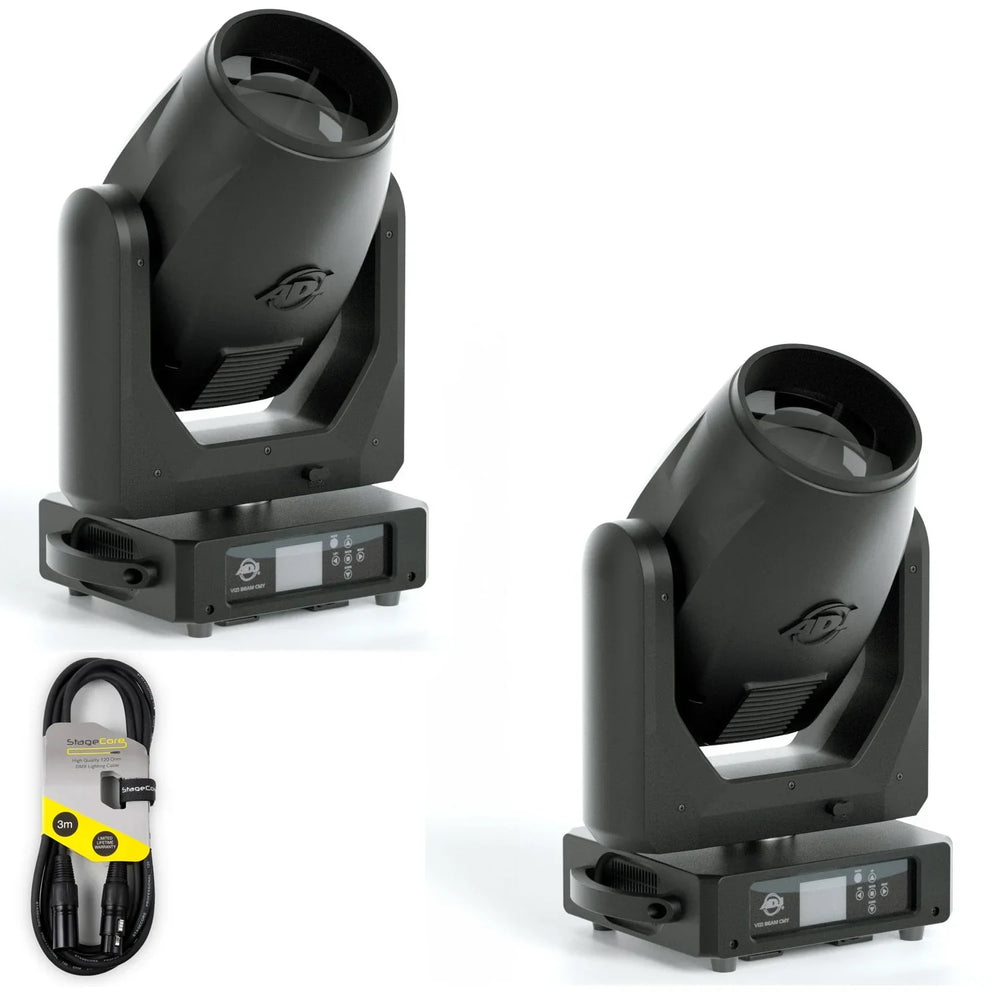

2 x ADJ Vizi Beam CMY Moving Head With DMX Cable

This bundle includes:

2 x ADJ Vizi Beam CMY Moving Heads

1 x 3m DMX Cable

ADJ Vizi Beam CMY Moving Heads

Elevate your lighting design with the ADJ Lighting Vizi Beam CMY, a cutting-edge moving head beam fixture designed for the modern lighting professional. Featuring a powerful 310W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, the Vizi Beam CMY delivers stunning visuals with a precise 2-degree beam angle, Unlock a spectrum of possibilities with CMY color mixing, a 14-color dichroic wheel includes CTO (3200K), CTB (9000k) & UV), and a versatile gobo wheel with 17 static gobos (4 GOBOs are beam reducers) and the dynamic GOBO Shake Effect. Enjoy the flexibility of on-board wireless DMX, motorized focus, and 16-bit fine focus for meticulous control.

The fixture boasts advanced features, including 2 rotating prisms (16-Facet circular & 6-Facet linear + prism overlay), a frost filter for creating wash effects, and pan/tilt locks for added stability. With a color LCD display, 0-100% smooth dimming, and various strobe speeds, the Vizi Beam CMY offers intuitive control.

LIGHT SOURCE:

• • OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)
• • Color Temperature: 7850K (+/- 500K)
• • CRI: 86 (+/- 5)

FEATURES:

• • CMY Color Mixing
• • On-Board Wireless DMX
• • Motorized Focus + 16-bit Fine Focus
• • 2-degree Beam Angle
• • Frost Filter (to create wash effect)
• • High Quality Glass Lens
• • 2 Rotating Prisms
• • 0-100% Smooth Dimming
• • Pan/Tilt Locks
• • Various Strobe Speeds
• • OTA, Wireless, Firmware Updates
• • Fan Cooled

COLOR WHEEL:

• • 14 Dichroic Colors + White (includes CTO (3200K), CTB (9000K) & UV)
• • Indexable Color Wheel (for split colors)
• • Separate Multi-Color Effect

GOBO WHEEL:

• • 17 Static GOBOs + Open (4 GOBOs are beam reducers)
• • GOBO Shake Effect

PRISM WHEEL:

• • 2 Rotating prisms
• • 16-Facet circular and 6 facet linear prisms
• • Prisms Overlay

CONTROL:

• • Protocols: DMX512 & RDM
• • Control Mode: DMX512 & Manual (On-board Controls)
• • 2 DMX Channel Modes: 14/16 Channels
• • Color LCD Display (with 4-button function menu)
• • 0-100% Smooth Dimming
• • Various Strobe Speeds
• • With Wired Digital Communication Network

PAN/TILT:

• • Pan: 540 Degrees (plus 16-bit fine pan)
• • Tilt: 270 degrees (plus 16-bit fine tilt)
• • 3-Phase, High Speed, Pan/Tilt Motors

CONNECTIONS:

• • DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
• • Power Connections: Outdoor Locking In/Out Connections (to daisy chain power)

ELECTRICAL:

• • Multi-voltage Operation: 100-240V, 50/60Hz
• • Max Power Consumption: 390W (@230V

DIMENSIONS / WEIGHT:

• • Dimension: 248 x 364 x 454.8mm
• • Weight: 17.5 kg.

APPROVALS / RATINGS:

• • CE
• • cETLus (Pending)

WHAT’S INCLUDED:

• • 2x Omega Brackets (107 Type)
• • 1x 2M, Outdoor Locking 14AWG Power Cord
