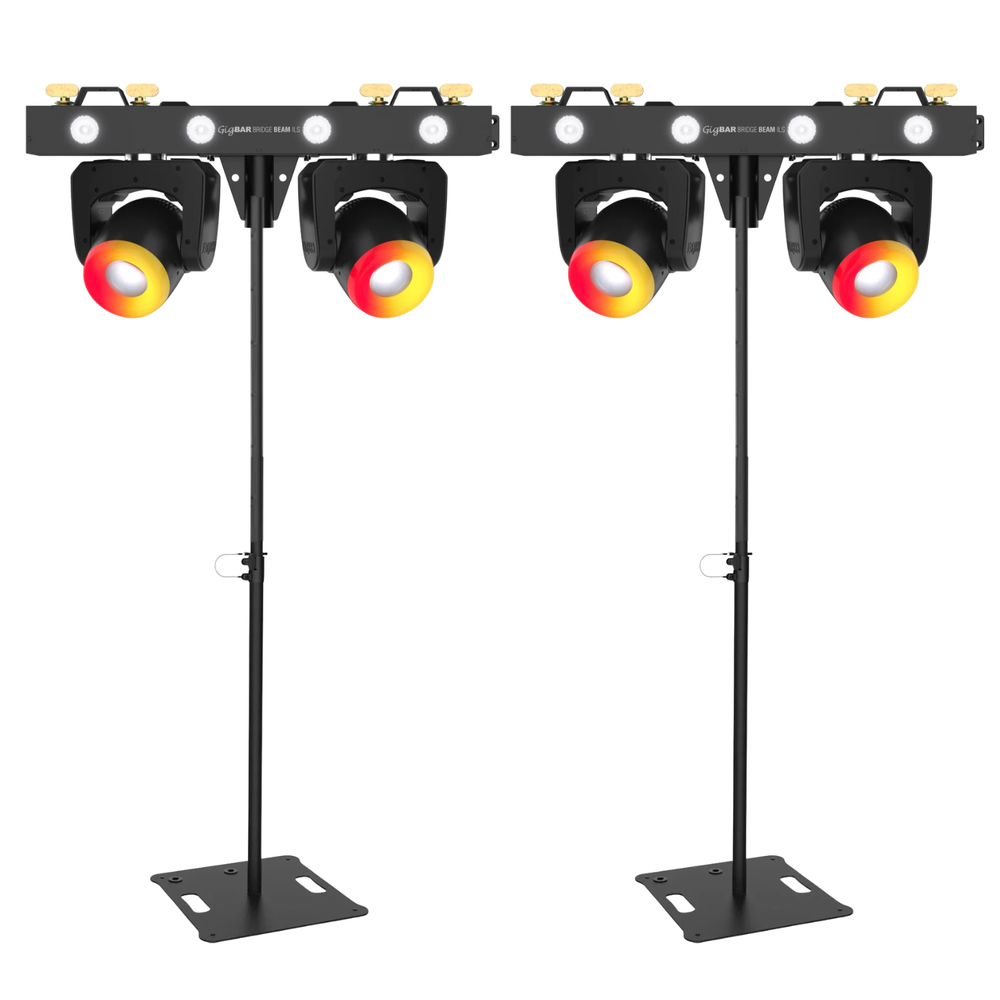

2 x Chauvet DJ GigBar Bridge Beam ILS Lighting System with Ultimax Square Base Stands

This bundle includes:

2 x Ultimax UTX500 Square Base Stands Max Height 1.8m

2 x Chauvet DJ GigBar Bridge Beam ILS Moving Head Bar

Chauvet DJ GigBar Bridge Beam ILS Moving Head Bar

The Chauvet DJ GigBAR Bridge Beam ILS Moving Head Bar is a complete lighting system for DJs, events, and venues needing versatile, all-in-one effects. It combines moving heads, wash lights, and RGBW LED rings on a single bar, giving you a wide range of looks without adding extra fixtures. This makes it easier to cover dancefloors and stages with dynamic lighting from one unit.

Built-in wireless DFI lets you control the system without running DMX cables, while ILS compatibility helps you sync with other fixtures quickly. Totem mode keeps the moving heads focused on the dancefloor, which is useful during busy events. An included RF remote allows easy control of built-in shows, even without direct line of sight.

All-in-one lighting solution

The GigBAR Bridge Beam ILS combines multiple lighting effects into a single fixture. You get two moving heads, wash lights, and RGBW LED rings, all pre-mounted on one bar. This reduces setup time and keeps your rig simple while still offering a wide range of effects. It is a practical option for mobile DJs or venues that want strong visual impact without managing several separate fixtures.

Wireless control made easy

With a built-in DFI transceiver, you can send DMX or ILS signals wirelessly. This helps cut down on cable runs and keeps your setup clean. ILS compatibility allows you to link with other compatible fixtures and run synchronised shows without complex programming. The included RF remote also gives you quick access to built-in programmes, making it easy to adjust lighting during an event.

Focused effects with flexible movement

The moving heads offer wide pan and tilt ranges, giving you dynamic movement across your space. Totem mode keeps the beams directed at a set area such as a dancefloor, helping maintain consistent coverage. Combined with narrow beam angles and additional wash lighting, you can create layered effects that add depth and energy to your setup.

Quick setup and tidy rigs

The integrated design mounts easily onto truss or tripods using the included bracket, so you can get set up quickly. Power linking allows multiple units to run from a single power source, reducing cable clutter. A clear LCD display makes navigation straightforward, helping you adjust settings without slowing down your workflow.

Features

• Moving heads, washes, and LED rings in one unit
• Wireless DMX and ILS control built into the system
• Totem mode keeps moving heads focused on one area
• RF remote allows quick control of built-in shows
• Full-colour LCD screen simplifies setup and navigation
• Mounts easily to truss or tripods with included bracket
• Power linking reduces cable runs in your setup
• Multiple DMX modes offer flexible control options

Specifications

• Light Source (Moving Heads): 2 x RGBW LEDs 80 W total
• Light Source (Wash): 4 x RGBAW+UV LEDs 40 W total
• Light Source (Led Ring): 48 x RGBW LEDs 10 W total
• Led Lifespan: 50000 hours
• Illuminance (Moving Head): 24670 lux at 2 m per head
• Illuminance (Wash): 525 lux at 2 m per section
• Beam Angle (Moving Head): 5°
• Beam Angle (Wash): 20°
• Field Angle (Wash): 37°
• Pan: 540°
• Tilt: 270°
• Dmx Channels: 3, 24, or 60
• Dmx Connectors: 3-pin XLR
• Wireless Range: Up to 183 m
• Input Voltage: 100 to 240 VAC 50/60 Hz
• Power Consumption: 147 W at 120 V / 144 W at 230 V
• Power Linking: 9 units at 120 V, 18 units at 230 V
• Dimensions (W x D x H): 635 mm x 65 mm x 290 mm
• Weight: 7.5 kg
• Approvals: CE, RoHS, FCC
