Description

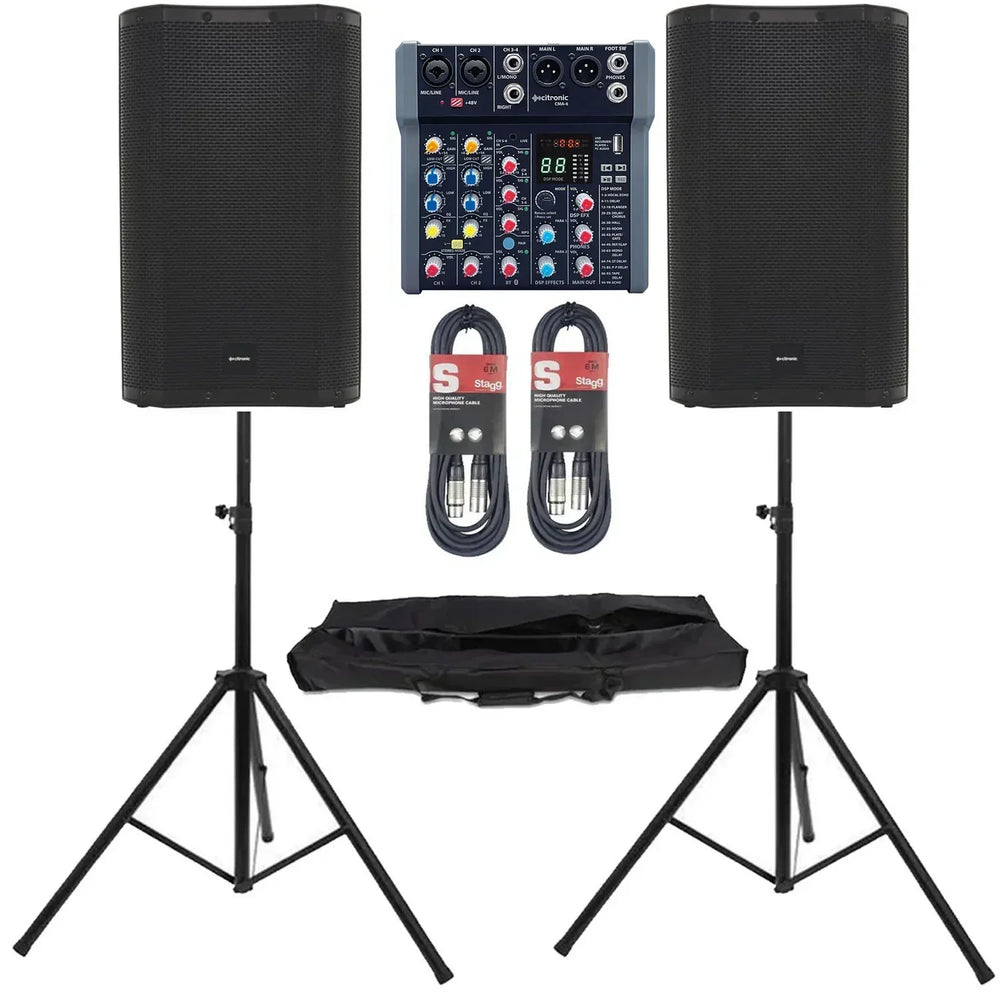

This bundle includes:
2 x Citronic CASA-15A Active Speakers
1 x Citronic CSM-4 Mixer
2 x 6m XLR Cables
2 x Speaker Stands & Stand Bag

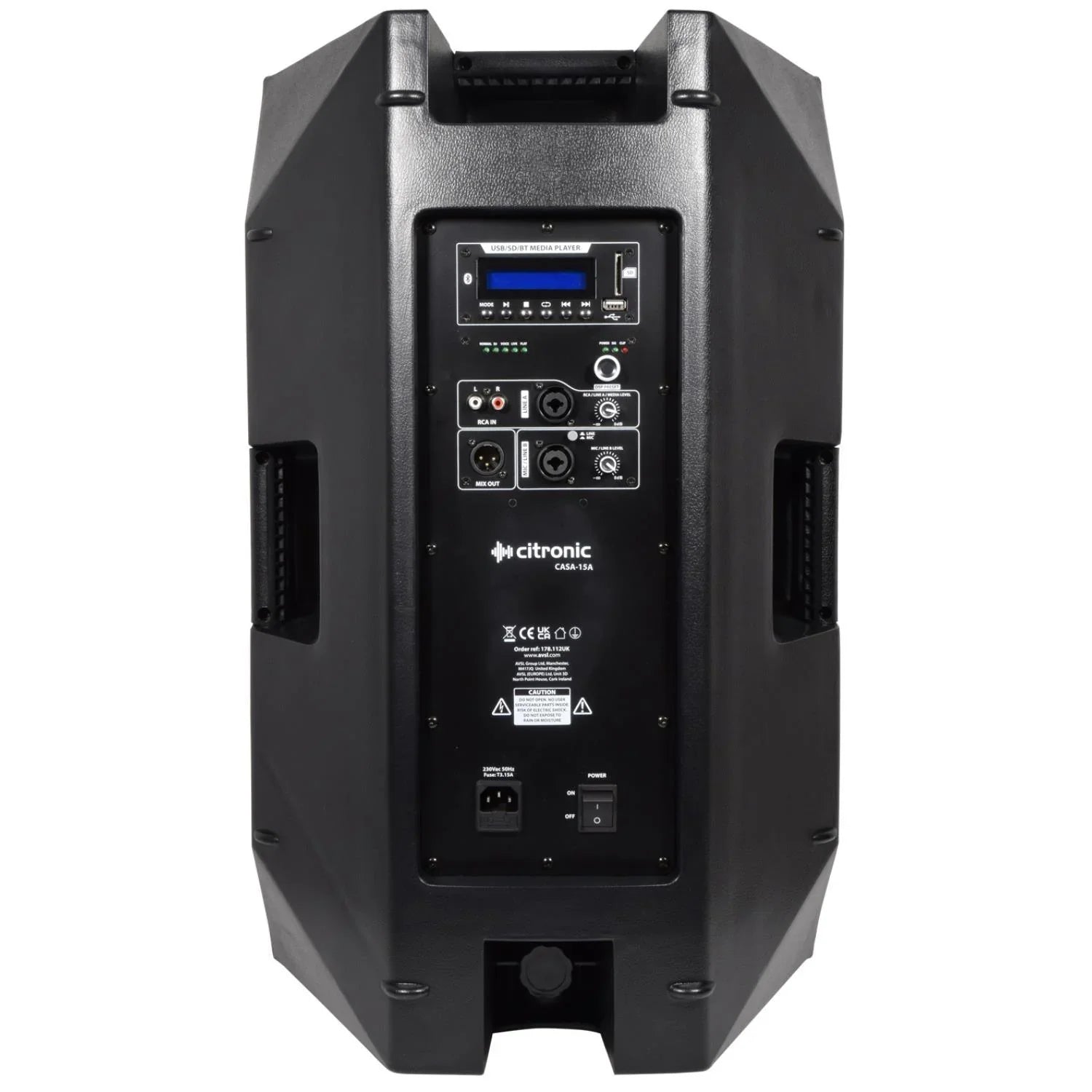

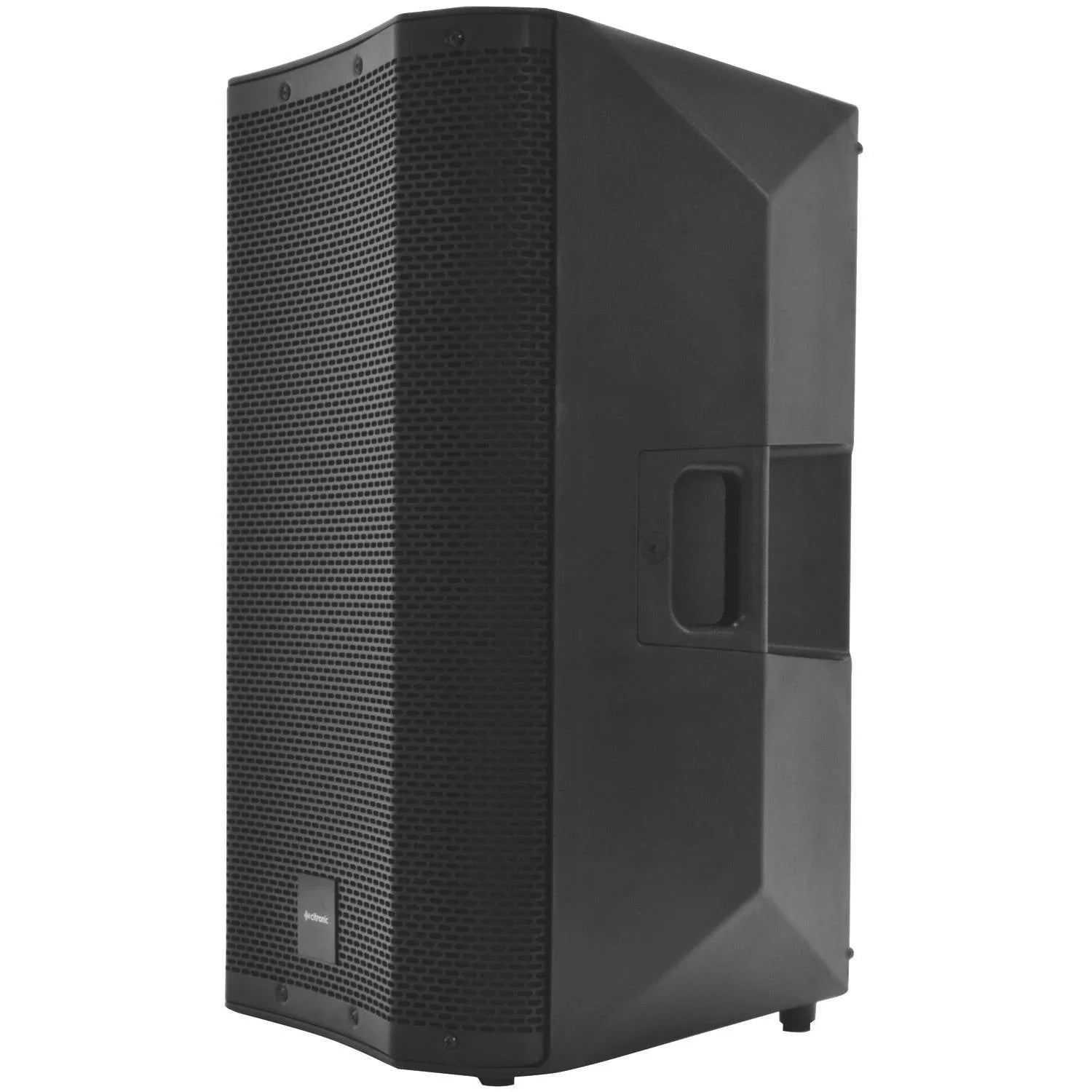

Citronic CASA-15A Active Speakers
Versatile full-range active moulded PA cabinets with built-in high efficiency class D amplifier. A DSP controller offers 5 switchable output profiles which are suited to different program material. Inputs are provided on XLR/jack with mic/line level switching and RCA line connectors. A built-in audio module provides playback from USB or SD media and Bluetooth wireless pairing. These cabinets are fully featured for virtually any PA application and pair perfectly with the CASA series sub cabinets for high energy sound reinforcement.
- High efficiency class D bi-amplifier section
- DSP speaker control with 5 selectable profiles
- Inbuilt USB/SD audio player
- Bluetooth wireless connectivity
- High impact moulded cabinet with side and top handles.
- 35mm pole mount socket
- Power supply230Vac, 50Hz (IEC)
- Audio sourceUSB/SD player + Bluetooth receiver
- Line outputXLR
- DSP settingsNormal, DJ. Voice, Live, Flat
Main driver | 380mmØ (15") | |||
---|---|---|---|---|
Voice coil | 63mmØ (2.5") | |||
HF driver | 44mmØ (1.75") Ti compression driver | |||
Output power : rms | 350W | |||
Output power : max. | 700W | |||
Output power peak | 1400W | |||
Sensitivity | 97dB | |||
SPL max. | 124.5dB | |||
Frequency response | 45Hz - 20kHz | |||
Inputs | XLR/jack mic/line, XLR/jack/L+R RCA line | |||
Dimensions | 705 x 430 x 375mm | |||
Weight | 22.0kg |
Citronic CSM-4 Mixer
Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.
- Integral USB multi-format audio player
- BT wireless connectivity
- Digital delay effect for vocals or instruments
- Individually switchable +48V phantom power
- Built in record function
- Supplied with DC power adaptor
- Power supply5Vdc 1A (adaptor included)
- Power consumption max.5W
- Gain-14 to +40dB
- EQ: low±15dB @ 80Hz
- EQ: high±15dB @ 12kHz
- Phantom power+48V individually switchable (XLR inputs only)
- Input impedance : mic2k Ohms
- Input impedance : instrument1M Ohms
- Input impedance : line20k Ohms
- Audio sourceInternal USB player/recorder & BT receiver
- Audio formatUSB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)
- Bluetooth version2.1 + EDR
- Frequency response20Hz - 20kHz (±0.5B)
- THD +N<0.03% @ 1kHz
- Dynamic range102dB
- Crosstalk : stereo92dB
- OutputLeft + Right balanced XLR
- Output impedance120 Ohms
- Max. output level3Vrms
