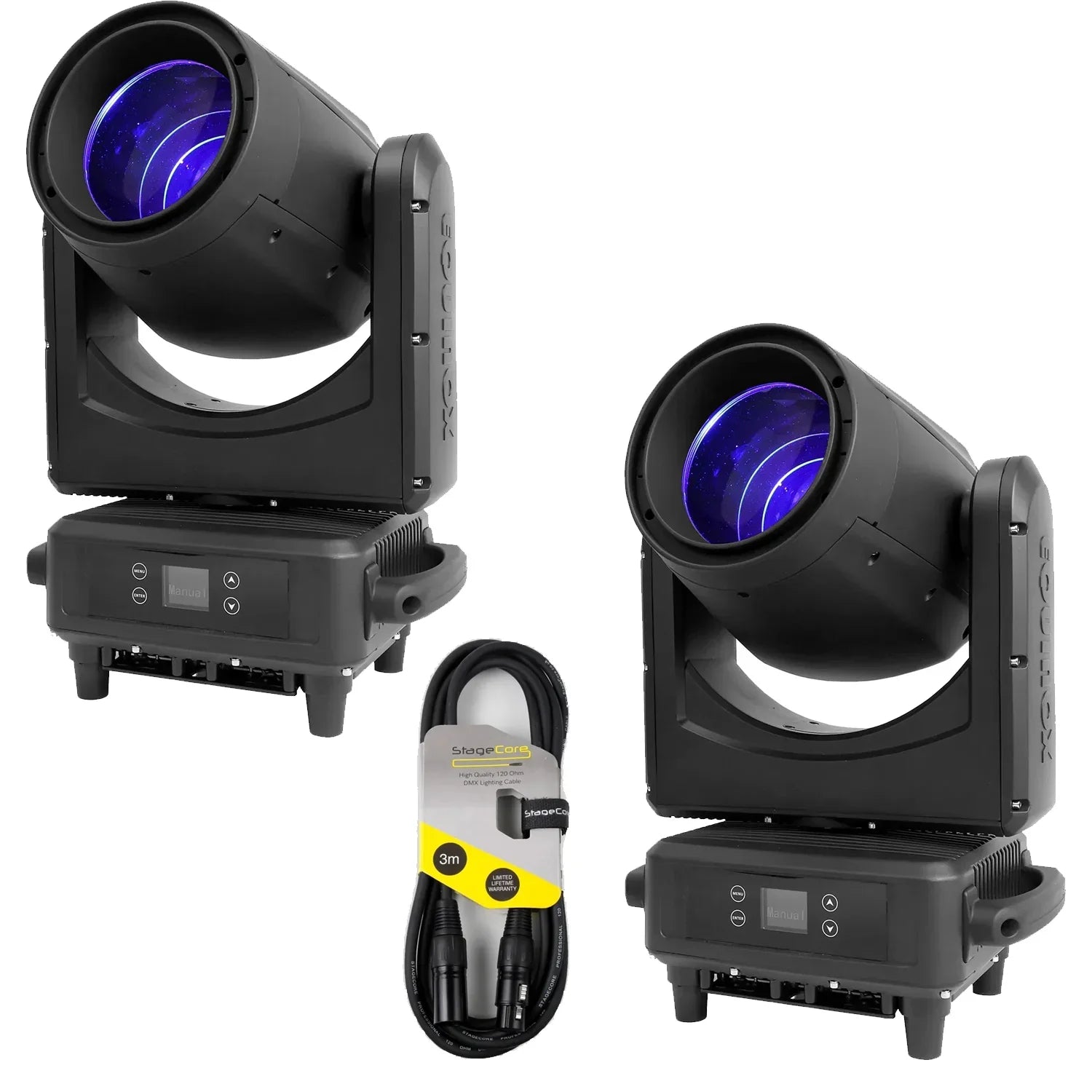

2 x Equinox Fusion Patriot 500 Beam Moving Head With DMX Cable
Product Description
This bundle includes:
2 x Equinox Fusion Patriot 500 Beam Moving Heads
1 x 3M DMX Cable

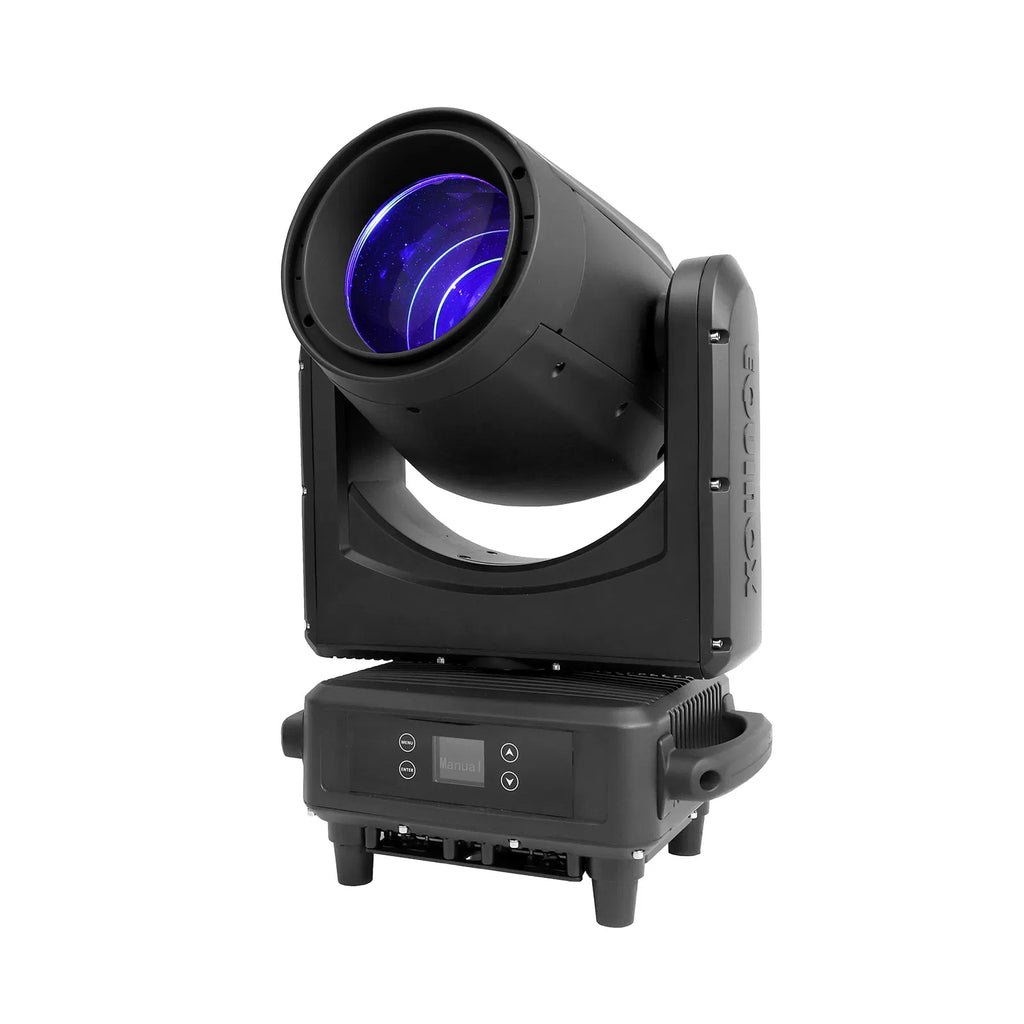

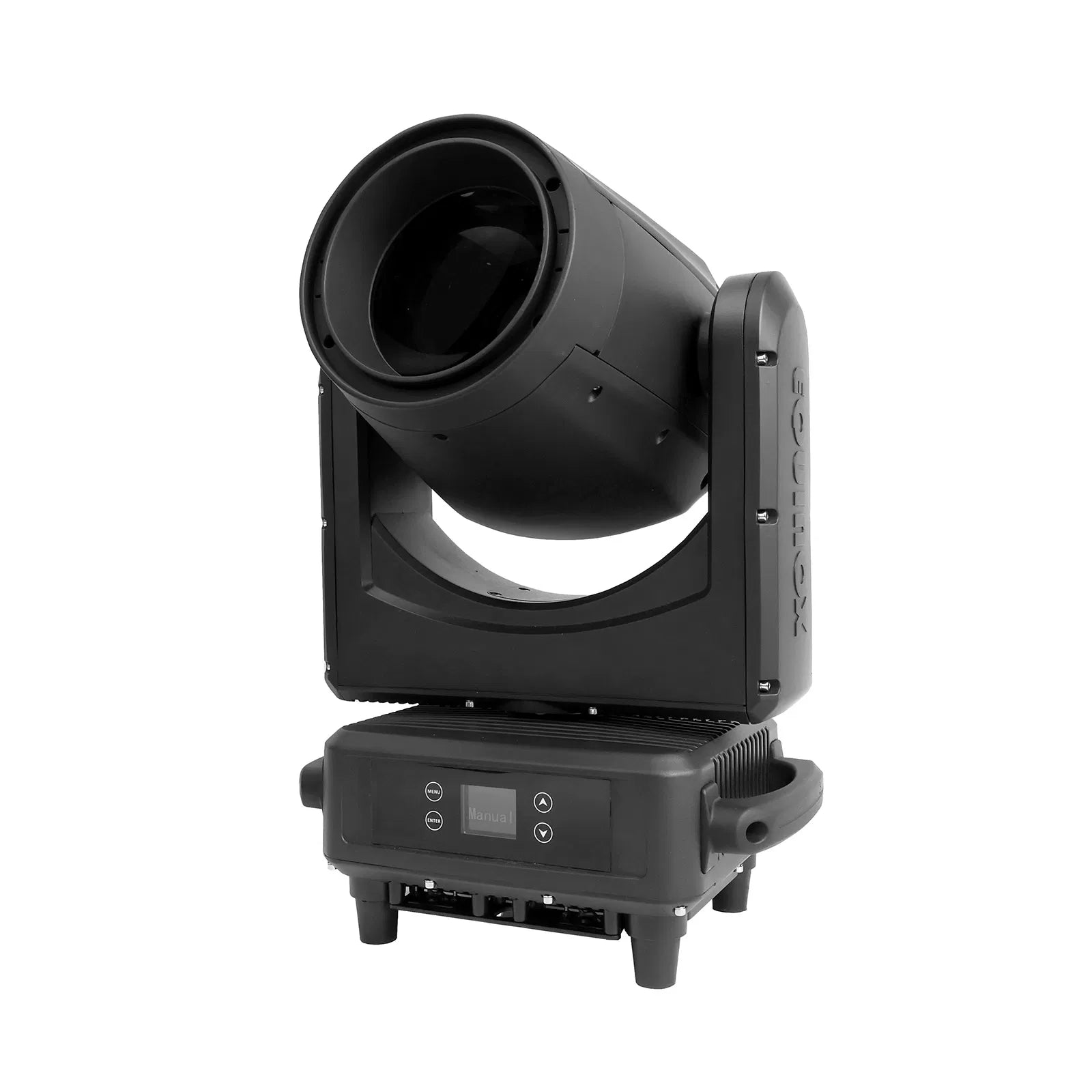

Equinox Fusion Patriot 500 Beam Moving Heads
The Equinox Fusion Patriot 500 Beam is a compact yet powerful IP65-rated moving head beam designed to thrive in the toughest environments. Powered by a 50W white laser source (9200K), it delivers an intense 105,000 Lux at 10 metres through a sharp 1° beam. Packed with creative tools including 19 static gobos, a 12-colour wheel plus a rainbow effect, and two rotating prism wheels for layered aerial visuals, this fixture is ideal for professional stage and event applications. Additional features include motorised focus, frost filter, 16-bit pan/tilt with auto-correction, and selectable 14 or 18-channel DMX control. With 3/5-pin DMX, PowerTwist TR1, and quick-release omega clamps, this versatile fixture integrates seamlessly into any rig.
- 1 x 50W white laser source (7,500K)
- Light source rated life: up to 12,000 hours
- Beam angle: 1°
- 105,000 Lux @ 10m
- Refresh rate: 650Hz–25kHz (5 presets)
- Motorised focus
- 2 prism wheels with 4 rotating prisms
- Wheel 1: 8 facet circular prism
- Wheel 2: 8 facet circular, 18 facet circular, 5 facet linear
- Frost filter
- Gobo wheel: 19 static gobos + open
- Colour wheel: 12 colours + open
- 6 colour rainbow effect wheel
- DMX channels: 14 or 18 selectable
- Manual control & master/slave modes
- Pan/tilt auto correction
- 16-bit pan/tilt: Pan 540°, Tilt 220°
- 0–100% dimming
- Variable strobe
- Quick release omega clamps included

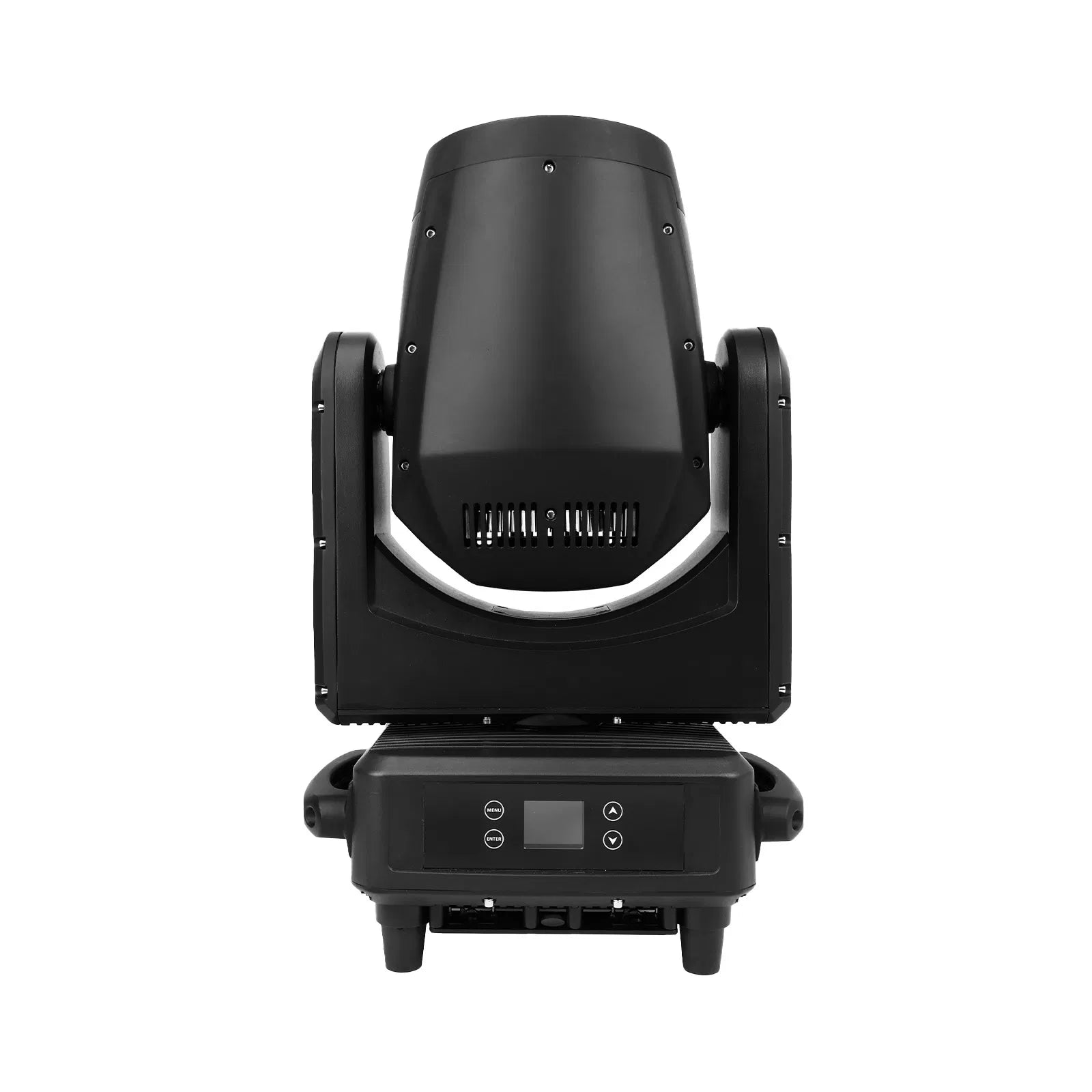

- 4-button menu with 1.7” LCD display

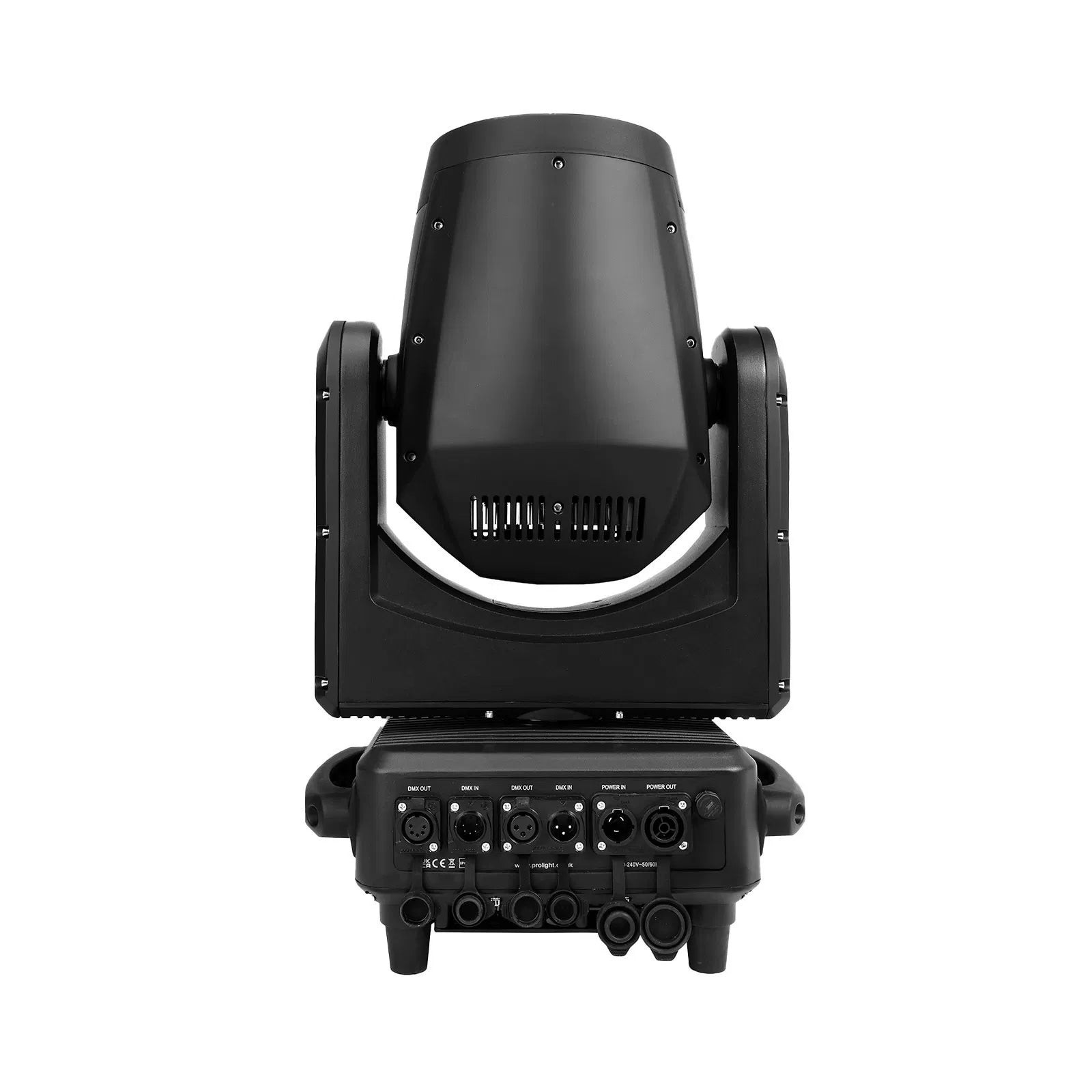

- PowerTwist TR1 input/output
- 3-Pin & 5-Pin XLR input/output
- Fan cooled
- Power consumption: 120W
- Power supply: 100~240V, 50/60Hz
- Fuse: F4A 250V
- IP rating: IP65
- Dimensions (H x W x D): 545 x 344 x 227mm
- Weight: 11.5kg
