2 x Global Truss 1m Truss F34 Podium Plinths
Product Description
This bundle includes:
2 x Global Truss Standard 1m Truss
2 x Global Truss F34 PL Base Plates
2 x Elumen8 UBP 600 X 600 Base Plate
4 x Global Truss PL Haf Conical for Base Plates

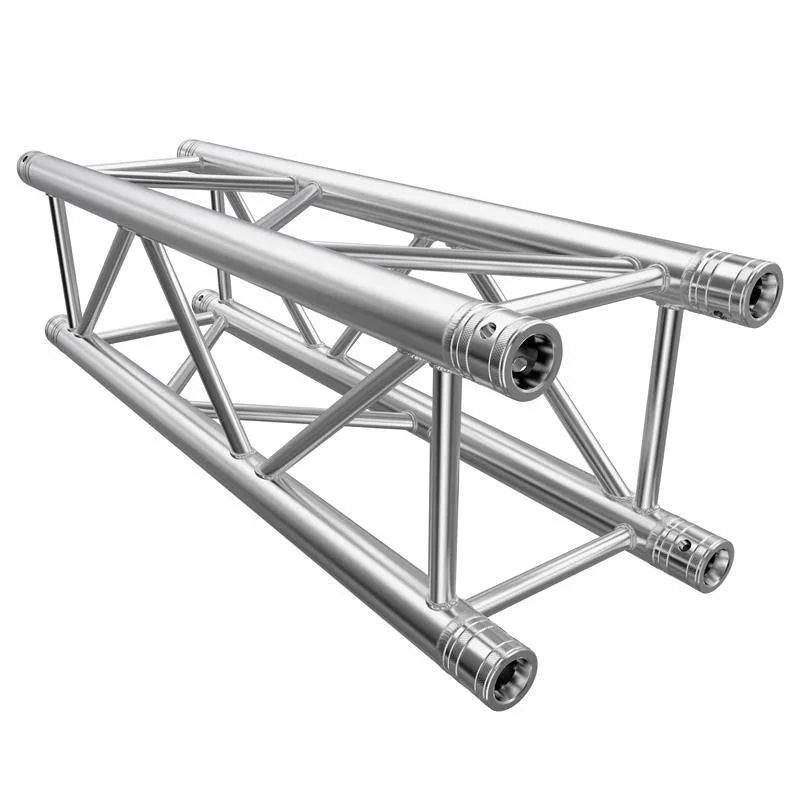

Global Truss Standard 1m Truss
The Global Truss F34 feature TUV Certified aluminium welding and 2mm wall thickness for a superb load handling capacity. A full range of lengths, baseplates, corners, connectors and couplers are available, making them ideal for fixed installation, shop fittings and rental applications.
- Supplied with 4 x Conicals, 8 x Pins and 8 x R-Clips
- 2mm wall thickness aluminium
- Truss diameter: 290mmØ
- Tube diameter: 50mmØ
- Weight: 7.5kg
Elumen8 UBP 600 X 600 Base Plate
UBP600 Multi Base Plate 600 x 600mm Black F31-F34 truss or Curtain Call pipe and drape (no conicals or spigot supplied). Manufactured in the UK from high grade, laser cut 6mm steel plate, finished with semi-gloss black powder coat finish. The universal hole patterns allow full compatibility across Global Truss and most other brands of 290mm truss.
- Made in Britain
- For use with F31-34 Standard or PL Truss
- Requires GL3000 half conical connectors for PL series, GL5003 half conicals for Standard series (not included)
- Also for use with Curtain Call Pipe and Drape (spigot required)
- Prolyte H30 Truss compatible
- Carry handle for ease of movement
- Dimensions (H x W x D): 6 x 600 x 600mm
- Weight: 21.8kg
