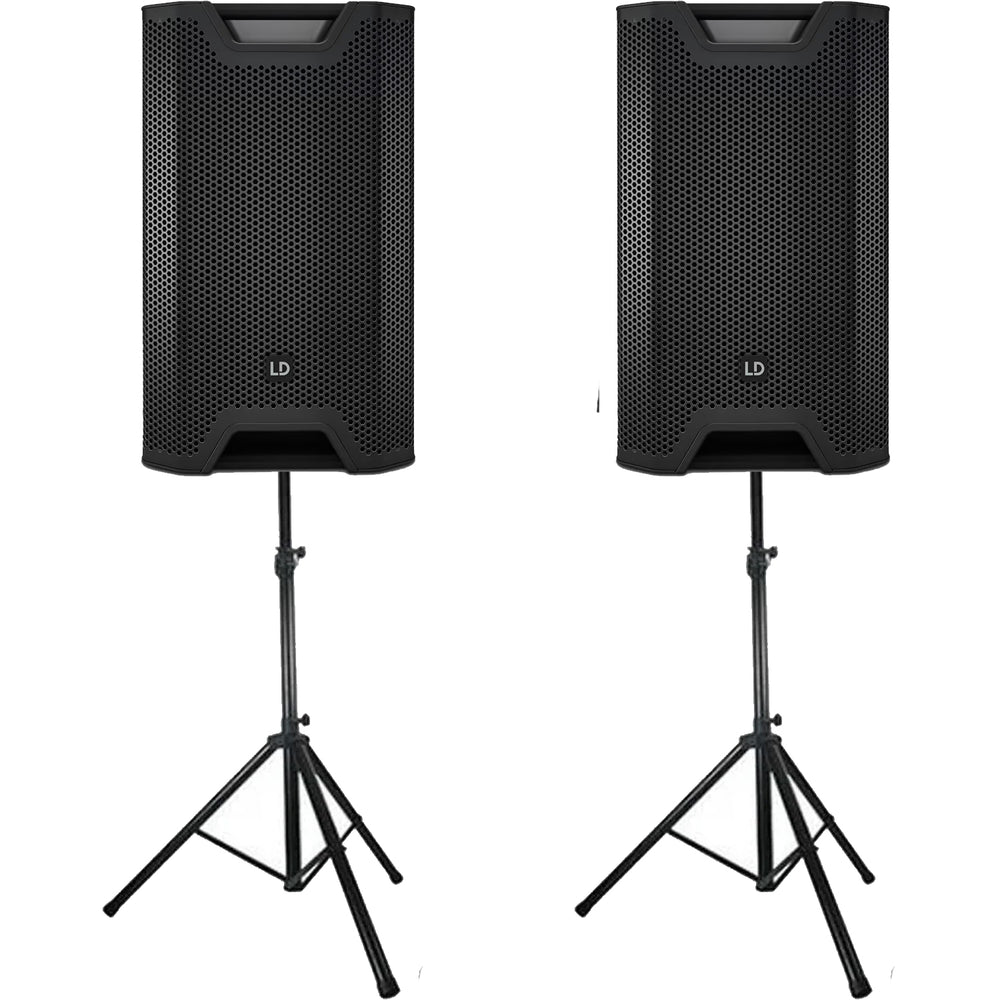

2 x LD Systems ICOA 12 A 12" Powered Coaxial PA Loudspeaker With Speaker Stands

This bundle includes:

2 x LD Systems ICOA 12A 12" Active Speakers

2 x Speaker Stands with Carry Bag

LD Systems ICOA 12A 12" Active Speakers

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible.

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 1200 W peak performance.

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

General

Type Active

Peak output power 1,200 W

RMS output power 300 W

Amp class Class D

Max. SPL peak 126 dB

Frequency response 50 - 20,000 Hz

Speaker system 2-way coaxial system

Crossover frequency 2 kHz

Beam angle 90° (hor.) / 50° (vert.)

Monitor angle 55 °

Number of inputs 3

Input connector types 6.3 mm Jack TRS female

Number of outputs 1

Output connector types XLR 3-pole female

Protection features Multiband Limiter, Overheating, Overvoltage, Overload

Colour

Black Inputs

Number of mic/line inputs 2

Mic/Line-in connector type XLR combo socket

Number of line inputs 1

Line-In connector type 3.5 mm Jack TRS female

Outputs

Number of line outputs 1

Line outputs connector type XLR 3-pole female

Signal processing

Mixer Yes

Audio processing 3 band EQ (High, Mid, Low), Delay Line, Presets

Bass driver

Size 12 "

Magnet Ferrite

Tweeter

Driver size 1 "

Magnet Ferrite

Voice coil 1.4 "

Mains operation

Operation voltage 100 V AC - 240 V AC / 50 - 60 Hz

Power supply type Switched-mode power supply (SMPS)

Rated power 150 W

Mains connector IEC C14 plug male

Mains fuse T4AL/250 V

Fuse replacement Possible from the outside without opening

Housing

Design Bass reflex

Number of handles 4

Mounting type M10 flying points

Number of mounting points 6

Flange 36 mm (0°/5°)

Cabinet material Polypropylene

Material thickness 15 mm

Front grille material Aluminium

Environmental

Ambient temperature 0 - 40 °C

Maximum air humidity (non-condensing) 80 %

Dimensions & weight

Width 375 mm

Height 635 mm

Depth 396 mm

Weight 19.95 kg
