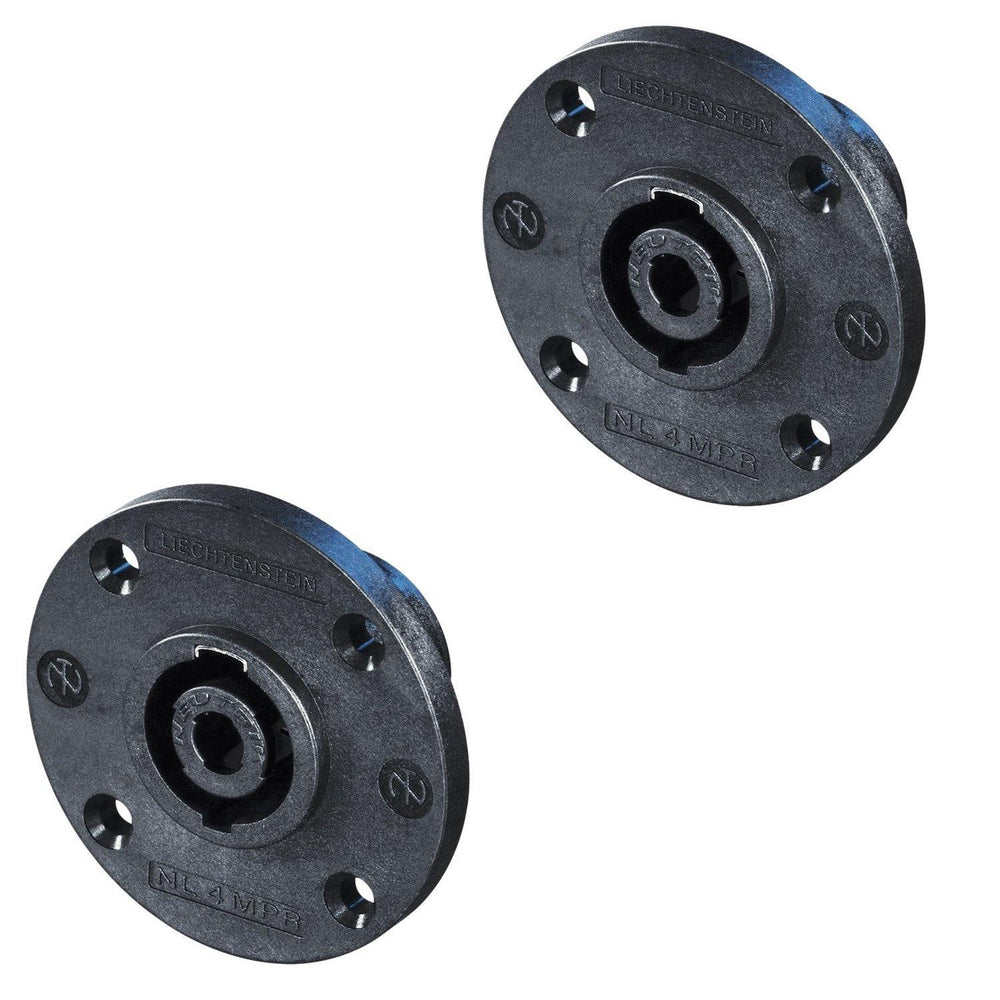

2 x Neutrik NL4MPRXX Speakon 4 Pole Chassis Round Connector

NeutrikSKU: 001286

Price:
Sale price£9.99
Stock:
10 In Stock

Description

This Bundle includes

2 x Neutrik NL2MPRXX



The Neutrik NL4MPR 4-Pole SpeakON Round Chassis Connector ensures exceptional durability and reliability, making it the industry-standard for loudspeaker and amplifier interconnectivity. Equipped with Neutrik's unique metal locking system, the connector makes contact only once your cable is fully locked in. Each Neutrik SpeakON receptacle is built to last, with robust construction, versatile operation, and simple termination. This airtight design has been optimized for speaker applications.

Features

  • 30 A RMS current rating
  • Glass reinforced materials ensure extremely robust and dependable construction
  • Precise keyway for secure mating
  • Accurate twist-lock latching system
  • Metal insert in locking area
  • Airtight design optimized for speaker applications

Specifications

  • Connection Type: SpeakON
  • Gender: Male
  • Contact Resistance: Less than or equal to 3 m Ohms (after lifetime)
  • Dielectric Strength: 4 kVdc (peak)
  • Insulation Resistance: Greater than 1 G Ohm (after dampheat)
  • Rated Current Per Contact:
    • 30 A RMS continuous
    • 40 A audio-signal, duty cycle 50 percent
  • Rated Voltage: 250V (insulation)
  • Lifetime: Greater than 5000 mating cycles
  • Locking Device: Quick Lock
  • Chassis Shape: Round G-size flange
  • Layout: Four thru holes
  • Contact Plating: 4 µm Ag (Silver)
  • Contacts: Bronze (CuSn6)
  • Shell: Polyamide (PA 6 30 percent GR) black
  • Flammability: UL 94 HB
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -30 Degrees C to +80 Degrees C



ATTENTION: This SpeakON connector is NOT to be used as an AC mains or power supply connection.
