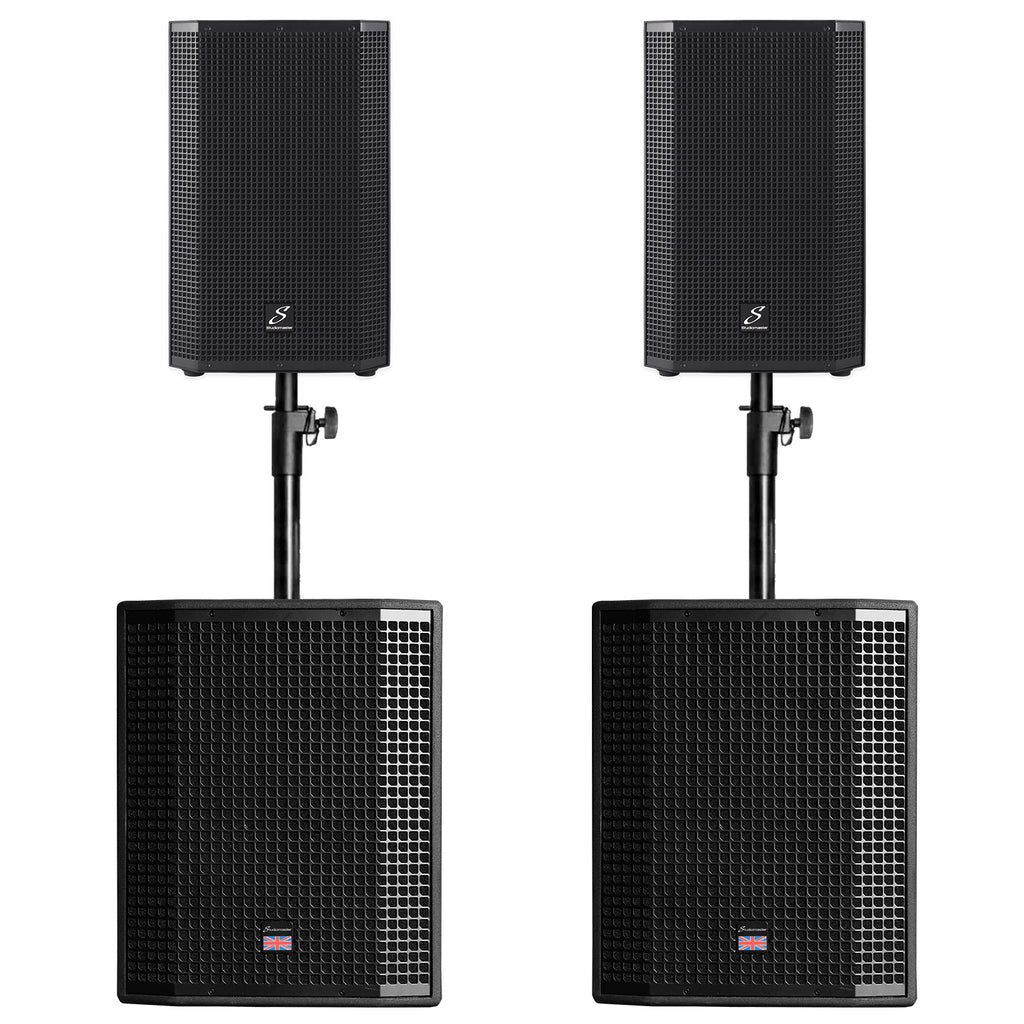

2 x Studiomaster Vortex 12A Speaker and Vortex 15SA Subwoofer Speaker Bundle
Product Description
This bundle includes:
2 x Studiomaster Vortex 12a Active Speakers
2 x Studiomaster Vortex 115sa Active Subwoofers
2 x 35MM Speaker Poles

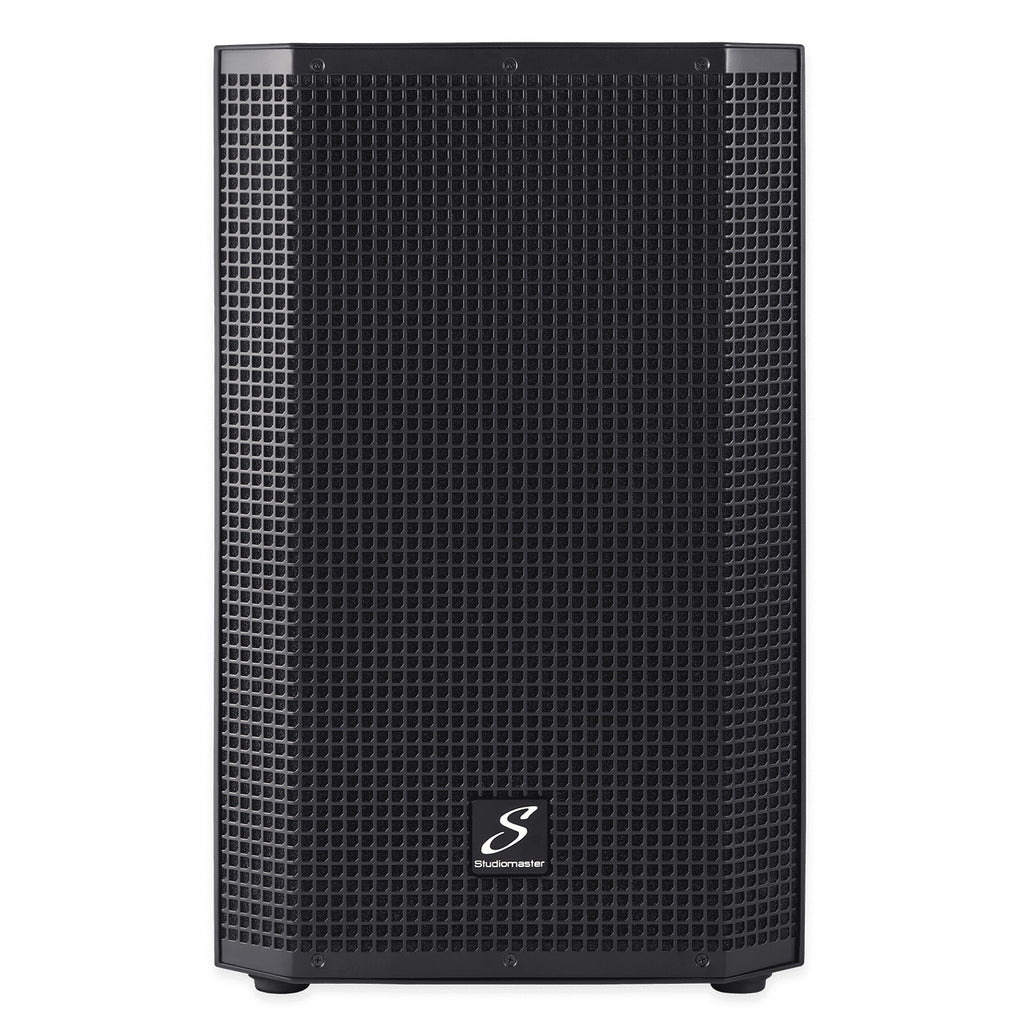

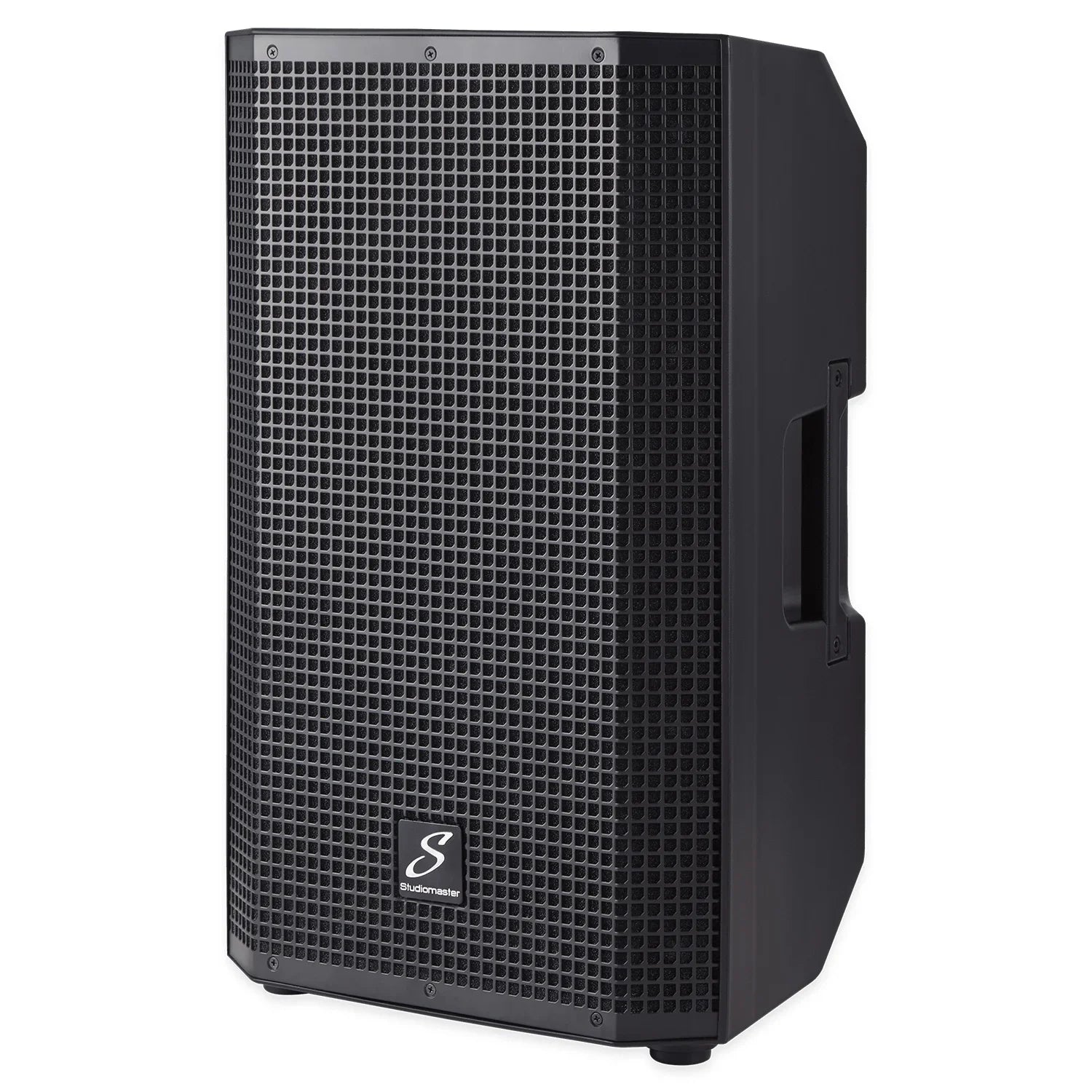

Studiomaster Vortex 12a Active Speakers

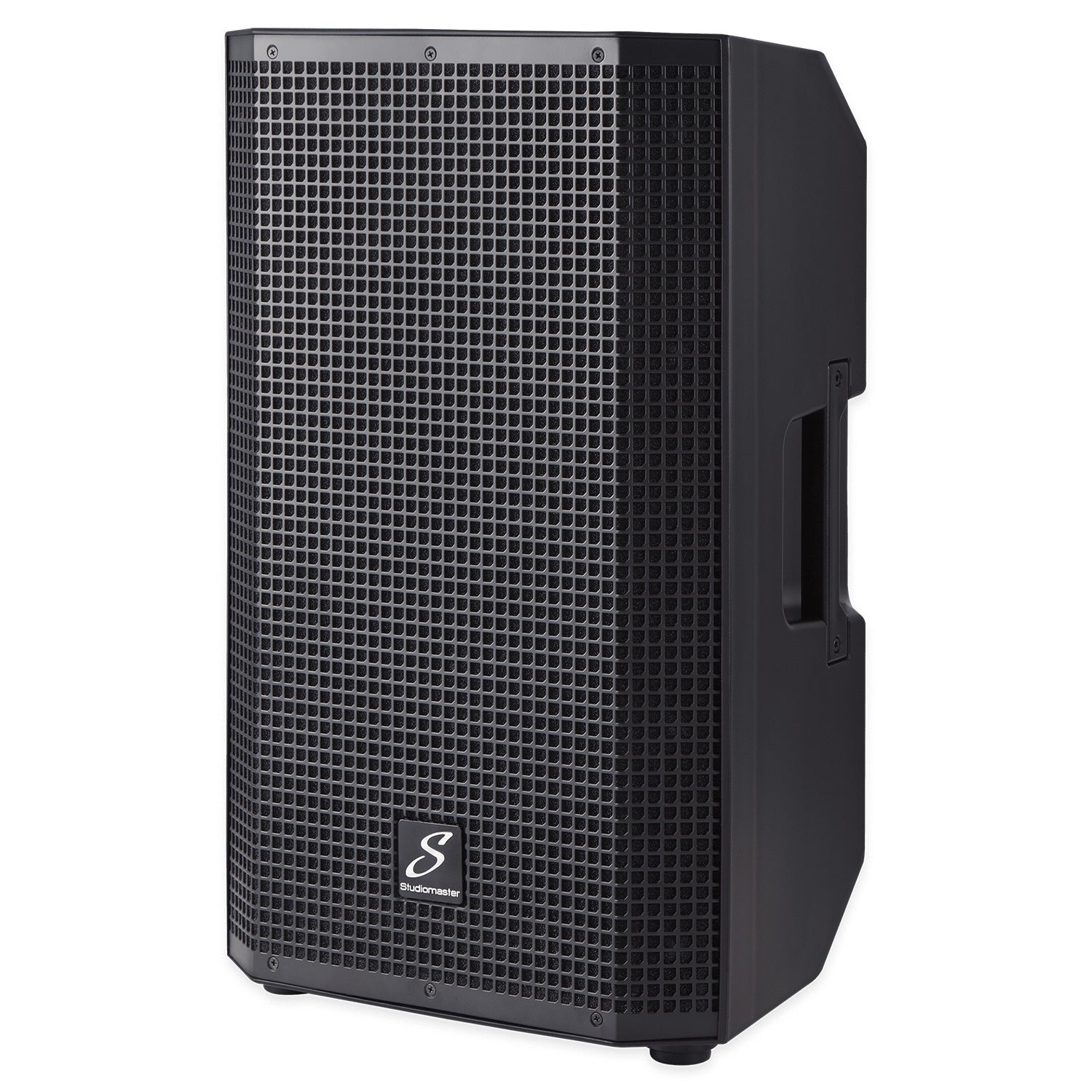

A brand new range of active moulded speaker cabinets featuring high performance 1400W (peak) power amplifiers and a unique coaxial speaker configuration. The Vortex series are designed to perform and exceed your expectations and requirements for lightweight, portable PA cabinets. The all new Studiomaster VORTEX series feature set is considerable, with Bluetooth input with TWS, built in DSP control, Dual 35mm top hat sockets, triple input channels, multiple M10 flying points, up to 3 carry handles for portability and much more.
- Bluetooth playback with TWS facility
- 24 BIT DSP
- 3 Band EQ
- Limiter
- Time delay
- 2 x Mic / Line Inputs
- 1 x 3.5mm Line Input
- Full face front grille
- Moulded cabinet
- Multiple handle positions
- 1400W 2-way amplification
- 124-125dB SPL
- Multiple M10 flying points
- Dual top hat sockets : Straight (0 degree), Angled (10 degree)
- Floor monitor suitable
- 12″ 2-way coaxial active speaker cabinet
- MAX SPL – 125dB
- Output 1400w Peak, 700w MAX
- FREQ RESPONSE – 50Hz-20kHz
- COVERAGE(h x v) – 80 x 80 degree
- LF DRIVER – 12″ / 65mm VC
- HF DRIVER – 34mm VC / 1″ throat
- CROSSOVER FREQUENCY – 2.2kHz
- 24bit DSP – Mode select, 3 band EQ, delay, volume
- DSP MODES – Music, live, dj, speech, monitor

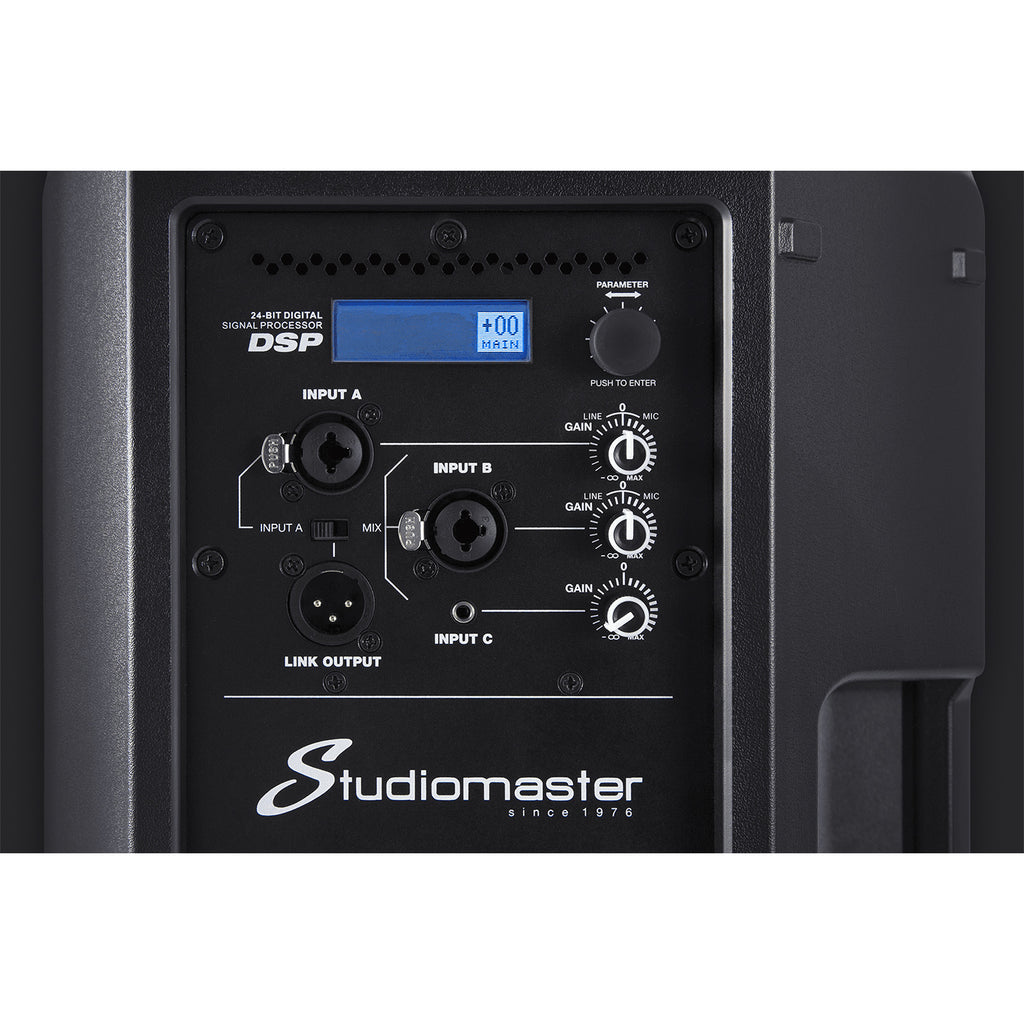

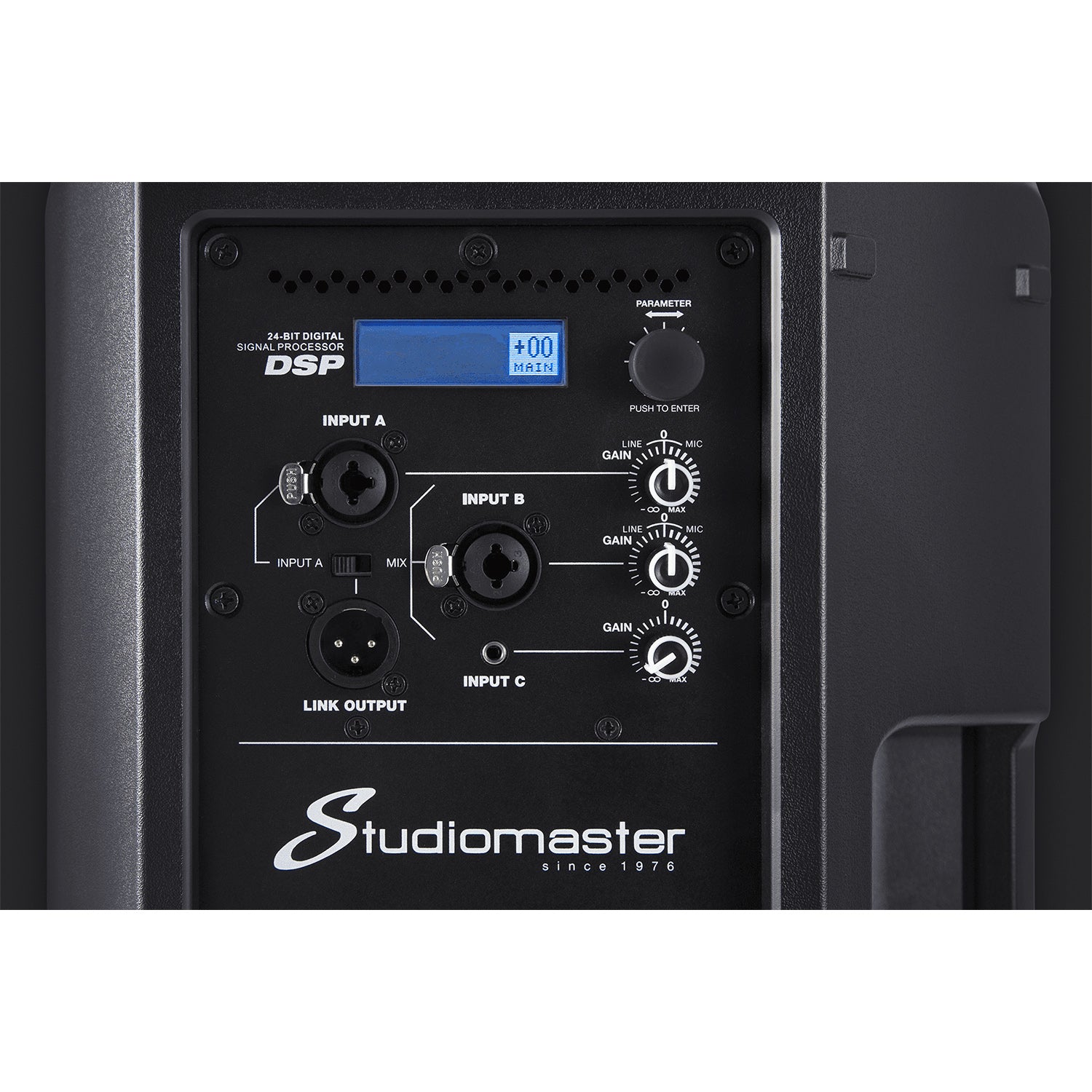

- CONNECTION – 2x XLR/JACK Combo inputs, 1x 3.5mm Input and XLR link output
- BLUETOOTH playback
- MOUNTING – Dual top-hat, 5x M10 flying points
- DIMENSIONS (W/H/D) – 360 / 585 / 310mm
- Weight : 15.5kg

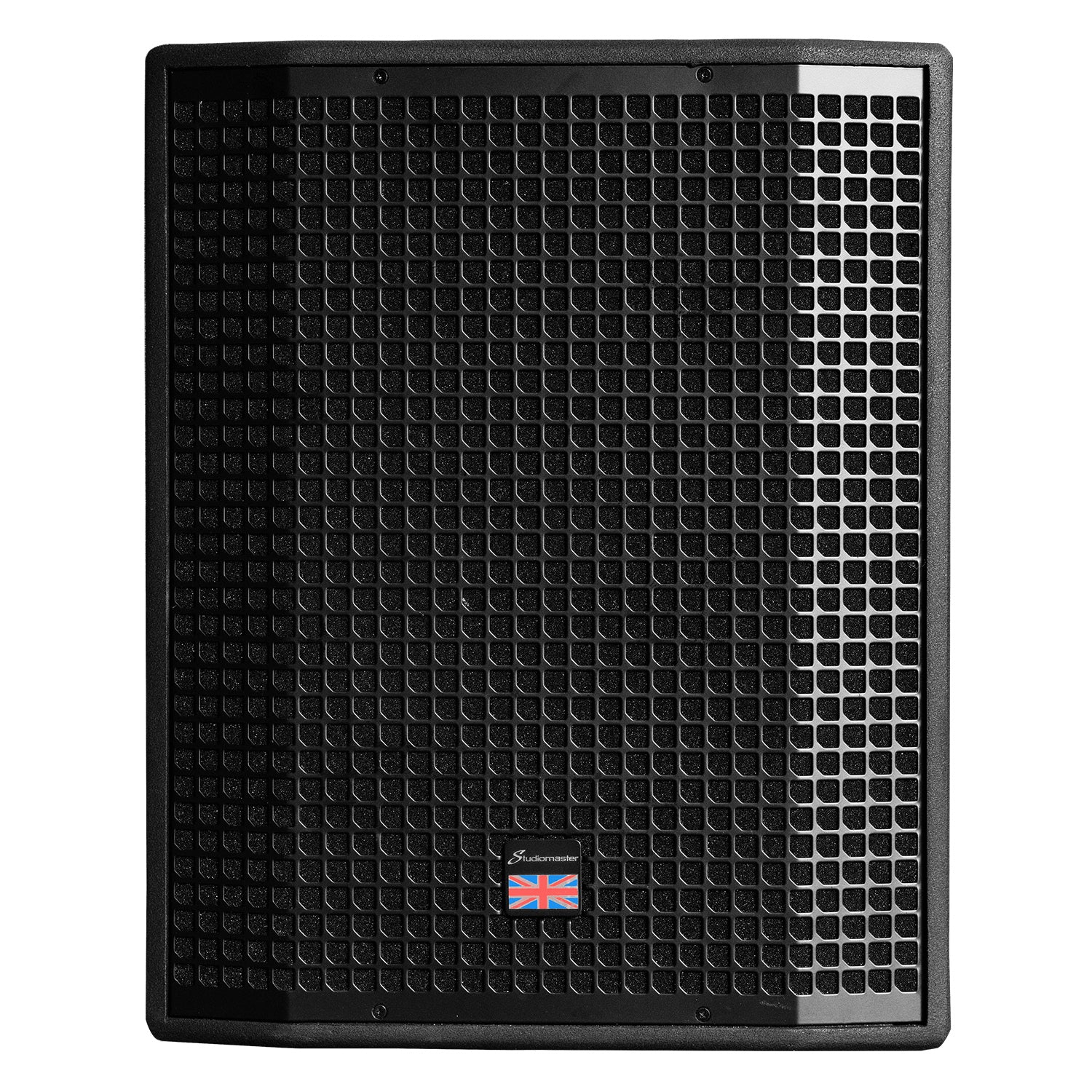

Studiomaster Vortex 15sa Active Subwoofers

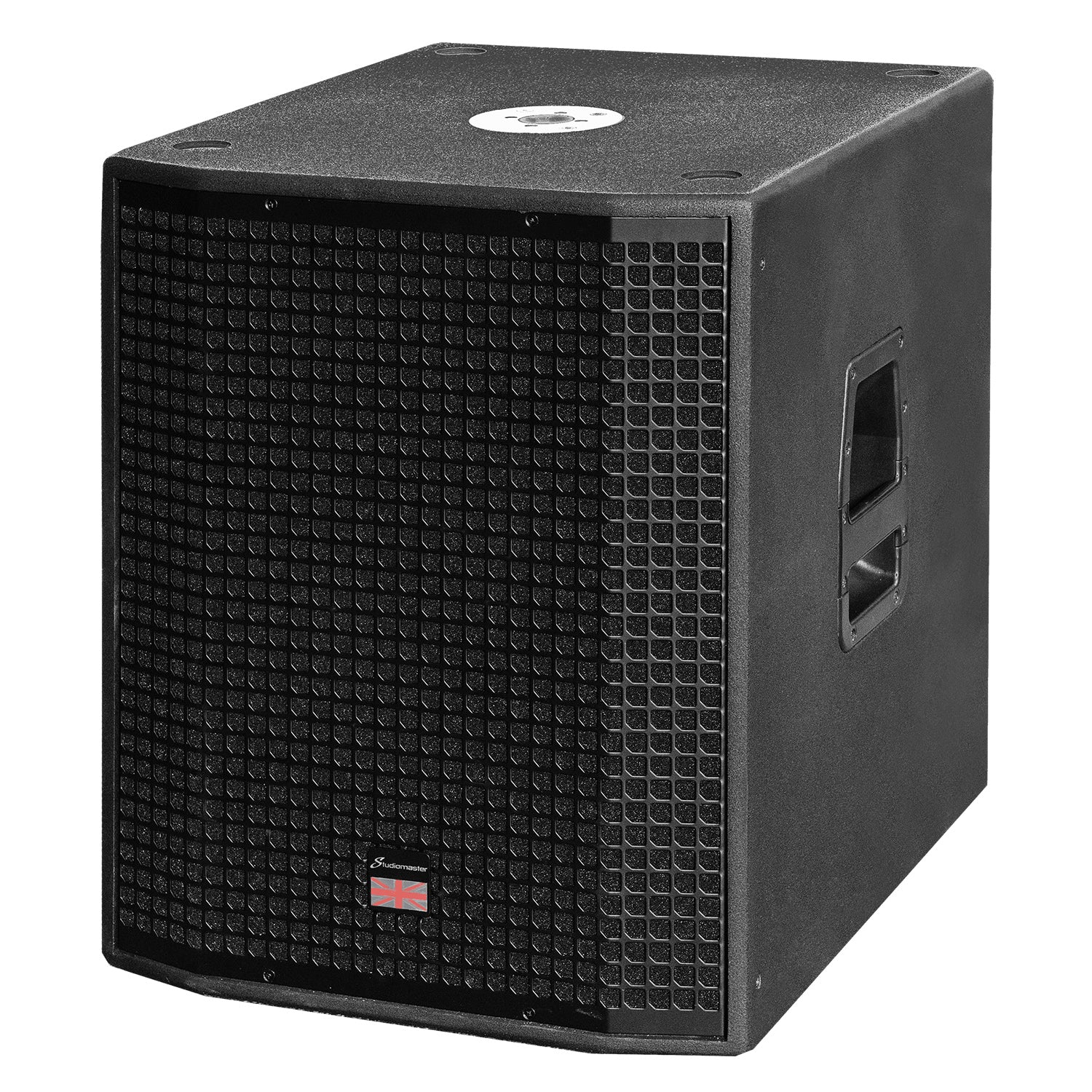

The Vortex 15SA is a compact, high power 15″ active sub bass cabinet, delivering 2400W of low frequencies between 43 -150 Hz. Manufactured with 15mm plywood and a durable paint finish. Large carry handles and a 35mm top hat make moving and installing this system simple. Dual inputs and easy to use DSP allow the Vortex 15SA to be set-up in seconds.
| MAX SPL | 132dB |
| AMP PEAK | 2400W |
| AMP PGM | 1200W |
| AMP RMS | 600W |
| Cabinet type | 15" active subwoofer |
| Frequency response | 43Hz-150kHz |
| Input sensitivity | 0dBu |
| Coverage(H x V) | - |
| LF Driver | 15" / 75mm VC |
| HF Driver | - |
| Crossover frequency | 120Hz |
| DSP-24bit | Low cut / delay / volume |

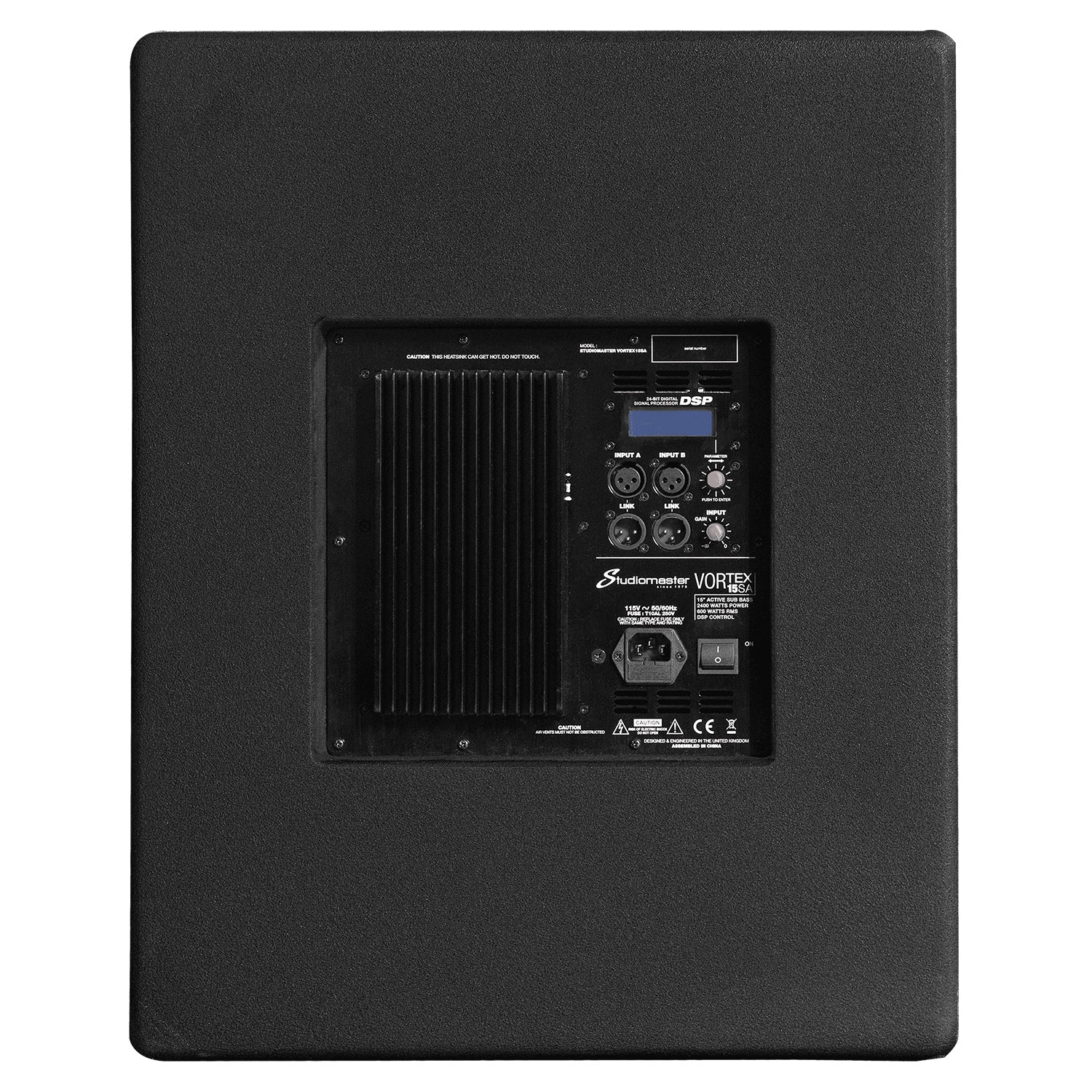

| Connection | 2 x balanced XLR input, 2 x balanced XLR output |
| Mounting | - |
| Dimension (W × H × D) | 460 x 580 x 580mm |
| Net Weight | 31kg |
