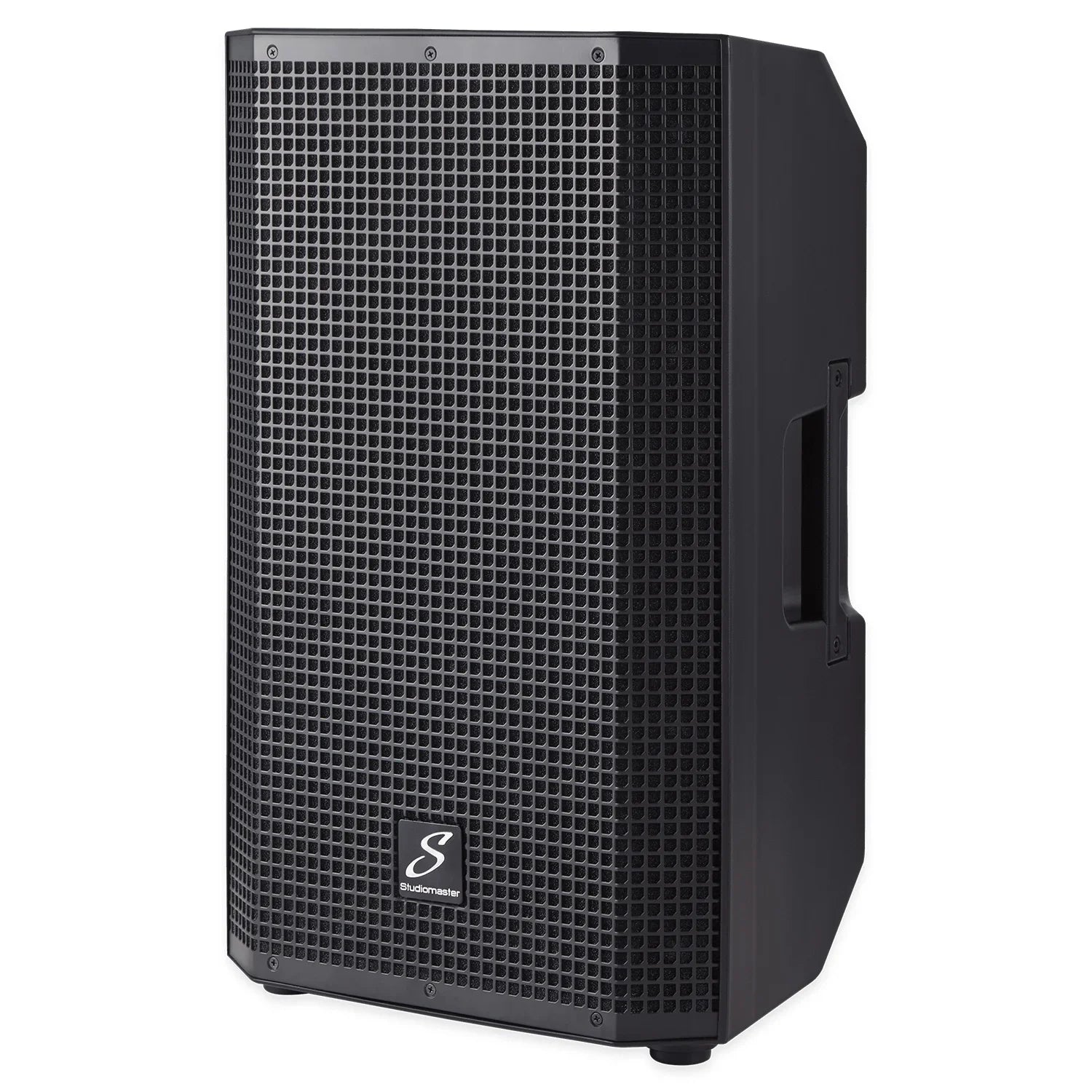

2 x Studiomaster Vortex 15A Speaker and Vortex 18SA Subwoofer Speaker Bundle
Product Description

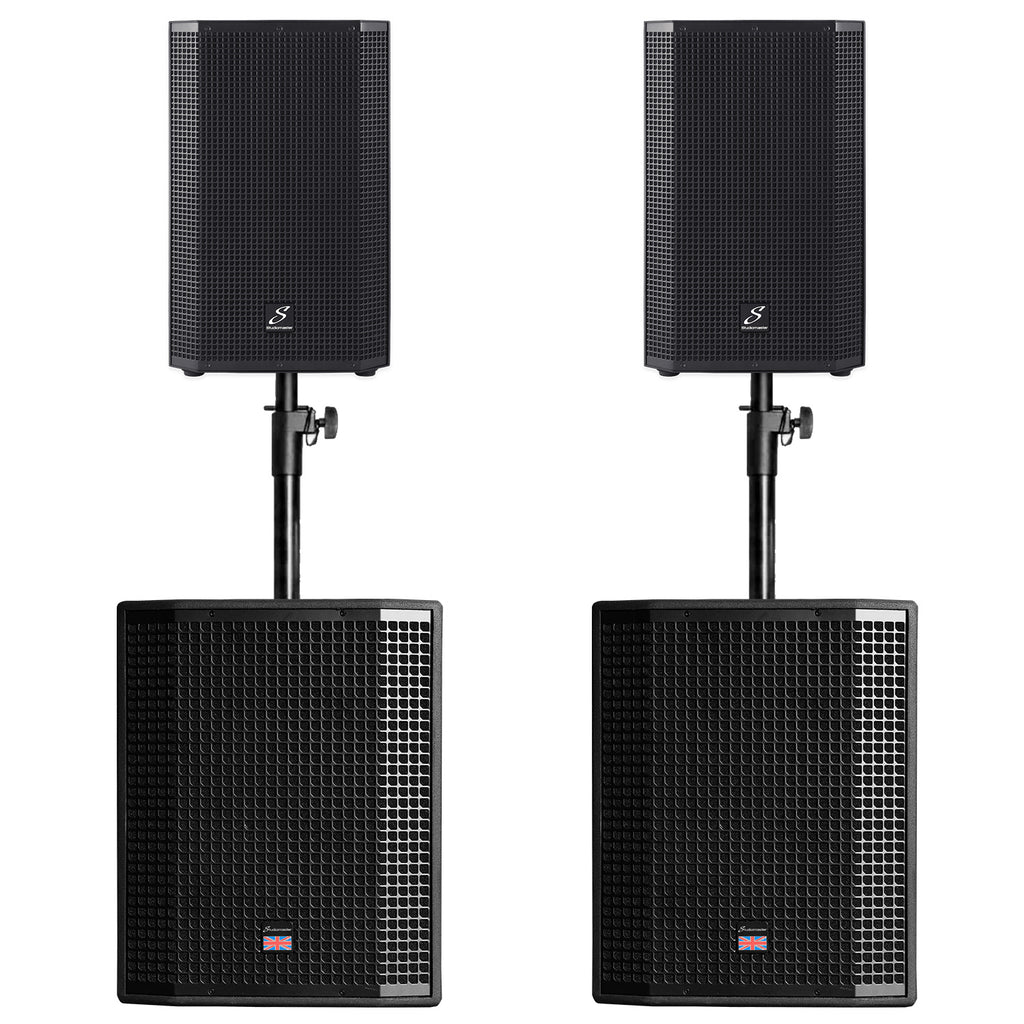

This bundle includes:
2 x Studiomaster Vortex 15a Active Speakers
2 x Studiomaster Vortex 18sa Active Subwoofers
2 x 35MM Speaker Poles

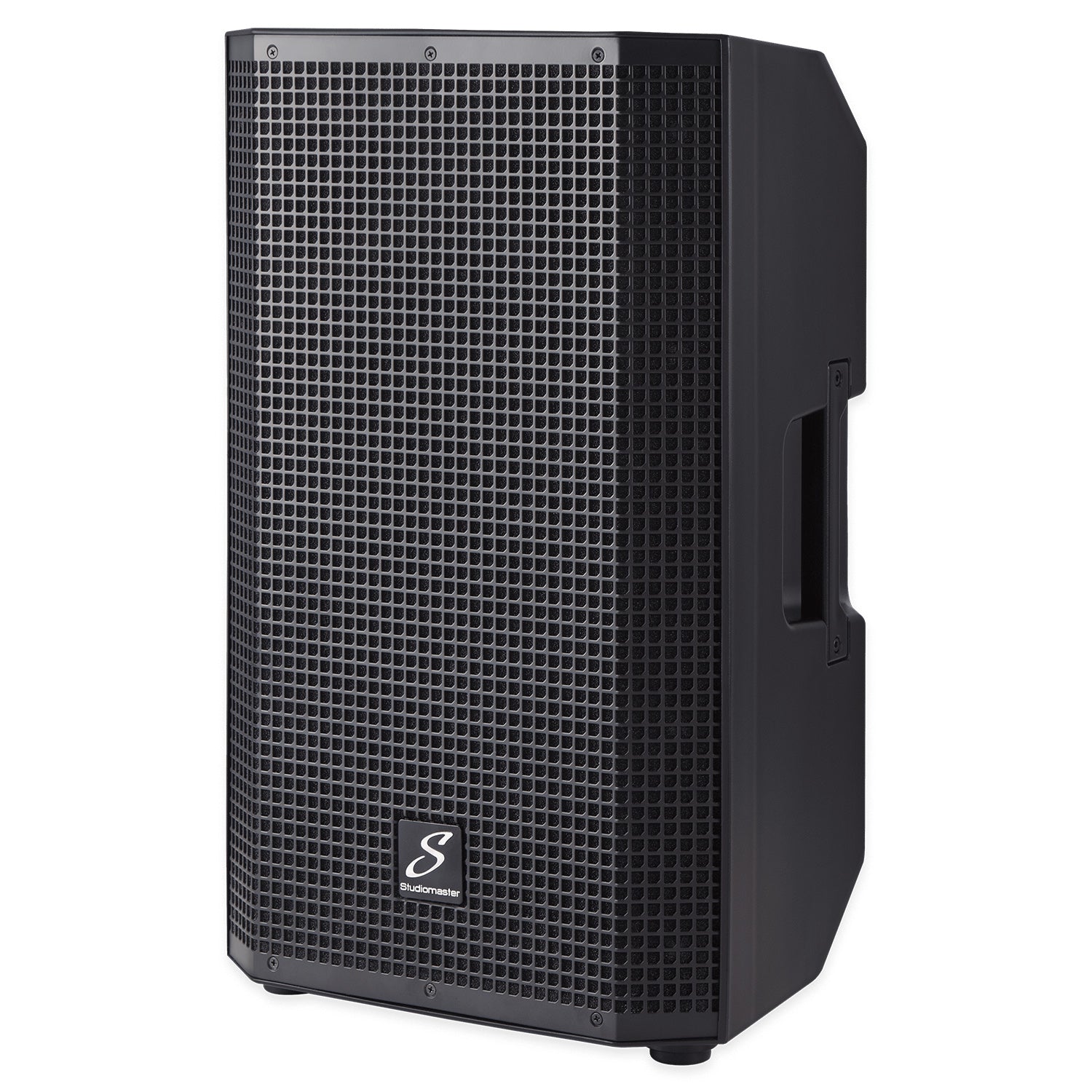

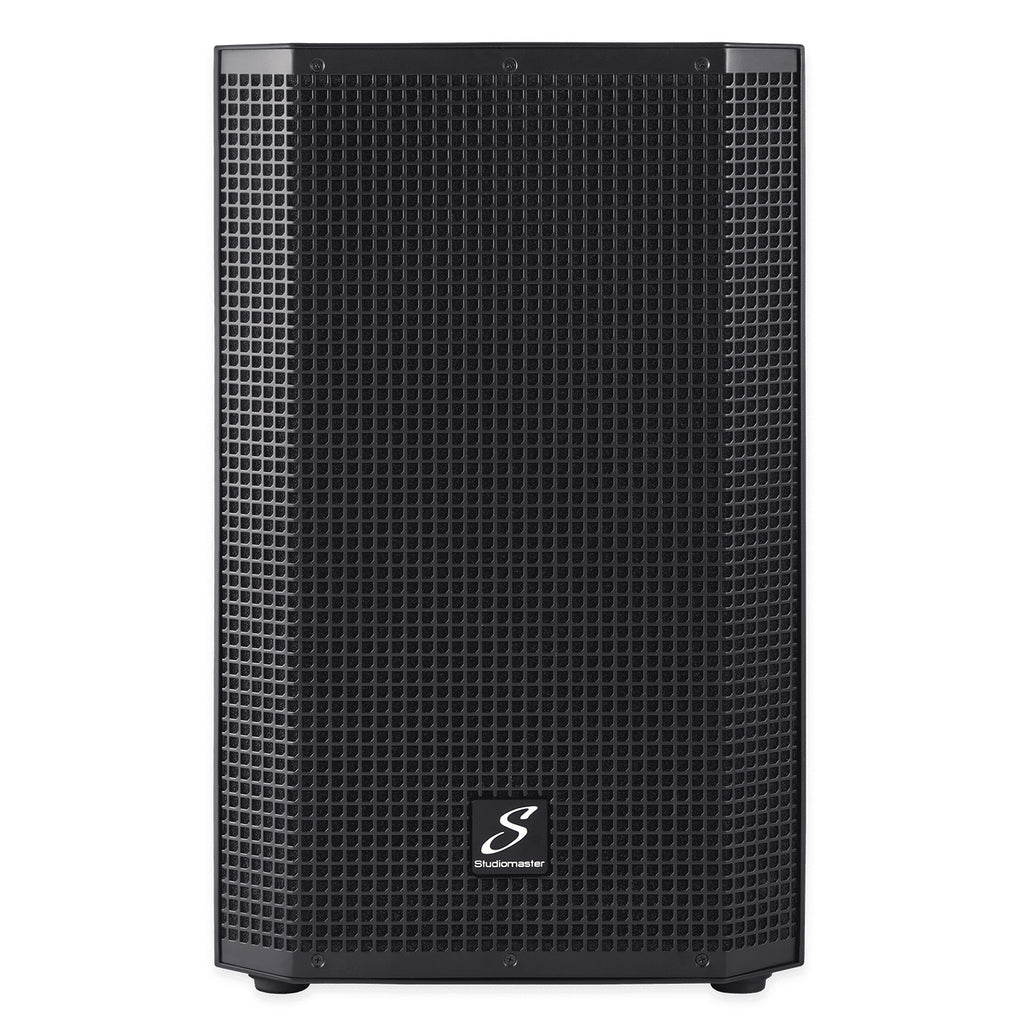

Studiomaster Vortex 15a Active Speakers
Vortex is a range active moulded speaker cabinets. Featuring high performance 1400W (peak) power amplifiers, and a unique coaxial speaker configuration, the VORTEX series are designed to perform and exceed your expectations and requirements for lightweight, portable PA cabinets. The Vortex series feature set is considerable with Bluetooth input input (with TWS), built in DSP, dual 35mm top hat sockets, 3 input channels, multiple m10 flying points, multiple carry handles and much more.
| MAX SPL | dB |
| AMP PEAK | 1400W |
| AMP PGM | 700W |
| AMP RMS | 350W(300+50) |
| Cabinet type | 2-way coaxial active |
| Frequency response | Hz-20kHz |
| Input sensitivity | 0dBu |
| Coverage(H x V) | 80° x 80° |
| LF Driver | 15" / mm |
| HF Driver | 34mm VC / 1" throat |
| Crossover frequency | 2.2kHz |
| DSP-24bit | 5 modes (music/live/dj/speech/monitor), 3 band EQ, delay, volume |

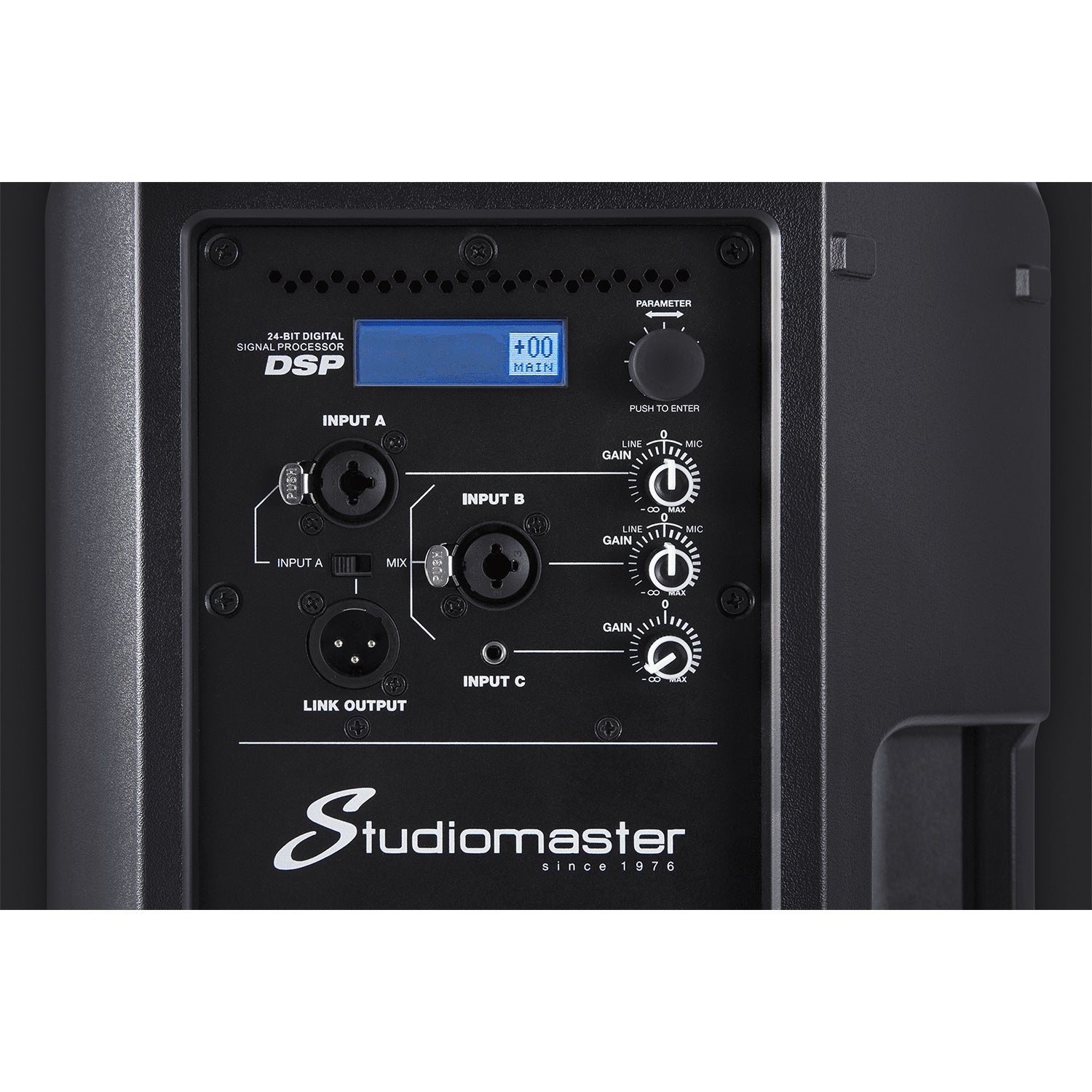

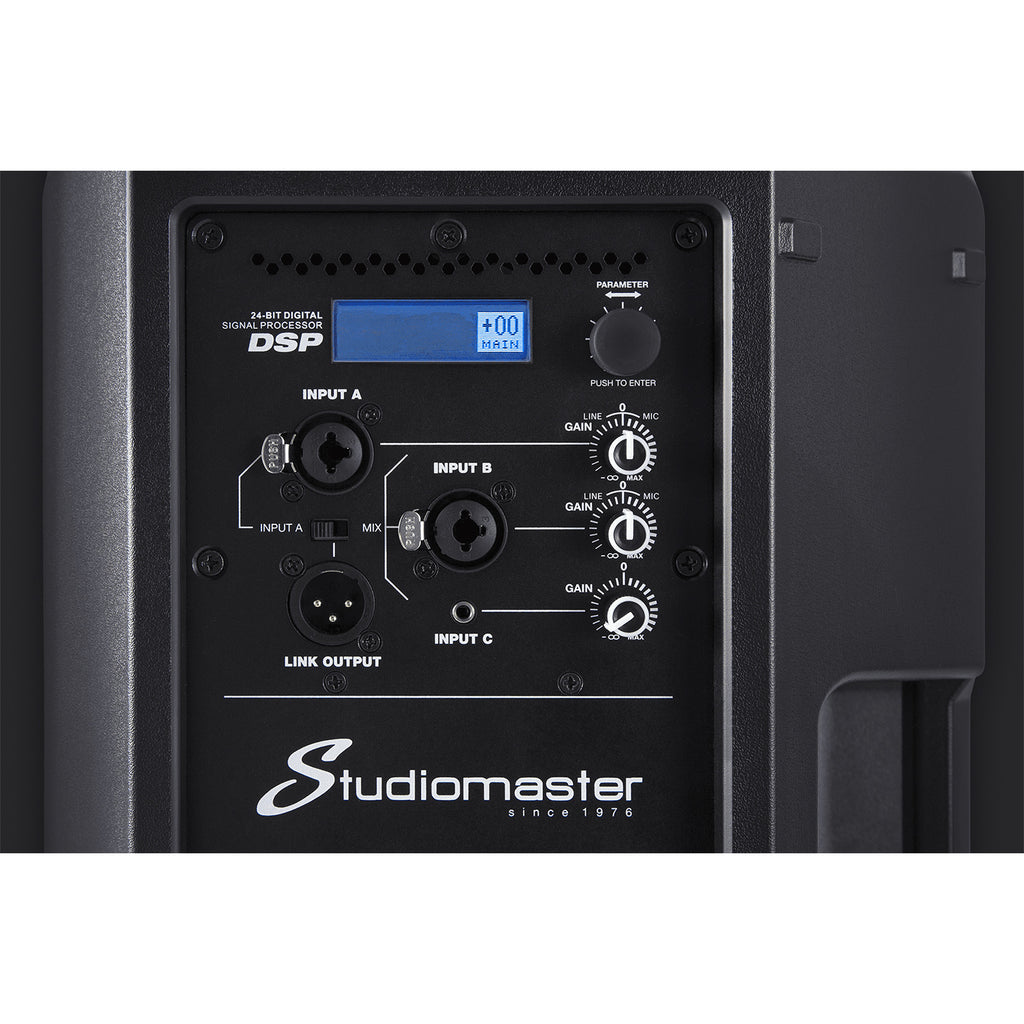

| Connection | 2 x XLR / JACK input+3.5mm, XLR output |
| Mounting | Dual top-hat, 5x M10 flying points |
| Dimension (W × H × D) | x x mm |
| Net Weight | kg |

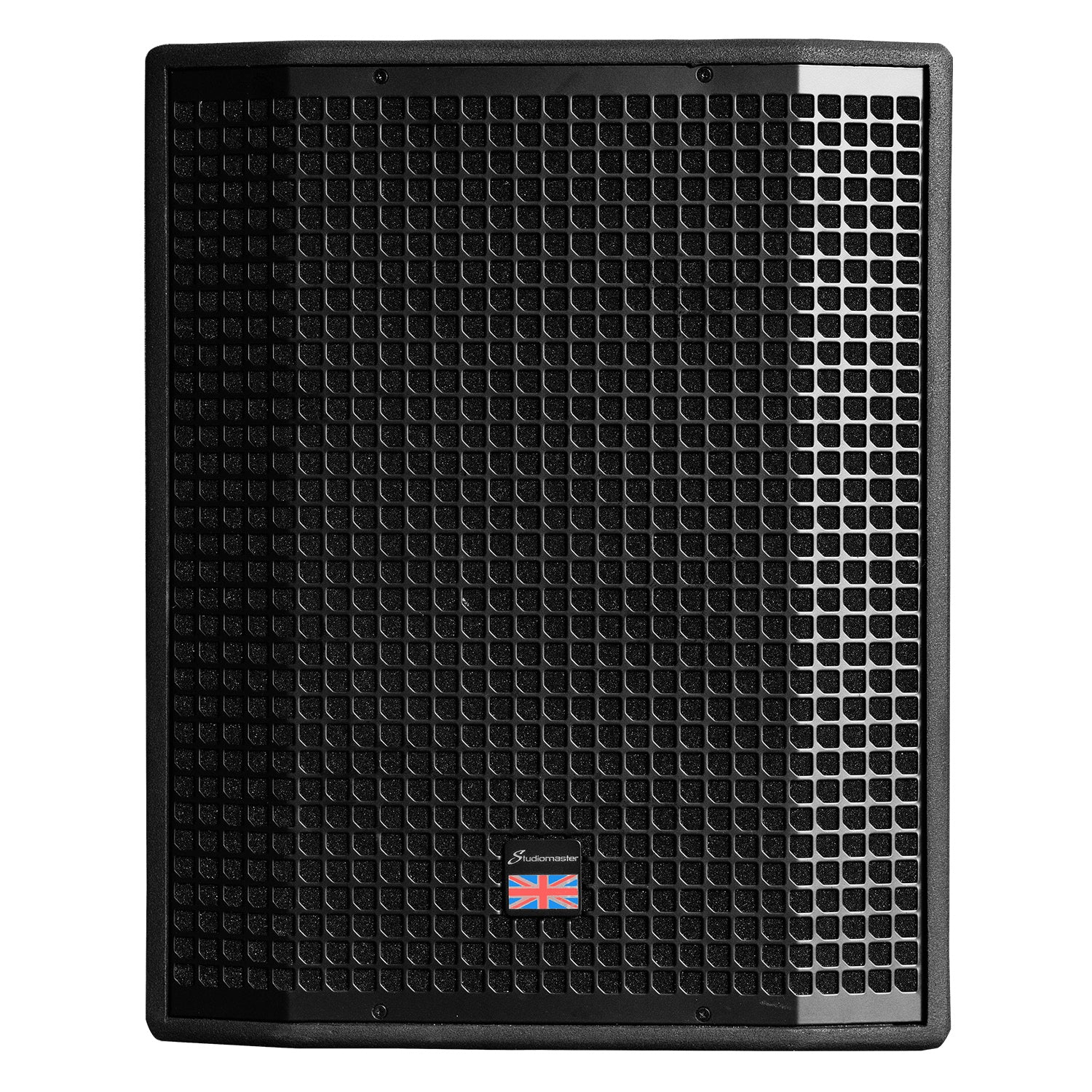

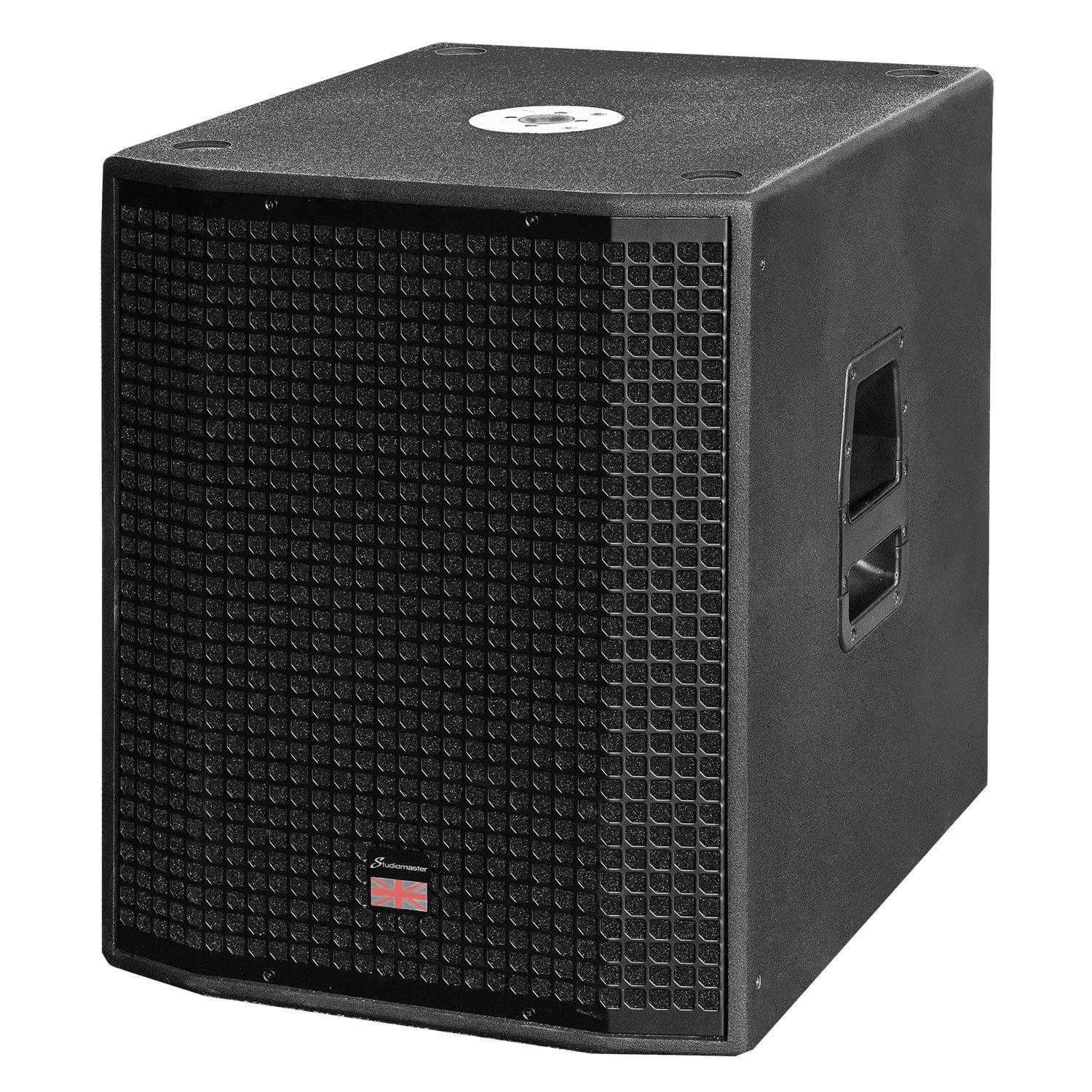

Studiomaster Vortex 18sa Active Subwoofers
The Vortex 18SA is a compact, high power 18″ active sub bass cabinet, delivering 2400W of low frequencies between 43 -150 Hz. Manufactured with 15mm plywood and a durable paint finish. Large carry handles and a 35mm top hat make moving and installing this system simple. Dual inputs and easy to use DSP allow the Vortex 18SA to be set-up in seconds.
| MAX SPL | 134dB |
| AMP PEAK | 2400W |
| AMP PGM | 1200W |
| AMP RMS | 600W |
| Cabinet type | 18" active subwoofer |
| Frequency response | 43Hz-150kHz |
| Input sensitivity | 0dBu |
| Coverage(H x V) | - |
| LF Driver | 18" / 75mm VC |
| HF Driver | - |
| Crossover frequency | 120Hz |
| DSP-24bit | Low cut / delay / volume |

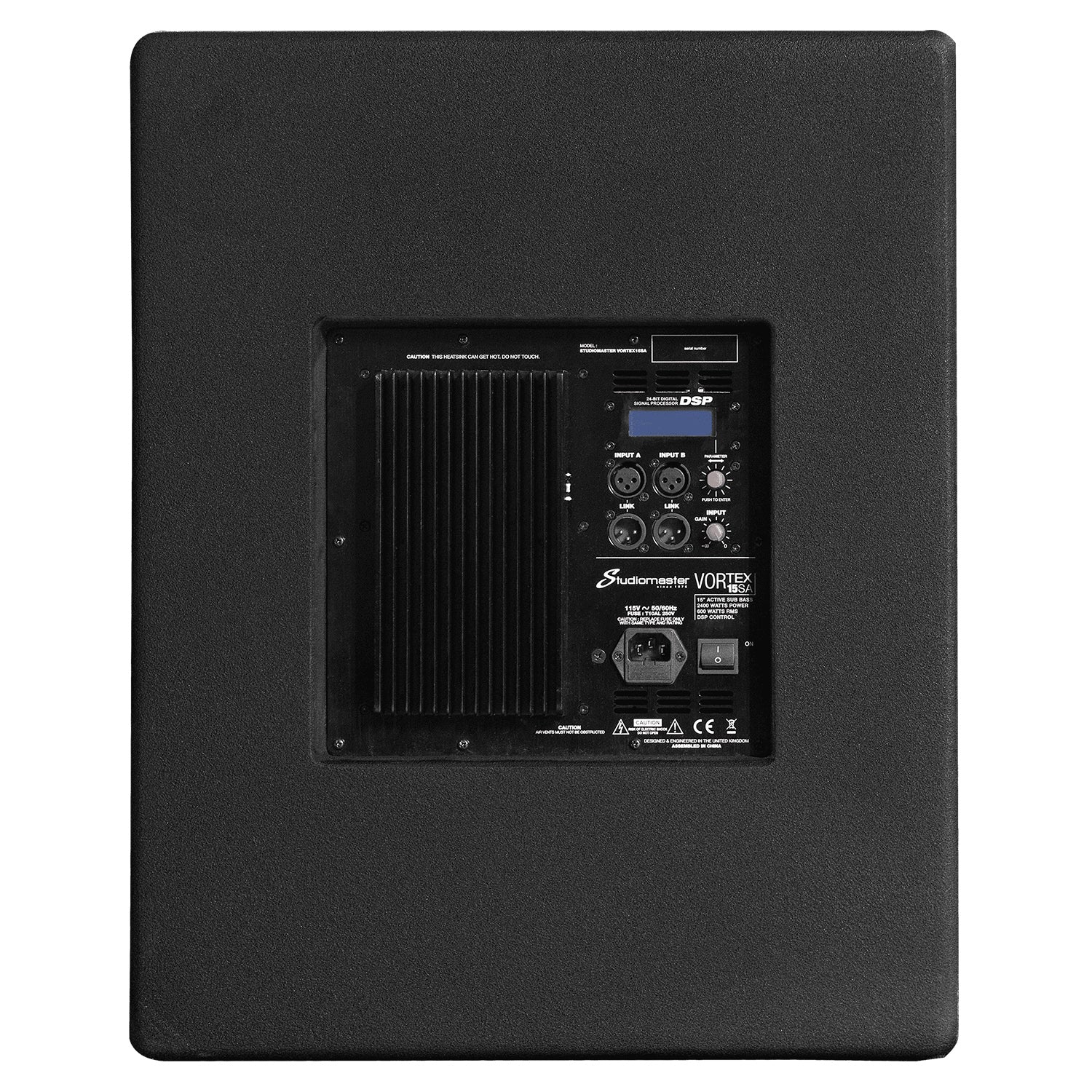

| Connection | 2 x balanced XLR input, 2 x balanced XLR output |
| Mounting | - |
| Dimension (W × H × D) | 530 x 682 x 610mm |
| Net Weight | 35kg |
