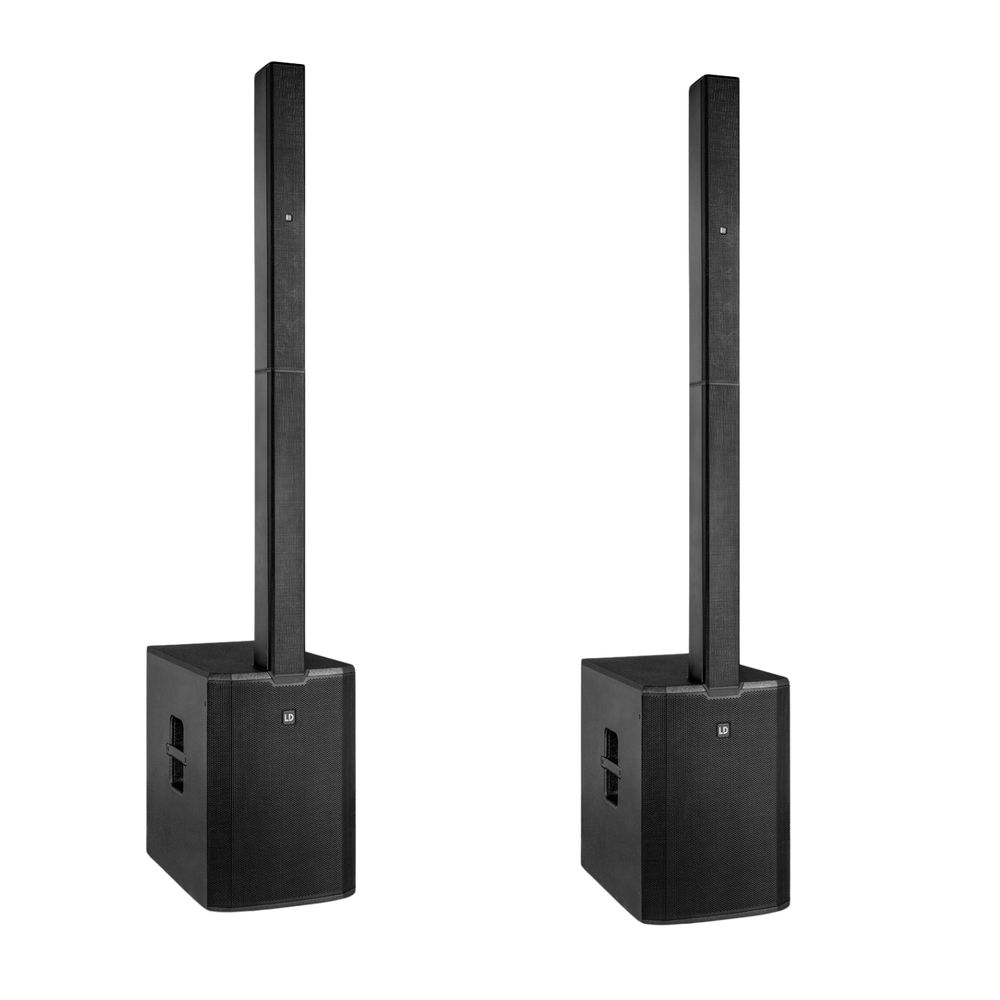

2 X LD Systems MAUI 44 G2 Black Active Column Array System
Product Description
This bundle includes:
2 x LD Systems MAUI 44 G2 Column Array System
LD Systems MAUI 44 G2 Column Array System
Column systems have literally revolutionized numerous application areas for bands and DJs. Never has it been easier to provide a consistent sound solution from a simple, inconspicuous PA system - even in large spaces. The MAUI® 44 G2 is now the practical, powerful solution for the professional segment.
The LD Systems MAUI® 44 G2 is the flagship of the MAUI series column PAs: it offers an enormous 1,500 watts of total output (RMS) with a frequency response of 37 Hz to 20 kHz and a sound-level pressure of 132 dB (peak). With its outstanding sound properties and wide-ranging functions, this compact column PA is perfect for rental companies, musicians, small clubs, street festivals and permanent installations. The cardioid properties of the column elements and the possibility of creating a cardioid bass with an additional subwoofer further highlights the professional nature of this sound system. The column achieves a rear attenuation of 18 dB, the subwoofer 15 dB. The MAUI® 44 G2 also sets the tone when the two-part column is equipped with twelve 3.5" neodymium full-range speakers and four 1" HF drivers with waveguide. The phase plugs on the six upper drivers improve horizontal directivity, reduce distortion and optimise the sensitivity below the crossover frequency for the tweeters. In addition, the four tweeters feature specially designed and optimised compression drivers coupled to a constant directivity waveguide to provide 120° of coverage across the width and 25° of focused vertical directivity. The curved design of the waveguide transports more energy in the high frequencies to listeners standing further away.
In the case of permanent installations or when providing sound for conferences, the TrueWireless™ stereo function makes life a whole lot easier since it enables two systems to be wirelessly connected for stereo reproduction. Bluetooth® streaming in HD quality is no problem at all thanks to aptX™ and AAC Codec, while DynX® DSP technology ensures distortion-free sound reproduction even at the very highest volumes. Total and subwoofer levels can be individually adjusted, providing a perfectly balanced sound in all situations, with a crystal-clear treble, a crisp mid-range and - thanks to the flow-optimised bass-reflex channels - a powerful bass.
Another particularly user-friendly feature of the MAUI® 44 G2 is automatic set-up recognition: if the column is removed to use the subwoofer as a follower, for example, the display automatically jumps to FOLLOWER and functions such as Bluetooth and the volume controls for MAIN and SUB no longer appear.
The MAUI® 44 G2 is absolutely top-class when it comes to transportation and mobile use, too: assembly is quick and simple with no need for cables or stands - special multi-pin connections are used instead. Together, the rugged subwoofer housing made of birch multiplex with polyurea coating and the light, powder-coated aluminium column weigh a total of less than 48 kg - a weight reduction of 20% as compared to the predecessor model. The optionally available transport roller board, carry bag and sub cover do a superb job in day-to-day use. In terms of inputs, the MAUI® 44 G2 offers two XLR IN connections, while two XLR outputs enable a wired stereo configuration of two systems. Meanwhile the SUB OUT can be used to hook up an additional subwoofer, and the power supply is via secure and reliable powerCon connection.
General
Type Active
RMS output power 1500 W
Amp class Class D
Max. SPL peak 132 dB
Frequency response 37 - 20,000 Hz
Speaker system 3.5-way system
Beam angle Hor.: 120° / Vert.:25°
Number of inputs 2
Input connector types XLR 3-pole female
Number of outputs 2
Output connector types XLR 3-pole male
Protection features Multiband Limiter, Short circuit, Overheating, Direct current
Colour Black
Bluetooth®
Bluetooth® version Bluetooth® 4.0
Features TrueWireless™ Stereo, Control
Supported audio codecs SBC, AAC, aptX™
Inputs
Number of line inputs 2
Line-In connector type XLR 3-pole female
Outputs
Number of speaker outputs 1
Speaker output connection type XLR 3-pole male
Number of line outputs 2
Line outputs connector type XLR 3-pole male
Signal processing
AD/DA converter bit depth 24 Bit
AD/DA converter sampling rate 48 kHz
Min. Signal-to-noise ratio (SNR) 106 dB
Bass driver
Size 15 "
Magnet Neodymium
Voice coil 4 "
Mid range
Size 3.5 "
Quantity 12
Voice coil 1 "
Magnet Neodymium
Mid-high range
Magnet Neodymium
Tweeter
Driver size 0.5 "
Outlet diameter 127 mm
Quantity 4
Magnet Neodymium
Voice coil 1 "
Mains operation
Operation voltage 100 V AC - 120 V AC / 50 - 60 Hz, 220 V AC - 240 V AC / 50 - 60 Hz
Power supply type Switched-mode power supply (SMPS)
Mains connector Mains socket indoor power in male & powerCON®
Housing
Design Bass reflex
Number of handles 2
Cabinet material Aluminium, Birch multiplex
Material thickness 18 mm
Front grille material Aluminium
Cooling
Cooling system Convection cooling
Satellites/columns
Design Closed
Chassis material Aluminium
Width 103 mm
Height 1,621 mm
Depth 135 mm
Weight 11.2 kg
Subwoofer
Design Bass reflex
Material thickness 18 mm
Surface coating Polyurea
Width 434 mm
Depth 637 mm
Height 634 mm
Weight 36.4 kg
Environmental
Ambient temperature 0 - 40 °C
Maximum air humidity (non-condensing) 80 %
Dimensions & weight
Width 434 mm
Height 2,256 mm
Depth 637 mm
Weight 47.6 kg
Other properties
Included accessories Mains cable
