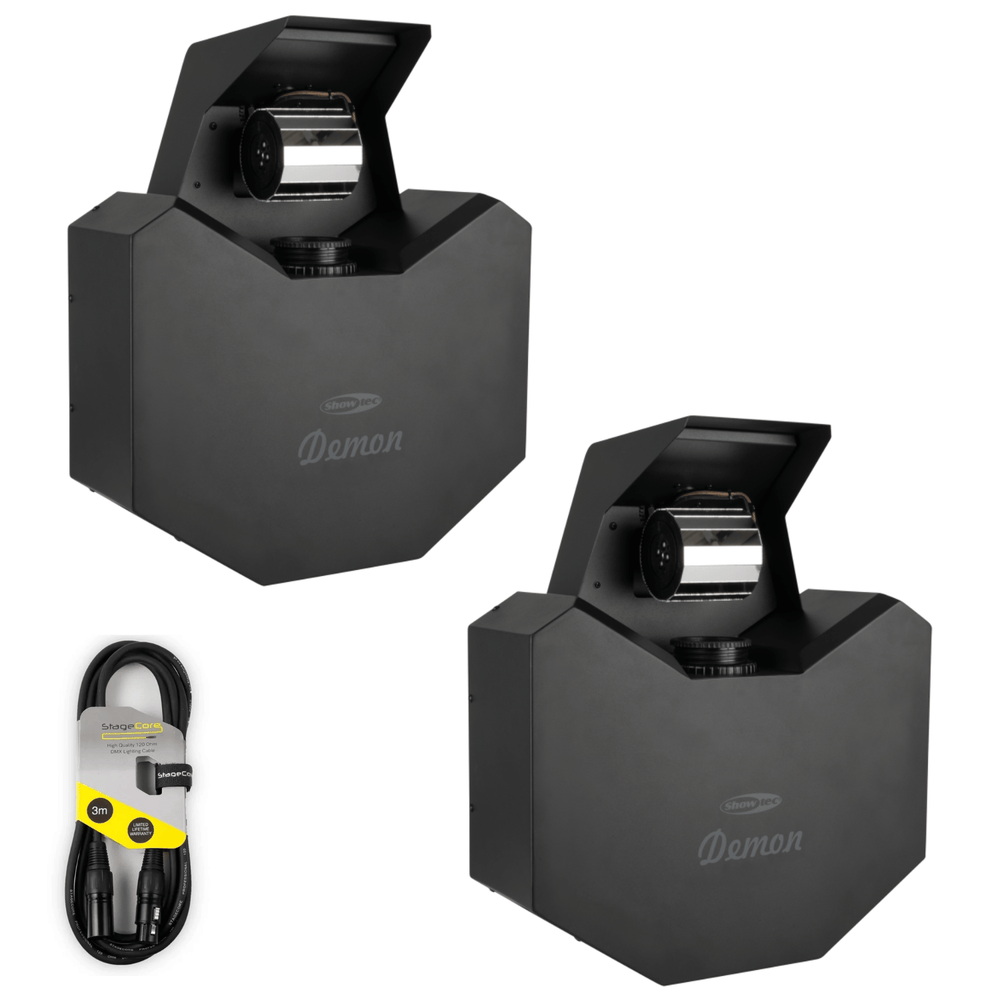

2 x Showtec Demon 140w LED Barrel Scan Effect Light with DMX Cable
Product Description
This bunndle includes:
2 x Showtec Demon 140w LED Effect Light
1 x 3m DMX Cable
Showtec Demon 140w LED Effect Light
The Showtec Demon is a dynamic barrel scan effect designed to deliver vibrant, high-energy visuals for clubs, stages, and events. It features an internal rotating moonflower mirro r, a colour wheel, and a gobo wheel for endless creative possibilities. Powered by a 140 W LED source, the Demon produces bright, colourful beams with sharp projections.
Control options include DMX/RDM, auto programs, and sound-to-light mode, with selectable 3-, 9-, or 12-channel DMX modes for flexible programming. The colour wheel offers 9 fixed colours + open, while the software enables split colour effects for up to 16 colour combinations. The gobo wheel includes 7 gobos + open, with rotating gobo functionality for dynamic patterns. The barrel mirror and moonflower mirror both feature infinite rotation, creating continuous movement and immersive effects. With 180° pan, internal programs, and sound-reactive operation, the Demon is perfect for energising any show. Installation is easy thanks to the included quick-lock bracket, which supports truss mounting. The fixture can also be wall-mounted using its standard bracket.
Source
Light Source Type LED
Light Source Quantity 1
Light Source Power
140 W
LED Colour Type
White
Refresh Rate 1000 Hz
Luminous Flux (Total) 5200 lm
CRI 70
Optical
Beam Angle (Circular) 22.6 °
Focu Manual
Control and Programming
Control Mode Built-in Program, DMX, Manual, Master Slave, RDM, Sound
DMX Channels 3, 9, 12
Protocols DMX, RDM
Display OLED
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Colour System Colour Wheel
Colour Wheel Index & Rotate Yes
Dichroic Colour Wheel 1 9 + Open
Gobo System Metal
Gobo Wheel Index & Rotate Yes
Gobo Wheel 1 7 + Open
Movement
Pan 180 °
Tilt 360 °
Continuous Movement Barrel, Mirror Disc Bi-directional
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 175 W
Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
DMX Connector XLR 3P In/Out
Mechanical Specifications
Length (mm) 451 mm (17.756″)
Width (mm) 381 mm (15″)
Height (mm) 205 mm (8.071″)
Weight 7.6 kg (16.755 lb)
Housing Metal
Colour Black
