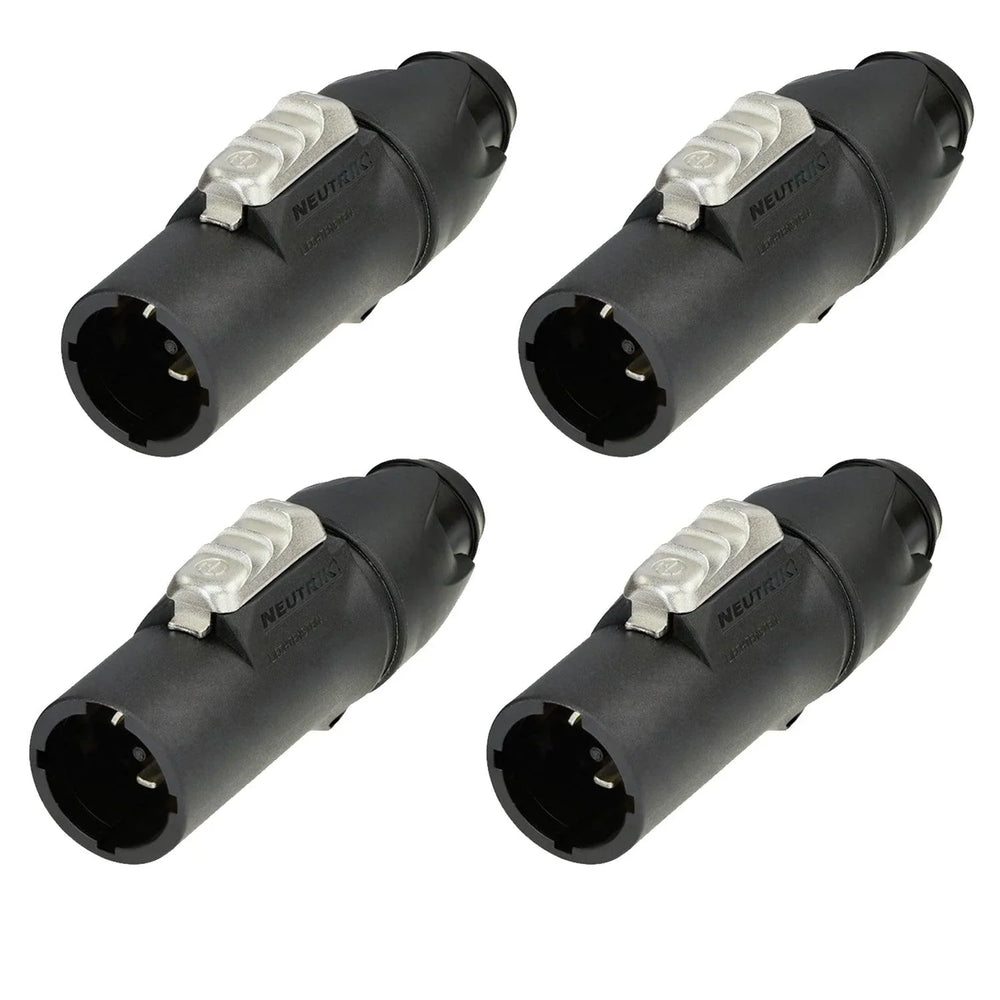

4 x Neutrik NAC3MX-W-TOP PowerCon True1 Top Connector

NeutrikSKU: 120379-4

Sale price£35.99
15+ In Stock


Pack of 4 Connectors

The powerCON TRUE1 TOP is a locking true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Keyed for Power OUT, screw terminals, IP65, up to 16 A (USA: 20A)

The powerCON TRUE1 TOP is a single-phase connector with breaking capacity (CBC).

  • IEC EN 60320-1, UL 60320-1 and C22.2 No. 60320-1:19 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL817 and equipment acc. to IEC 62368-1
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm (0.23 – 0.47 inches)
  • Heavy duty sealed power connector for harsh and demanding environment
  • Uses high impact UV-resistant materials
  • Extremely robust and reliable cable retention
  • Lockable, single phase connector with Circuit Breaking Capability (16A resp. 20 A 250 VAC)

Technical Information

Connector series powerCON TRUE1TOP
Contact resistance ≤ 2 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance 0,1 GΩ (after damp heat test IEC 68-2-30)
Number of electrical contacts 2 + PE
Rating Europe EN 60320-1: 16 A 250 V AC
Rating USA UL 60320-1 & C22.2 No. 60320-1:19: 20 A 250 V AC
Cable O.D. 6 - 12 mm (0.23 – 0.47 inches)
Lifetime > 5000 mating cycles
Wiresize 1.0 - 2.5 mm²
Wiresize 12 AWG
Contact plating 2 µm Ag
Contacts CuNi1Si0.2
Insert Polyamide (PA 6.6 30 % GR)
Locking element ZuAl4Cu1
Shell Polyamide (PA 6.6 30 % GR)
Strain relief Polyacetal (POM)
Flammability UL 94 V-0
Temperature range -30 °C - +80 °C
