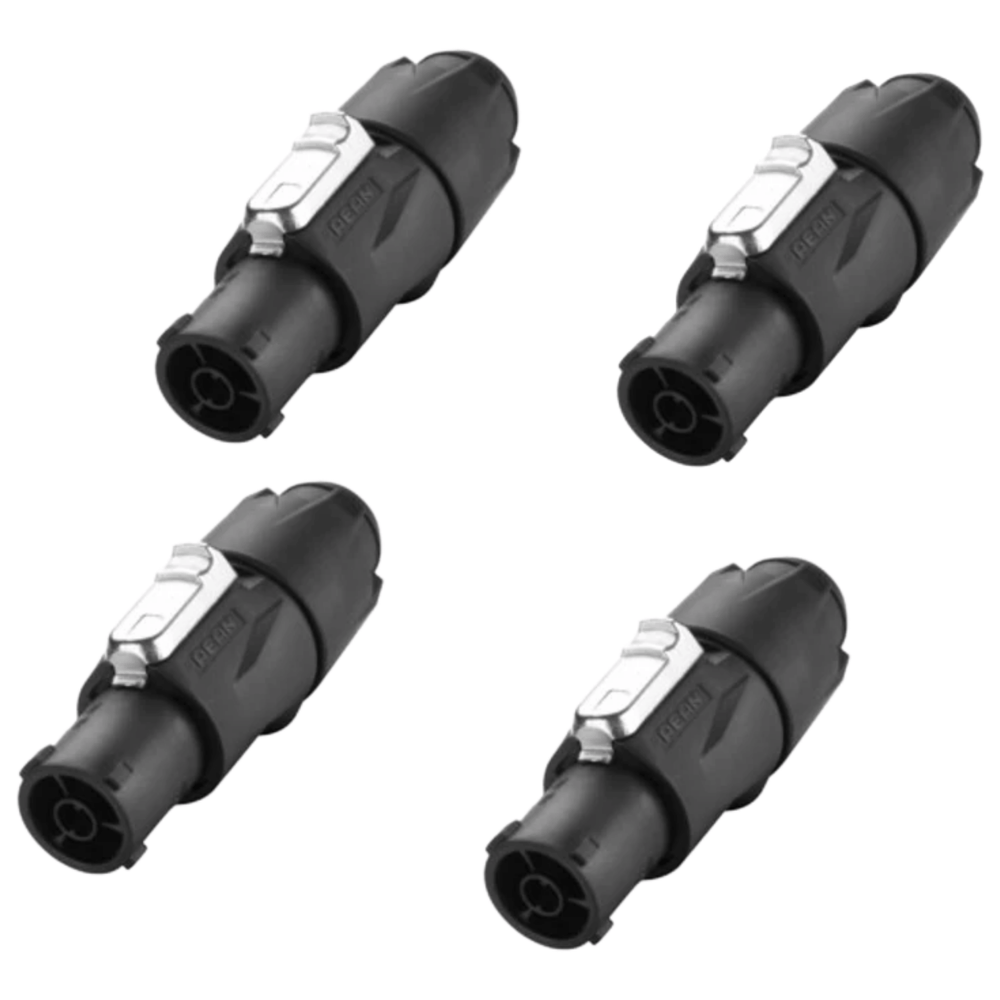

4 x Rean RCAC3F Female Power True1 Power Connectors
Brand: Rean
SKU: 122065-B1
£28.99
Pre-Order
Quantity:
Secure Payment
We accept all major payment methods including:
Store Pickup Available
Pick up is available. Check with store to see product availability before coming over.
Product Description
Lockable female cable connector, with excellent flammablity class by using V0 materials.
Designed for outdoor applications, IP65 protection, weather resistant.
The power X series are connectors with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Pack of 4 Connectors
| Product | |
|---|---|
| Title | RCAC3F-X-000 |
| Connection Type | Power Connectors |
| Electrical | |
|---|---|
| Number of contacts | 2 + PE |
| Rating Europe | EN 60320-1: 16 A 250 V AC |
| Rating USA | UL 60320-1: 20 A 250 V AC |
| Dielectric strength | 4 kV dc / 2.8 kV ac |
| Contact resistance | ≤ 2 mΩ |
| Insulation resistance (after dampheat) | > 0.1 GΩ |
| Mechanical | |
|---|---|
| Retention method | Twist lock |
| Lifetime | > 5000 mating cycles |
| Cable O.D. range | 6 - 12 mm |
| Wiring | Screw terminals |
| Wiresize | 1.0 - 2.5 mm² |
| Wiresize | 12 AWG |
| Material | |
|---|---|
| Shell | Polyamide |
| Insert | Polyamide |
| Contacts | Copper alloy |
| Contact plating | Ag |
| Strain relief | PBT |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
| Flammability | UL94 V-0 |
