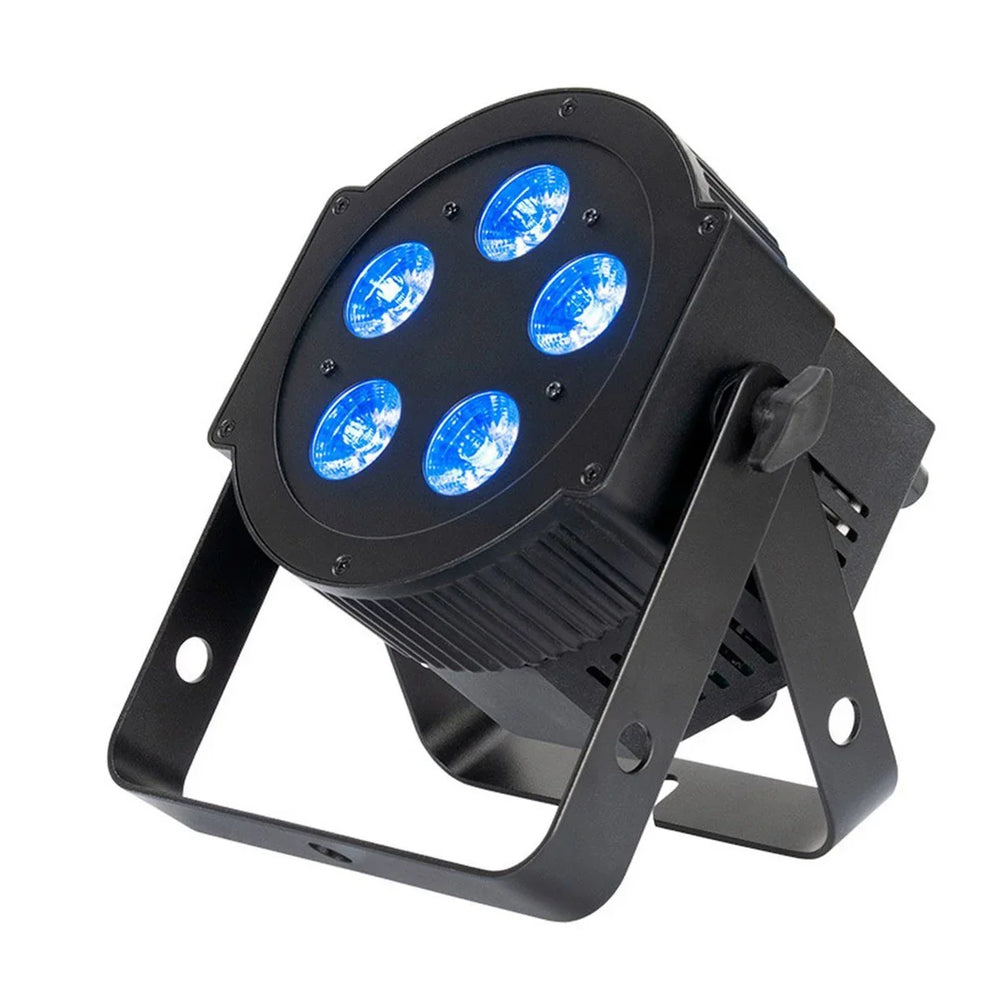

ADJ 5P Hex Par Can
Product Description
5PX HEX professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 8 units together via the fixtures built-in powerCON In/Out power connectors. Users may choose 3-pin or 5-pin DMX connectors
The 5PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote. Alternatively, the fixture may be operated via a DMX controller or the unit's built-in programs.
- Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
- Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
- Scissor yoke + rubber feet allows fixture to be hung or set on the ground
- Flicker Free operation (No flickering on camera)
- Smooth RGBAW + UV colour mixing
- All metal black exterior housing
General
- OPTICAL:
- Light Source: 5 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV)
- LED life rated at approximately 50,000 hrs.
- Beam angle: 30-degree
- CONTROL:
- 4-button, DMX digital display on rear panel
- Compatible with Dotz Par RF wireless remote control (sold separately)
- 7 Built-In Programs
- 63 built-in Colour Macros
- 4 DMX Modes: 6, 7, 8, & 12 channel
- 5 Operational modes: Static Colour Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
- 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%
- CONNECTIONS:
- Data linkable via 3-pin or 5-pin DMX connections
- Daisy chain power from powerCON In/Out connection
- With Wired Digital Communication Network
- ELECTRICAL:
- Multi-voltage operation: AC 100-240V, 50/60Hz (powerCON In/Out)
Physical & Dimensions
- Height: 114mm
- Width: 208mm
- Length: 222mm
- Weight: 2.6 kgs
