Description

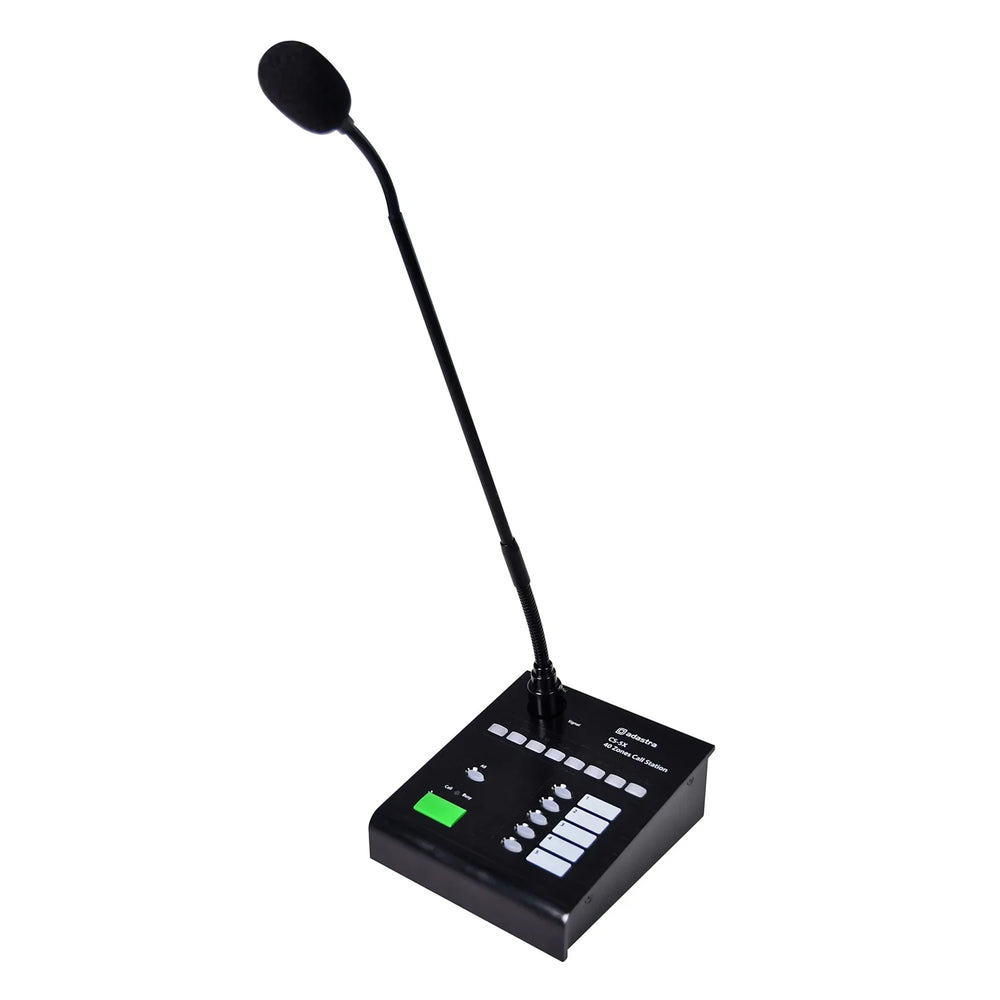

A paging microphone with call station base, to be used with the RX45 audio matrix to create a comprehensive paging system. Zone assign buttons enable intuitive calling to any combination of up to 5 zones of the RX45 unit, with the Page button accordingly muting audio playback in those areas for clear vocal announcements. There is a choice of 8 paging chimes, and an AUX audio input for pre-recorded messages and alerts. A further row of Group buttons enables the user to assign paging for up to 8 different RX45 units that are linked as an expanded system, allowing up to 40 distinct pageable zones.
- Custom designed for the RX45 Audio matrix
- Individual and multiple paging possible up to 40 zones
- Power and signal connection via the supplied RJ45 cable
- Optional 24Vdc in for connection up to 1km from RX45
- Power supply24Vdc, 500mA from RJ45 or optional adaptor
- Max. connection length100m (CAT5 cable) or 1km with optional 24Vdc adaptor
- CapsuleBack electret condenser
- Polar patternCardioid
- ControlsAux/Mic/Chime levels, chime DIP switches, group/zone/page buttons

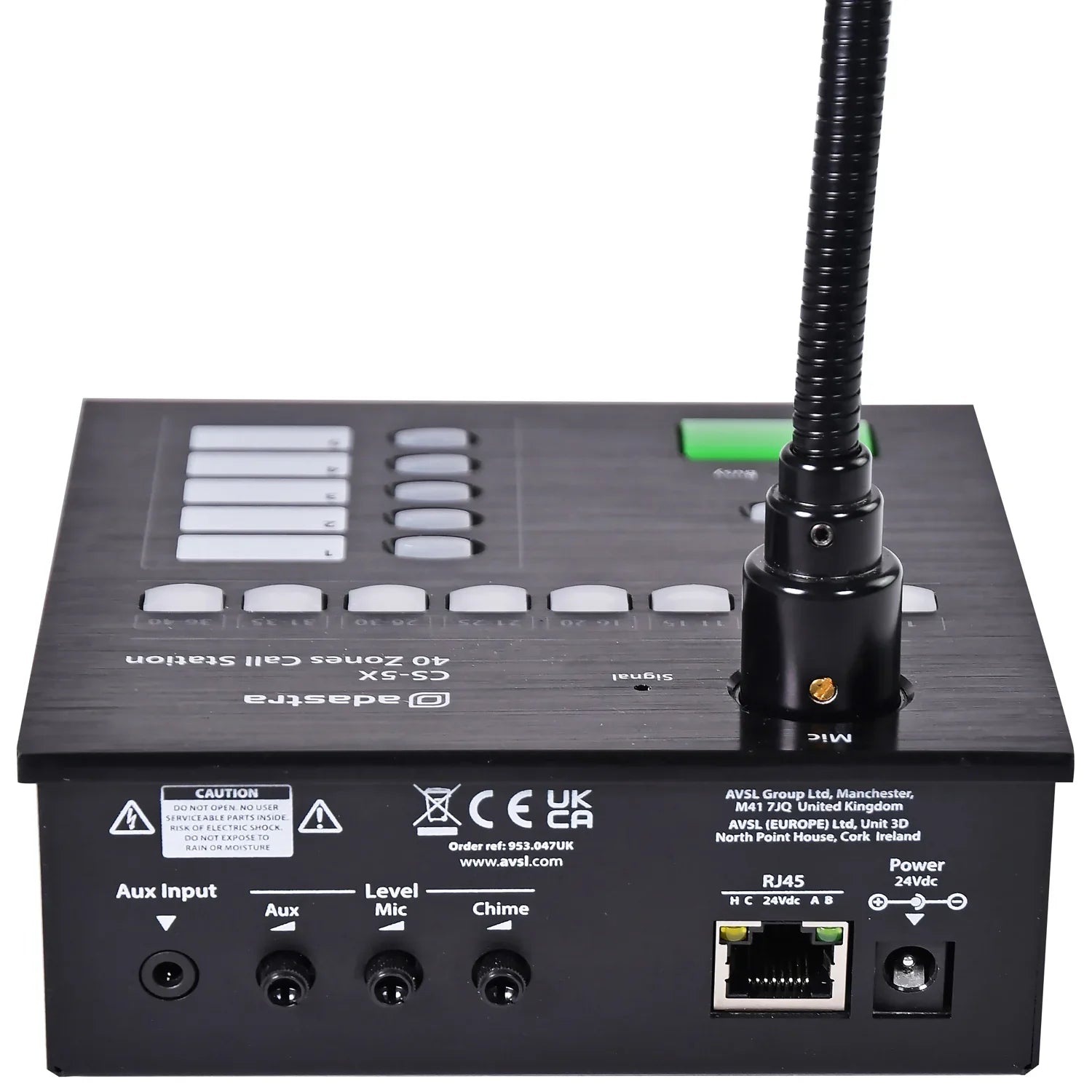

- ConnectorsXLR, RJ45 (to RX45), 24Vdc power jack, 3.5mm aux in
- Frequency response : -3dB150Hz - 20kHz
- Input levelMic: -46dBV, Aux: -10dBV
- Input impedanceMic: 600 Ohms, Aux: 50k Ohms
- Output level10dBV
- Output impedance : balanced600 ohms
- S/N ratio-60dB (all channels selected)
- InterfaceRS-485 control
- Zone assign5 zones per RX45, any combination across 8 Group IDs
- Dimensions450 x 140 x 125mm
- Weight653g
