Description

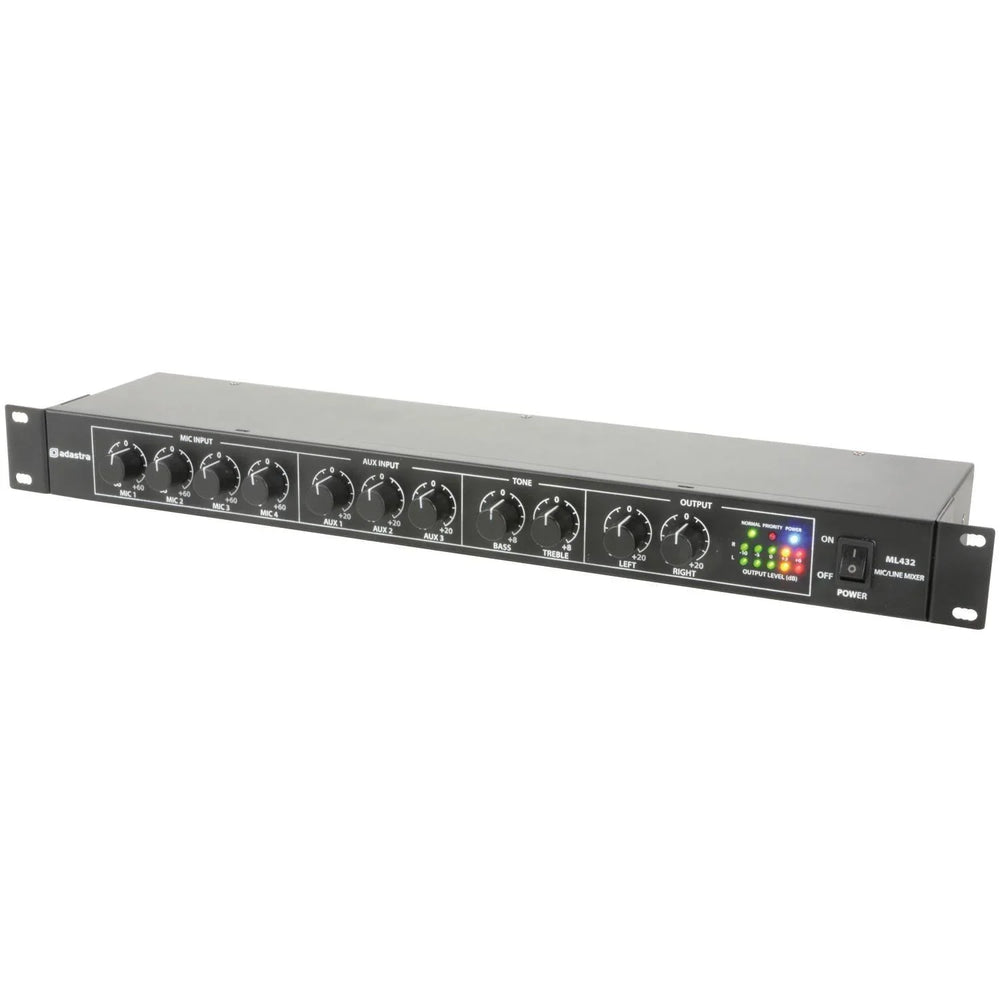

1U Mic/Line Rack Mixer
Rack-mountable 1U mixer with 4 mic inputs and 3 auxiliary inputs. Mic channel 1 has 20V phantom power and adjustable voice-over muting of auxiliary channels. An additional priority input can be connected to a line level input or an external 100V line PA system for emergency paging. Output connections are stereo jack with master bass and treble tone controls. Designed as a master or extension mixer for installed sound systems.
- 4 balanced microphone inputs
- +20V phantom power on priority mic input
- 3 stereo aux line inputs
- Can tap from an existing 100V PA system
- 24Vdc power option
- Power supply100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
- FuseT1AL 250V (mains) or F500mA (24Vdc)
- Phantom power+20Vdc (mic1 XLR input only)
- Inputs : mic4 x balanced 6.3mm jack (+XLR for mic1)
- Inputs : aux3 x L+R RCA
- Inputs : priorityLine level (6.3mm jack), 100V (terminals)
- OutputsLeft + Right 6.3mm jack (unbalanced)
- Controls4 x Mic level, 3 x Aux level, Treble, Bass, L+R output
- Rear panel controlsAux muting level, priority input level
- Input impedance2.2k Ohms (mic/line), 10k Ohms (aux)
- Frequency response : mic130Hz - 21kHz
- Frequency response : line120Hz - 26kHz
- Frequency response : aux50Hz - 35kHz
- Input sensitivity : mic-50dBV
- Input sensitivity : line-19dBV
- Input sensitivity : aux-12dBV
- Signal to noise ratio : mic54dB
- Signal to noise ratio : aux/line58dB
- THD0.05%
- Dimensions482 x 130 x 44mm
- Weight1.43kg
