Description

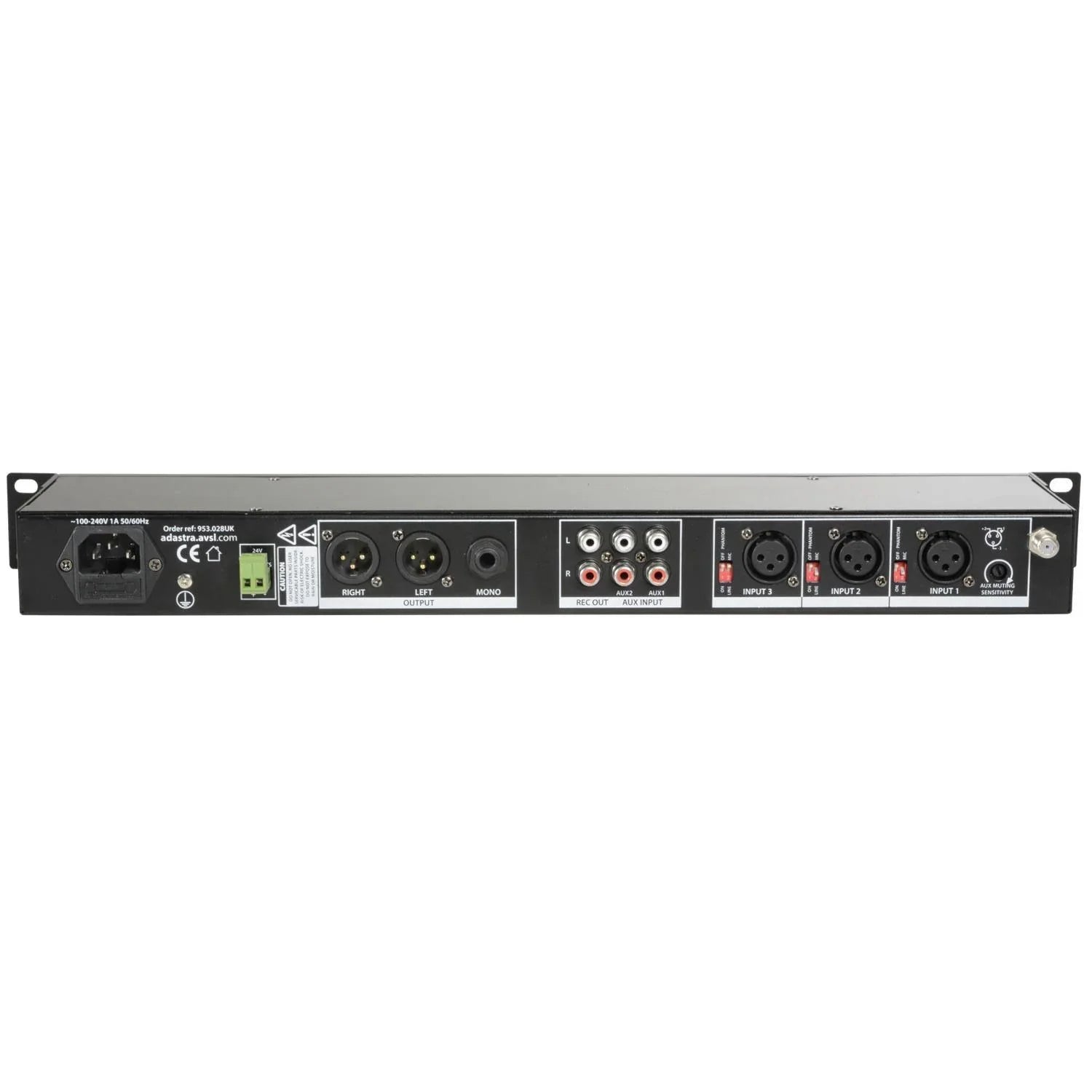

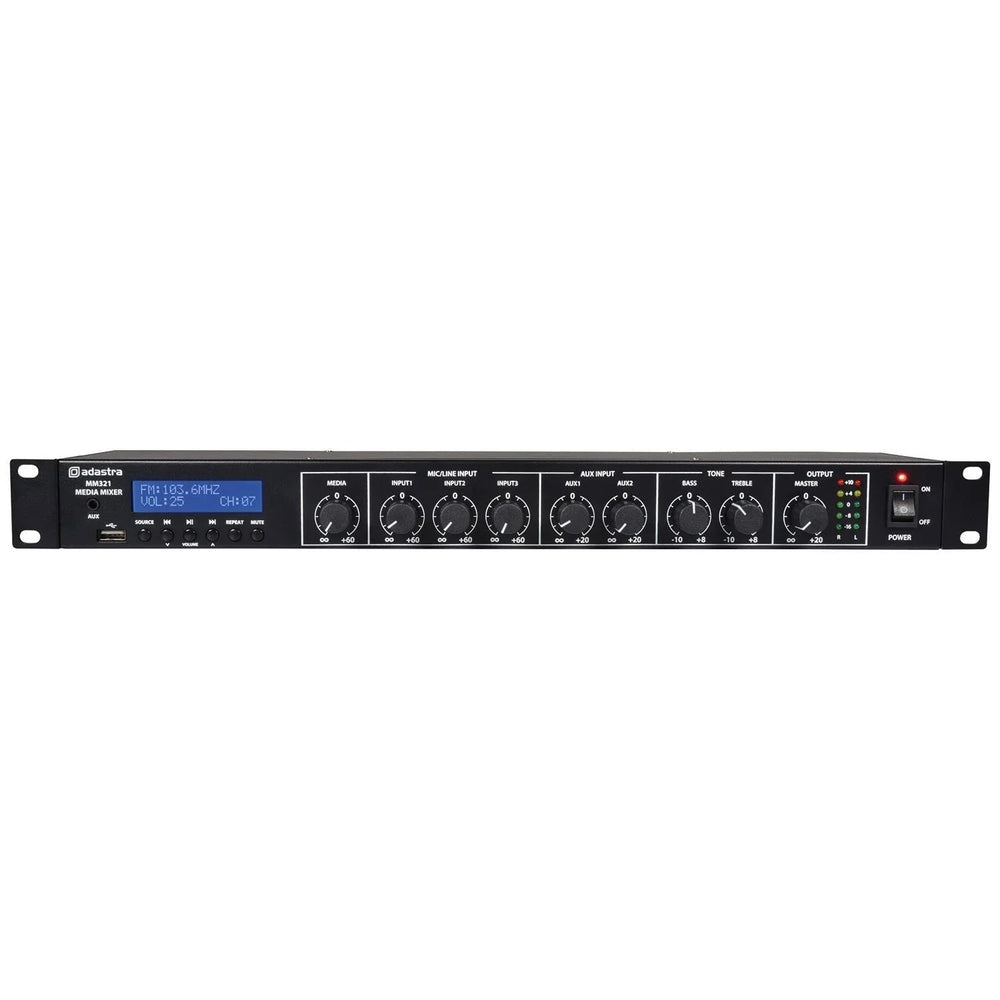

Rack-mountable 1U mixer with built-in media player and Bluetooth receiver. 3 mono inputs connect via XLR microphone or line input (switchable). Each of these inputs has switchable +20V phantom power for use with condenser microphones or D.I. boxes and channel 1 has a variable priority function. Two stereo auxiliary line inputs are provided on RCA connectors with a stereo record output. Media player operating modes include 3.5mm Aux input, USB audio player, FM radio tuner and Bluetooth receiver for playback from a smart phone or tablet. Main left and right outputs are fed to XLR with an additional mono summed output on 6.3 jack. Versatile yet easy to use as a main mixer for background music, public address and house PA systems.
- Bluetooth with programmable ID
- Media player with USB playback and FM tuner
- Switchable +20V phantom power
- Variable priority muting for channel 1
- 24V emergency mute contacts
- Power supply100-240Vac, 50/60Hz (IEC)
- FuseT1AL
- Inputs : mic/line3 x XLR (bal/unbal)
- Inputs : aux2 x L+R RCA
- Input : line3.5mm jack to media player
- Audio sourceInternal Bluetooth, USB & FM player
- OutputsL+R XLR, Mono 6.3mm jack, Record out (RCA)
- Emergency control24V contacts mute all except channel 1
- Phantom power+20V (switchable channels 1-3)
- ControlsMedia, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master level
- Rear panel controlsPriority muting level, mic/line and phantom DIP switches
- Input impedance2.2k Ohms (mic/line), 10k Ohms (aux)
- Frequency response : mic20Hz - 18kHz
- Frequency response : line14Hz - 20kHz
- Frequency response : aux10Hz - 23kHz
- Input sensitivity : mic/line-45dBV
- Input sensitivity : aux/line-10dBV
- Signal to noise ratio : mic55dB
- Signal to noise ratio : aux/line60dB
- THD0.05%
- Dimensions482 x 130 x 44mm
- Weight1.43kg
