Description

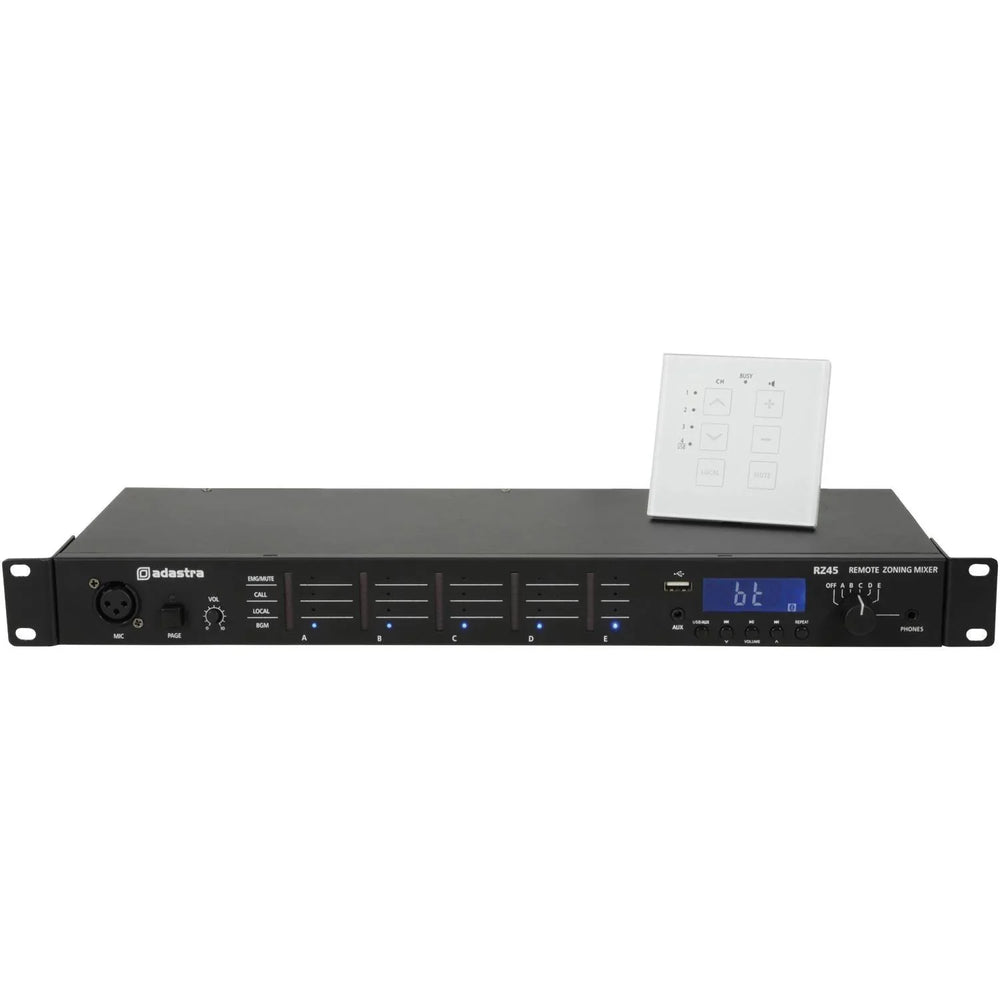

1U rack-mountable audio matrix with 4 selectable inputs to 5 output zones. An inbuilt media player section features playback from USB media, 3.5mm aux input or Bluetooth. A TR86 touch operated remote wall plate is included to control source and output level for one of the zones. Additional TR86 wall plates may be added up to the full 5 zones as required. Outputs to zones can be monitored via an assignable 3.5mm stereo headphone output. For global alerts and announcements, a front and rear XLR input is provided for a microphone, operated via a paging button that overrides the selected or local audio source for all zones. The RZ45 forms the command centre for installations ranging from basic remote control to a fully specified multi-room audio matrix.
- Up to 5 remotely operated zones
- Remote wiring via standard network type cable
- 4 selectable input sources or local audio to any zone
- Inbuilt USB/BT audio player
- Emergency mute and audio in contacts

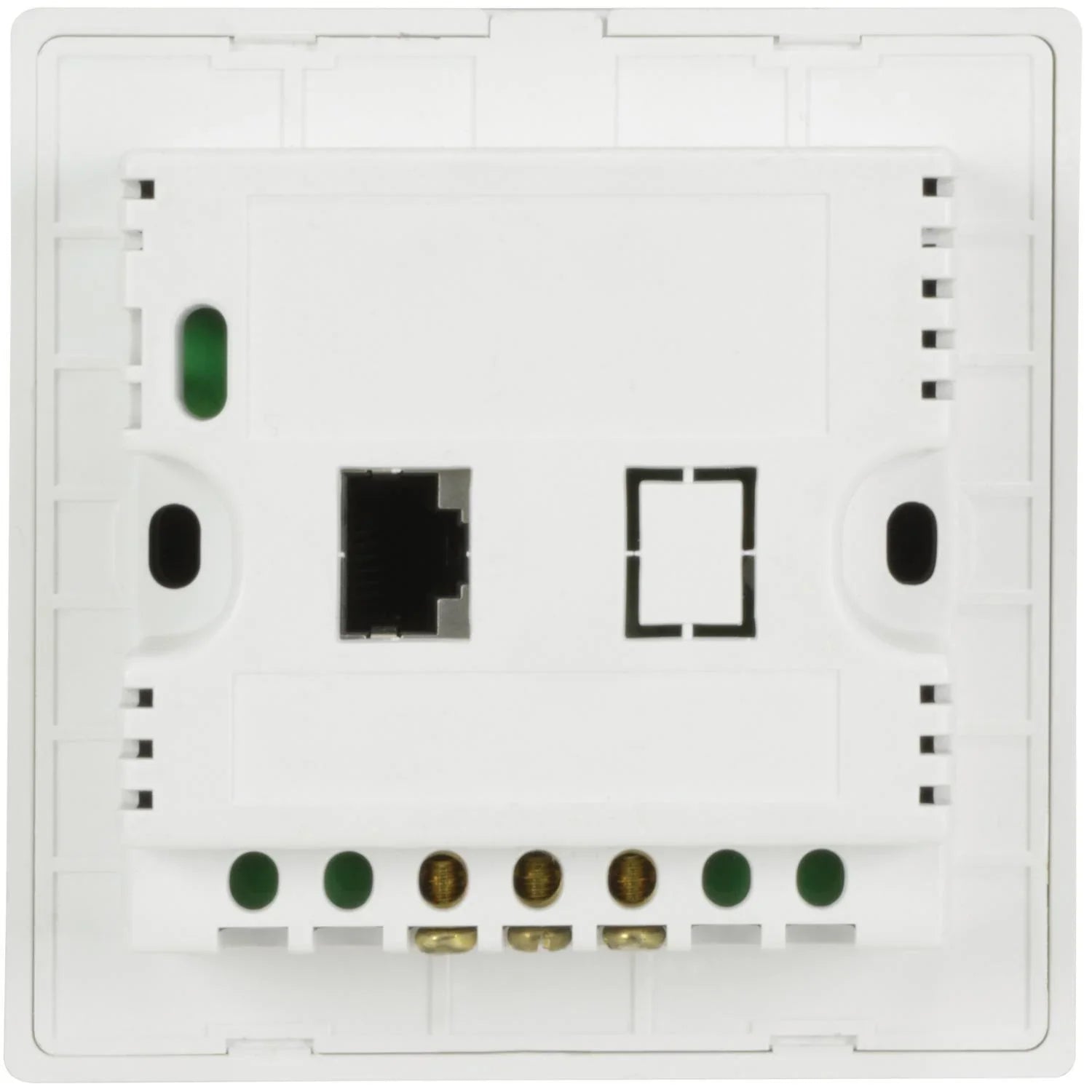

- Supplied with one touch remote wall plate (expandable up to 5)
- Bluetooth with programmable ID
- Power supply100-240Vac, 50/60Hz (IEC lead included)
- FuseT1AL
- Audio sourceUSB/Bluetooth media player
- Bluetooth versionv2.0
- InputsPaging mic. (XLR) + 3 x stereo line (RCA)
- Microphone : input sensitivity-41dBV
- Line input : sensitivity-12.5dBV
- Call station input : sensitivity+4dBV
- Emergency control24V mute contacts and emergency audio input
- EMG input: sensitivity-10dBV
- Signal to noise ratio : mic65dB
- Signal to noise ratio : line73dB

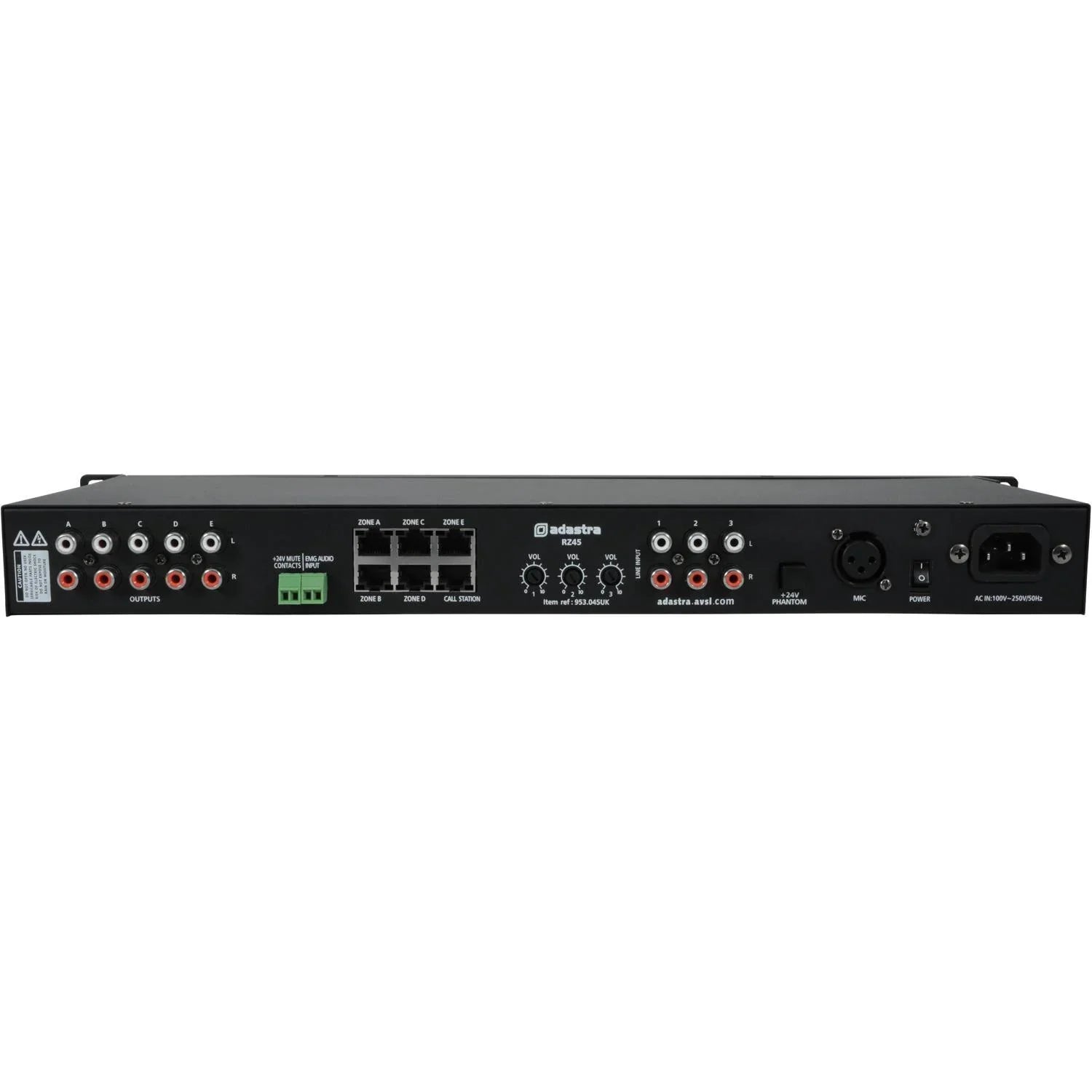

- Outputs5 x stereo zones (RCA)
- Output impedance : line600 ohms
- THD +N<0.1% @ 1kHz
- Monitor outputsStereo 3.5mm headphone jack (assignable)
- Phantom power+24V switchable for paging mic.
- Remote control connection8P8C (RJ45)
- Frequency response : ±3dB20Hz - 20kHz
- Attenuation-30dB (paging)
- Dimensions483 x 177 x 44mm
- Weight1.76kg
