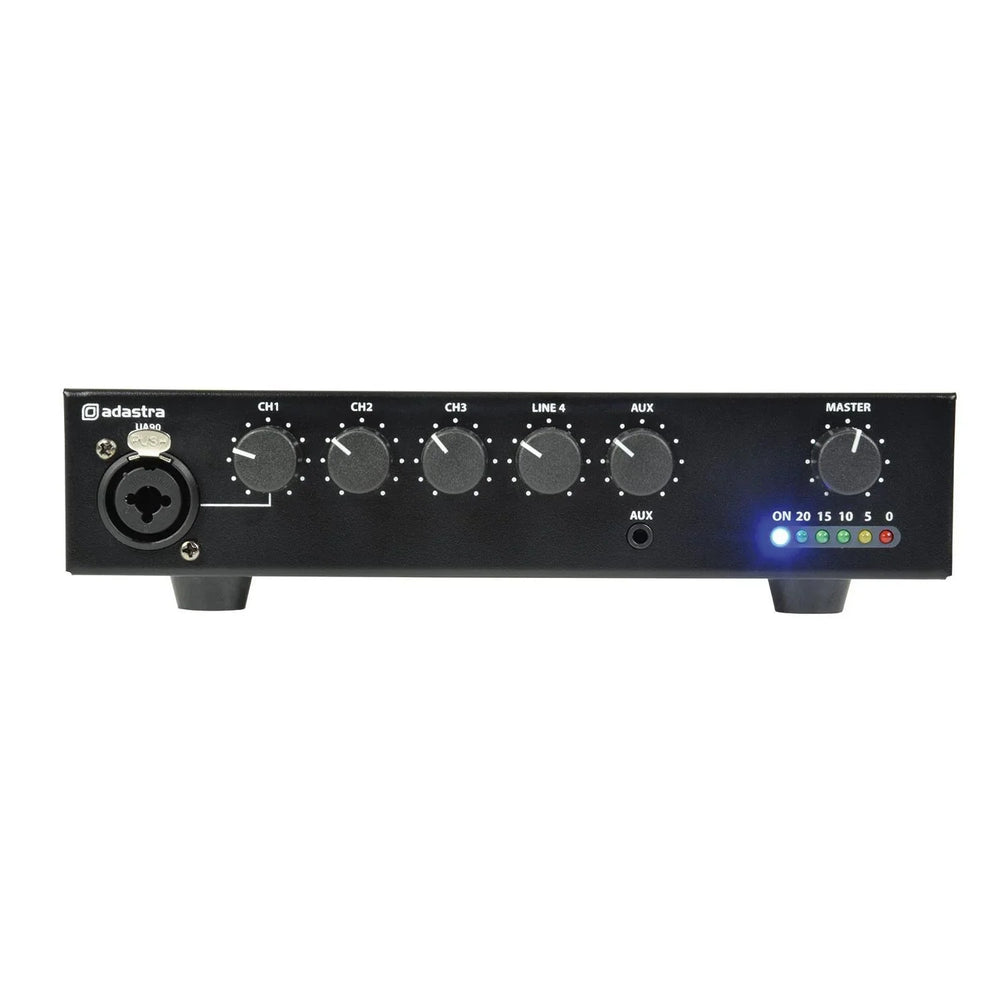

Adastra UA90 90w Compact 5 Channel 100V Mixer Amp
Brand: Adastra
SKU: 953.189UK
£159.00
£199.00
SALE
Only 3 left in stock!
Quantity:
Secure Payment
We accept all major payment methods including:
Store Pickup Available
Pick up is available. Check with store to see product availability before coming over.
Product Description
100V mixer-amplifiers with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.
- Supplied with hardware for rack-mounting 2 units
- 5 input channels
- 24V fire alarm mute contacts
- 100V line or 8 Ohms operation
- Switchable +20V phantom power CH1
- Power supply170-264Vac, 50Hz (IEC)
- Amplifier : constructionClass D + transformer output
- InputsMic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
- Phantom power+20V CH1 (XLR or rear terminals)
- Line output2 x RCA (mono)
- Speaker outputEuroblock terminals: 100V / 8 Ohms / Com
- Mute24V relay contacts
- THD<0.4% @ 1kHz
- Input impedance1k Ohms (mic/line)
- Input sensitivity-10dB (line), -45dB (mic)
- SNR80dB (line), 75dB (mic)
- Frequency response100Hz - 18kHz
| Output power : rms | 90W | ||
|---|---|---|---|
| Dimensions | 300 x 210 x 44mm | ||
| Weight | 2.99kg |
