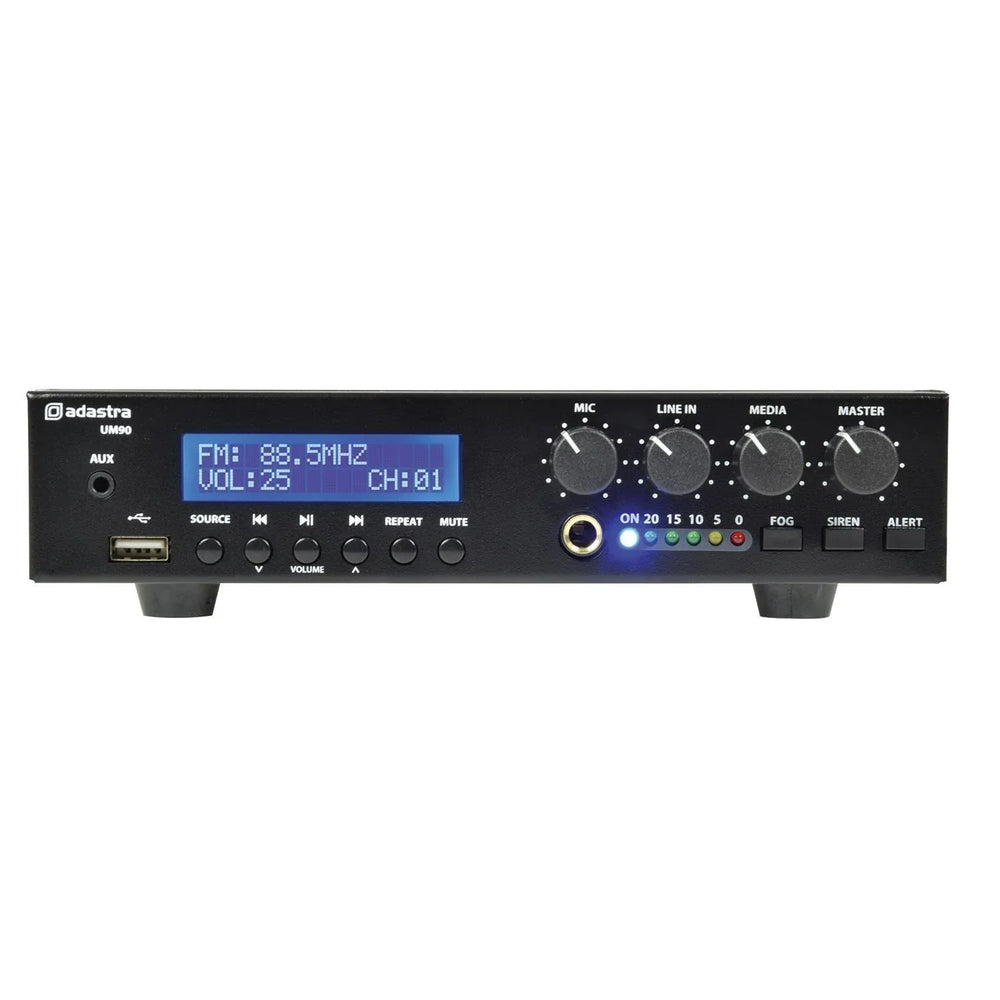

Adastra UM90 90W Ultra Compact 100V Mixer-Amp
Adastra
SKU: 953.179UK
£183.00
£229.00
Save £46.00
✓
In Stock (15+ Available)
Quantity:
Checkout Securely
We accept all major payment methods
Store Pickup
Pick up is available. Check with store to see product availability before coming over.
100%
Product Description

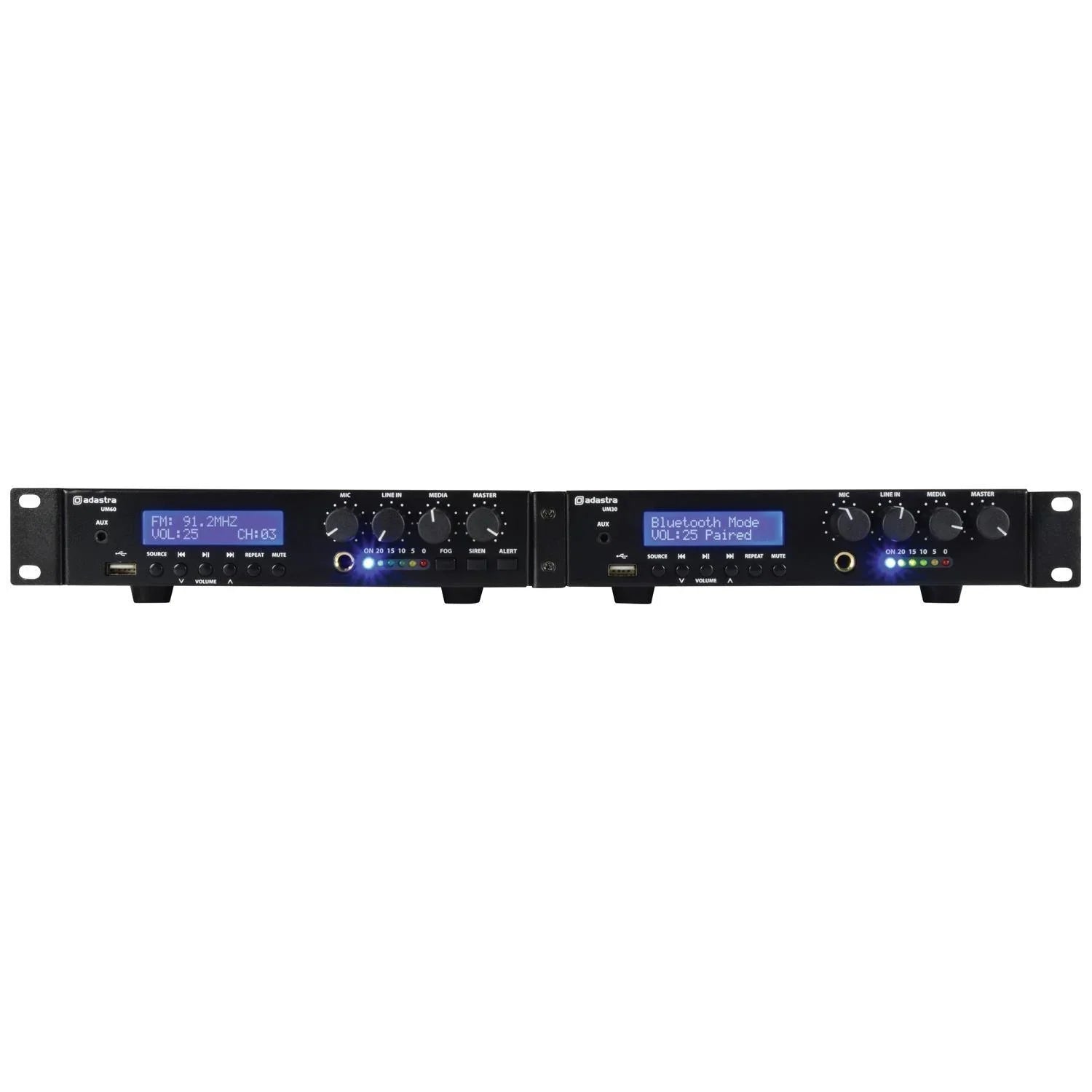

100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.
- Ultra compact form factor
- Efficient class D amplifier design
- Internal USB/FM/BT audio player
- 100V line or 8 Ohms operation
- Bluetooth with programmable ID
- Power supply170-264Vac, 50Hz (IEC) or 24Vdc
- Amplifier : constructionClass D + transformer output
- Audio sourceInternal USB/FM/BT player
- Inputs1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
- Line output2 x RCA (mono)
- Speaker outputsScrew terminals - 100V / 8 Ohms / Com
- DC power24Vdc screw terminals
- Mute24V relay contacts
- THD<0.4% @ 1kHz
- Input impedance1k Ohms (mic/line)
- Input sensitivity-10dB (line), -45dB (mic)
- SNR80dB (line), 75dB (mic)
- Frequency response100Hz - 18kHz
| Output power : rms | 90W (80W @ 24Vdc power) | ||
|---|---|---|---|
| Alarm output | Fog, siren & alert generator | ||
| Dimensions | 300 x 210 x 44mm | ||
| Weight | 3.02kg |
