Description

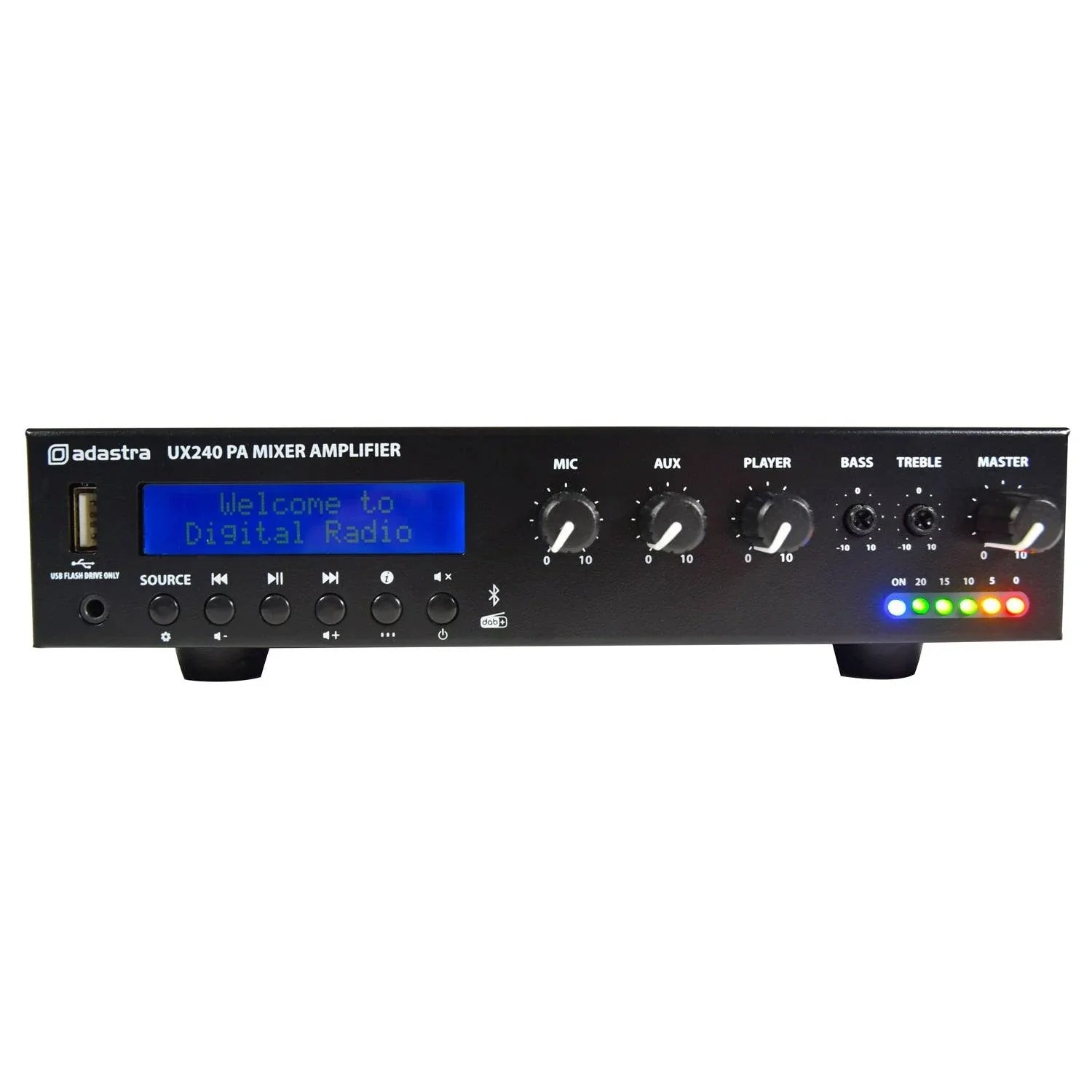

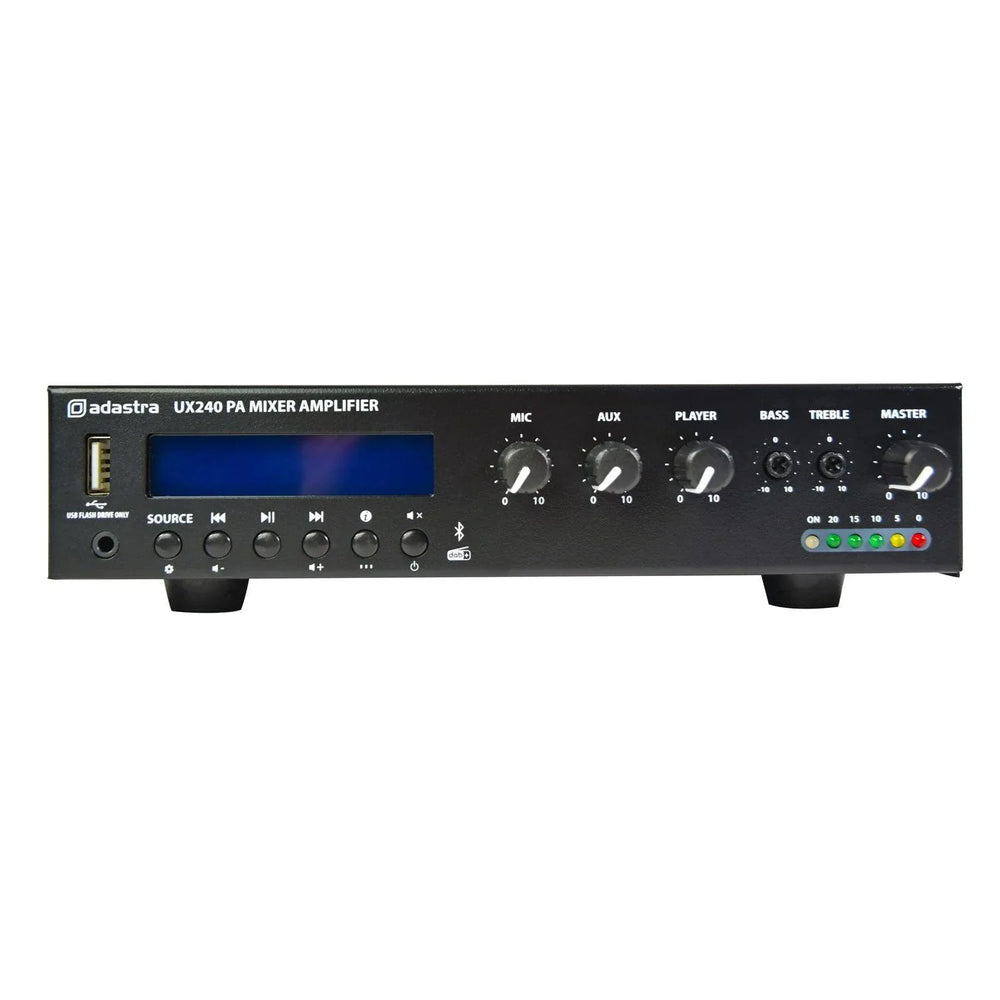

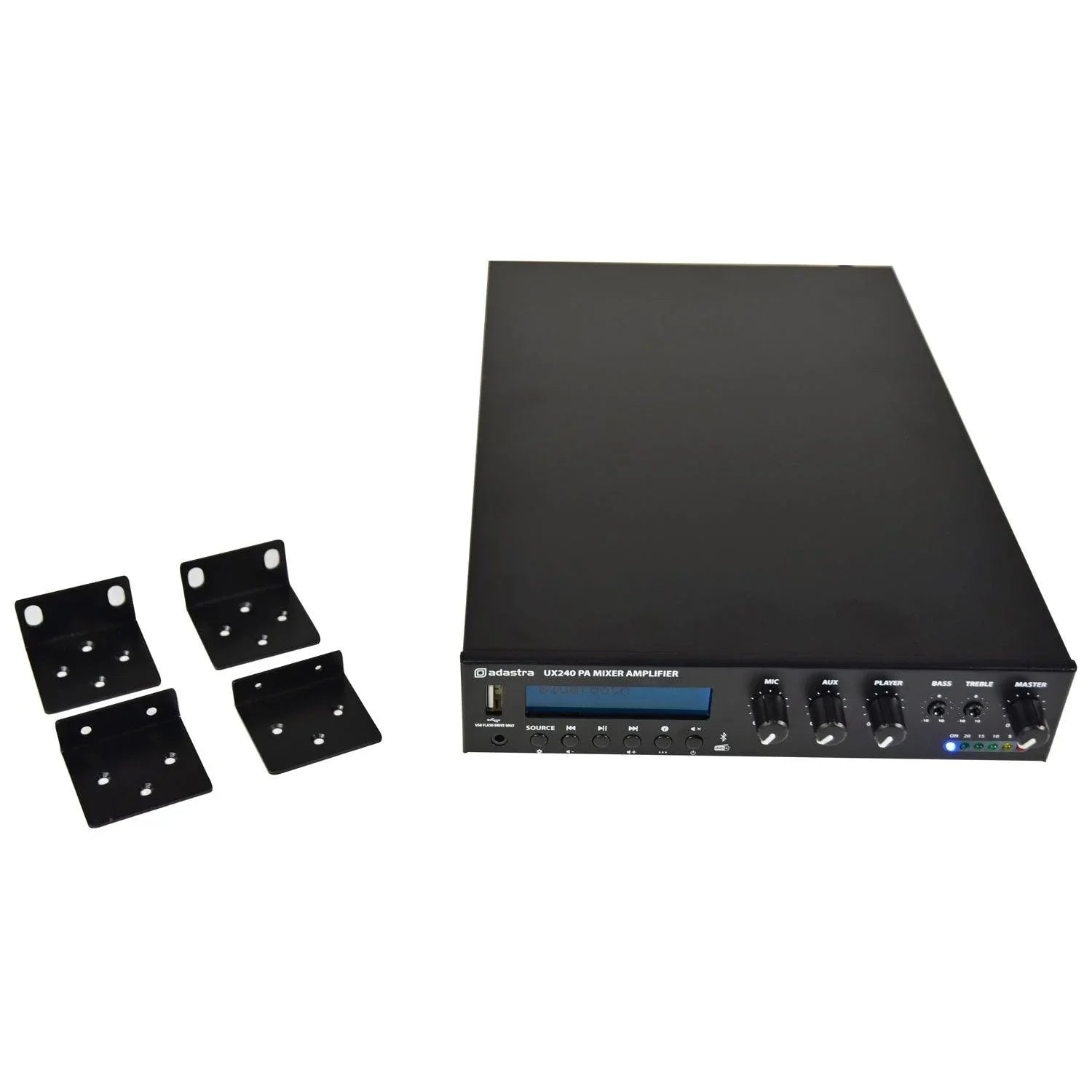

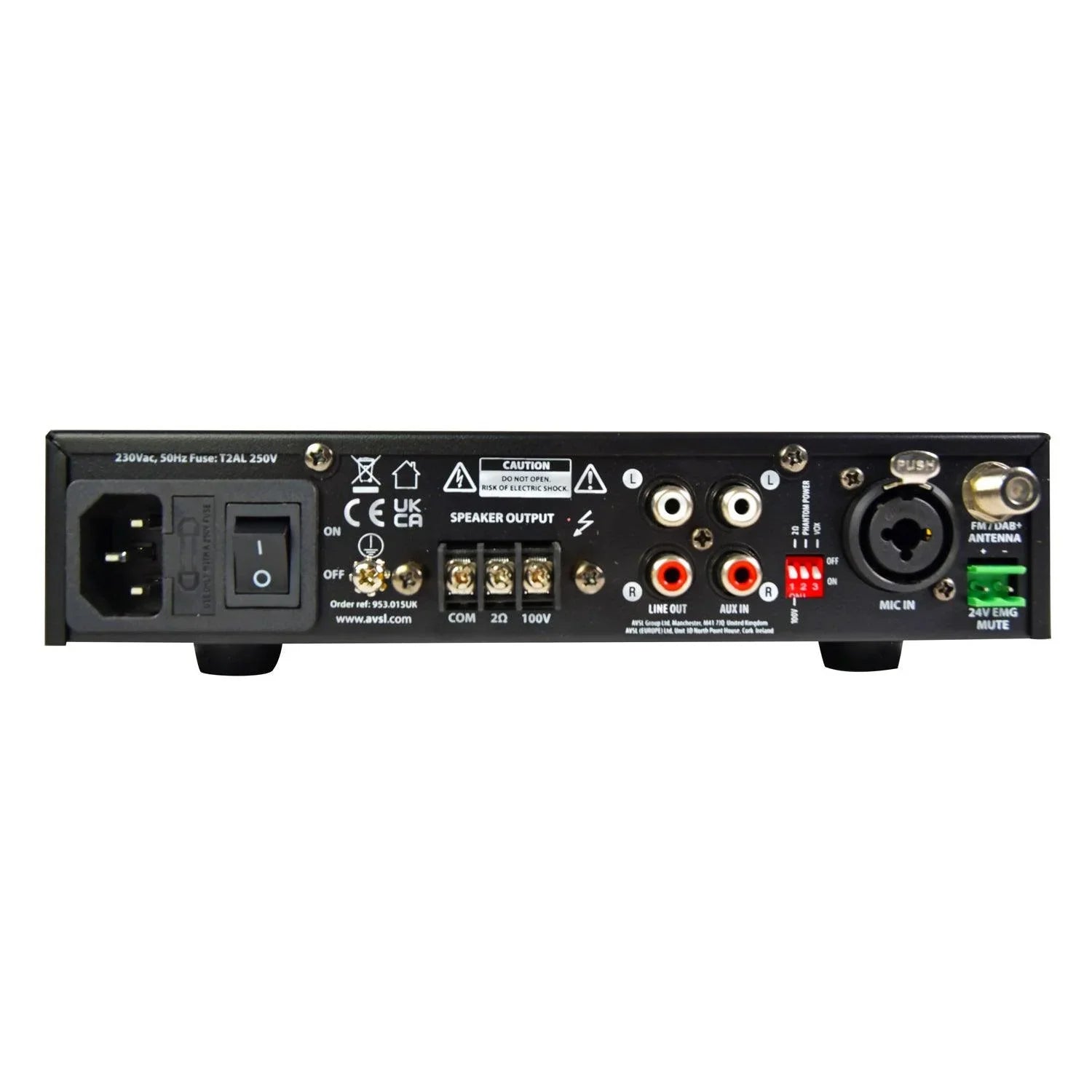

Compact and high power 100V mixer-amplifiers with built-in media player. A combination jack/XLR microphone input has switchable phantom power and optional Vox priority function. Music playback is served by the internal media player, which has selectable source for USB mp3 playback, DAB+ or FM radio tuner, Bluetooth®, or a front mounted 3.5mm Aux input. An Aux line input has an independent volume control on the front panel. The amplifier produces a high power output to either 100V line or low impedance speaker loads down to 2 ohms, switchable via a DIP switch and connected on screw terminals, with level governed by a Master volume control and EQ handled by mini Bass and Treble rotary controls. The rear panel also has connections for a DAB+ or FM antenna or aerial and 24V mute contacts for triggering from a fire panel or emergency evacuation system. Each amplifier is supplied with brackets for mounting 2 units side by side in a 1U 19" rack or fitted to flat-mount the amplifier against a wall or under a counter-top. With a minimal control footprint and easy-to-manage controls, these mixer-amplifiers represent a versatile platform to build a public address installation for medium-sized areas or paired with further amplifiers as part of a wider sound system.
- Bluetooth, DAB+/FM and USB media player
- Bass & Treble EQ
- Low impedance stable down to 2 Ohms
- Half-width 1U rackmount or surface-mountable
- Power supply170-264Vac, 50Hz (IEC)
- Amplifier : constructionClass D + transformer output
- Audio sourceInternal USB/DAB+/FM/BT player
- Inputs1 x mic (jack/XLR), 1 x line (2 x RCA), 1 x aux (3.5mm)
- Line output2 x RCA (mono)
- Speaker outputsScrew terminals - 100V / 2 Ohms / Com
- Mute24V relay contacts
- Input impedance1k Ohms (mic/line)
- Input sensitivity-10dB (line), -45dB (mic)
- Bluetooth version5.0
| Output power rms | 240W | |
|---|---|---|
| Dimensions | 350 x 210 x 54mm | |
| Weight | 4.32kg |
