ADJ 4 Stream DMX Bridge

ADJSKU: 002965

Price:
Sale price£299

Description

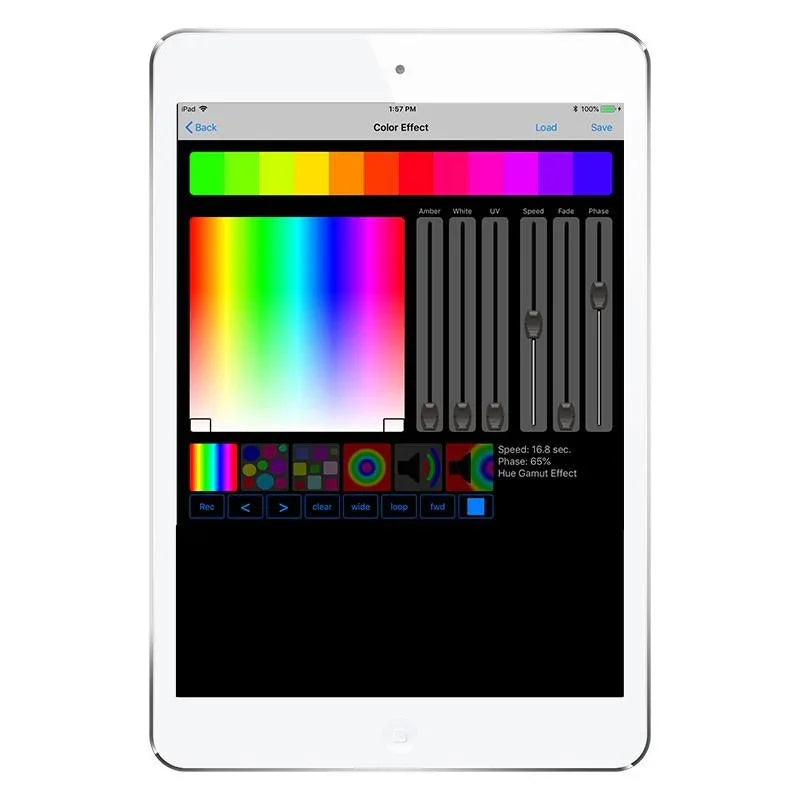

The 4 STREAM DMX Bridge is a compact 4-universe wireless device which seamlessly bridges WiFi, Art-Net, sACN, and WiFly (ADJ's wireless DMX solution) signals to wirelessly control compatible DMX devices with control from the 4 STREAM DMX BRIDGE APP for iOS devices.

4 STREAM DMX BRIDGE creates a private standalone 2.4 GHz DSSS (Direct Sequence Spread Spectrum) WiFi network, which coexists in busy RF environments alongside other wireless technologies. No existing network infrastructure is required, or it connects to an external network. 4 STREAM DMX BRIDGE sends constant and reliable wireless DMX signals to compatible DMX devices via DMX-512, Art-Net, sACN, or WiFly.

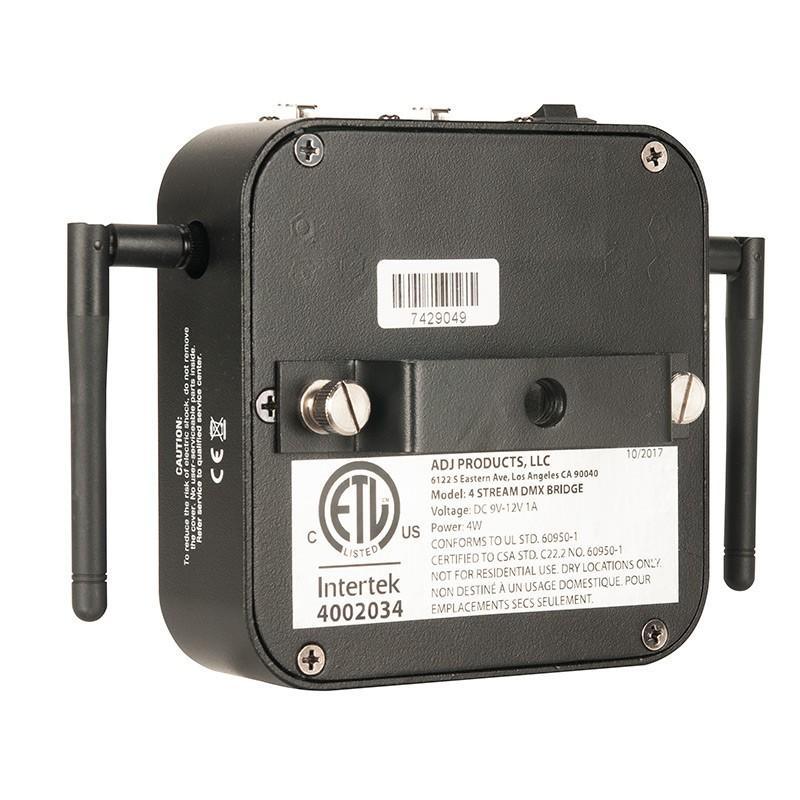

Features include separate WiFi and WiFly wireless antennas, three 5-pin DMX outputs, a mini USB port, a 4-button control panel, an LCD system menu display with an LED network activity signal indicator, on/off switch, an external DC 9-12V power supply, a mini omega bracket for easy clamp/truss mounting, a magnetic back for easy attachment to metal surfaces, and easy configuration from a PC connected via USB Mini B port using the 4 STREAM DMX BRIDGE Setup Windows app or over Wi-Fi using the ADJ 4 STREAM DMX BRIDGE Config iOS APP.

4 STREAM DMX BRIDGE is ideal for small production events, nightclubs, bars or any event or venue which requires hidden data cables, and who are looking for a robust, 4 DMX universe APP based lighting control solution.

Notice :
The Airstream DMX App (for Airstream DMX Bridge) is not compatible with the 4 Stream DMX Bridge.
The Airstream DMX Pro App is compatible with both the 4 Stream DMX Bridge & the Airstream DMX Bridge.

Specifications:

Features

• Seamless Wireless Bridge To DMX Compatible Devices

• Private Standalone 2.4 GHz DSSS WiFi Network

• No Existing Network Needed (Station Mode) or Connect to External Network (Access Point Mode)

• Easy Configuration Using Windows or iOS Apps

• Dedicated control APP with 4 DMX universes available in the Apple APP Store



APP compatibility: Compatible with iPad only. Requires iOS 9.3 or later.



Control

• Private Standalone 2.4GHz DSSS WiFi Network Up To 75 feet (22.8m) WiFi Range

• 4 DMX Universes

• Supports up to 4 DMX Universes (3 wired and 1 WiFly EXR wireless)

• Control Compatible WiFly Devices (up to 762m WiFly Range)

• 14 WiFly EXR Wireless Channels

• Supports Standard Networking Protocols, DMX-512, Art-Net, sACN and WiFly

• 4 Stream Bridge Windows and iOS APPs

• 4-Button Control Panel

• LCD System Menu Display



Construction

• Metal Housing

• Easy Clamp/Truss Mounting

• Magnetic Back for Easy Attachment to Metal Surfaces

• Separate WiFi and WiFly Antennas



Electrical

• External Power Supply DC 9-12V 1Amp



Connections

• 3 x 5pin DMX Outputs

• 1 Mini USB Port



Dimensions & Weight

• Dimensions (LxWxH): 125 x 175 x 62mm

• Weight: 0,48 kg.
