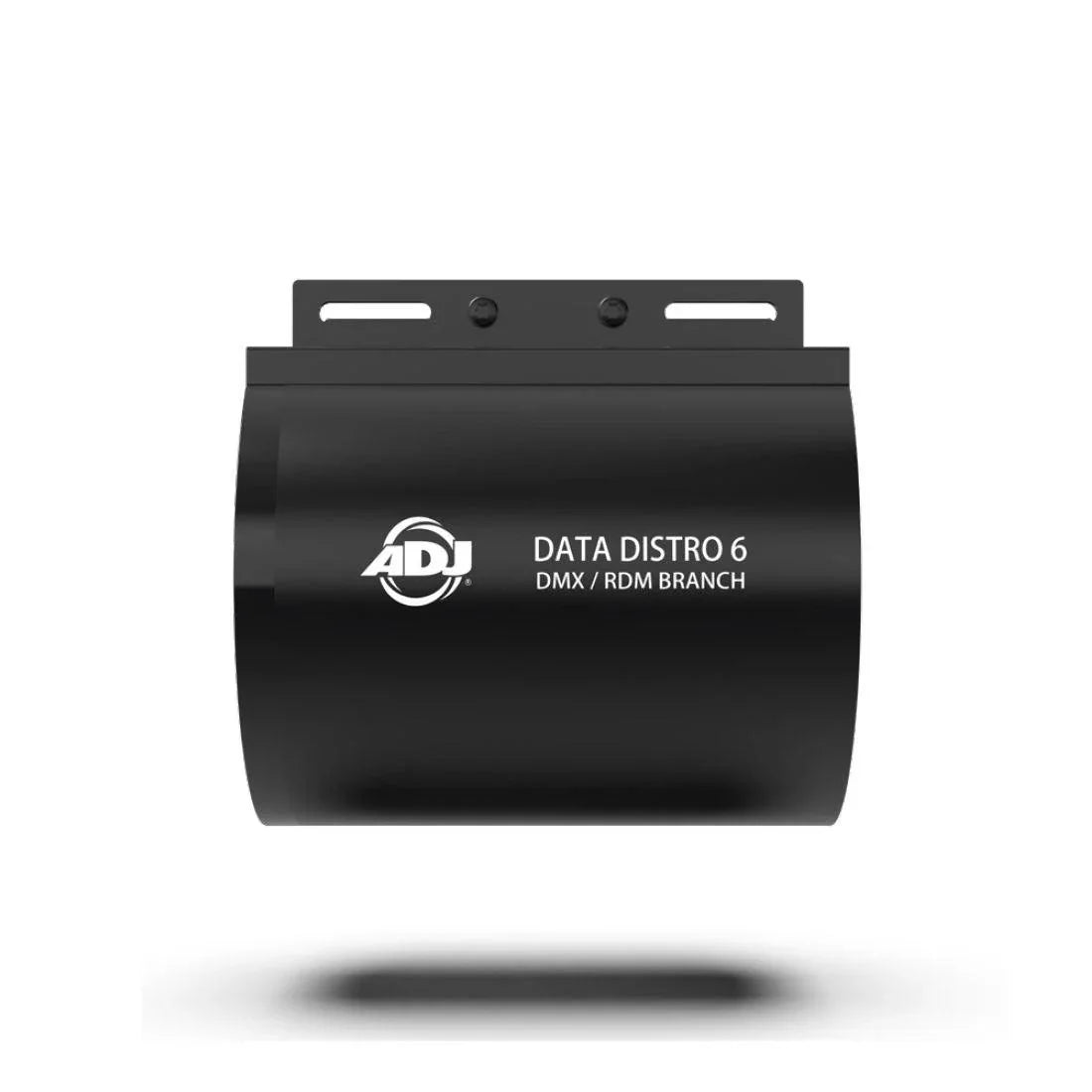

ADJ Data Distro 6 DMX Distribution Splitter
ADJ
SKU: ADJ1321000084
£142.00
£142.86
Save £0.86
Quantity:
Checkout Securely
We accept all major payment methods
Store Pickup
Pick up is available. Check with store to see product availability before coming over.
100%
Product Description

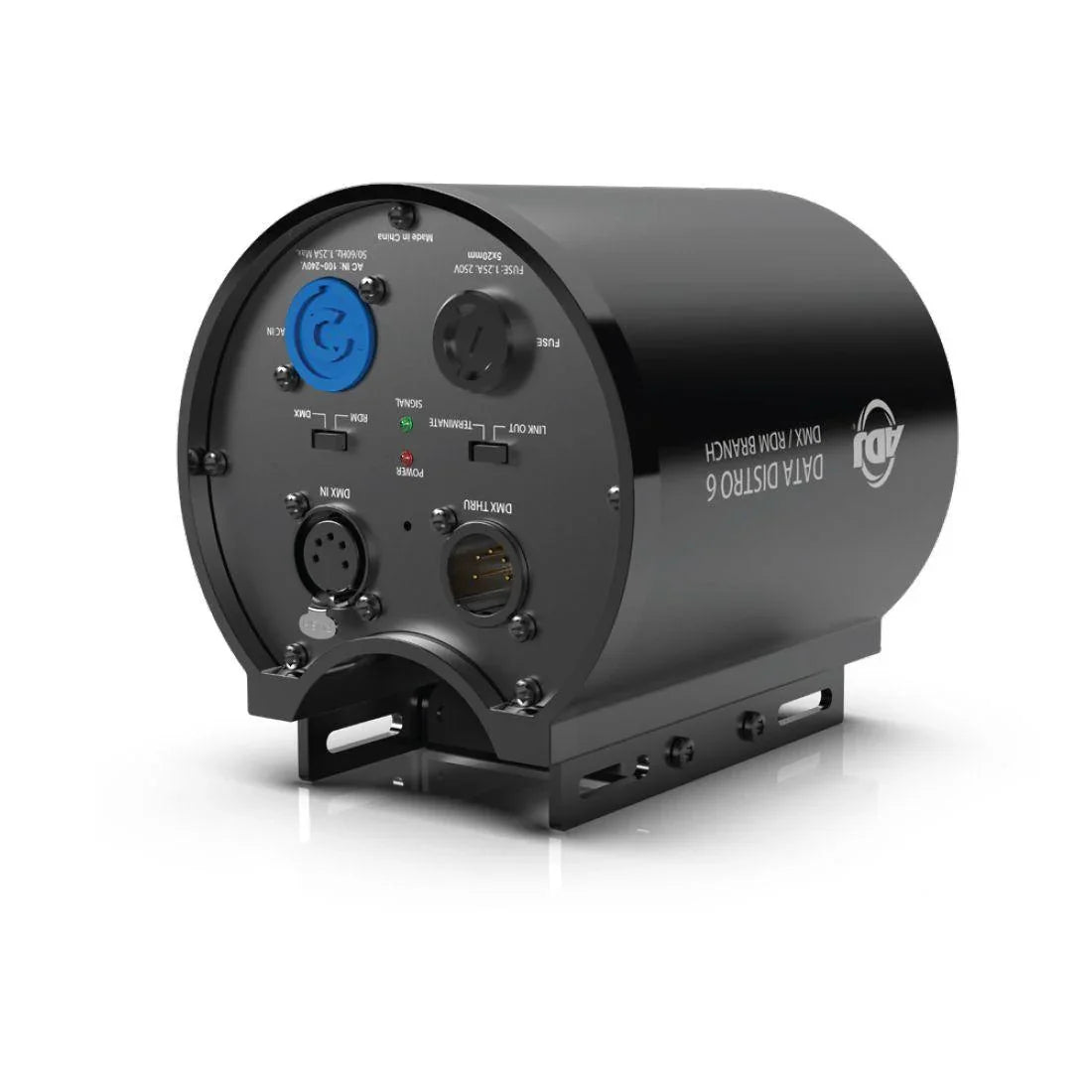

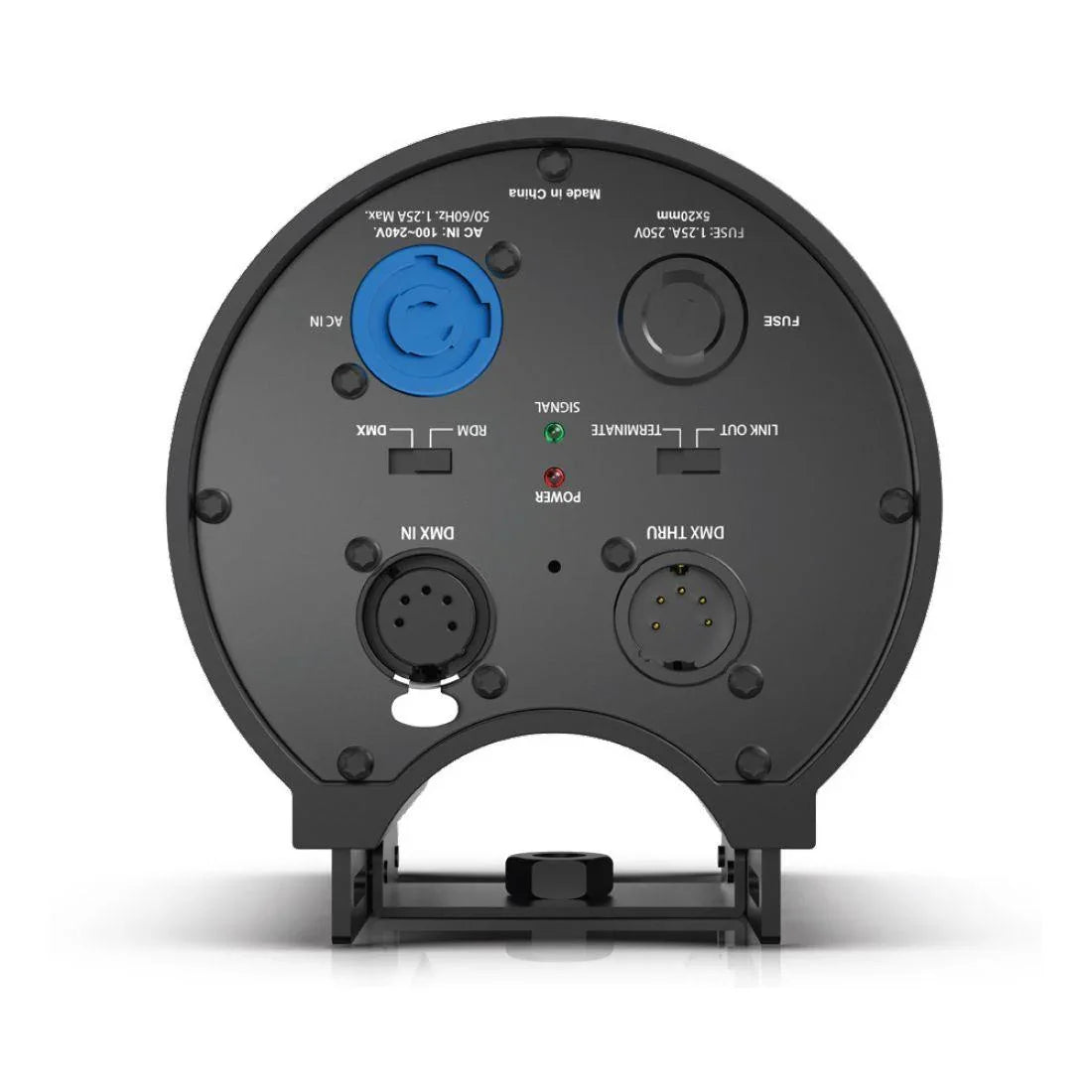

ADJ Lighting Data Distro 6 is a versatile and compact solution for streamlined DMX512 and RDM signal distribution. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient hanging with 1 Truss Mount featuring two Velcro Straps or M10 Screw Clamp (clamp not included). Its robust physical configuration includes 1x indoor 5-pin XLR input, 1x indoor 5-pin XLR thru, and 6x indoor 5-pin XLR outputs. Equipped with a Link Out Termination Switch and a DMX/RDM Protocol Switch, it also features an indoor locking power socket for added security.
PROTOCOLS:
- DMX512
- RDM
PHYSICAL:

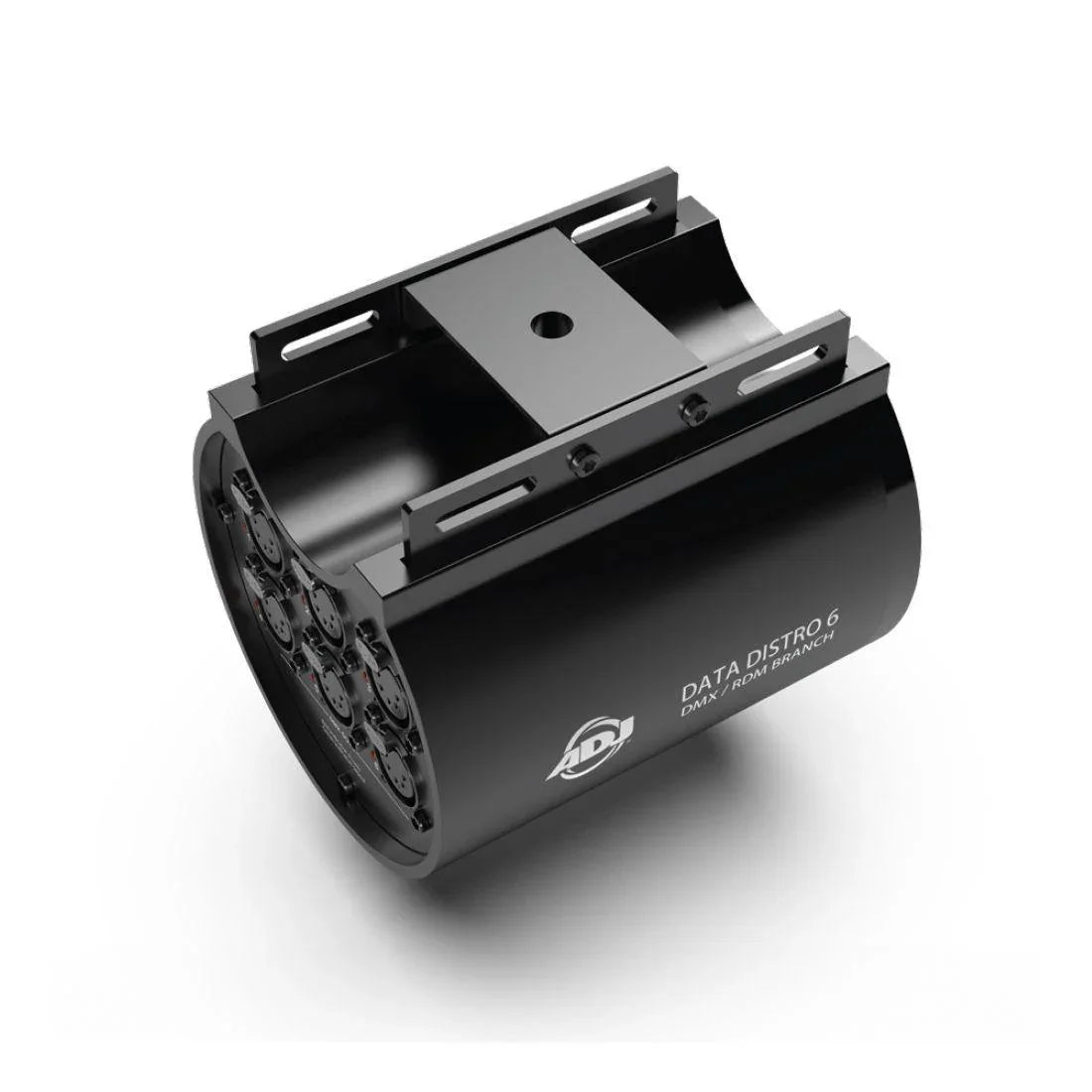

- 180 degree mounting bracket system
DIMENSIONS / WEIGHT:
- Length: 120mm
- Width: 137.75mm
- Height: 129.55mm
- Weight: 0.83kg
ELECTRICAL:
- AC Input: 100-230V 50/60Hz
- Power Consumption: 2.9W @ 230V
- Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
THERMAL:
- Ambient Operational Temperature: -20°C to 45°C
- Humidity: <75%
- Storage Temperature: 25°C
WHAT’S INCLUDED:
- 2x Straps (used to attach unit to truss)
- 1x Clamp Mounting Bracket
- 1x Power Cord
APPROVALS / RATINGS:
- IP20
Warranty
12 month manufacturer warranty included on all items.
Delivery
Free UK Delivery on all orders, Next working day delivery is available at checkout at £7.99
Returns
If you would like to return your item, you can do so within 14 days of receipt of your item
