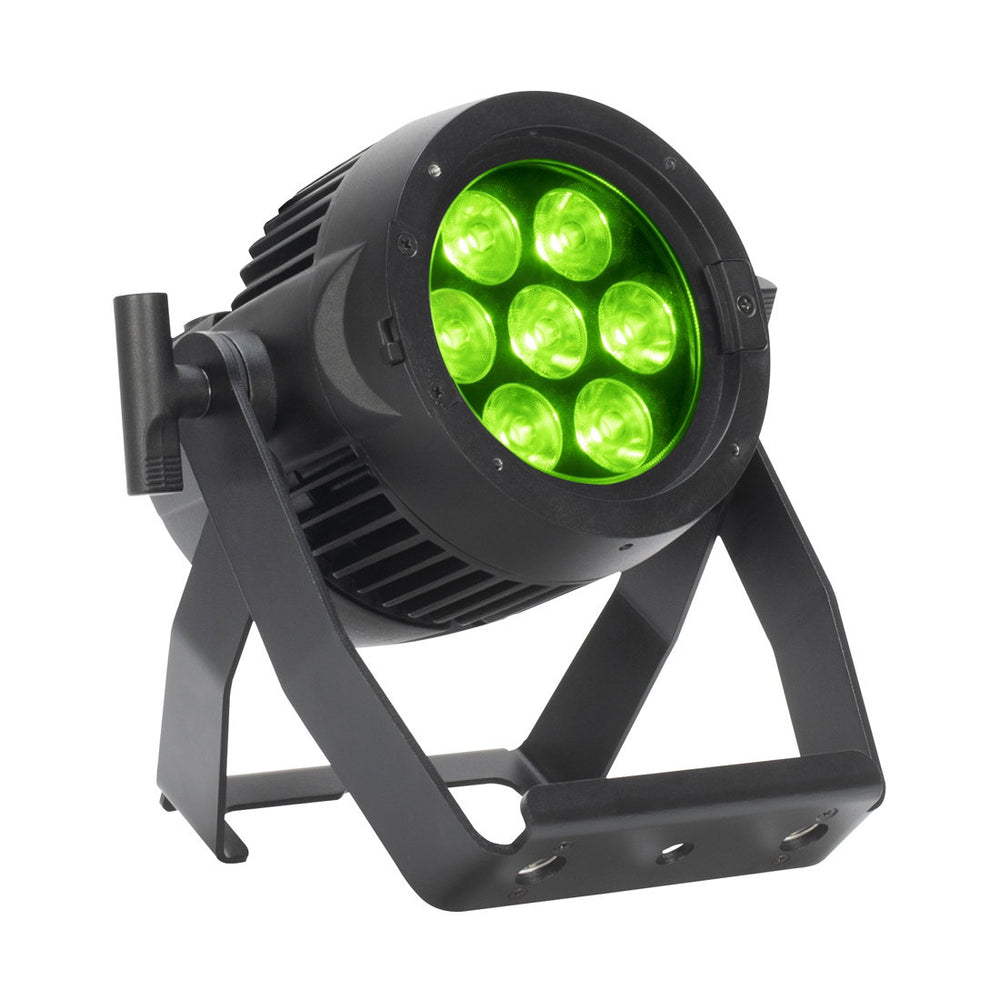

ADJ Encore LP7 IP

The ADJ Encore LP7IP is a versatile, heavy duty Par with seven 20W Quad RGBL LEDs, a 10-degree beam angle and all-metal construction. Its IP65 rating suits temporary outdoor events, while flicker-free operation and linear white colour temperature control make it versatile for stage, TV and film applications.

Features

• 7 x 20W Quad RGBL LEDs: Red, Green, Blue and Lime
• Beam angle: 10°
• CRI: 84; CRI R9: 76.6
• Output: 2500 lumens
• Linear colour temperature control: 2700K to 7000K
• Preset colour temperatures: 2700K, 3200K, 4000K, 5600K, 6500K and 7000K
• 16-bit fine colour control for red, green, blue and lime
• 64 built-in colour macros
• 4-button DMX digital display on rear panel
• Four operating modes: Static Colour, RGBL Dimmer, Program and DMX Controlled
• RDM (Remote Device Management)
• Six dimming modes: Standard, Stage, TV, Architectural, Theatre and Stage 2
• Four dimming curves: Linear, Square, Inverse Square and S-Curve
• Adjustable refresh rate: 14 presets from 900 to 25,000Hz
• Flicker-free operation
• LED pulse and strobe effect
• Electronic dimming: 0-100%
• Six DMX modes: 4, 7, 8, 10, 13 and 16 channels
• Quiet fan mode
• IP65 protection against liquid, snow, dust and sand for temporary outdoor use
• All-metal construction
• IP-rated rubber covers protect locking power connectors and 5-pin sockets
• Locking outdoor power input/output connectors
• 5-pin DMX data input/output
• 25° double frost filter included; optional 20°, 60°, 100°, 40°x1° and 60°x30° filters sold separately
• Scissor yoke with Quick Locks and safety eye
• Optional omega bracket available

Specifications

• Power supply: AC 100-240V, 47/63Hz
• Maximum power: 103W
• Power linking: up to 20 units at 220V
• Dimensions (L x W x H): 220 x 160 x 242mm
• Weight: 3.45kg
• IP rating: IP65

Technical drawing
