ADJ Focus Spot 4Z Moving Head

The new Focus Spot 4Z sits at the top of range of the popular Focus Series moving heads from ADJ Lighting. The Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).�

The Focus Spot 4Z has Locking Power In and out connectors to daisy chain the power, as well as Locking 3-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).

Light Source:

� 200W Cool White LED Engine (50,000 hr.)

�

Features:

� Motorized Focus

� Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom

� 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular

� 0-100% smooth dimming

� Various strobe speeds

� RDM compatible (Remote Device management)

� USB firmware update port

� 2 cooling fans

�

Color Wheel:

� 8 dichroic colors + white

�

GOBO Wheel:

� 6 aluminum GOBOs + open

� All GOBOs removable & rotatable

� GOBO Shake Effect

� GOBO size: 22,5mm (outer); 19mm (viewable); 0.5-2mm (thickness)

�

Prism Wheel:

� Prism Wheel 1: Rotatable 5-facet Linear�

� Prism Wheel 2: Rotatable 6-facet Circular�

� Prism Indexing

�

Control:

� 3 DMX Channel Modes: 16/18/22 Channels

� Color LCD display with 6-button function menu

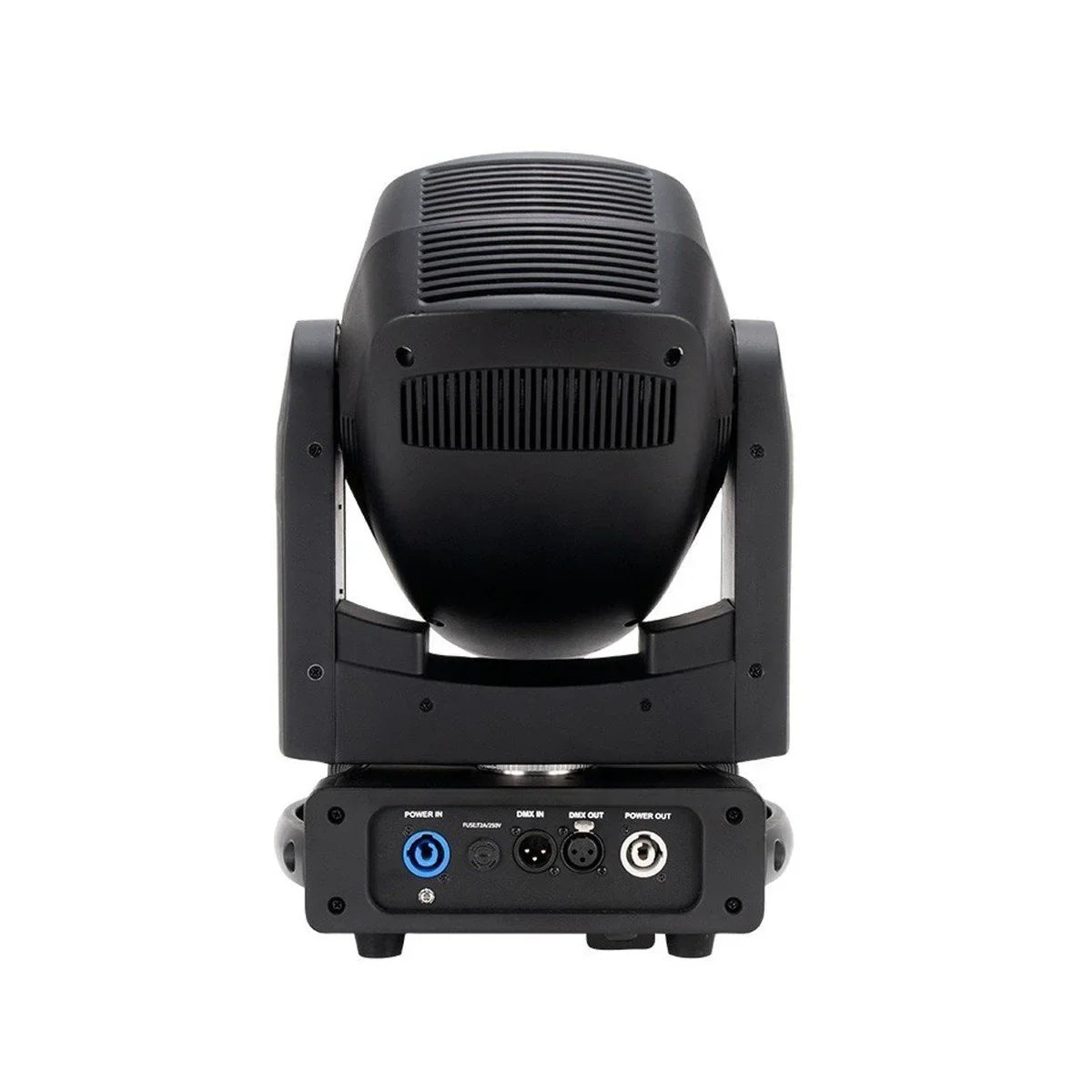

� Data In/Out: Locking 3-pin DMX

� Power In/Out: Locking Power(Daisy chain 4 units @ 120V; 10 units @ 240V)

� Control Mode: DMX512 or internal programs, RDM

� 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

� 0-100% smooth dimming

� Various strobe speeds

� USB firmware update port

� With Wired Digital Communication Network

� Battery inside, allowing to access the fixture Menu without power connection

�

Pan/Tilt:

� Pan: 540 & 630 degrees

� Tilt: 270 degrees

�

Dimensions & Weight:

� Dimension: 18� x 10.97� x 7.15� / 457 x 279 x 182mm�

� Weight: 23 lbs. / 10 kg.

�

What's Included:�

� Omega Bracket

� 6 ft/3M Locking Power cable

� Safety Cable
