Description

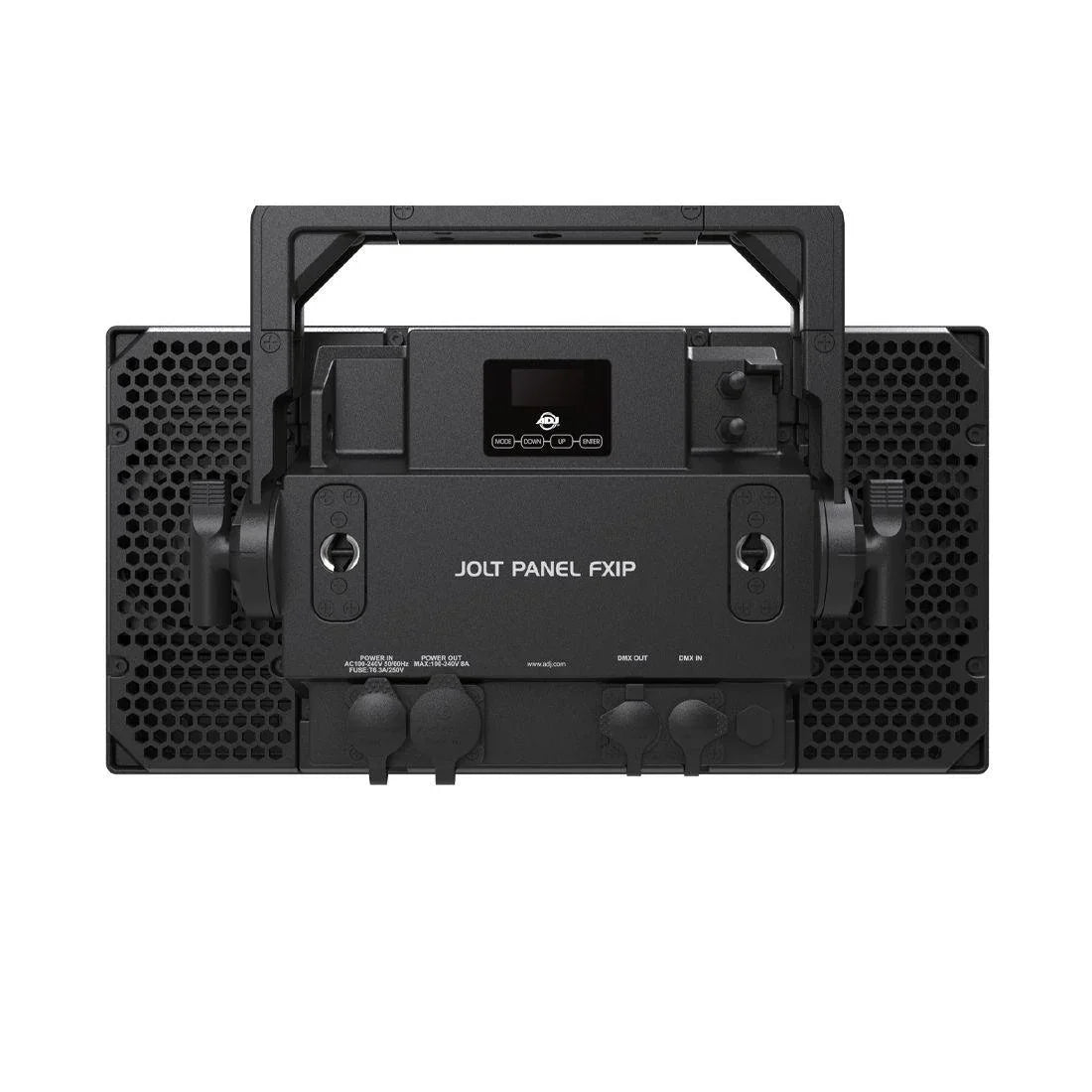

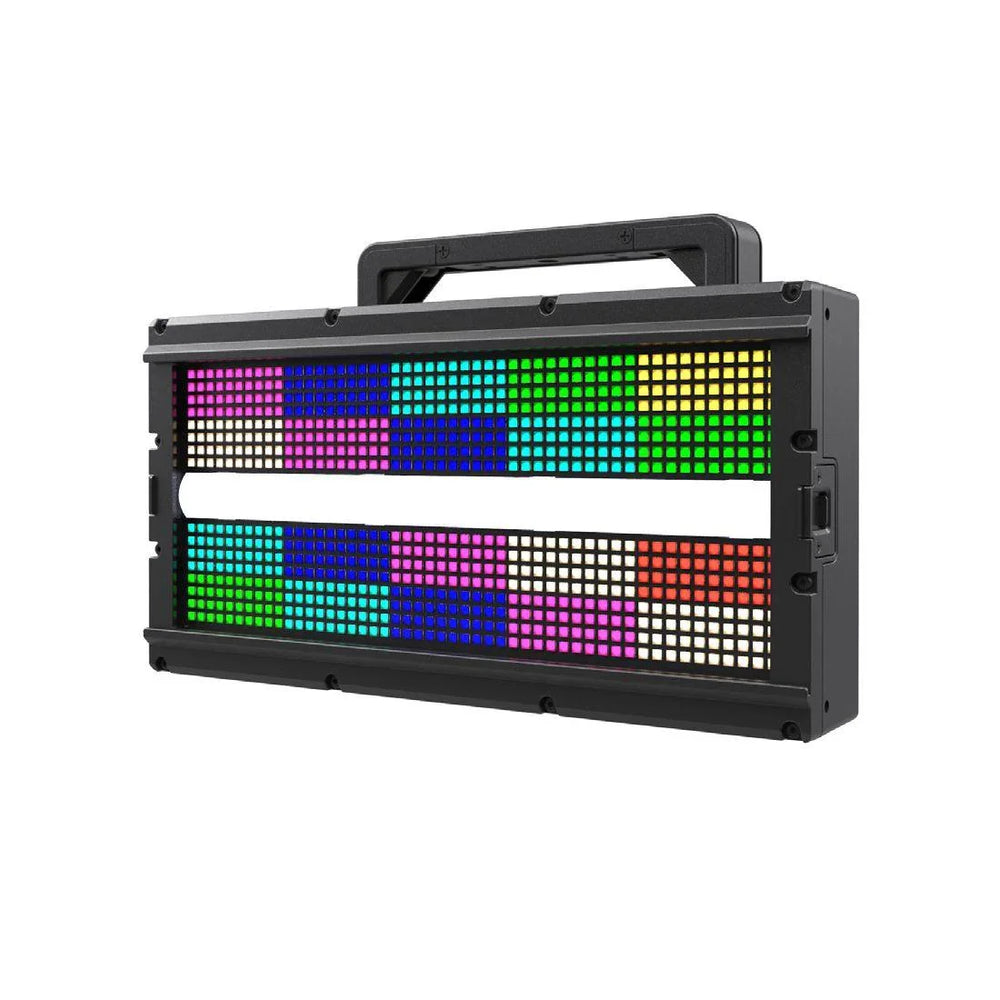

The ADJ Lighting Jolt Panel FXIP is an innovative multi-use strobe / wash / eye candy fixture. It is equipped
with 800 x 0.5-Watt RGB SMD LEDs for color strobe, wash and eye candy effects, as well as 48 x 5-Watt white
SMD LEDs located in the center of the fixture to create the traditional look of a strobe. Both types of LED are
grouped into independent controllable zones (6 white and 40 color), allowing for the creation of eye-catching
animated chase patterns. The Jolt Panel FXIP’s massive light output is specifically designed for large
stages, nightclubs, live events and touring.
- • 800 x 0,5-Watt RGB SMD LEDs + 48 x 5-Watt Cool White SMD LEDs
- • 73° Beam Angle
- • 111° Field Angle
- • Color LEDs Temperature: Red: 620-630nm; Green: 515-525nm; Blue: 460-470nm. / Cool White LED: 6900-7400K Color Temperature
- • CRI: 69.4
- • 50,000 Hour Average LED Life
- • 40 x RGB LED Zones
- • 6 x Cool White LED Zones
- • 25 Built-in RGB LED Program Macros
- • 9 Built-in Cool White LED Program Macros
- • IP65-Rated for temporary outdoor and indoor use
- • Aria X2 Wireless DMX Built-in
- • Channel for Light Shaping Filters (to Blur Pixel Dots)
- • End Cap Locking Mechanism and Connecting Plat (for seamless fixture linking)
- • Built-in Holes to Connect an Omega Bracket (sold separately)
- • Control Protocols: DMX, Aria X2 and RDM
- • 10 DMX Channel Modes: 6, 9, 13, 18, 36, 41, 51, 81, 126 and 141 channel modes
- • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
- • Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law & S Curve)
- • 0-100% Smooth Dimming
- • Strobe, Shutter & Pulse Control
- • Max Strobe Rate 20Hz; Min Strobe Rate: 1Hz.
- • Refresh Rate: 900Hz - 25kHz.
- • With Wired Digital Communication Network
- • Display: OLED Display with 4-Button Touch Menu
- • Data: IP65-rated Outdoor Locking 5-pin DMX In/Out
- • Power: IP65-rated Outdoor Locking Power In/Out
- • 100-240V 50Hz/60Hz (Auto Sensing)
- • Max Power Consumption: 208W @230V
- • Max Power Link: 12pcs @230V
- • Fuse Protected: T5A/250V Glass Fuse (5*20MM)
- • Length: 6.06” (153.8mm)
- • Width: 16.42” (417mm)
- • Height: 10.38” (263.5mm)
- • Weight: 13.67 lbs. (6.2kg)
- • 1x IP65-rated, 1.83m Power locking power cable
- • 180mm Omega Bracket
- • ADJ Light Shaping Filters
- • CE
- • cETLus (Pending)
