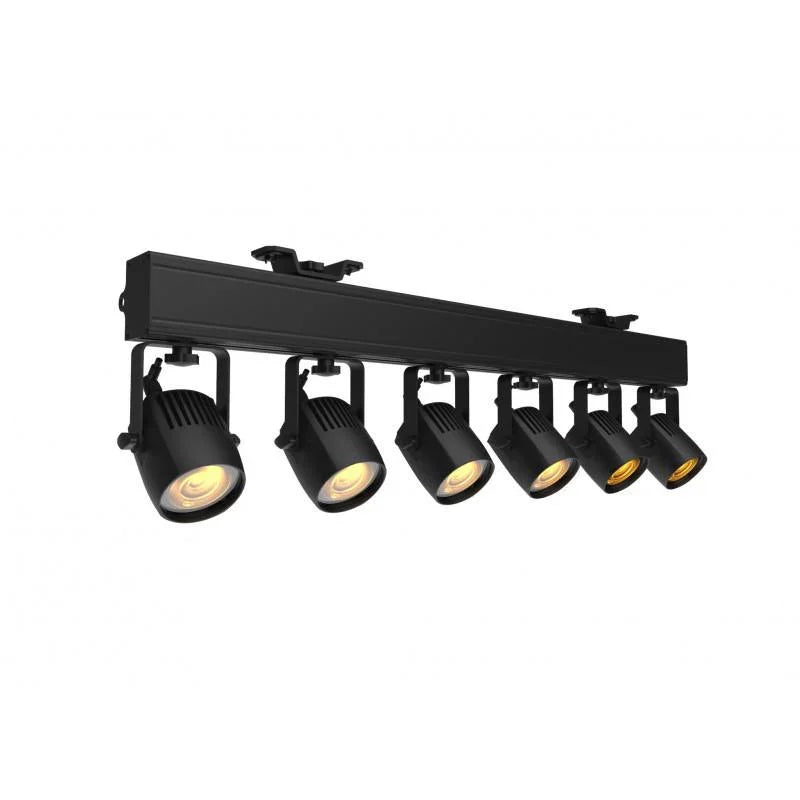

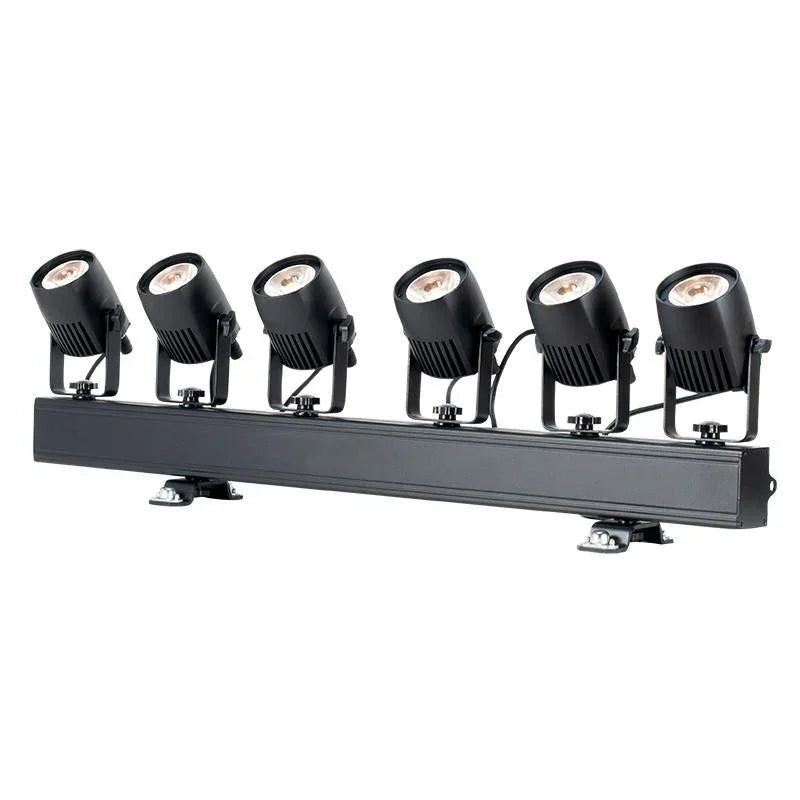

ADJ Saber Bar 6 6-Head Pinspot Lighting System

The ADJ Saber Bar 6 is a 6-head pinspot lighting system mounted on a 1-meter linear base with built-in power and DMX connections. Each pinspot is similar to the Saber Spot WW with a 15W Warm White LED (3100K) and an ACL lens that produces a razor sharp 4-degree beam. Each fixture�s X/Y axis may be individually adjusted manually for precision angling of the beams. There are two heavy duty adjustable brackets to mount the fixture to a ceiling or truss.

The rear panel features a display with function buttons, 3-pin and 5-pin DMX In/Out to link data and power locking In/Out connections to daisy chain power. There are multiple DMX channel modes to choose from, built-in programs and 6 dimming curve modes. The Saber Bar 6 is s ideal for performance stages, installations, table spotting and lighting in retail stores.

Light Source:

� LED: 6x 15W Warm White LEDs (50,000 hr.)

� Color Temperature: 3100K

� CRI: 96

� Beam Angle: 4-degrees

�

Features:

� All metal construction with black housing

� ACL lens for razor sharp beams

� Additional 10 & 45 degree lenses included

� RDM compatible (Remote Device management)

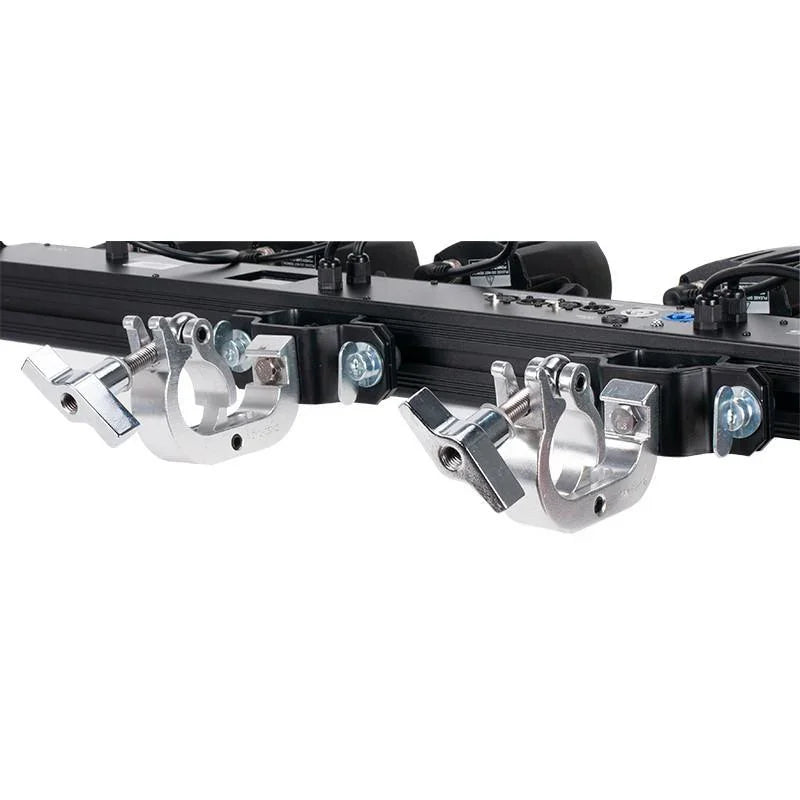

� Includes heavy duty adjustable brackets for hanging

� Individually adjust X/Y axis of each fixture manually

�

Construction:

� Display with function buttons�

� Data In/Out: 3-pin and 5-pin DMX In/Out to link data

� Power locking In/Out connections to daisy chain power

� Daisy chain up to 11 fixtures @ 120V; 12 fixtures @ 240V

�

Control:

� Multiple DMX channel modes

� Control Modes: DMX512

� Built-in internal programs

� 0-100% Dimming + smooth 16-bit fine dimming

� 6 Dimming Curve Modes

� Adjustable LED refresh rate

� Strobe & Pulse effects

� With Wired Digital Communication Network

�

Electrical:

� Power voltage: AC100-240V, 50/60Hz (Multi-voltage)

� Power consumption: 85W max

�

Dimensions & Weight:

� Dimension (LxWxH): 39.5� x 11.5� x 3.75� / 1005x292x95mm

� Weight: 25 lbs. / 11.3 kg.
