ADJ Vintage Bar 150w Amber LED Retro Blinder Effect

Vintage Bar is a versatile scenic lighting fixture designed to inspire creativity and captivate audiences with its dual-purpose design. It offers four 150W amber COB LEDs (2000K) for a retro blinder effect, combined with vibrant 120 SMD 5050 RGBL background LEDs configured into 20 pixel groups. This combination enables brilliant amber wash lighting, stunning multi-colour eye candy effects and smooth dimming transitions.

Its wide field angle of 160° ensures exceptional light dispersion, making it ideal for stage productions, events, theatrical applications. The fixture features advanced strobing, retro background effects, and silent operation. Additional highlights include flicker-free performance, a user-friendly OLED display, and support for DMX, RDM, and Art-NET protocols. The Vintage Bar also features the Aria X2 wireless management system for over the air firmware/software updates for streamlined control.

Built for flexibility, the Vintage Bar offers multiple control modes, pixel mapping, and interlocking capability, making it perfect for immersive lighting setups. With robust engineering and creative potential, it combines vintage charm with modern functionality for modern lighting designs.

Main Technical Parameters:

• Primary Light Source: 4 pcs high-power 150W COB Amber LED

• CCT: 2000K
• Lumens: > 27,000
• Lux: 647 @ 5 meters
• CRI: 70
• Field Angle: 160°

Secondary Light Source:

• 120 pcs SMD 5050 RGBL LEDs (0.8W each)
• Configured into 20 pixel groups (6 LEDs per group)

Special Effects:

• Powerful strobe, 0.5 to 33Hz
• Unique retro RGBL background effect
• Silent operation with low noise

Additional Features:

• Aria X2 Management System
• Flicker-free
• OLED display with a 4-button touch menu
• Capable of interlocking multiple units together
• Dimmer: 0-100% linear dimming system

Control Modes:

• Primary/Secondary synchronization
• Stand-alone mode
• DMX512 control mode
• 10 DMX Channel Modes (5/6/8/14/17/18/84/88/90/97 channels)
• DMX, RDM, and Art-NET protocol support

Connections:

• IP20 indoor 5-pin DMX Input and Thru
• IP20 indoor RJ45 Ethernet
• IP65 outdoor power locking Input and Thru

Dimensions & Weight:

• Dimensions (LxWxH): 908x292x257mm
• Weight: 19 kg

Power:

• Input: AC100-230V/50Hz-60Hz
• Power Consumption: 750W @ 230V
• Power Link: 2 pieces @ 230V

Optional Accessories:

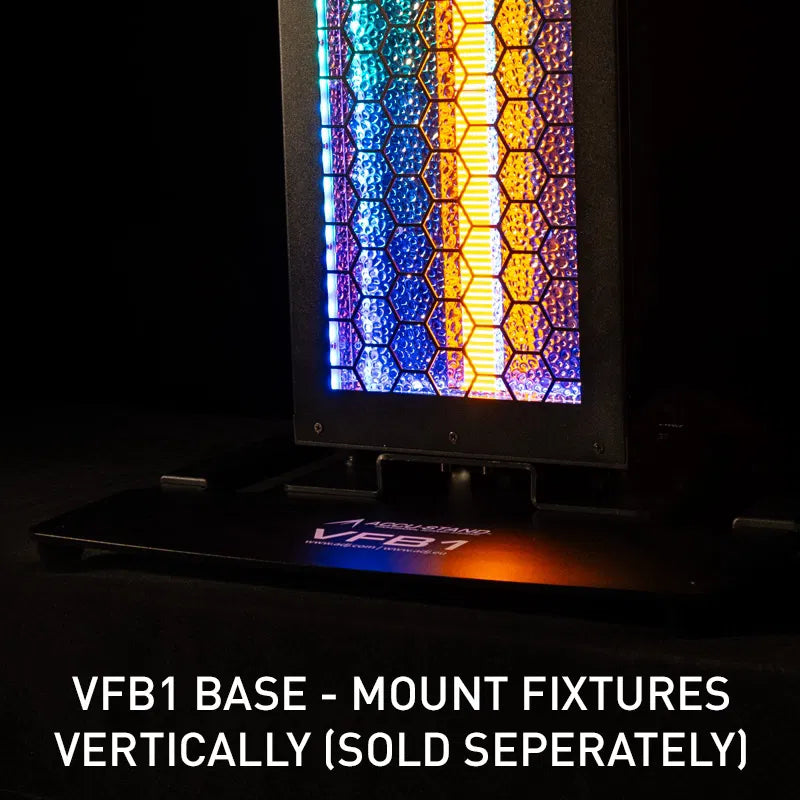

• VFB (Floor Base for Vertical Stand)
• VFB-VBA (Adapter to Adapt Vintage Bar to VFB Floor Base. One Adapter is Required per Floor Base)

Specifications are subject to change without notice.
