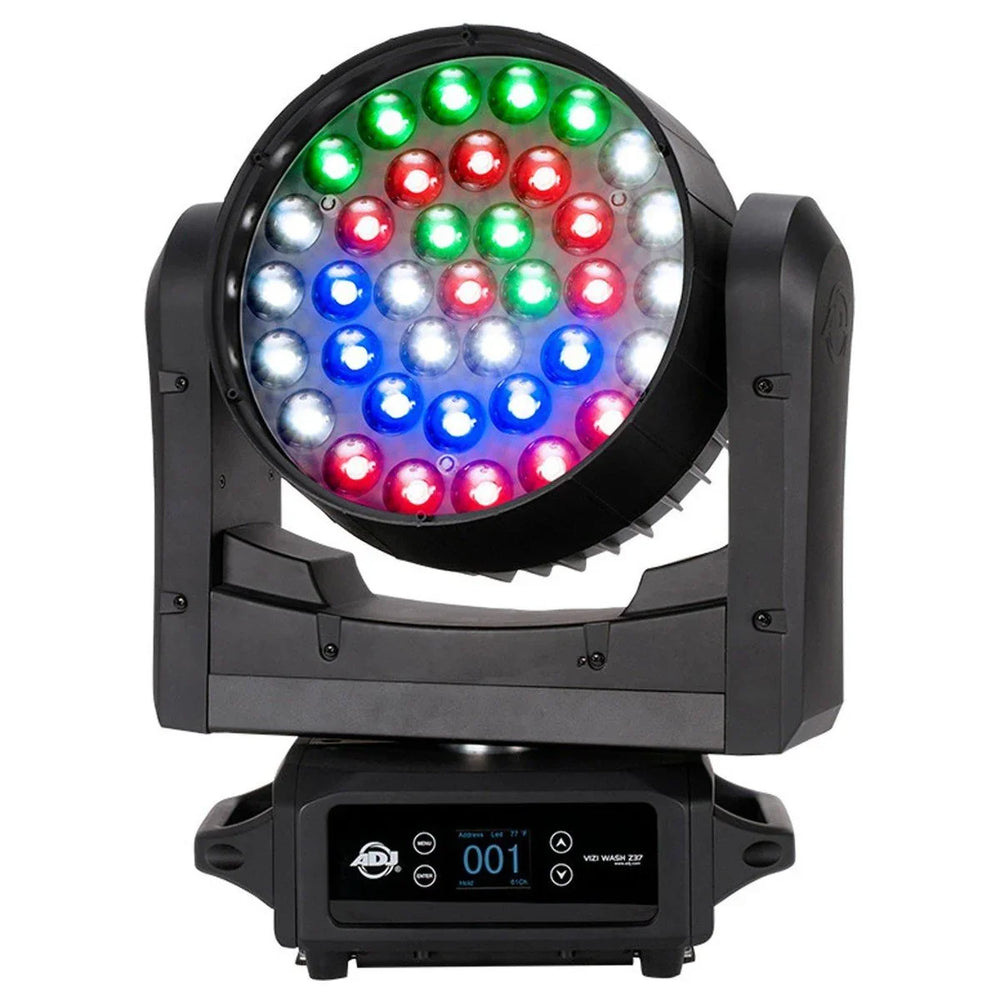

ADJ Vizi Wash Z37 Moving Head

The Vizi Wash Z37 is a 740W professional moving head wash fixture with variable motorized zoom (10 ~ 60-degrees) and thirtyseven 20W Quad (RGBW / 4-IN-1) LEDs. It features 11 zones of LED ring control, smooth 16-bit dimming control from 0-100%, Locking Power In/Out to daisy chain power, both Locking 3-pin and 5-pin DMX In/Out and a built-in USB port for a convenient connection to update software if needed. This fixture is ideal for stages, theaters, churches, nightclubs, concert venues and event productions.

Specifications

Light Source:

� 37x 20W RGBW (4-IN-1 - Red, Green Blue & White) Osram LEDs

� 20,000 Hour Average LED Life

� LUX @ 5M: 15000 lux @ 10-degrees; 1100 lux @ 60-degrees

�

Effects:

� 11-zone Ring Control with Color Macros

� Variable Strobe & Pulse effects

�

Connections:

� Locking Power In/Out to daisy chain power�

� Locking 3-pin and 5-pin DMX connections for data linking

� RDM (Remote Device Management)

� USB Input for Updating Fixture Firmware

�

Control:

� Motorized Linear Zoom: 10 ~ 60-degrees?

� 4-button Touch Control Panel with Large LED Screen

� Control: DMX-512

� RDM compatible (Remote Device management)

� Multiple DMX Channel Modes (14, 16, 17 & 71 channels)

� Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)

� Dim Speed control (0.1~10 Seconds)

� Dimming: 0 - 100%�

� Strobe & pulse control

� Various Strobe speeds (1-40Hz)

� Adjustable LED Refresh Rates (900~25k Hz)

� Adjustable Gamma Settings (1.0-2.8)

� Color display with touch button on two sides

� With Wired Digital Communication Network

�

Electrical:

� Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)

� Power Draw: 725W, 6.03A @ 120V or 700W 3A @ 230V

�

Dimensions/Weight:

� Dimensions (LxWxH): 16� x9� x 20.5� / 408,4x226x520,3mm
� Weight: 40 lbs. / 18 kg.

�

Included in box:

� Locking Power cable

� Two Omega brackets for truss mounting
