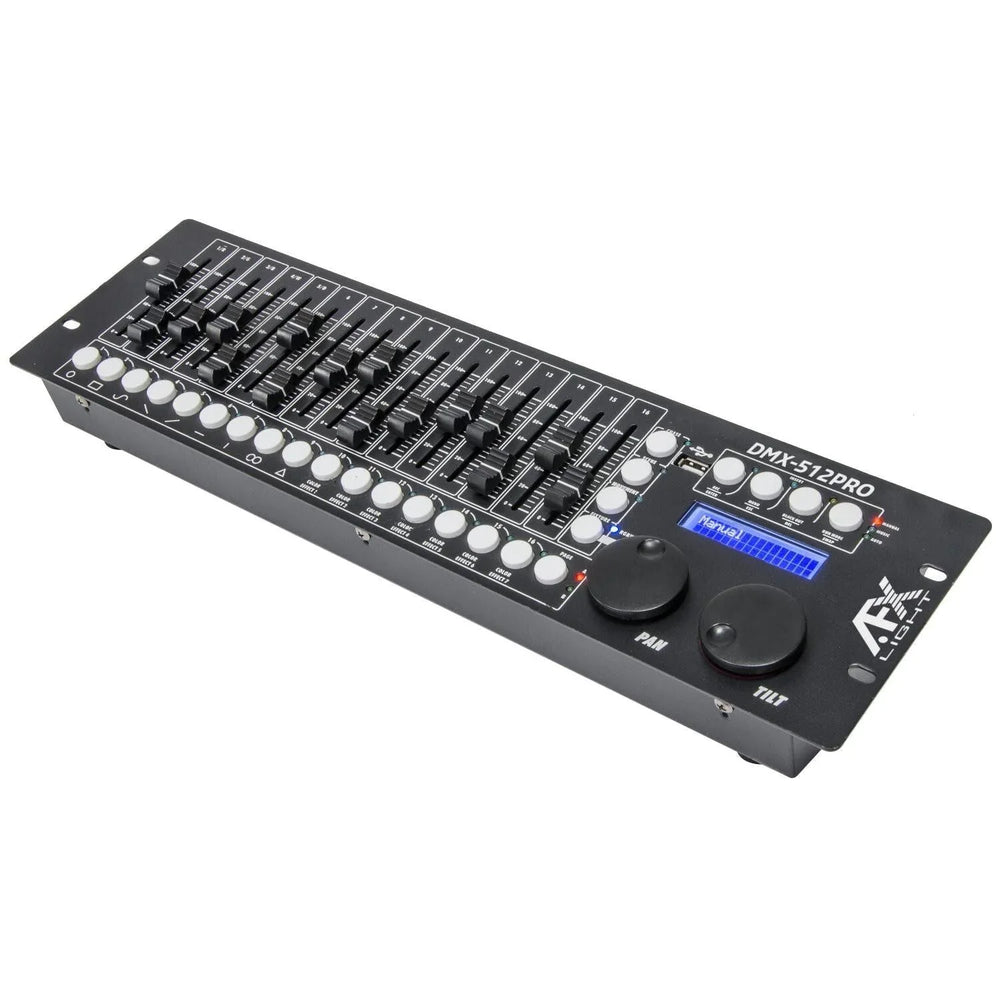

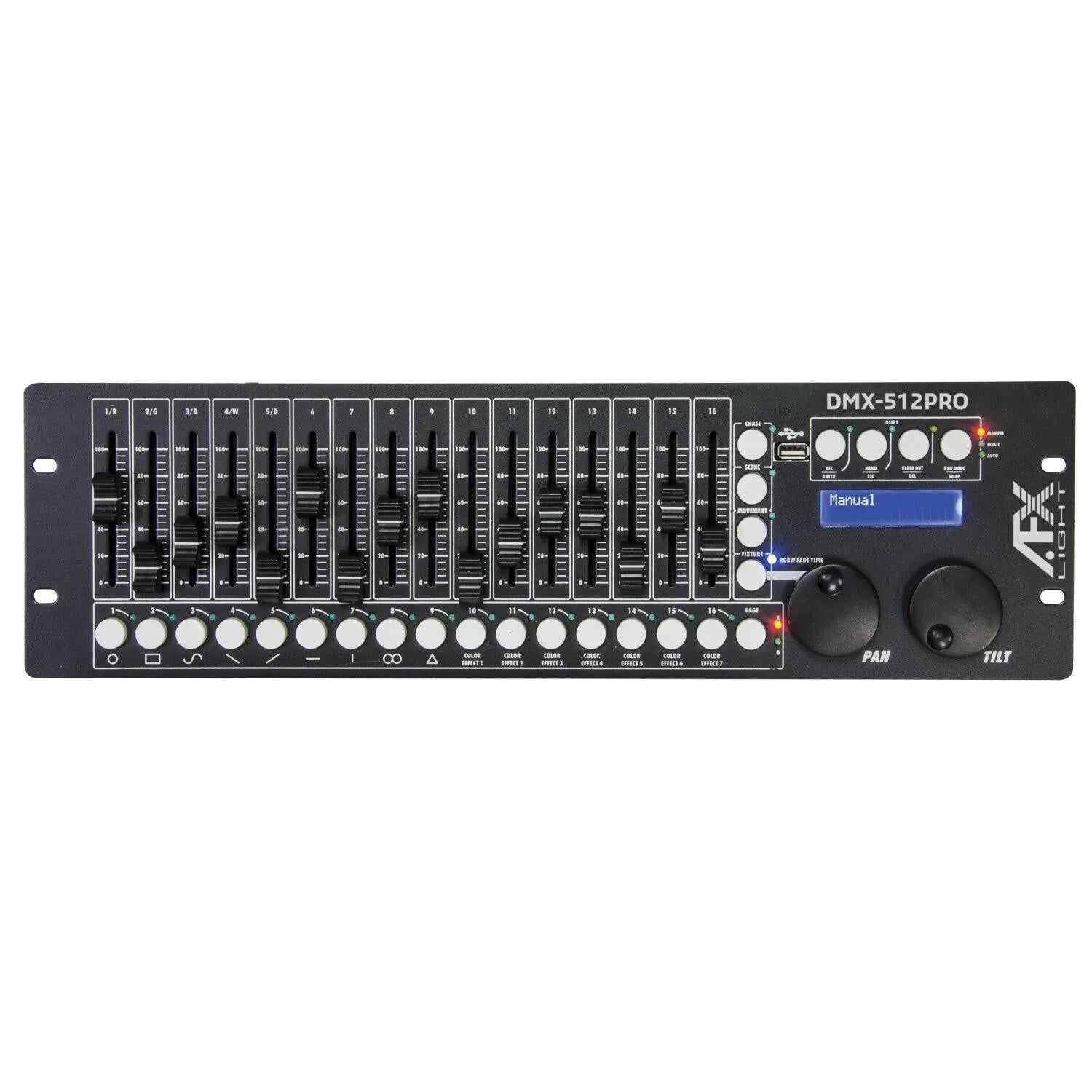

AFX DMX512-PRO DMX Lighting Controller
Brand: AFX Light
SKU: 15-1845
£188.00
Out of Stock
Quantity:
Secure Payment
We accept all major payment methods including:
Store Pickup Available
Pick up is available. Check with store to see product availability before coming over.
Product Description
DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture.
- 512 DMX channels can be assigned to 32 control channels (softpatch)
- For 28 fixtures with 18 control channels each
- USB port for storing program data
- Quick programming via 9 integrated movement patterns and 7 color effects (PAN/TILT position, fade time and running time adjustable)
- 32 programmable chases with 100 scenes each can be stored
- Manual, time-controlled or sound-controlled chase running mode
- 32 programmable scenes
- 2 DMX fixture levels can be controlled, each with up to 18 channels
- 16 DMX channel faders
- 2 jog wheels for pan/tilt
- Blackout function
- Sound control via built-in microphone
- Backlit LCD (2 x 16 characters)
- RDM support (DMX address setup and identification)
- 3-pin XLR connector
- Firmware update via USB
- 3U Rack installation
| Power consumption | 2.7 W |
| Weight | 2.2 kg |
| Number of control channels | 512 |
| Storable scenes | 32 |
| Storable chases | 32 with 100 steps each |
| Sound control | via built-in microphone |
| DMX512/RDM output | 3-pin XLR connector |
| Available storage media | USB devices (FAT32) |
| Dimensions (LxWxH) | 483 x 130 x 82 mm |
| Power supply | 110-240V~ 50/60Hz via included mains adaptor |
