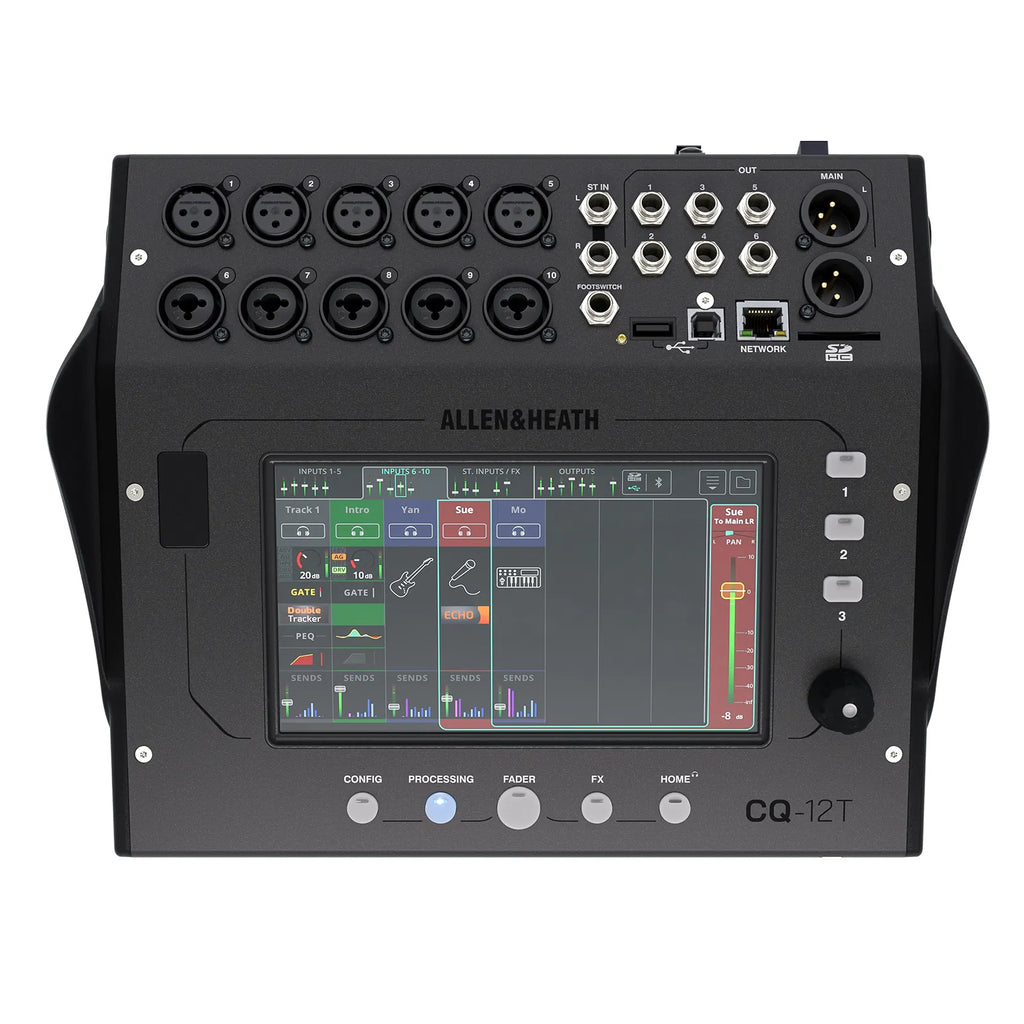

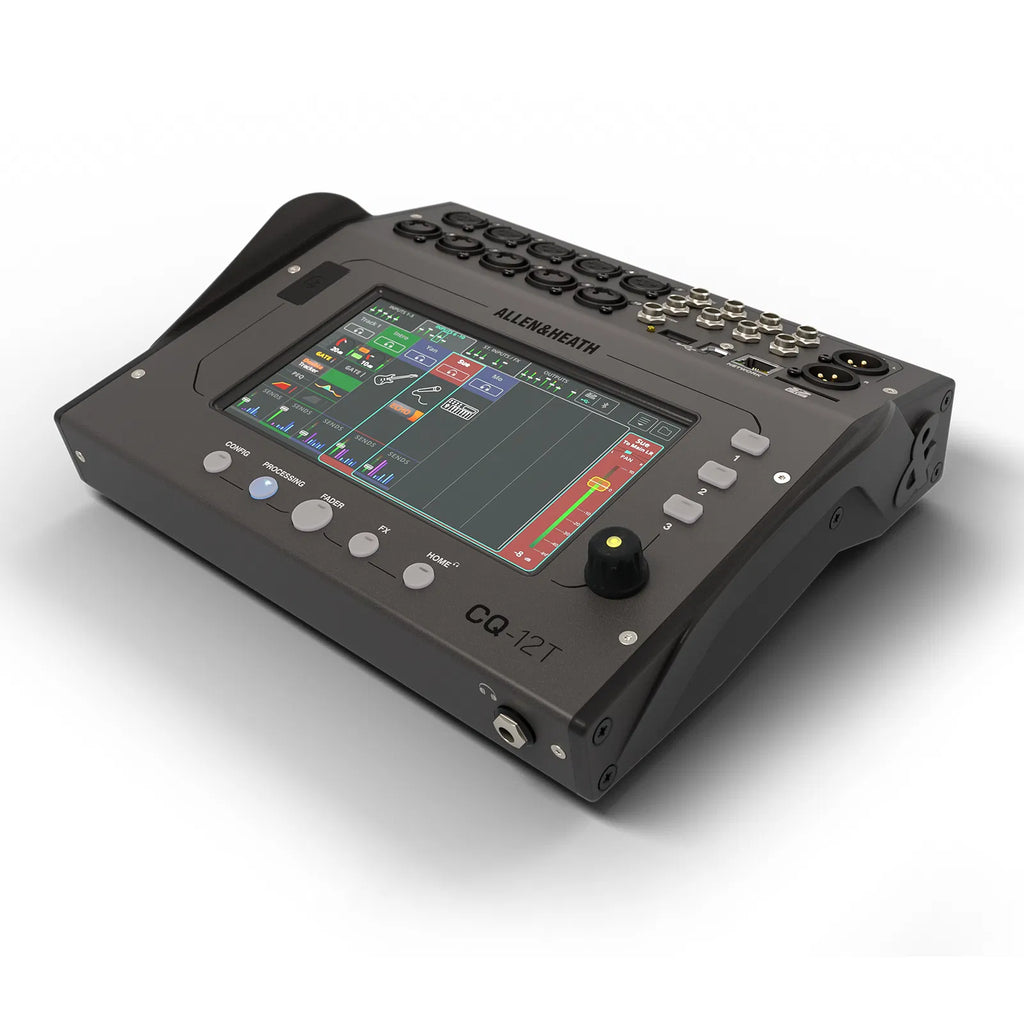

Allen & Heath CQ12T Small Format Digital Mixing Console

The Allen & Heath CQ-12T is a compact 12-channel digital mixer featuring 96kHz FPGA processing, a 7" capacitive touchscreen, built-in Bluetooth, and versatile recording options via USB and SD card. Designed for live performances, studio recording, streaming, and fixed installations, the CQ-12T provides intuitive control, advanced assistive mixing tools, and professional-grade audio quality—all in a portable, app-controllable package when paired with an external Wi-Fi router.

• 12 input channels with 96kHz FPGA processing
• 7" capacitive touchscreen with rotary control for intuitive operation
• RJ45 network port for external Wi-Fi router/app control
• Bluetooth stereo input for easy audio streaming
• 16x18 USB-B audio interface for multitrack recording and playback
• 16x18 SD card recording and playback capability
• Two FX Assist engines with reverb, delay, and modulation effects
• Gain Assistant and Feedback Assistant for streamlined setup
• Automatic Mic Mixer (AMM) for improved speech applications
• 3 custom SoftKeys and dual footswitch connections for personalised control

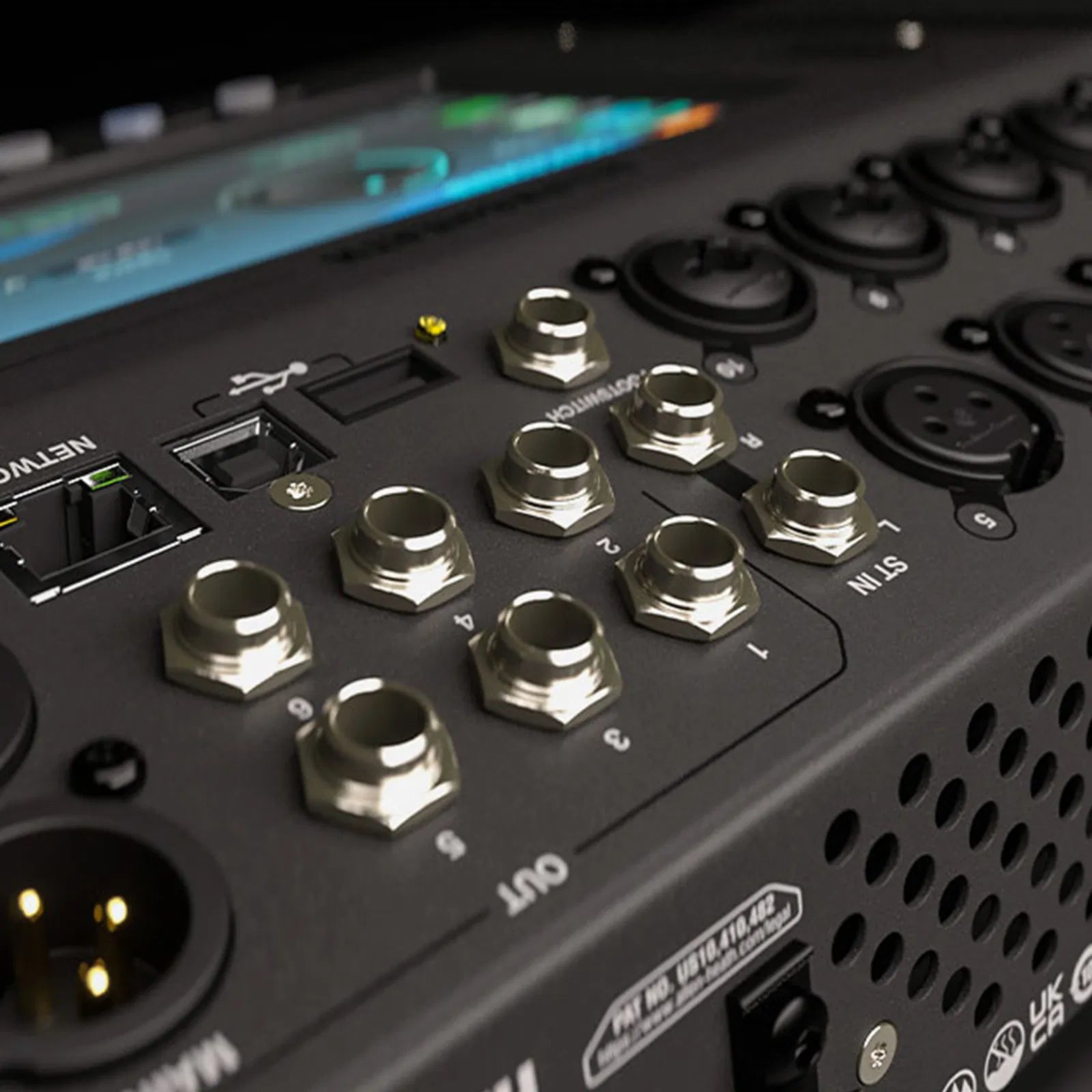

• Mic/Line Inputs: 10 x XLR (5 combo XLR/TRS, 5 XLR)
• Line Inputs: 2 x 1/4" TRS (stereo pair)
• Main Outputs: 2 x XLR
• Monitor Outputs: 6 x 1/4" TRS
• Headphone Output: 1 x 1/4" TRS (assignable)
• USB: 1 x Type B (16-in/18-out), 1 x Type A
• SD Card Slot: Yes (16-in/18-out recording/playback)
• Network: 1 x RJ45 Ethernet (requires external router for Wi-Fi control)
• Bluetooth: Stereo input
• Processing: 96kHz FPGA
• Dimensions (H x W x D): 88mm x 290mm x 242mm
• Weight: 2.4kg (5.3 lbs)
