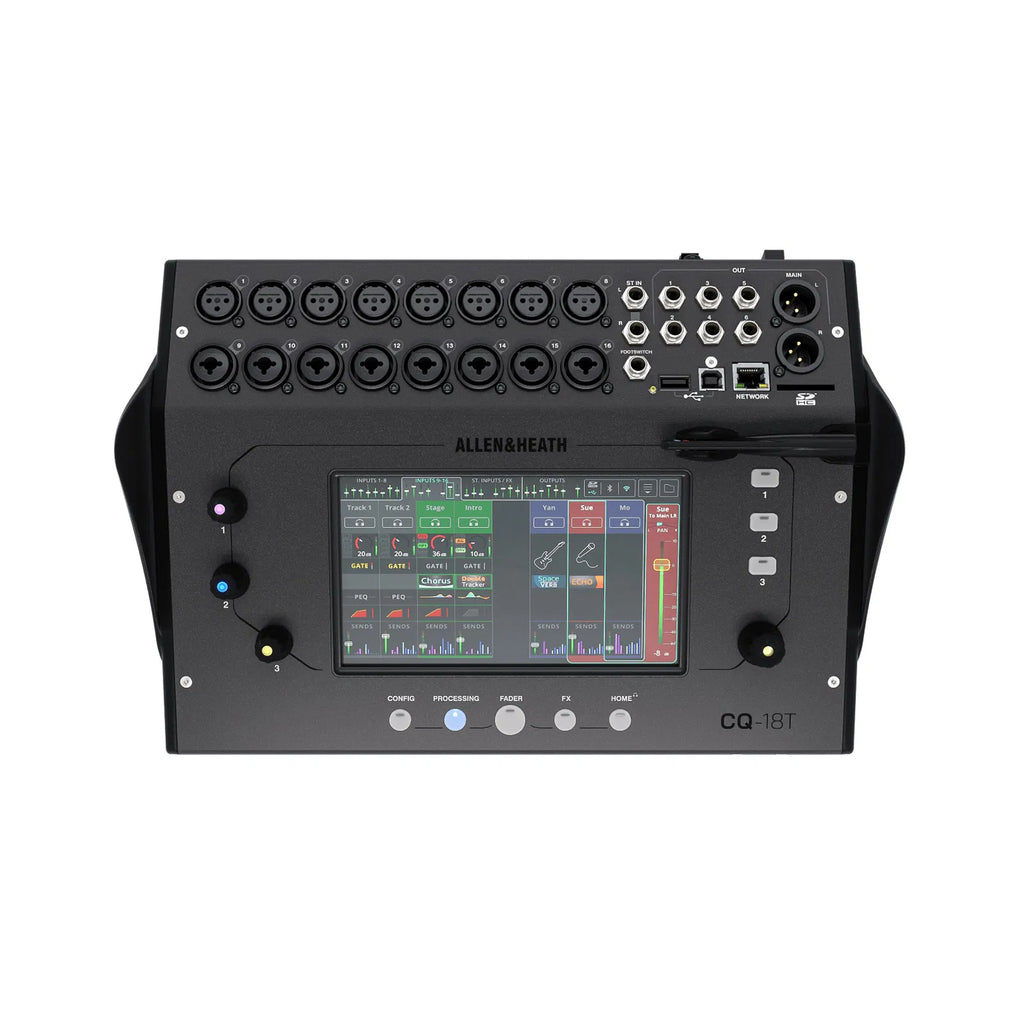

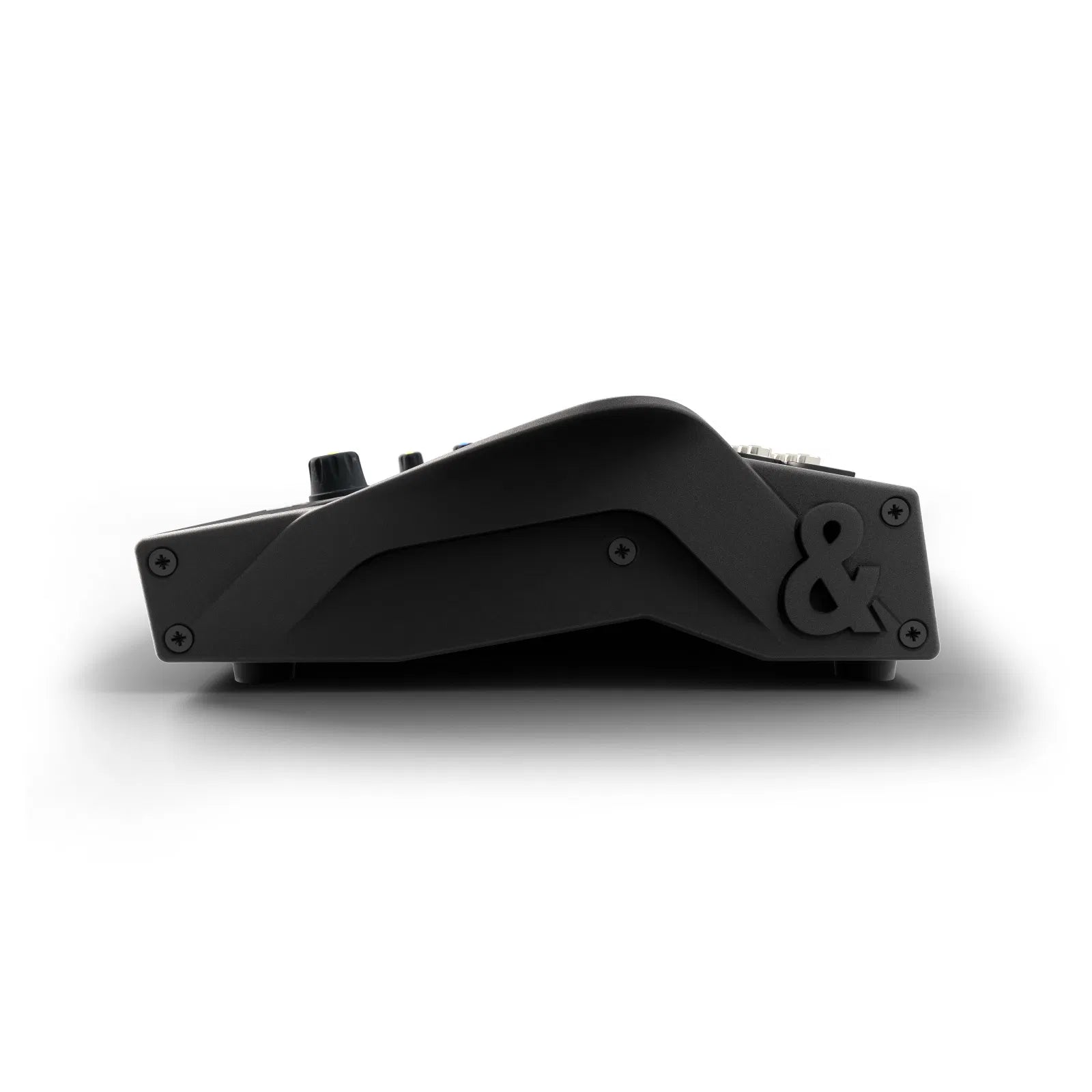

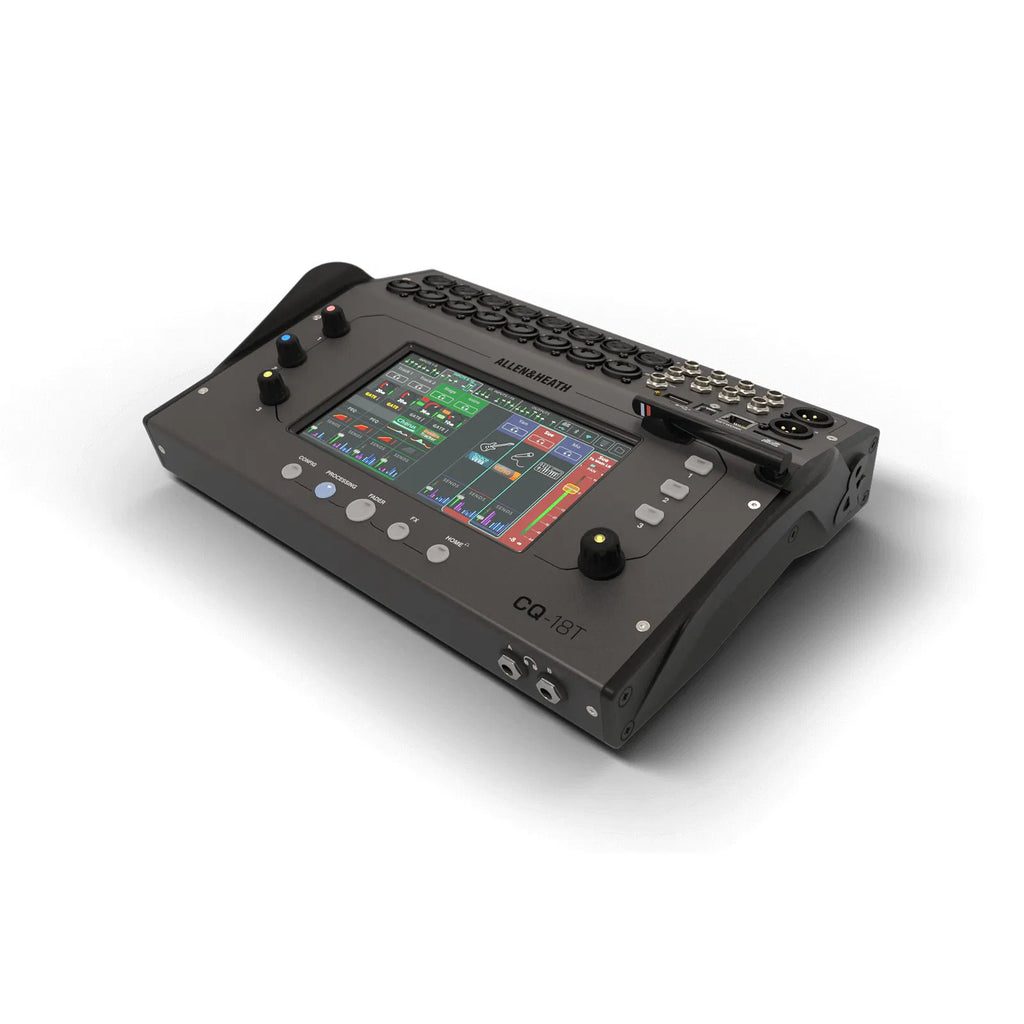

Allen & Heath CQ18T Small Format Digital Mixing Console

The Allen & Heath CQ-18T is an ultra-compact 18-channel digital mixer featuring 96kHz FPGA processing, a 7" capacitive touchscreen, built-in Wi-Fi and Bluetooth, and versatile recording options via USB and SD card. Ideal for live performances, studio recording, streaming, and corporate AV, the CQ-18T offers intuitive control, advanced assistive mixing tools, and high-quality audio in a portable design.

• 18 input channels with 96kHz FPGA processing
• 7" capacitive touchscreen with rotary control for intuitive operation
• Built-in dual-band Wi-Fi (2.4GHz/5GHz) for wireless control
• Bluetooth stereo input for easy audio streaming
• 24x22 USB audio interface for multitrack recording and playback
• 24x22 SD card recording and playback capability
• 4 onboard FX engines with reverb, delay, and modulation effects
• Gain Assistant and Feedback Assistant for streamlined setup
• Automatic Mic Mixer (AMM) for improved speech applications
• 3 custom SoftKeys and 3 custom SoftRotaries for personalized control
• Mic/Line Inputs: 16 x XLR (8 combo XLR/TRS, 8 XLR)
• Line Inputs: 2 x 1/4" TRS (stereo pair)
• Main Outputs: 2 x XLR
• Monitor Outputs: 6 x 1/4" TRS
• Headphone Outputs: 2 x 1/4" TRS
• USB: 1 x Type B (24-in/22-out), 1 x Type A
• SD Card Slot: Yes (24-in/22-out recording/playback)
• Network: 1 x RJ45 Ethernet
• Wireless: Built-in dual-band Wi-Fi (2.4GHz/5GHz)
• Bluetooth: Stereo input
• Processing: 96kHz FPGA
• Touchscreen: 7" capacitive
• Dimensions (H x W x D): 88mm x 346mm x 242mm
• Weight: 3kg (6.6 lbs)
