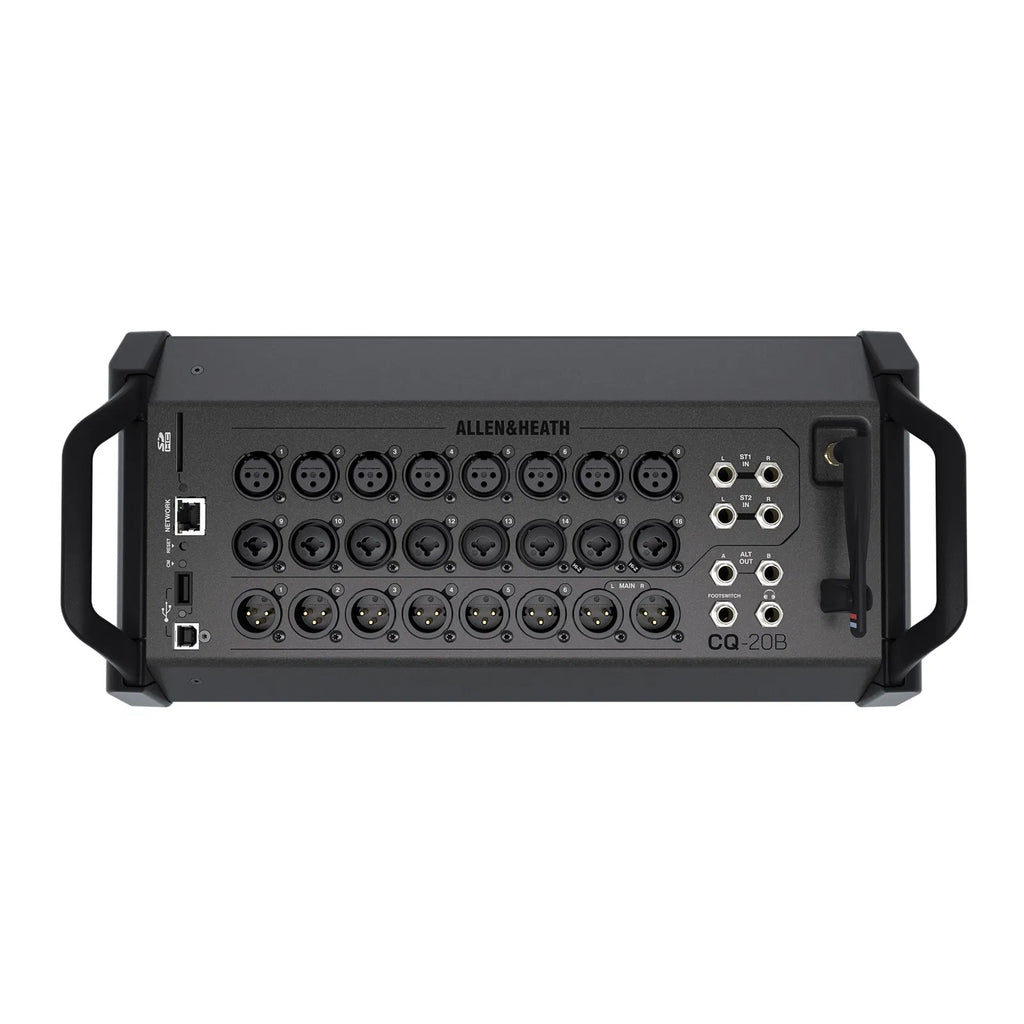

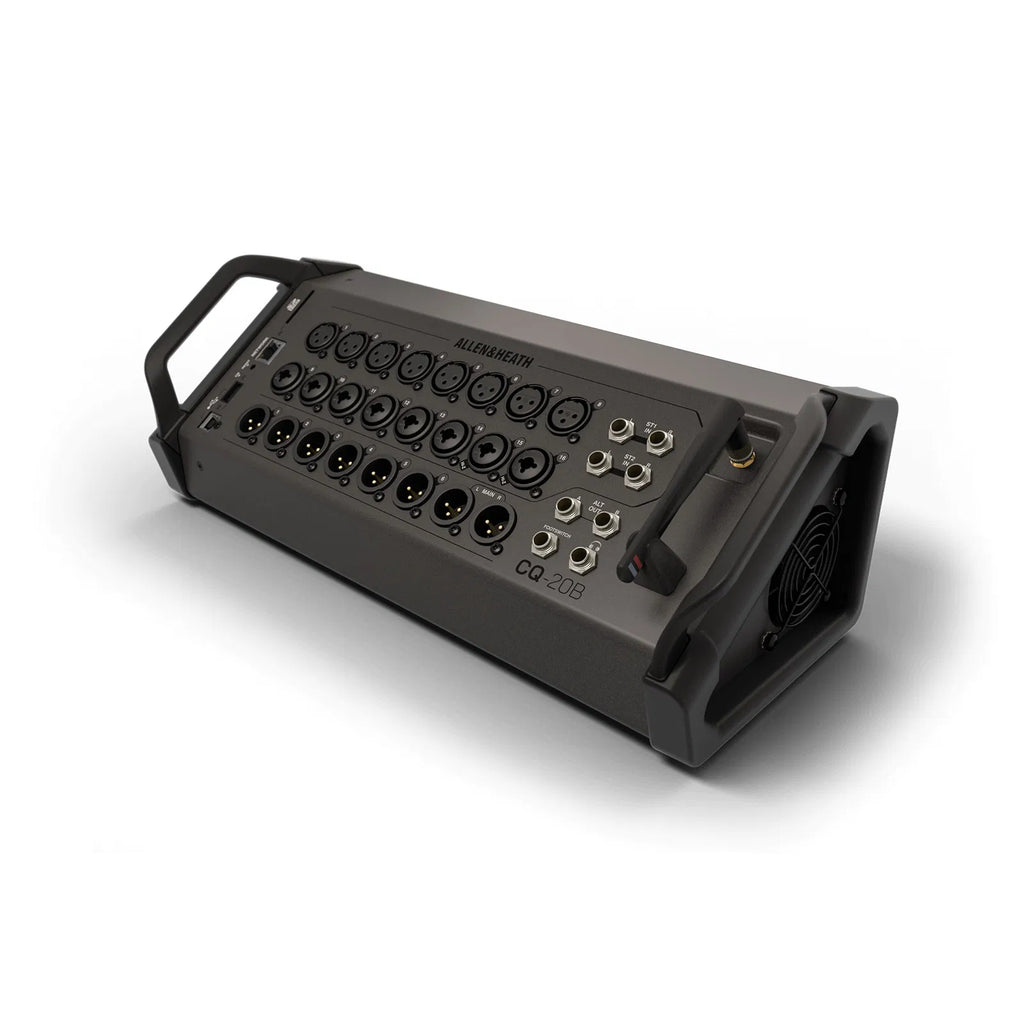

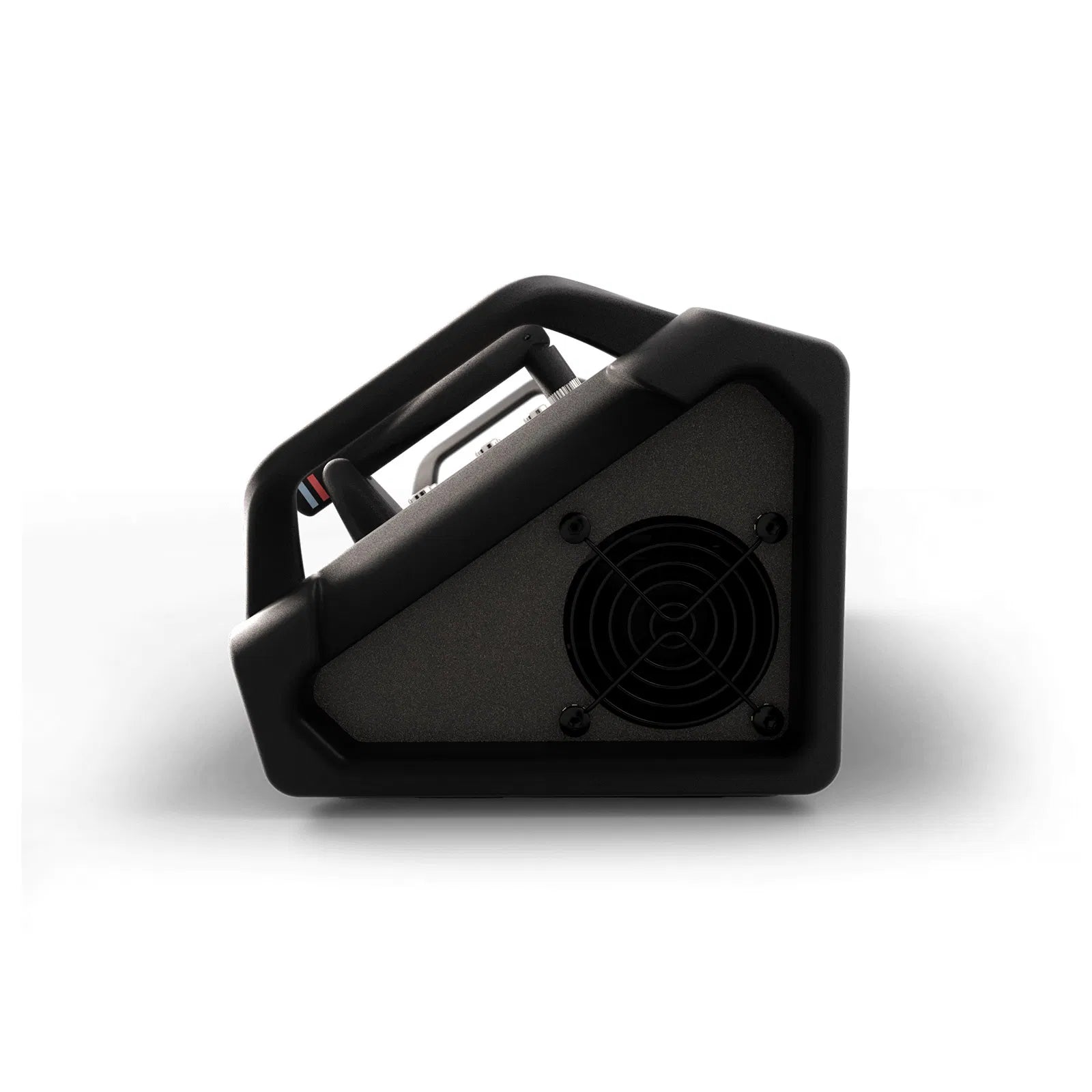

Allen & Heath CQ20B Small Format Digital Mixing Console

The Allen & Heath CQ-20B is a compact 20-channel digital mixer featuring 96kHz FPGA processing, 16 mic/line inputs, built-in dual-band Wi-Fi, Bluetooth connectivity, and 24x24 USB/SD multitrack recording. Designed for remote control via the CQ MixPad app, it offers advanced features like Gain Assistant, Feedback Assistant, and four Smart-FX engines, making it ideal for live sound, studio recording, and installations.

• 20 input channels with 96kHz FPGA processing
• 16 mic/line inputs (8 XLR, 8 combo XLR/TRS) and 2 stereo line inputs (4 x 1/4" TRS)
• Built-in dual-band Wi-Fi (2.4GHz/5GHz) for wireless control
• Bluetooth stereo input for easy audio streaming
• 24x24 USB-B audio interface for multitrack recording and playback
• 24x24 SD card recording and playback capability
• Four Smart-FX engines with reverb, delay, and modulation effects
• Gain Assistant and Feedback Assistant for streamlined setup
• Automatic Mic Mixer (AMM) for improved speech applications
• Assignable headphone output and dual footswitch connections
• Mic/Line Inputs: 16 x XLR (8 combo XLR/TRS, 8 XLR)
• Line Inputs: 4 x 1/4" TRS (2 stereo pairs)
• Main Outputs: 2 x XLR
• Monitor Outputs: 6 x XLR
• Alt Outputs: 2 x 1/4" TRS
• Headphone Output: 1 x 1/4" TRS (assignable)
• USB: 1 x Type B (24-in/24-out), 1 x Type A
• SD Card Slot: Yes (24-in/24-out recording/playback)
• Network: 1 x RJ45 Ethernet
• Wireless: Built-in dual-band Wi-Fi (2.4GHz/5GHz)
• Bluetooth: Stereo input
• Processing: 96kHz FPGA
• Dimensions (H x W x D): 133.8mm x 372mm x 153.7mm
• Weight: 2.6kg (5.8 lbs)
