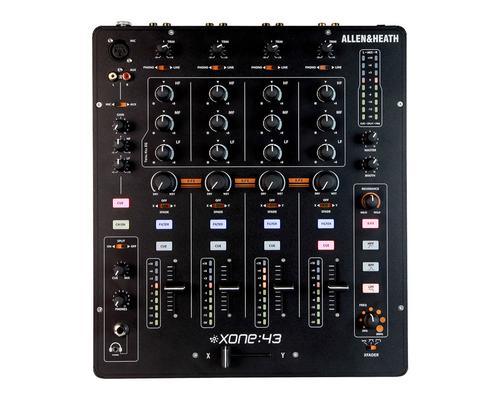

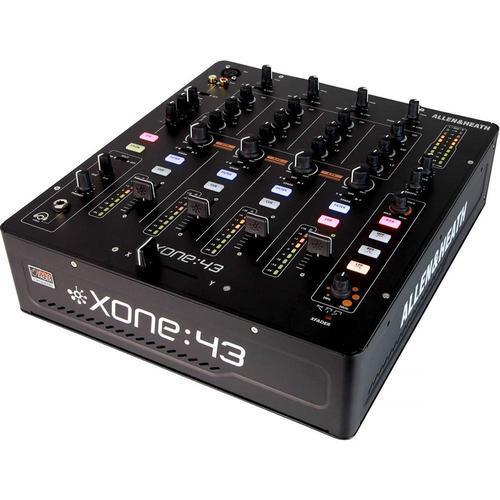

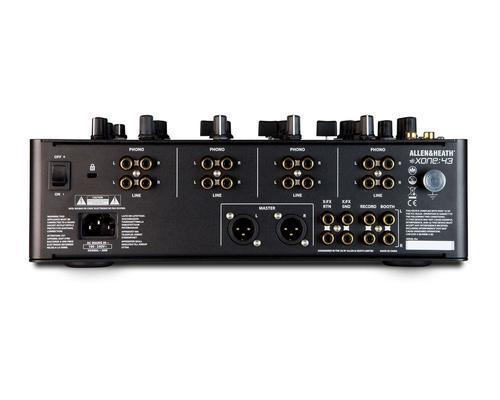

Allen & Heath Xone:43 4-Channel Analogue DJ Mixer
Product Description
Created for DJs and electronic music purists, Xone:43 is a 4+1 channel DJ mixer that offers the very best of analogue audio quality, including the legendary Xone filter with resonance control, 3 band EQ, crossfader with three curve settings and X:FX for send/return to your favourite FX unit.
The crossfader has three switchable curve settings for blending or scratching styles and can be easily replaced or upgraded to a custom Innofader for ultimate crossfader performance.
With balanced XLR main outputs, independent booth and record outputs, Xone:43 excels in the club and in high end personal DJ setups.
- 4 channels with phono/line inputs
- VCF Filter system – low-pass, high-pass and band-pass filters plus frequency and resonance controls
- 3-band EQ
- External FX loop (Send/Return) system with dry/wet control per channel
- Mic input on balanced XLR, with 2-band EQ
- Balanced main mix out on XLR
- Independent booth out
- Record out
- 3.5mm and 1/4″ headphone outputs
- Touring grade build quality
- Super smooth VCA channel faders
- User changeable crossfader
- Innofader compatible
- Crossfader curve switch
- 20dB pro standard headroom
- 9-segment signal level monitoring
General
- Nom / max output levels:
- Main Mix +4dBu +27dBu
- Booth 0dBu +22dBu
- X:FX Send 0dBu +20dBu
- Record Out 0dBu +20dBu
- Internal headroom: Channels +20dB
- Frequency response: +/-0.5dB 20Hz - 20kHz
- Distortion: < 0.05% THD+noise @1kHz
- Crosstalk: < -83dB inter-channel
- Residual noise:
- Mix 1 -89dBu
- Booth -93dBu
- X:FX -77dBu
- Rec -92dBu
- Mix noise:
- Mix 1 -82dBu
- Booth -84dBu
- X:FX -77dBu
- Rec -87dBu
- Channel meters: Peak reading 9 LED -20dB to +10dB
- Main meters: Peak reading 9 LED -20dB to +10dB
- Mic EQ: 2-Band +/-12dB
- Channel EQ: 3-Band +6dB / total kill
- Channel fader: 45mm stereo VCA, < -85dB shutoff
- Crossfader: 45mm stereo VCA - replaceable
- Filters: Stereo VCF, analogue
- Consumption: 30W max
Physical & Dimensions
- Width: 320mm
- Height: 110mm
- Depth: 370mm
- Weight: 5.1kg
