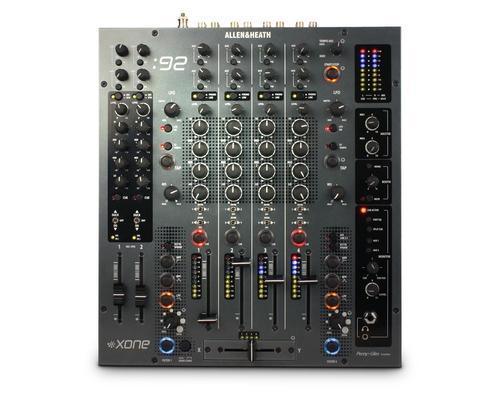

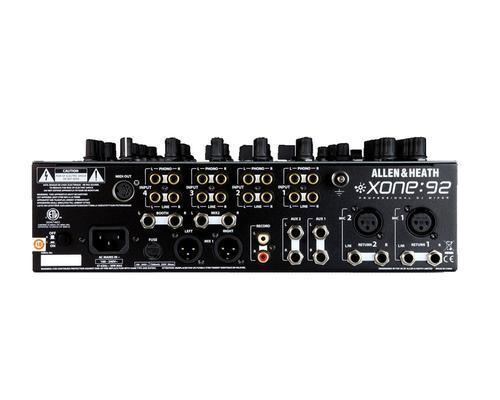

Allen & Heath Xone:92 Pro DJ Mixer

Allen & HeathSKU: 002408

Price:
Sale price£1,099

Description

The industry-standard Xone:92 is a versatile six channel analogue mixer, renowned for its expansive, involving sound.

With its solid construction and easy to use interface, the 92 is on the riders of most of the world’s top DJs and is a permanent fixture in the booth at many of the biggest superclubs.

The Xone:92 was one of the first professional DJ mixers to incorporate MIDI for control of DJ software or external devices, and the first to include the innovative dual VCF filters.

With its two stereo FX sends, twin Mic/returns, and one of the best EQ sections around, this mixer is a DJ’s dream tool.

  • 6 dual stereo channels – 4 phono/line, 2 mono/mic or stereo return
  • 2 independent stereo mix outputs
  • 2 aux sends for output to external FX units
  • VCF system – 2 independent stereo filters with frequency and resonance controls
  • 2 independent LFO’s for filter manipulation
  • 4-band EQ – total kill on HF and LF, wide Q for cut, narrow Q for boost
  • Booth output – dedicated output on TRS jack
  • MIDI values can be output from 6 controls (e.g. crossfader, LFO)
  • P&G easy change professional VCA crossfader
  • Illuminated lightpipes showing status of performance controls
  • Intelligent cue for pre or post EQ monitoring
  • Monitor section includes post EQ switch, split cue and mix to cue balance
  • 2 headphone outputs (1/4” and 3.5mm)
  • Ducking control on mono/mic channel

General

  • Max output level:
    • MIX 1 +22dBu into 47 ohm
    • MIX 2 +20dBu into 47 ohm
    • AUX +21dBu into 47 ohm
    • REC +11dBV into 600 ohm
  • Internal headroom: Channels +22dB
  • Freq response: +/-0.5dB 5Hz to 30kHz
  • Distortion: < 0.003% THD+noise @1kHz
  • Crosstalk: > -93dB Inter-channel
  • MIC EIN: 22-22kHz -126dB 150 ohm source
  • Residual noise:
    • MIX 1 -99dBu
    • MIX 2 -106dBu
    • AUX -90dBu
    • BOOTH -106dBu
    • REC -96dBu
  • Mix noise:
    • MIX 1 -88dBu (-90dB S/N)
    • MIX 2 -90dBu (-88dB S/N)
    • AUX -88dBu (-86dB S/N)
    • BOOTH -89dBu (-87dB S/N)
    • REC -96dBu
  • Channel meters:
    • Peak reading 9 led
    •  -20 to +10
  • Main meters:
    • Peak reading 9 led
    • -20 to +10
  • Mic EQ:
    • 4-Band +/-15dB
    • 100, 250, 2.5k, 10kHz
  • Music EQ:
    • 4-Band +6dB / -30 (Mids)
    • Infinity (12dB/Oct) LF/HF
    • 250,350, 2k, 2.5K
  • Ch fader: 60mm stereo or rotary VCA
  • Mix 1 & 2 faders: Rotary
  • Crossfader:
    • 45mm stereo VCA
    • Replaceable
  • Filters:
    • Dual stereo VCF
    • Analogue
  • Panel: Steel
  • PSU: Internal switch mode
  • Mains In: 3 pin IEC socket
  • Power Lead: Country dependant
  • AC mains: 110 to 240V AC @ 47/63Hz
  • Consumption: 30W max
  • Fuse rating: 100-240V AC T500mAL

Physical & Dimensions

  • Width: 320mm
  • Height: 87.6mm
  • Depth: 358mm
  • Weight: 6kg
