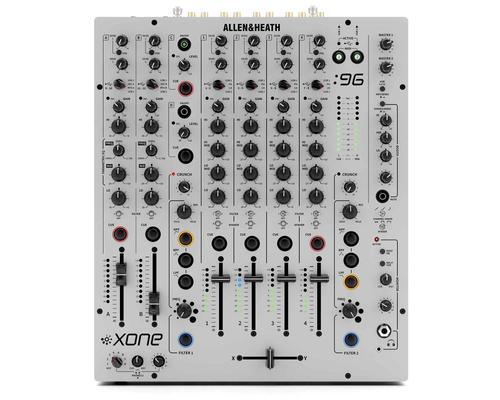

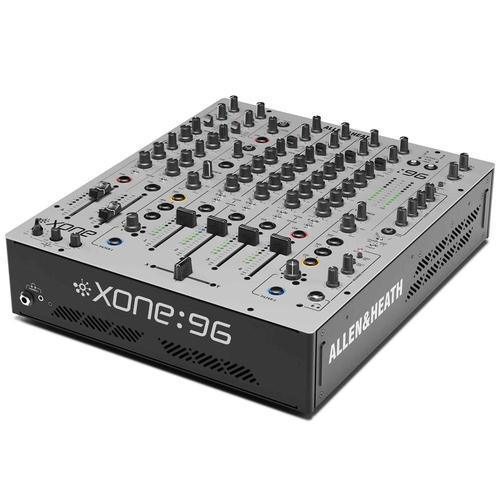

Allen & Heath Xone:96 4-Channel Analogue DJ Mixer

Allen & HeathSKU: 002405

Price:
Sale price£1,599

Description

Xone:96. The long-awaited follow-up to a genuine club classic.

A new, uncompromising analogue DJ mixer, destined to be the heart of your creativity, Xone:96 takes the legendary soul of the acclaimed Xone:92 and redelivers it, enhanced, and with state-of-the-art digital connectivity.

It’s all here. The huge, detailed, space-shaking analogue sound that only Xone delivers. A refined, precision 4-band EQ. Unrivalled dual Xone:VCF filters with CRUNCH harmonic distortion. And a dual 32-bit USB soundcard (24 Channels @ 96kHz) with Traktor Scratch certification right out of the box.

Xone:96 lets you connect your whole rig, from laptops and turntables, to pedals, synths and drum machines.

Two dedicated FX sends, four stereo input channels (with 4-Band EQ), two stereo input channels with all new 3-Band Parametric EQ + two auxiliary stereo return channels. And a separate master insert for your outboard hardware.

Explore new possibilities with a familiar layout of beautifully tactile controls. And rely on the industrial build quality that exceeds the demands of relentless back-to-back performances, night after night.

Xone96: You mixed. We listened.

  • Precision 4-band EQ
  • Unrivalled dual Xone:VCF filters with CRUNCH harmonic distortion
  • Dual 32-bit USB soundcard (24 Channels @ 96kHz)
  • Traktor Scratch certification
  • Two dedicated FX sends
  • Four stereo input channels
  • Two stereo input channels with all new 3-Band Parametric EQ
  • Two auxiliary stereo return channels

General

  • Type: Analogue
  • Channels: 6 + 2
  • EQ:
    • Channel 1-4, 4-Band EQ
    • Channel A-B, 3-Band Parametric EQ
  • USB Soundcards:
    • Dual 24 Channel (12 in / 12 out)
    • Hi-Speed USB2.0 / Mac Class Compliant
    • 32bit / 96kHz
    • MIDI over USB
  • Line Inputs
    • 4 x RCA (CH 1-4)
    • 4 x 1/4″ TRS (CH A-D) Mono/Stereo
  • Phono Inputs
    • 4 x RCA (CH 1-4)
    • LN/PH Switch for DVS
  • USB Inputs 6 x USB (CH 1-4 + CH A – CH B)
  • Mic Input 2 x XLR
  • Master Output 1 x XLR (Balanced)
  • Master 2 Output 1 x 1/4″ TRS (Balanced)
  • Booth Output 1 x 1/4″ TRS (Balanced)
  • Record Output 1 x RCA (Un-balanced)
  • Master Insert 1 x 1/4″ TRS
  • MIDI Out 1 x 5-Pin DIN
  • Send/Return I/O:
    • 2 x 1/4″ TRS Send
    • 4 x 1/4″ TRS Return
    • 1 x LN/Hi-Z Switch (SND1/RTNA)
  • Filter:
    • 2 x VCF Filter
    • HPF / BPF / LPF
    • Adjustable Frequency & Resonance
    • Assignable CH 1-4 + CH A-B
    • CRUNCH (Controlled Harmonic Signal Distortion)
  • X-Link: 1 x RJ45
  • Headphones
    • 2 x 1/4″
    • 2 x 3.5mm
    • Split Cue Monitoring
  • Channel Faders 60mm VCA / Replaceable
  • Chanel Meters 9 Segment LED
  • Channel Fader Curve 3 Types
  • X-Fader InnoFADER / 45mm VCA / Replaceable
  • X-Fader Curve 3 Types
  • Earth Ground Terminals x 2
  • Headroom 20dB
  • AC Mains:
    • 100 to 240V
    • AC 50/60Hz
    • Consumption 45W max
  • Mains Adaptor: 3 pin IEC socket

Physical & Dimensions

  • Height: 109mm
  • Width: 336mm
  • Depth: 410mm
  • Weight: 7kg
