Allen & Heath ZEDi-10FX Compact Mixer & USB Interface

The Allen & Heath ZEDi-10FX combines the warmth of an analog mixer with the flexibility of a 4-in/4-out 24-bit/96kHz USB audio interface and professional-grade effects. Designed for musicians, podcasters, and small venues, it features four GSPre mic/line inputs, two stereo line channels, Hi-Z instrument-ready inputs, and 16 studio-quality FX presets. Ruggedly built for live or studio use, the ZEDi-10FX also includes Cubase LE software for powerful recording and production capabilities straight out of the box.

• 4 mono mic/line inputs with GSPre preamps for high-fidelity audio
• 2 stereo line channels for keyboards, playback, or external devices

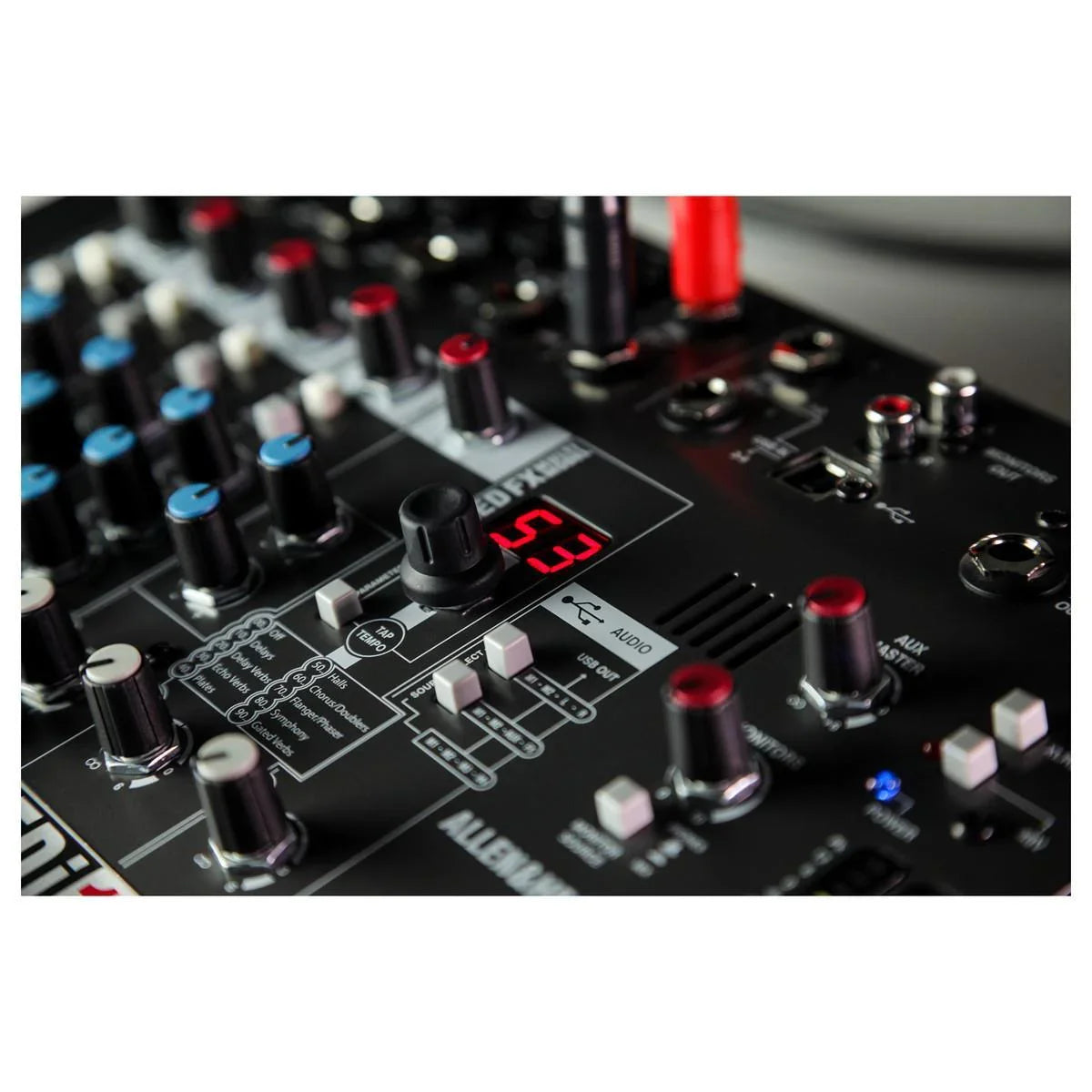

• 16 onboard studio-quality digital FX including reverb, delay, and modulation
• 24-bit/96kHz USB interface with 4-in/4-out operation for flexible DAW integration
• Hi-Z input switches on mono channels for direct connection of guitars
• 3-band EQ on mono inputs and 2-band EQ on stereo inputs
• 48V phantom power for condenser microphones
• Rugged all-metal chassis built for touring and studio durability
• Smooth 60mm main mix fader for precise output control
• Bundled with Cubase LE and Cubasis LE for music production

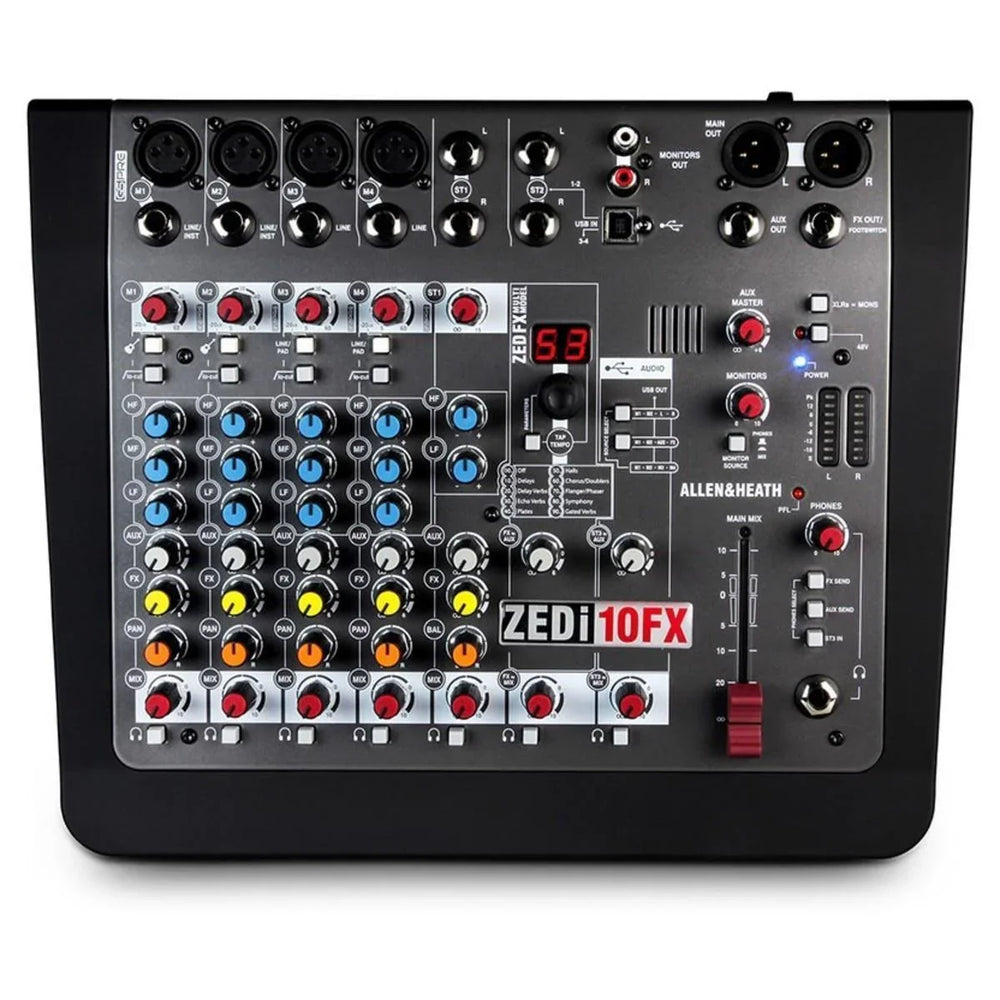

• Inputs: 4 x XLR/TRS combo mic/line, 2 x 1/4" TRS stereo line

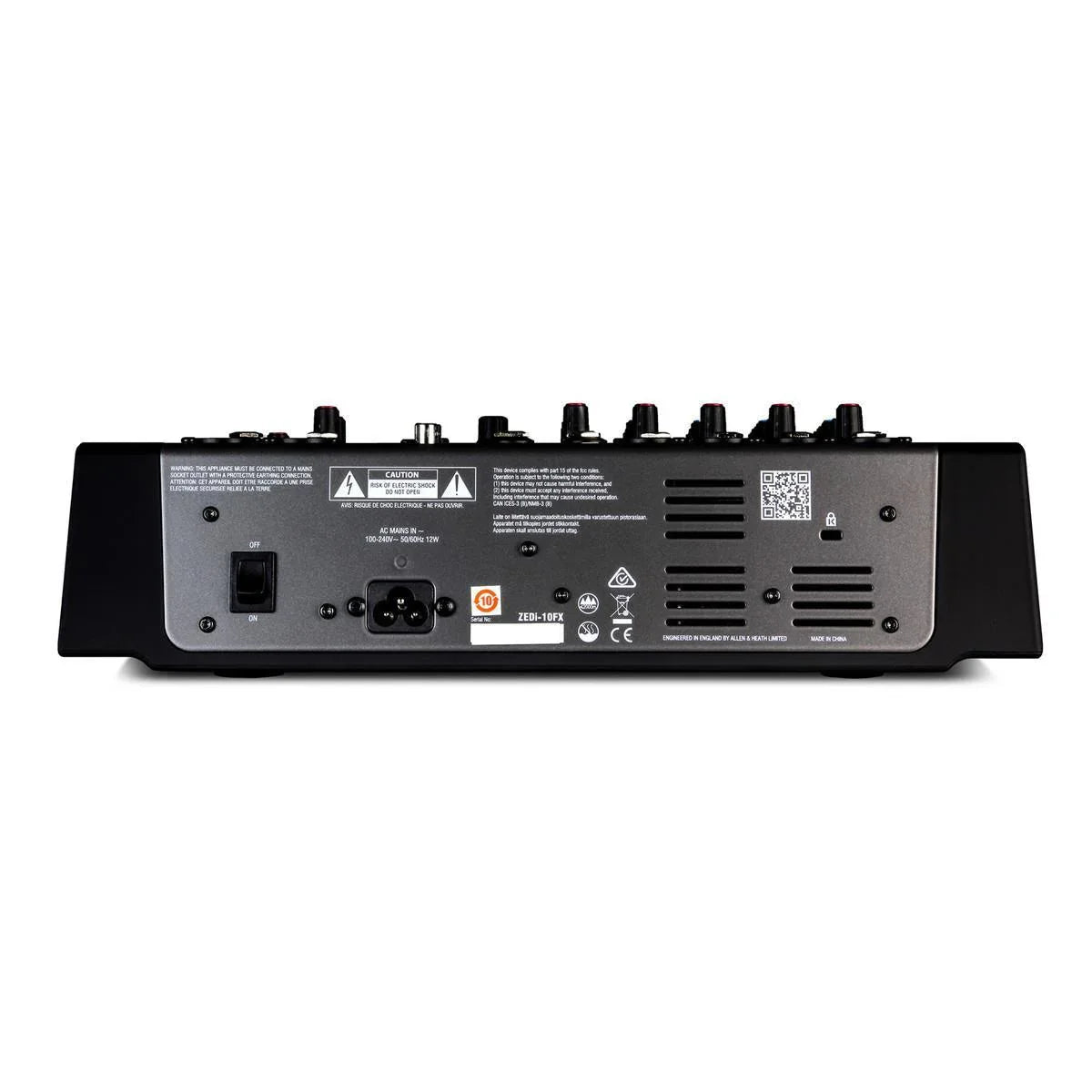

• Outputs: 2 x XLR main, 1 x 1/4" TRS headphone, 1 x 1/4" TRS aux, 1 x 1/4" TRS FX, 2 x RCA monitor
• USB Interface: 4-in/4-out, 24-bit/96kHz
• FX Engine: 16 built-in digital effects
• EQ: 3-band EQ (High: 12kHz, Mid: 2.5kHz, Low: 80Hz) on mono; 2-band EQ on stereo
• Phantom Power: 48V, switchable
• Dimensions (W x D x H): 332.7 x 274.3 x 96.5mm
• Weight: 2.2kg
