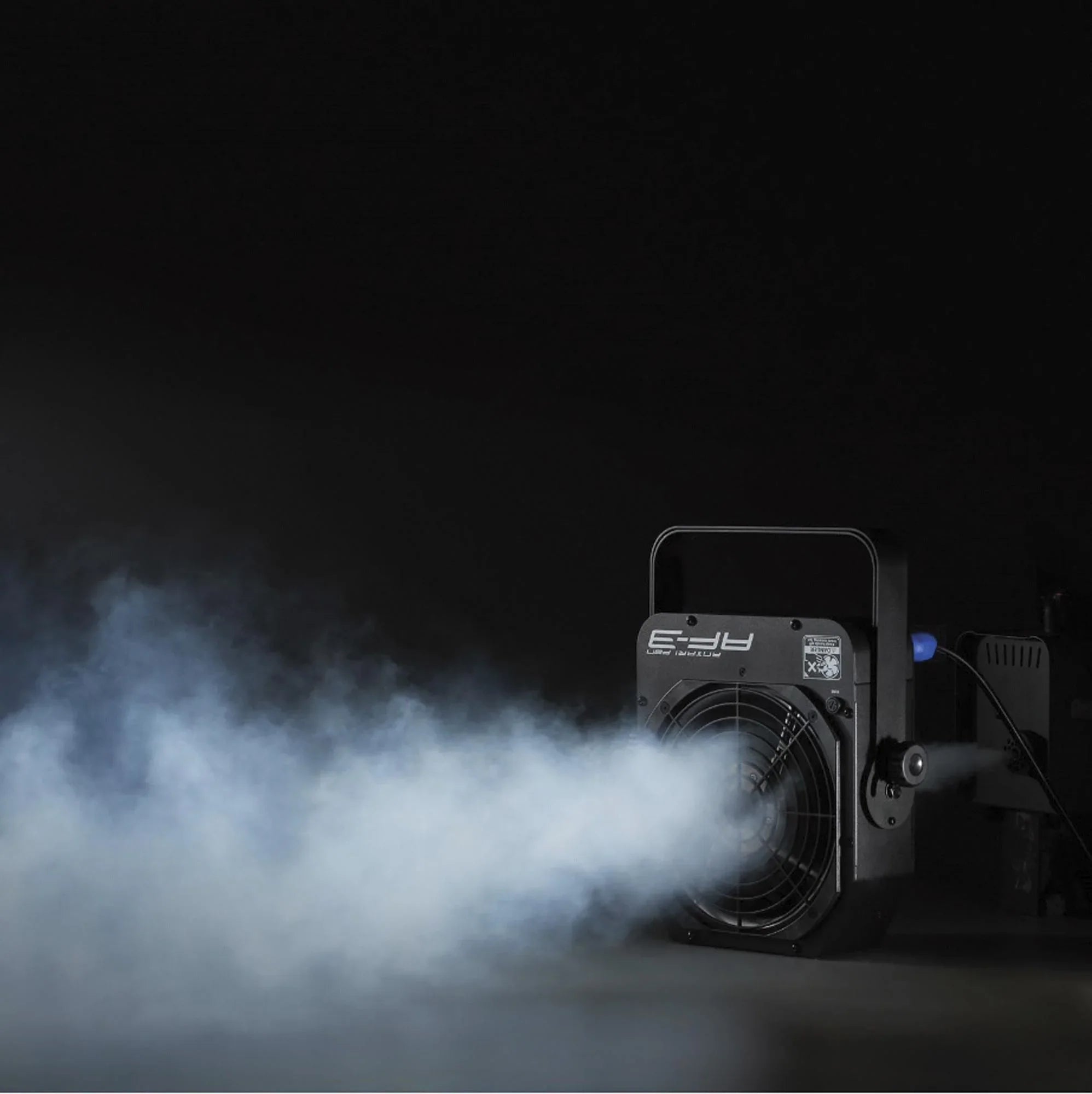

Antari AF-3E DMX Effect Fan
Product Description
The Antari AF-3 is a mini but all-purpose stage fan features 4 control options, linear variable output speed, low power consumption, adjustable blowing directions, durable metal housing and compact size.
In addition to the onboard DMX control and the manual knob, wired and wireless controllers are optional to cope with diverse needs. Total power consumption is merely 100 W.

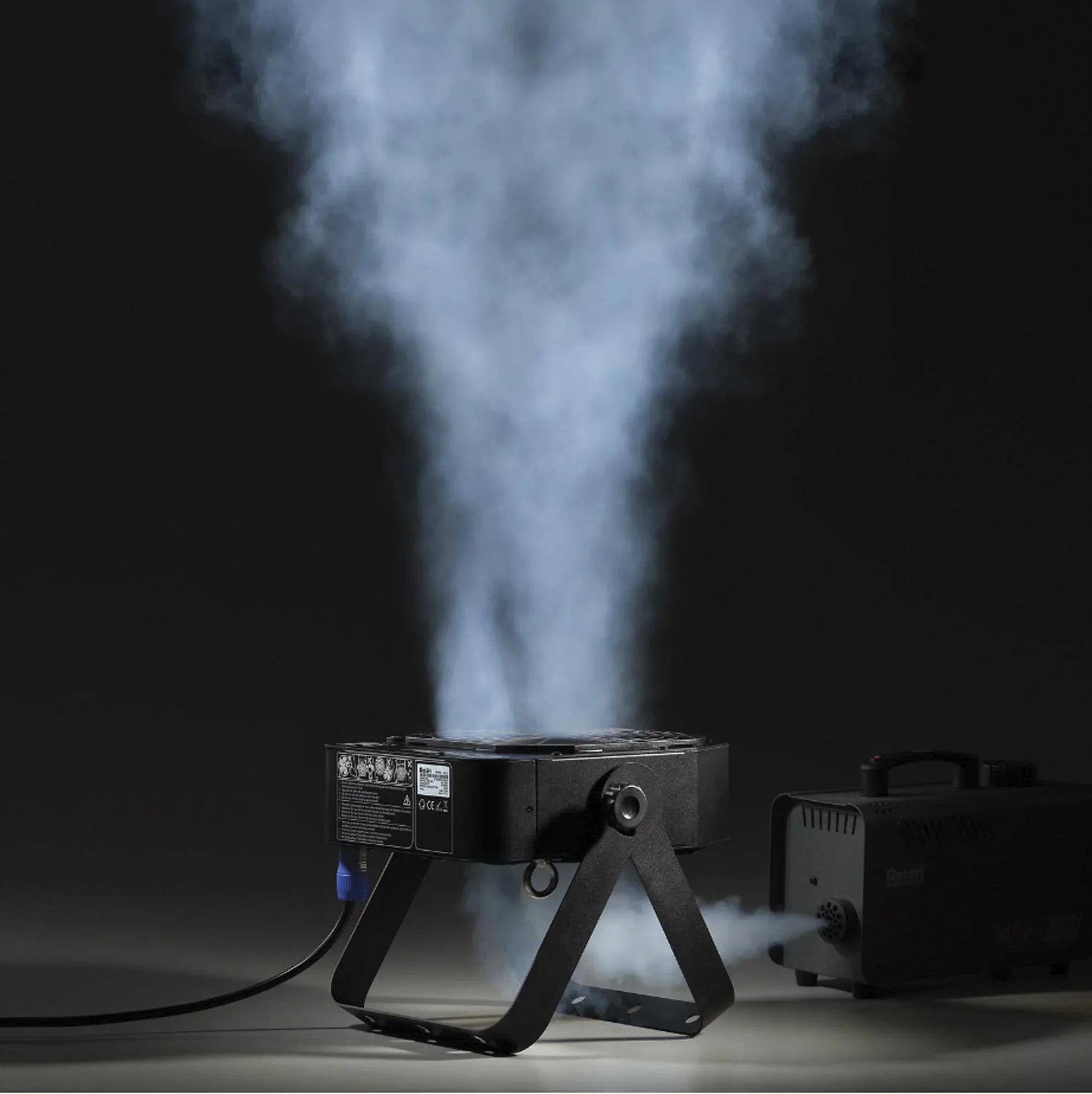

The attached bracket enables various output directions within 90° while hanged or placed on the floor. Solid and handy design allows easy carry and storage.
Power Supply 240 V AC 50-60 Hz
Power Consumption 116 W
Power Connector In powerCON Blue
Power Connector Out powerCON Grey
DMX Connector In XLR 5P
DMX Connector Out XLR 5P
Mechanical Specifications
Airflow 1020 m³/h
Fan Speed 2550 rpm
Noise Level Maximum 59 dB
Housing Aluminium, Metal
Colour Black
Length (mm) 124 mm
Height (mm) 368 mm
Width (mm) 316 mm
Weight 6.3 kg
IP Rating IP20 (indoor use only)
Control and Programming
Control Mode DMX, Manual, Remote, Stand Alone
DMX Channels 1
Rigging
Mounting Options Bracket
Safety Attachment yes
Thermal Specifications Maximum Ambient Temperature 40 °C
Included Items
Included Cables powerCON cable
