Description

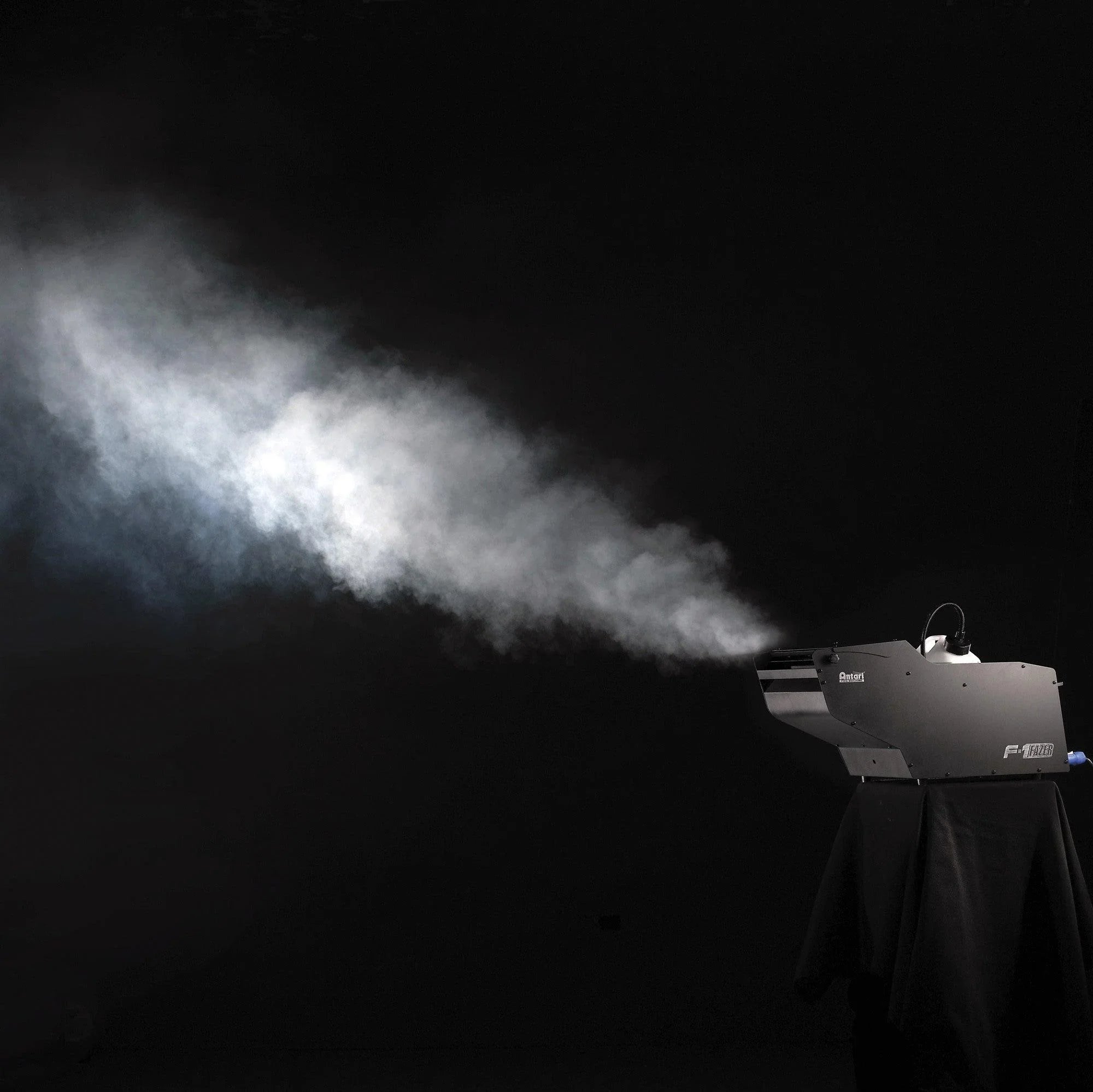

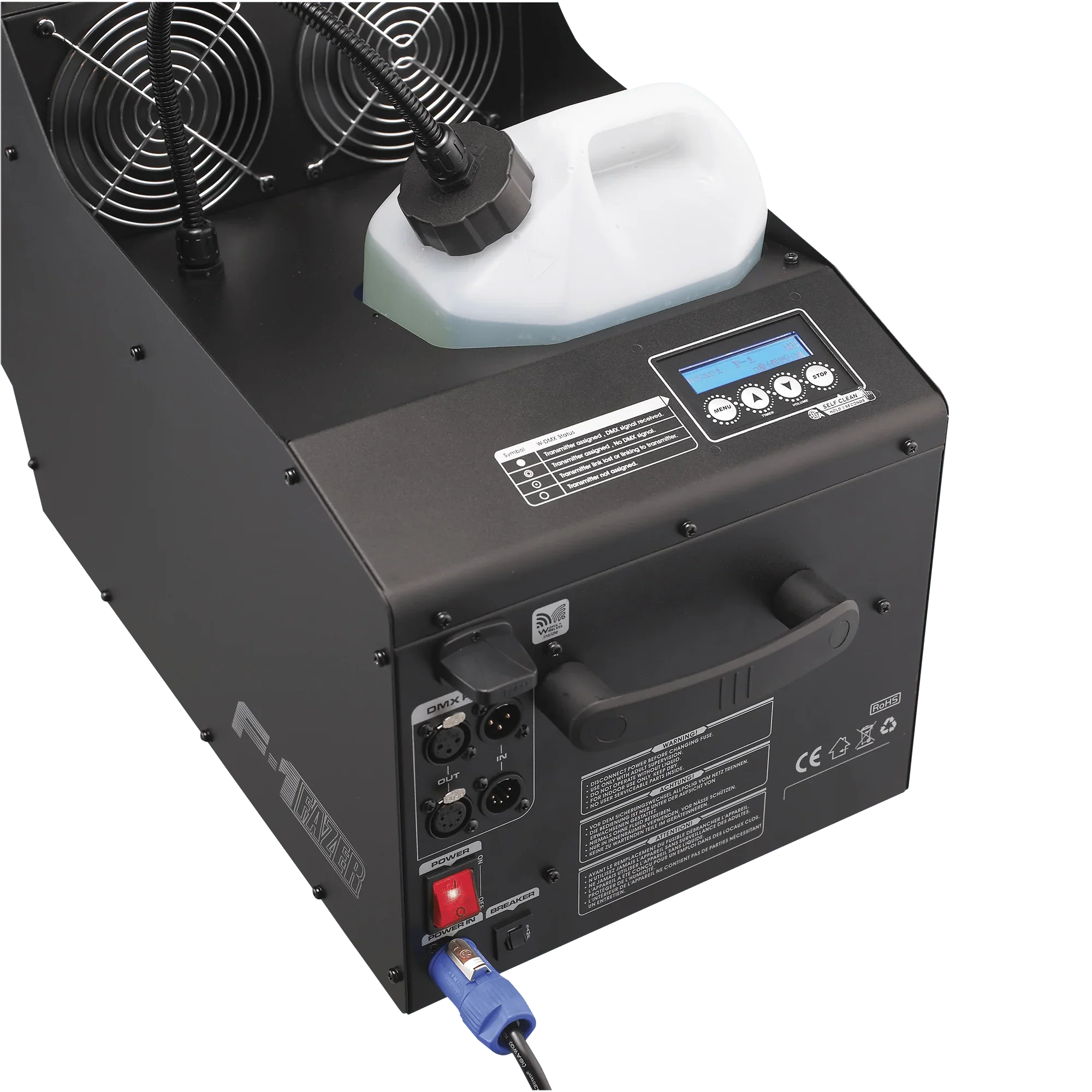

The Antari F-1 is the successor of the X-310 Fazer. The F-1 is upgraded in design but also equipped with the latest technology
Electrical Specifications and Connections
Power Supply 240 V AC 50-60 Hz
Power Consumption 800 W
Power Connector In powerCON Blue
DMX Connector XLR 3P In/Out, XLR 5P In/Out
DMX Connector In XLR 3P, XLR 5P
DMX Connector Out XLR 3P, XLR 5P
Heater 800 W
Warm-up Time5 min
Mechanical Specifications
Output Capacity 175 m³/min
Output Direction Forward
HousingAluminium, Metal
Colour Black
Fluid Consumption 8.5 ml/min
Fluid Tank Capacity 2.4 L
Length (mm) 618 mm
Height (mm) 327 mm
Width (mm) 275 mm
Weight 14.1 kg
IP Rating IP20 (indoor use only)
Control and Programming
Control Mode DMX, Manual, Remote, Stand Alone, Timer
DMX Channels 2
Wireless Optional
Display LCD
Product Properties
LED Indicators Power
Thermal Specifications
Maximum Ambient Temperature 40 °C
Included Items
Included Cables powerCON cable
