Antari M-7X 1500 W Pro CO? Simulating RGBA Fogger
Product Description

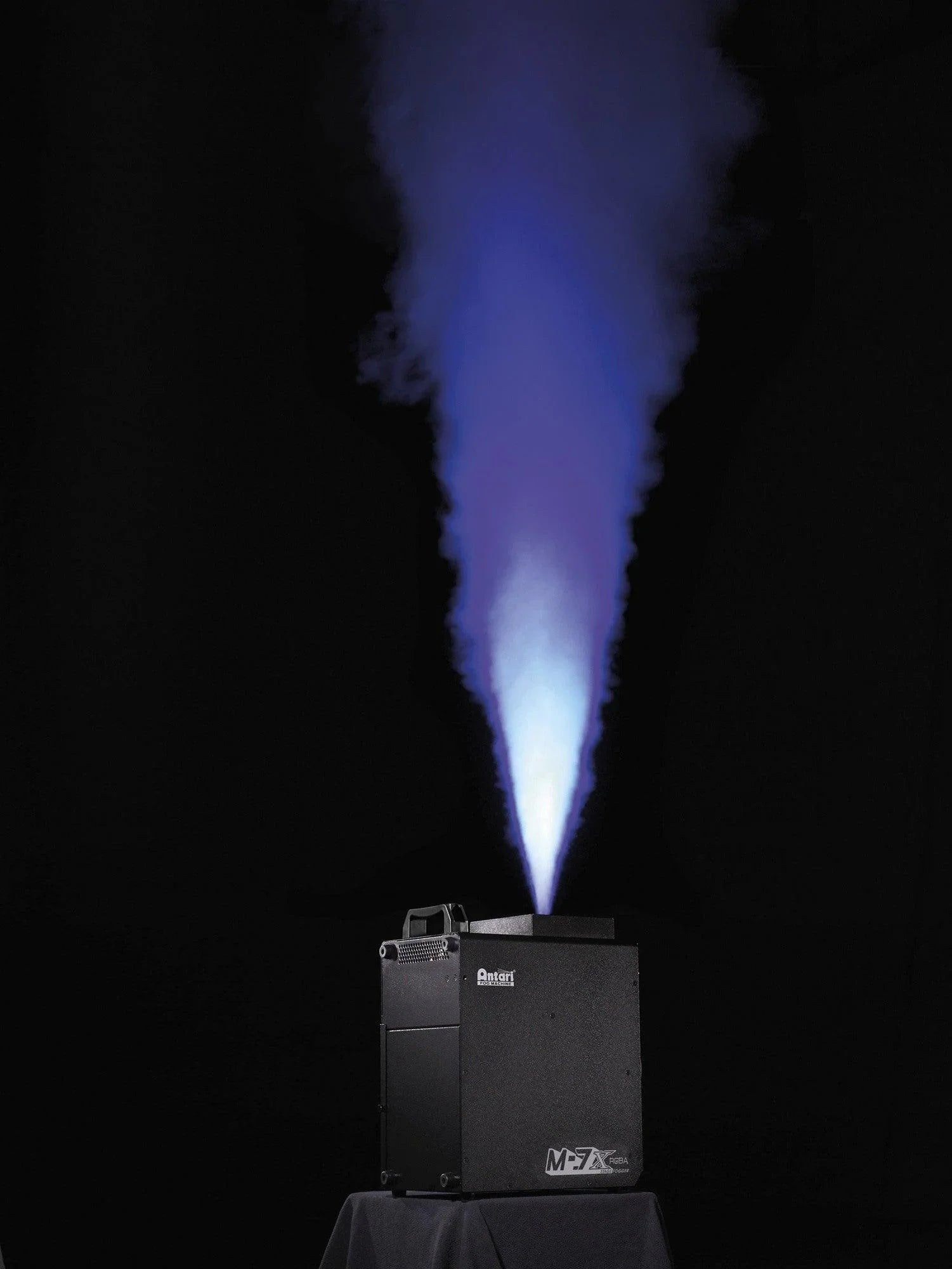

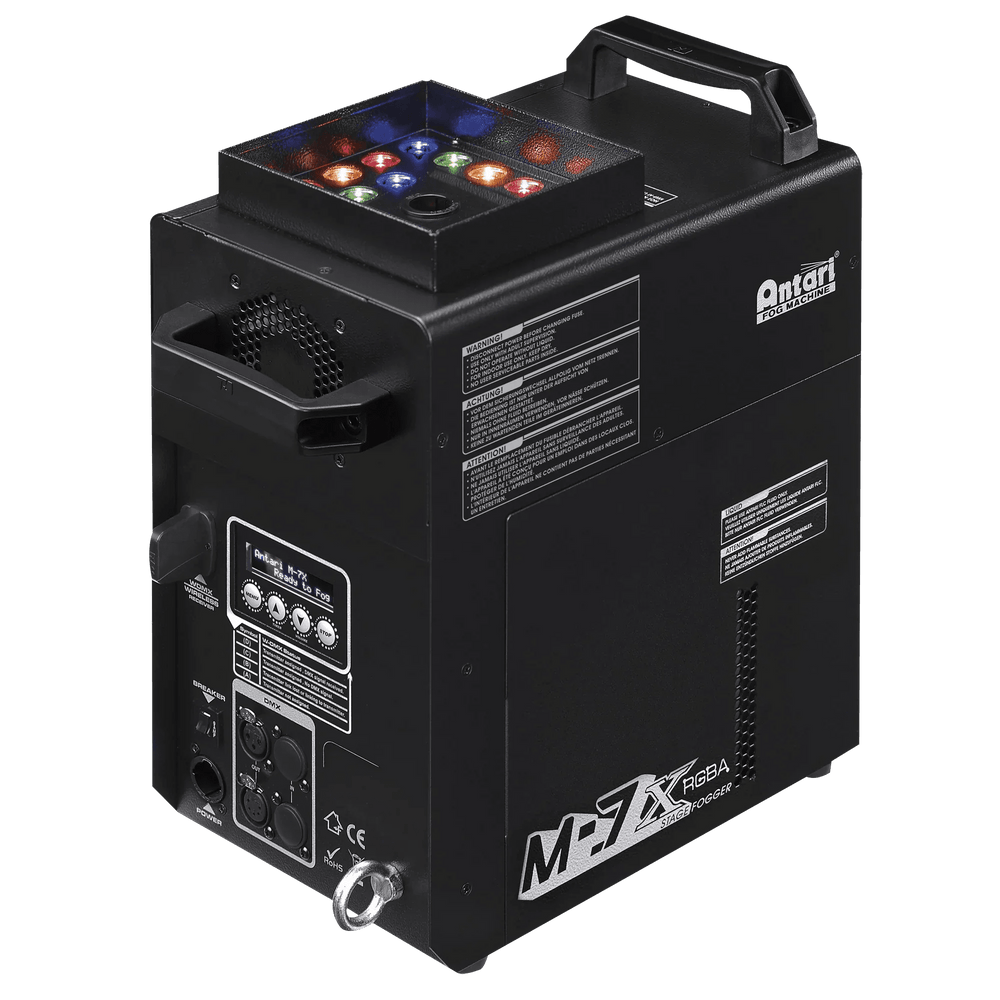

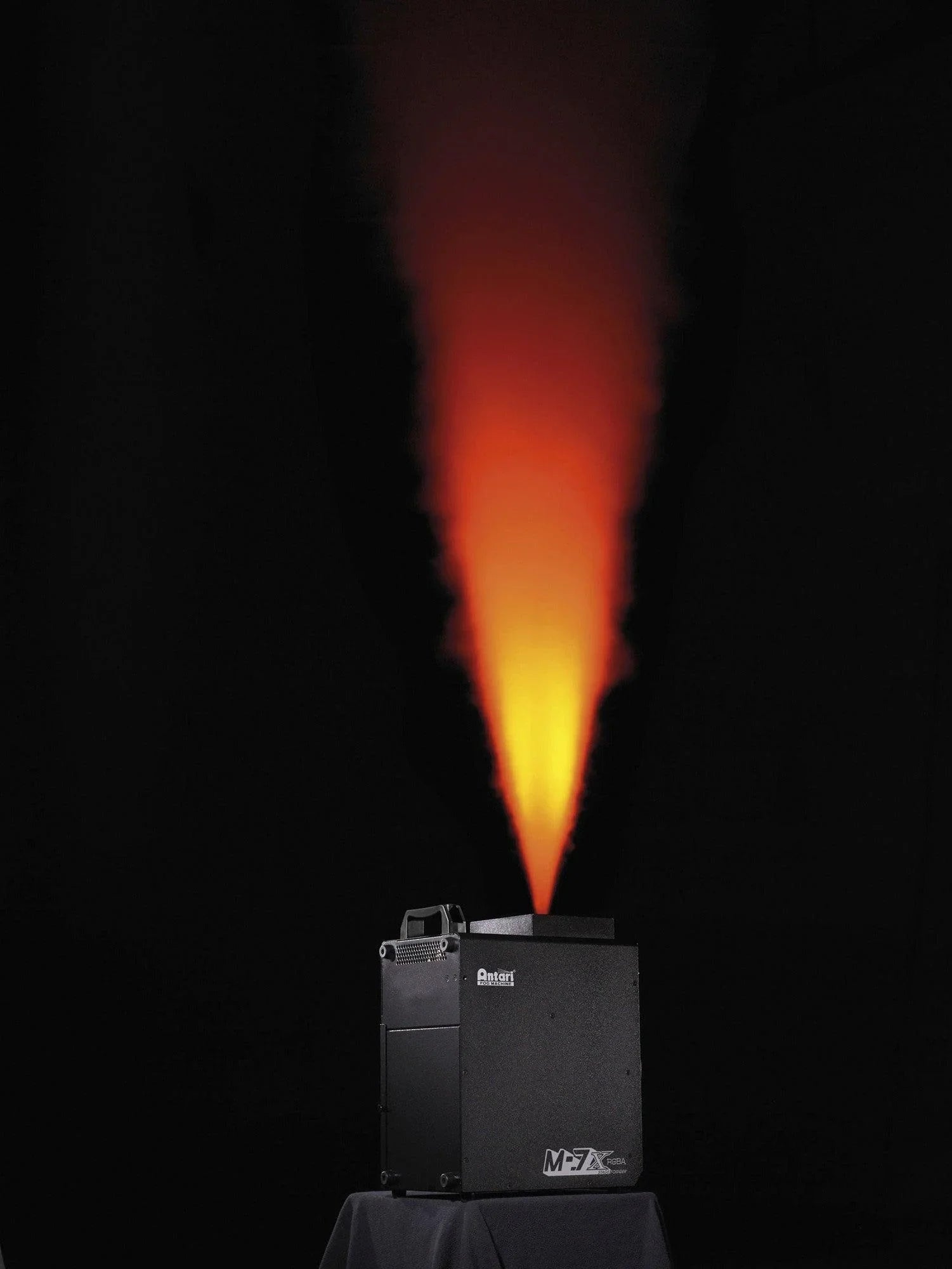

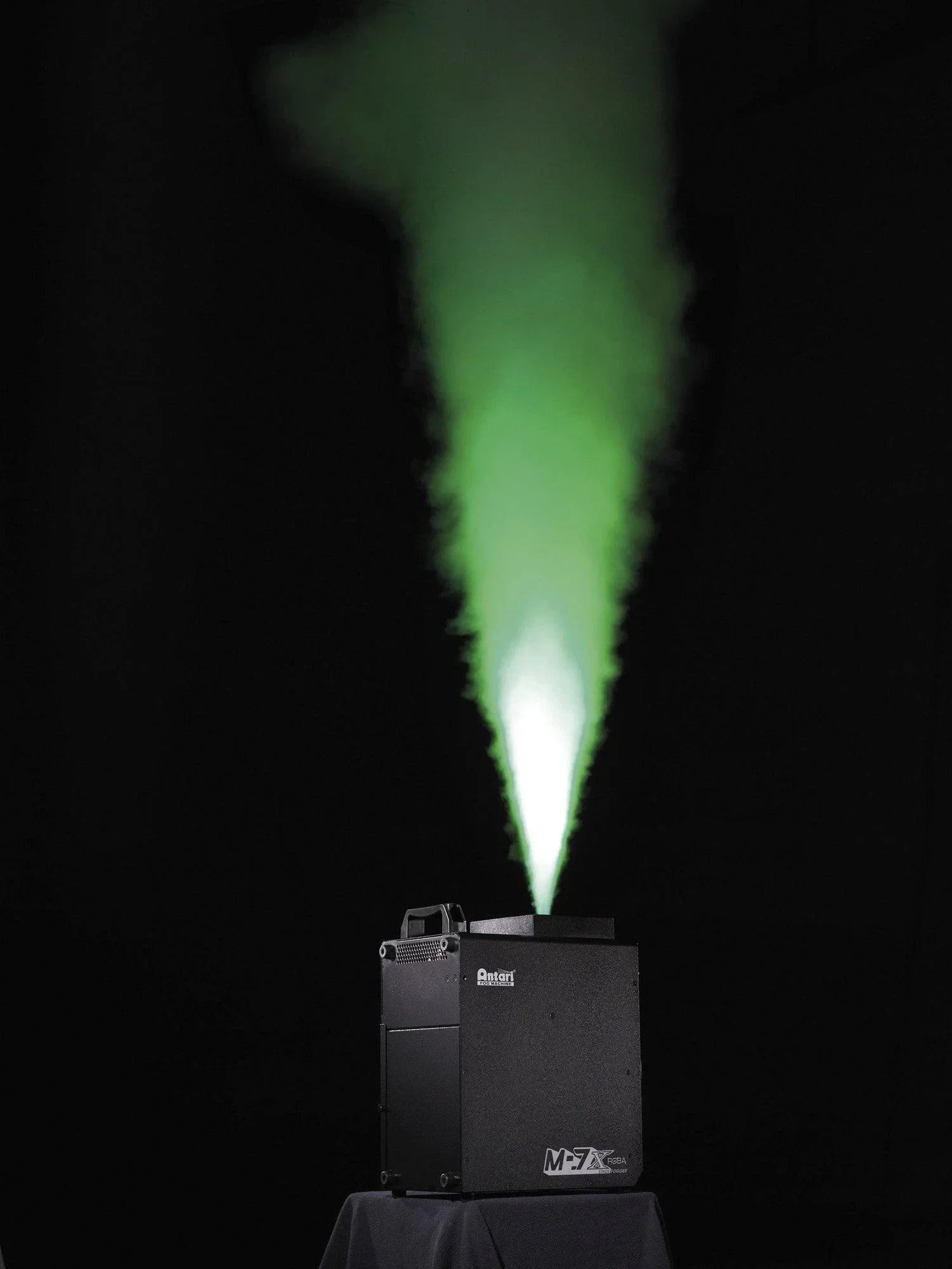

The Antari M-7X is a professional upright fogger with a powerful output and RGBA LEDs to create a colourful CO₂ effect. It can be used in horizontal and vertical, up and downwards position without problems. The mechanical design of M-7X is made for rentals because the fluid tank is kept in a separate compartment inside the machine. This ideal for transport, no need to take care of the position.
Electrical Specifications and Connections
Power Supply 240 V AC 50-60 Hz
Power Consumption 1520 W
Power Connector In powerCON TRUE1
DMX Connector XLR 3P In/Out, XLR 5P In/Out
DMX Connector In XLR 3P, XLR 5P
DMX Connector Out XLR 3P, XLR 5P
Heater 1500 W
Warm-up Time 7 min
Mechanical Specifications
Output Direction Up
Housing Aluminium, Metal
Colour Black
Fluid Consumption 200 ml/min
Fluid Tank Capacity 2.4 L
Length (mm) 344 mm
Height (mm) 381 mm
Width (mm)344 mm
Weight 14 kg
IP Rating IP20 (indoor use only)
Control and Programming
Control Mode DMX, Manual, Remote, Stand Alone, Timer
DMX Channels 9
Wireless Optional
Display LCD
Source
Light Source Type LED
Light Source Power 66 W
LED Colour Type R, G, B, A
Rigging
Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 40 °C
Included Items
Included Cables powerCON TRUE1 cable
Included Remotes W-2
