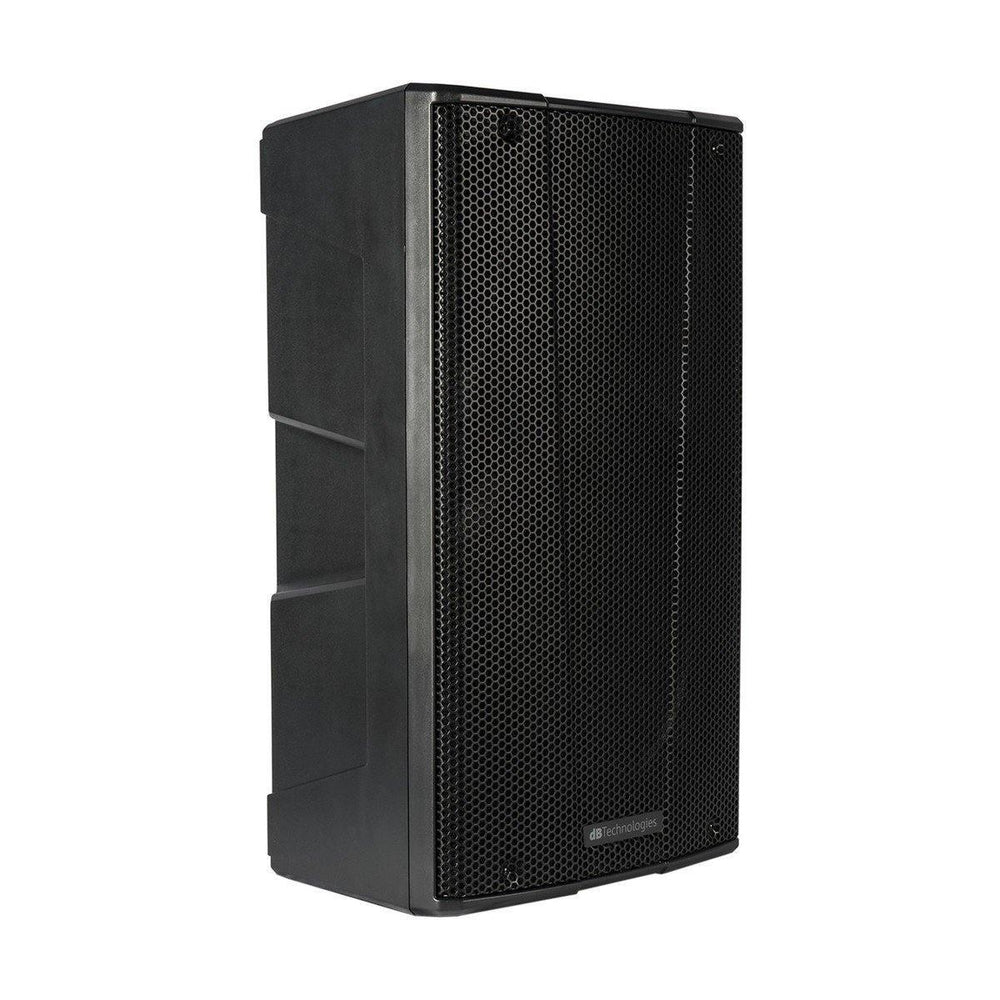

dB Technologies B-Hype BH10 10" Active Speaker

dB TechnolgoiesSKU: 000838

Price:
Sale price£169

Description



B·H series aims to provide a professional yet efficient sonic performance to all kind of users, combining an extremely efficient CLASS D amplifier with aggressive sound pressure levels (up to 126,5 dB for the 15” cabinet), while delivering the most accurate sound reproduction.

The new B-HYPE 10 is a versatile active speaker. It is equipped with one 1” compression driver (1” voice coil), and one 10” woofer (1.5” voice coil). The dispersion pattern is asymmetrical on vertical axis, and it is diversified (top and bottom) on the horizontal one. This allows a narrower and more efficient sound coverage, and a better performance in case of reverberant environments. The combo input (with source type selection) allows an easy and versatile use, suitable for a dynamic microphone and standard line input. The user can enhance lower and upper frequencies with the convenient DSP preset function. A balanced link output allows the audio connection to a second loudspeaker.

The featherweight cabinets (from 14 to 38 lbs) come with a clean and contemporary full grille design, enhancing both portability (3 handles -1xside and 1 on top-) and multifuncionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup in order to be used on tripods or stacked on dBTechnologies Subs.

Technical Data
Speaker Type - 2-Way Active Speaker
Acoustical data
Usable Bandwidth [-10dB] - 55 - 20.000 Hz
Frequency Response [-6 dB] - 62 - 19.600 Hz
Max SPL - 121 dB
Type HF - Compression Driver
HF voice coil  - 1 "
LF - 10 "
LF voice coil  - 1.5 "
Crossover Frequency  - 2300 Hz (24 dB/oct.)
Horizontal Dispersion  - asymmetrical 85° up / 120°down
Vertical Dispersion  - 85° (+25/ -60°)
Amplifier
Amp Technology - Custom Made
Amp Class - Class D - Passice cooling (convection)
Power Peak  - 260 W
Processor
Controller - DSP 28/56 bit- 48 kHz
Limiter - Peak, RMS, Thermal
Controls  - Volume, Audio Input Sensitivity, DSP Preset
Input
Main Connection  - VDE
Signal Input  - Balanced 1xCombo IN (MIC/LINE)
SIGNAL Out  - (Balanced) 1xXLR OUT (LINK)
Mechanics
Housing - Polypropylene
Grille  - Full Metal Grille
Handles  - 3 (2 on side 1 on top)
Pole Mount  - 36 mm
Width - 295 mm (11.61 in)
Height - 544 mm (21.42 in)
Depth - 283 mm (11.14 in)
Weight - 9 kg (19.84 lbs)
Angles Up - Double wedge angle 45°
