CAD Equitek E300S Large Diaphragm Multi-Pattern Condenser Microphone
Product Description

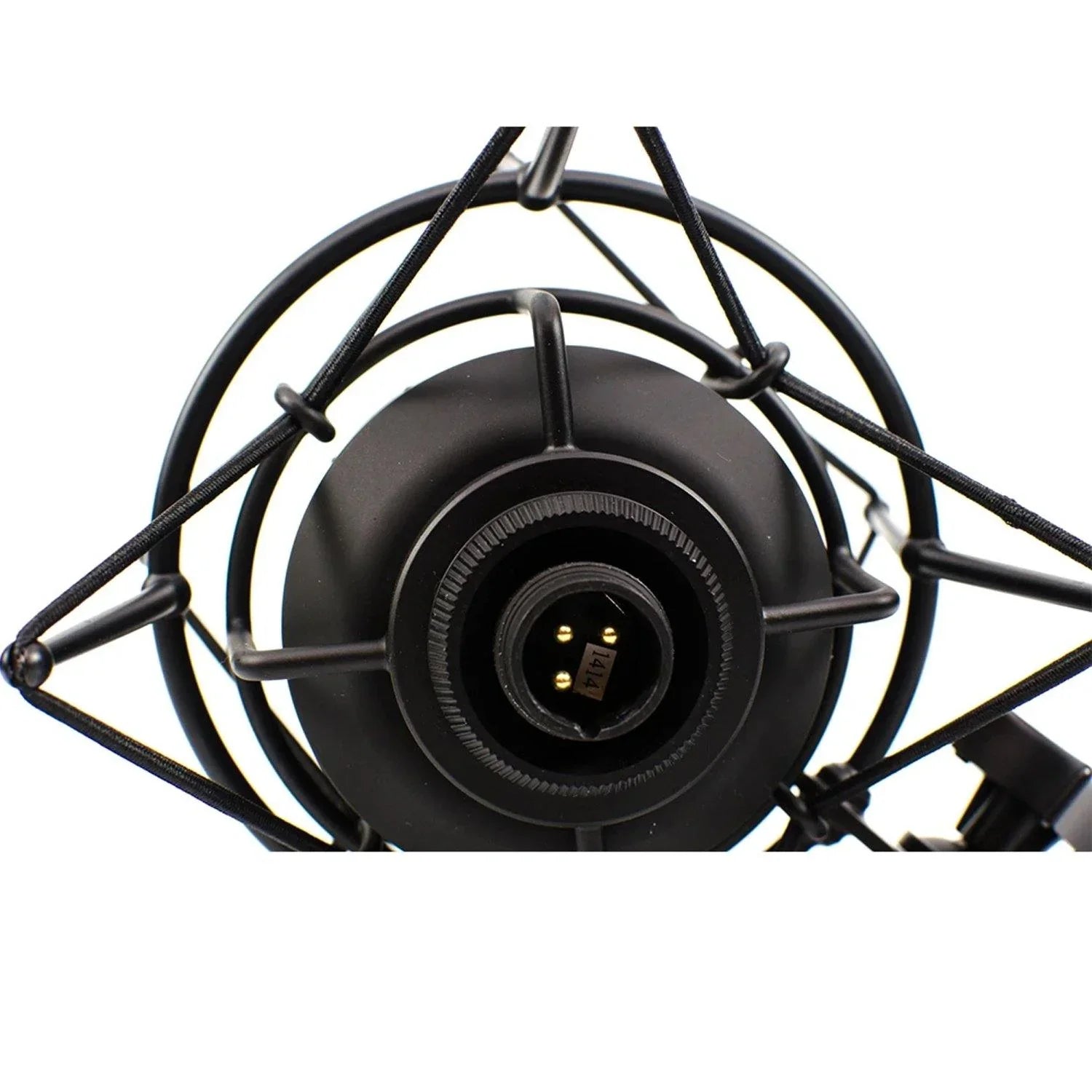

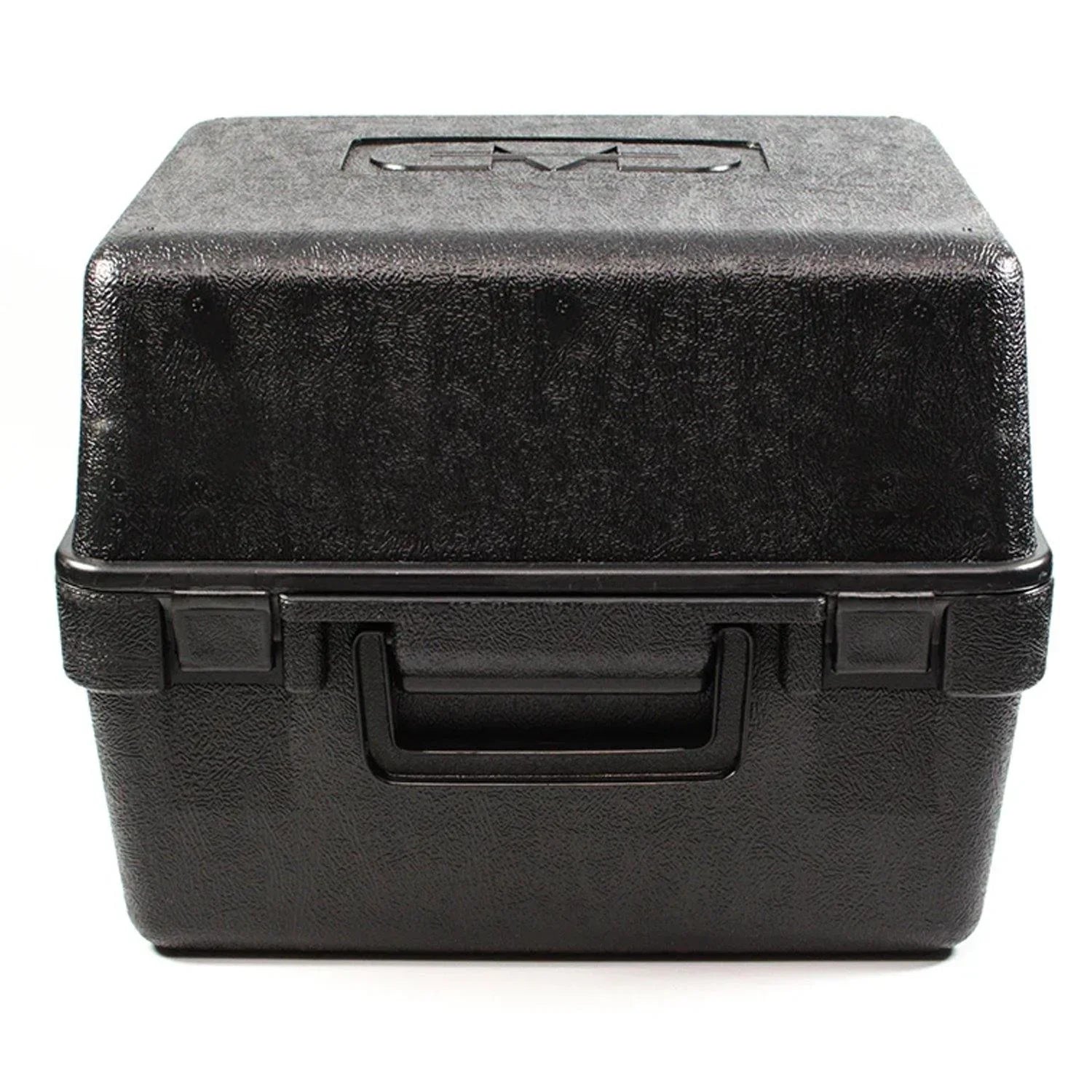

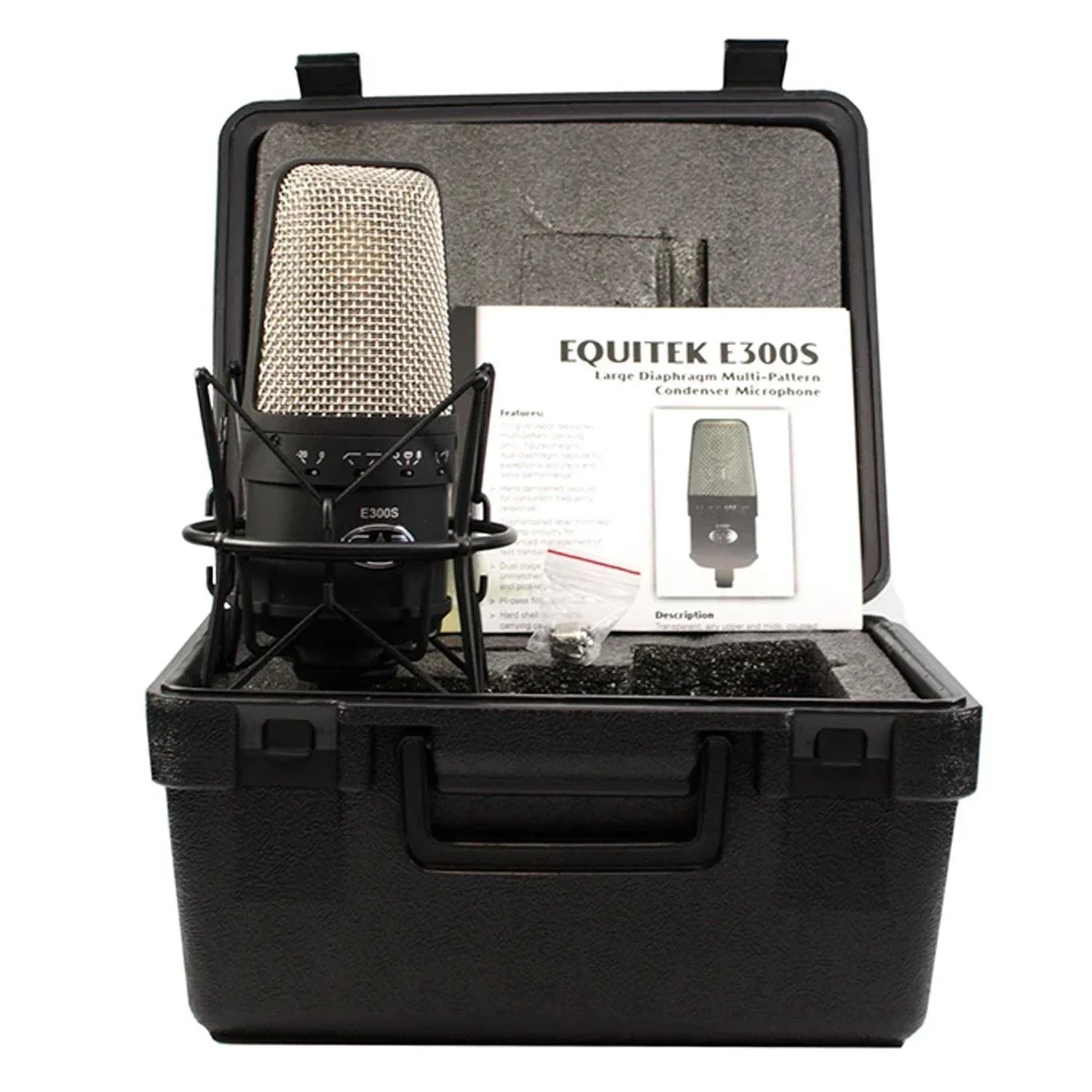

ransparent, airy highs and smooth mids, coupled with a rich, silky low end make the E300S one of our finest studio mics. The 1.1” 24K gold sputtered externally biased dual diaphragm condenser capsule is hand dampened by industry artisans for consistent frequency response. A regulated bypass voltage generator for precise output sensitivity, sophisticated laser trimmed op-amp circuitry and open capsule architecture make the E300S a revered classic studio microphone. Shock mount and carrying case included. P48
(48V) phantom power is required.
Specifications:
Operating Principal Externally-Biased Condenser
Polar Pattern Cardioid, Omnidirectional, Figure-of-Eight
Frequency Response 20Hz – 20KHz
Sensitivity -32dBV (20 mV) @ 1 Pa
Impedance 220 ohms
Max SPL 145dB
Self Noise 12 dBA

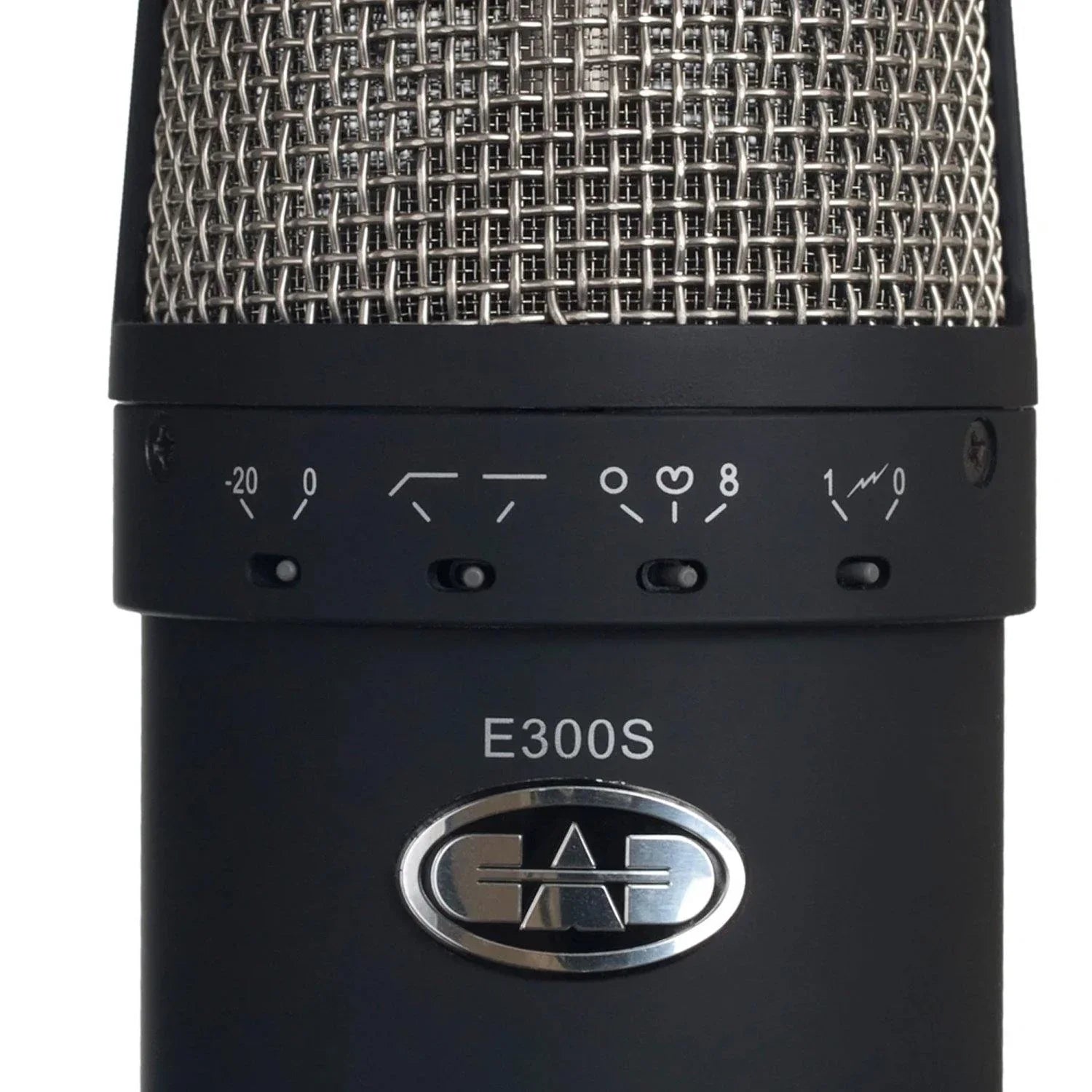

Hi-Pass 135Hz, 6dB/oct
Attenuator 20dB
Power Requirements P48, 8 mA
