Description

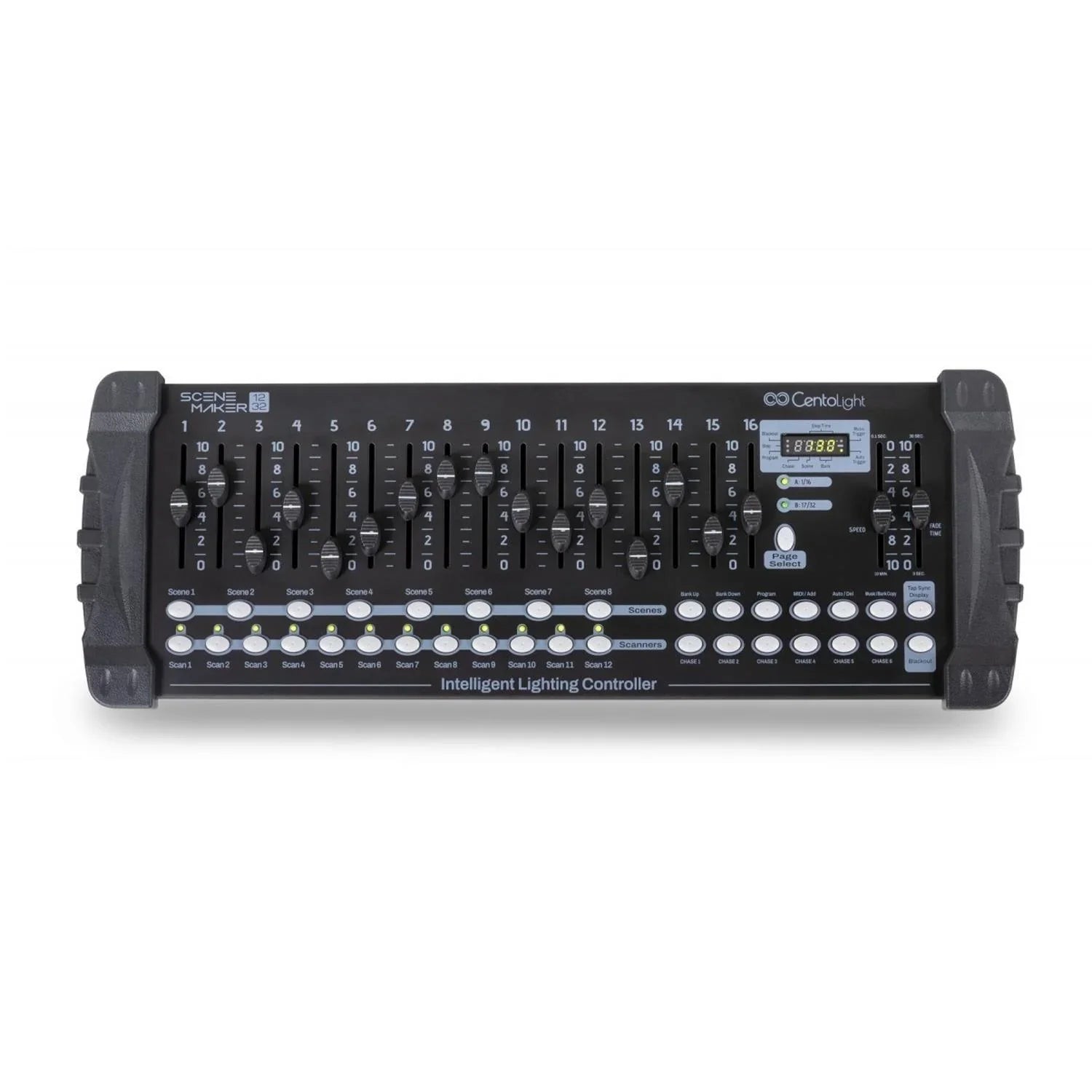

SCENEMAKER 1232 is a universal intelligent lighting controller. It allows you to manage up to 12 fixtures composed of 32 channels each (384 channels in total), and up to 240 programmable scenes. 6 chases can contain up to 240 steps composed by the saved scenes (the steps) and in any order. Programs can be triggered by music, MIDI, automatically or manually. On the surface you will find various programming tools such as 16 universal channel sliders, quick access scanner and scene buttons, and a LED display indicator for easier navigation of controls and menu functions.
12 Fixtures with 32 DMX Channels each; 384 Channels in total
30 banks of 8 programmable scenes, 240 scenes total
6 chases of 240 programmed scenes from 30 bank
Executes multiple chases simultaneously
16 Sliders for direct control of channels
Auto Mode controlled by Speed and Fade Time
Master Blackout
Built-in microphone for Music triggering

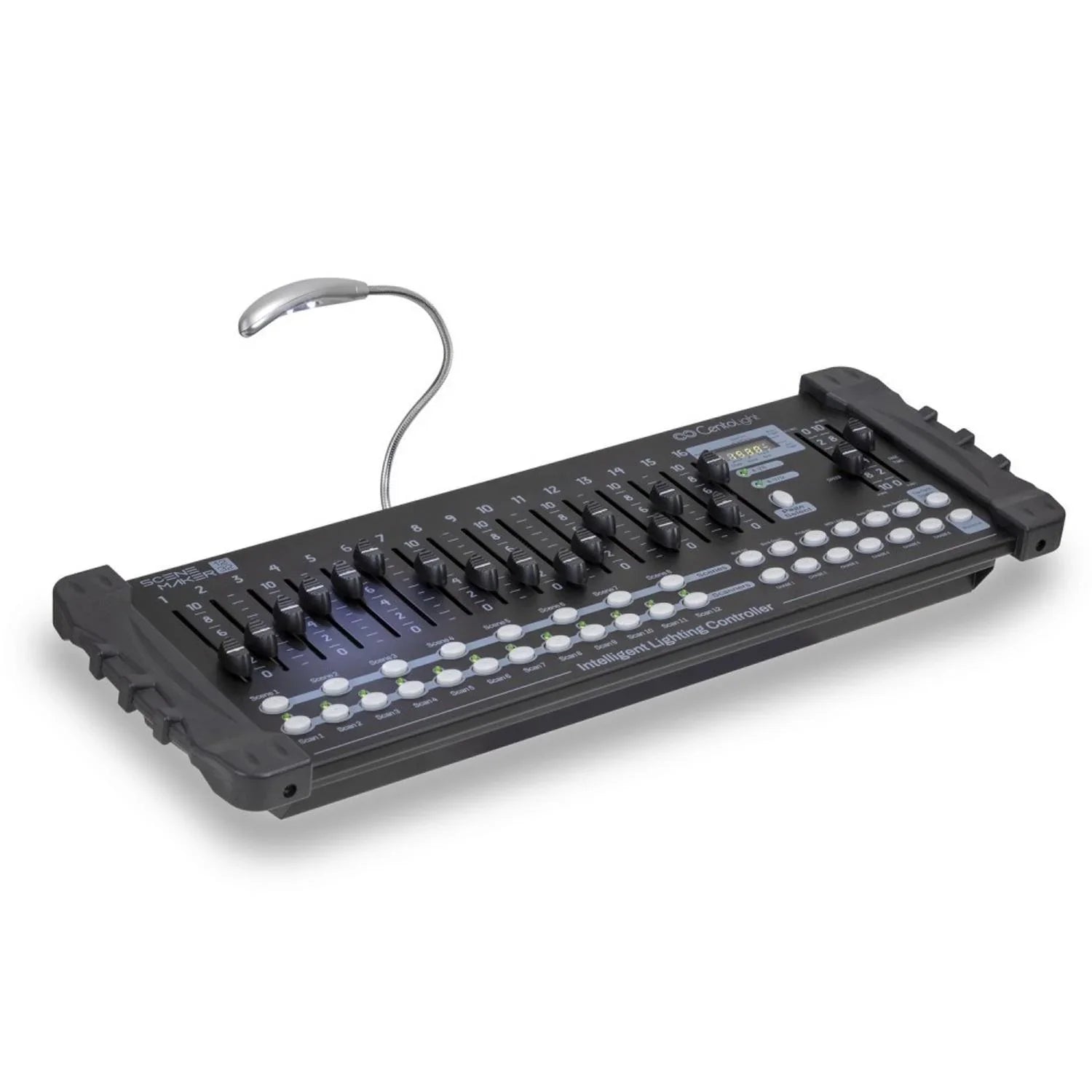

USB LED Goose-neck Lamp INCLUDED
LED Display for easy navigation of menus
MIDI control over banks, chases and Blackout
Plastic end housing
Power Supply: DC 9V-12V, 1000mA min.
USB Lamp: 5V - 200 mA max
Protocols: DMX-512 USITT
Data Input: locking 3-pin XLR male socket
Data Output: locking 3-pin XLR female socket
Data Pin Configuration: Pin 1 shield, Pin 2 (-), Pin 3 (+)
Controller Size (WxHxD): 520 x 73 x 183 mm
Net Weight 3.0 kg
Packing Dimension (WxHxD): 620 x 135 x 235 mm
Packing Gross Weight: 3.7 kg
