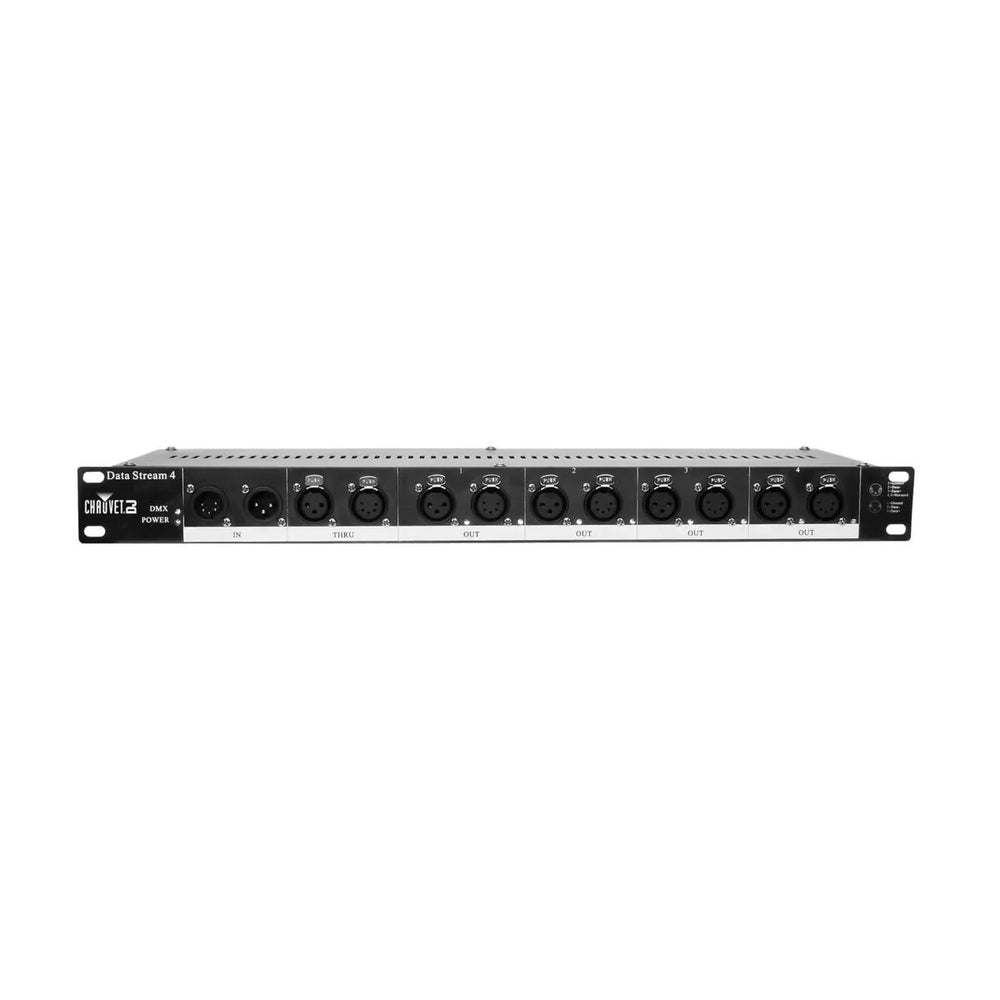

Chauvet DJ Data Stream 4 DMX Splitter
Product Description
Do you need to daisy chain your lights? Find it complicated? No worries. The Chauvet DJ Data Stream 4 is a universal DMX-512 optical splitter. Specifically designed for the sole purpose of distributing DMX signals into daisy chain configurations. It's all you need to create your lighting effect successfully and smoothly.
It doesn't matter what fixtures you're using. This DMX splitter fits both 3- and 5-pin XLR connections. Once you've plugged your device into the input, the DMX signal can be separated into four isolated outputs. Increase your operation of the splitter with its additional 3- and 5-pin 'thru' output for linking other Data Stream 4 units. Go big and bold with your set up. And it conveniently fits a 1U mounting rack for use with shorter cable runs, ideal for mobile entertainers.
What's Included
- Data Stream 4
- Power cord
- Warranty card
Features
- Universal, optical DMX splitter provides 4 outputs from a single input
- Increase flexibility with 3- and 5-pin XLR connections for each input/output
- Increase operation with additional 3- and 5-pin output for linking other Data Stream 4 units
- Electrical isolation between input and output
- Conveniently mount with a shorter cable run using the single space (1U) mounting rack
Specifications
- DMX Channels: 3- and 5-pin
- Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
- Power and Current: 3W, 0.1A @ 120V 60Hz 5W, 0.1A @ 230V 50Hz
- Weight: 5.8 lb (2.6 kg)
- Size: 19 x 5.3 x 1.8 in (483 x 134 x 46 mm)
- Approvals: CE
