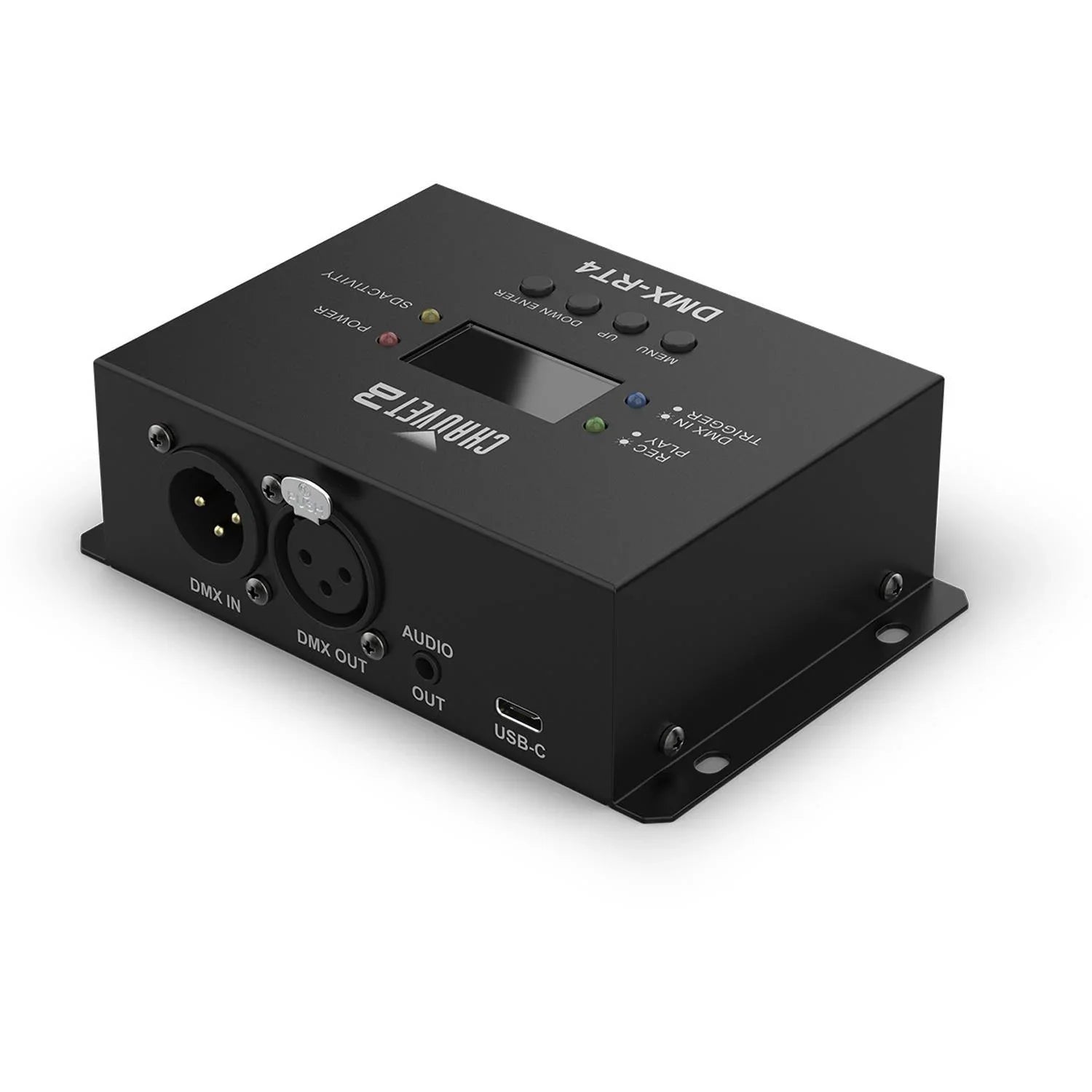

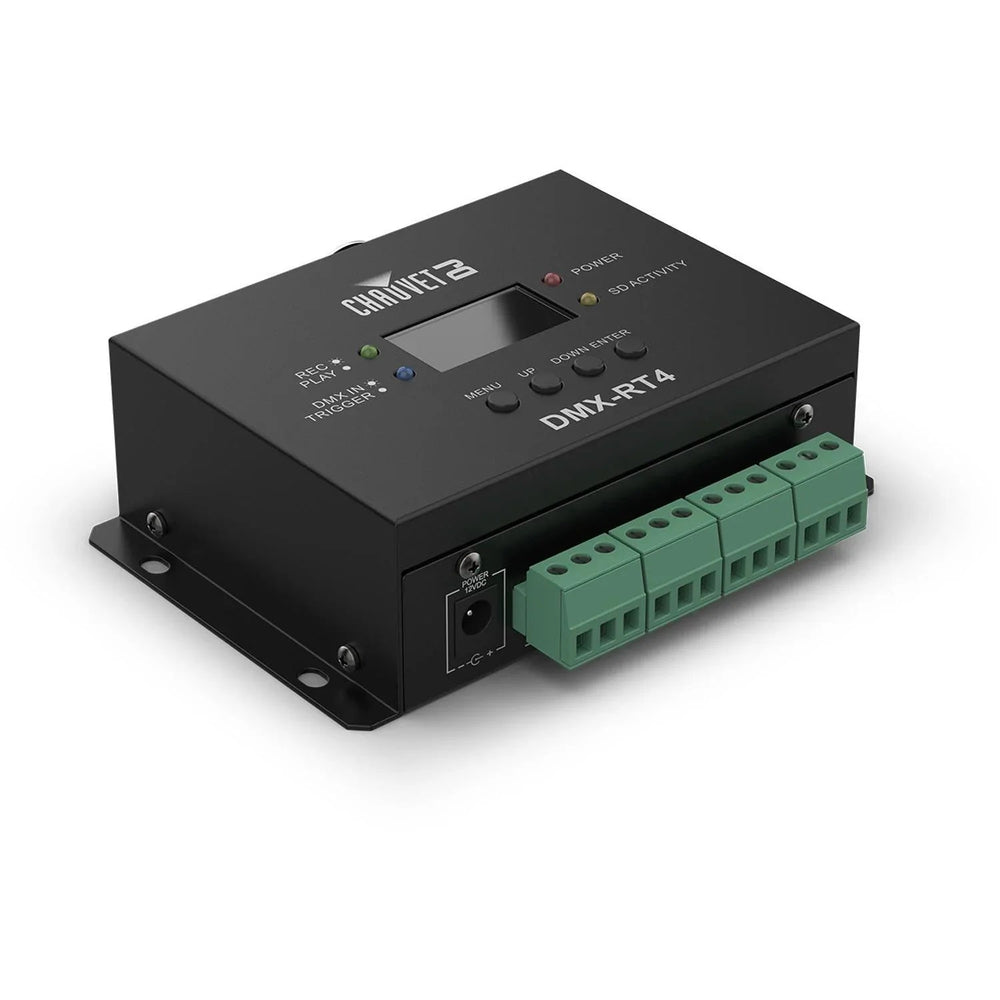

Chauvet DJ DMX-RT4 Recording and Playback Device with 4 x Triggers

Recording and playing back DMX programming has never been easier than with DMX-RT4. This robust DMX recording and playback device has 4 independent triggers for playback and each trigger can be programmed and activated separately. Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors. The USB-C connector lets you copy, backup and transfer show files while a standard 3.5mm headphone jack connects to external audio systems for amplified playback. Keep your creations safe and secure with password protection. DMX-RT4 also supplies DC voltage through terminal block to power specific triggers.

• DMX recording and playback device with 4 independent triggers
• Each trigger can be programmed and triggered separately
• Copy, backup and transfer show files using the USB-C connector
• Standard headphone connector (3.5mm) connects to external audio systems for amplified playback
• Password protection ensures shows will not be altered
• Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors
• Supplies DC voltage through terminal block to power specific triggers

• DMX Channels:  3-pin XLR
• Input Voltage:  12 VDC, 1 A (external power supply: 100 to 240 VAC, 50/60 Hz)
• Power and Current:
• 1 W, 0.03 A @ 120 V, 60 Hz
• 1 W, 0.03 A @ 230 V, 50 Hz
• Weight:  0.4 lb (0.2 kg)
• Size:  4.8 x 3.2 x 1.5 in (122 x 81 x 38 mm)
• Approvals:  CE, UKCA, RoHS
• Compatible audio formats:  MP3 (32-320kbps), WAV (8 or 16bit only)
• Onboard memory:  32 GB
• Filename max length (MP3/WAV):  12 characters
• Filename max length (show file):  11 characters
• Trigger Type:  auto, toggle, N/O or N/C
• Terminal Block output:  12 VDC, 100 mA
