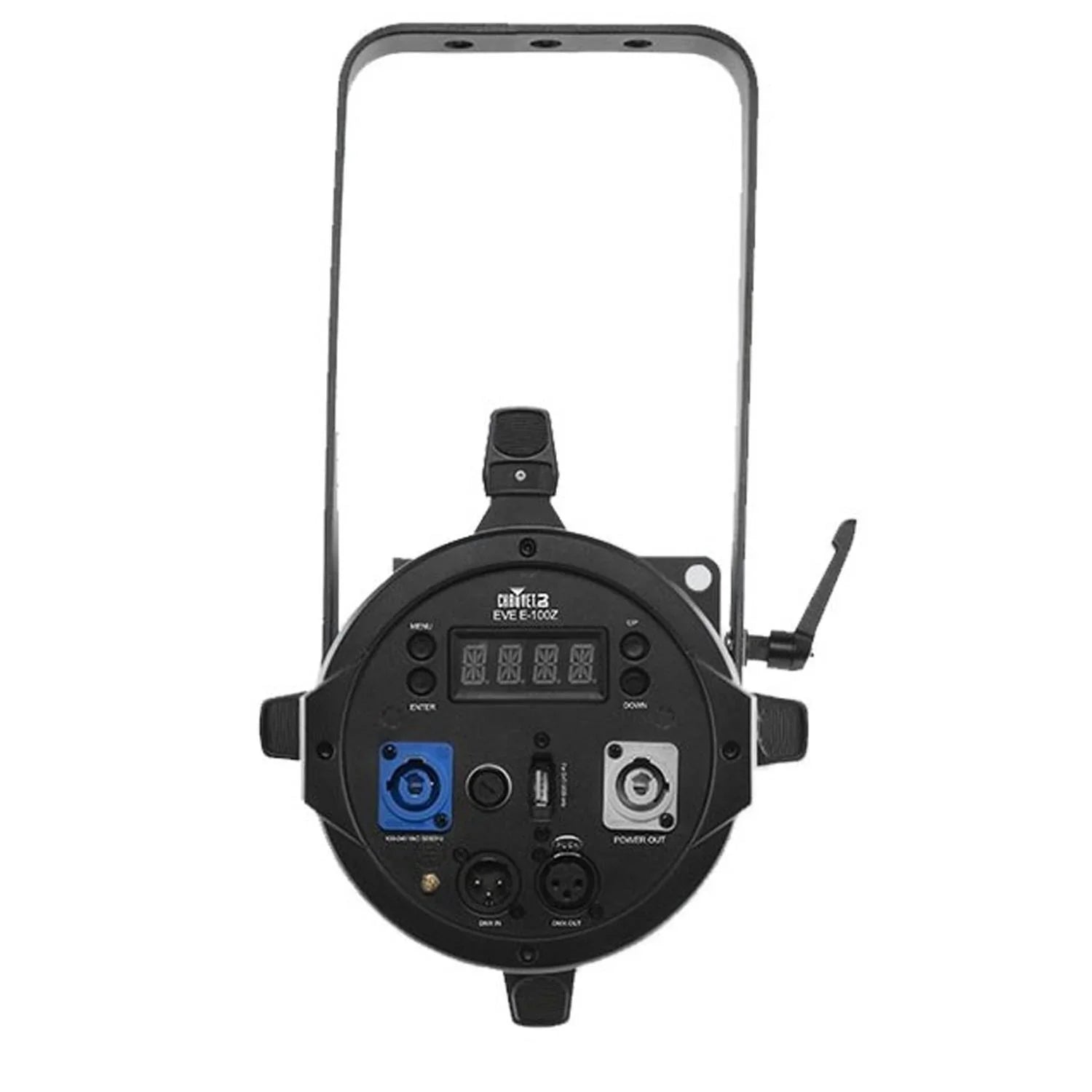

Chauvet DJ EVE E-100Z LED Ellipsoidal Spot Gobo Holder Proflie

EVE E-100Z is a powerful spot fixture featuring sharp pattern projection with a 100 W warm white LED light source. This versatile fixture works with metal or glass gobos to create incredible gobo or pattern details. The manual zoom and framing shutters make it simple to control beams.

• LED Ellipsoidal shines a hard-edged, warm white spot in any direction
• Easily highlight areas by altering the projected beam with framing shutters
• Flexibility to project from any distance using the manual zoom
• Includes holders for glass and steel gobos and a gel frame
• Save time running extension cords by power linking multiple units
• Eliminate the need for DMX control with standalone operation
• Colour Temperature: 3500K Warm White

General

• DMX Channels:  1 or 3
• DMX Connectors:  3-pin XLR
• Light Source:  1 LED 100 W (2.3 A), 50,000 hours life expectancy
• Colour Temperature: 3500K Warm White
• Strobe Rate:  0 to 30 Hz
• Illuminance:  (14°):  15,100 lux @ 2 m   |   (30°):  3,800 lux @ 2 m
• Power Linking:  9 units @ 120 V; 16 units @ 230 V
• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:  106 W, 0.9 A @ 120 V, 60 Hz   |   103 W, 0.5 A @ 230 V, 50 Hz
• Gobo Size:  M (66 mm outside, 48 mm image, 2 mm max thickness)
• Zoom Angle:  (manual):  14° to 30°

Physical & Dimensions

• Weight:  5.7 kg
• Size:  611 x 183 x 430 mm
• Approvals:  CE, MET

What's in the Box?

• EVE E-100Z Power cord
• Gel Frame
• Framing Shutters
• Gobo Holders for Glass and Steel Gobos
• Warranty card
